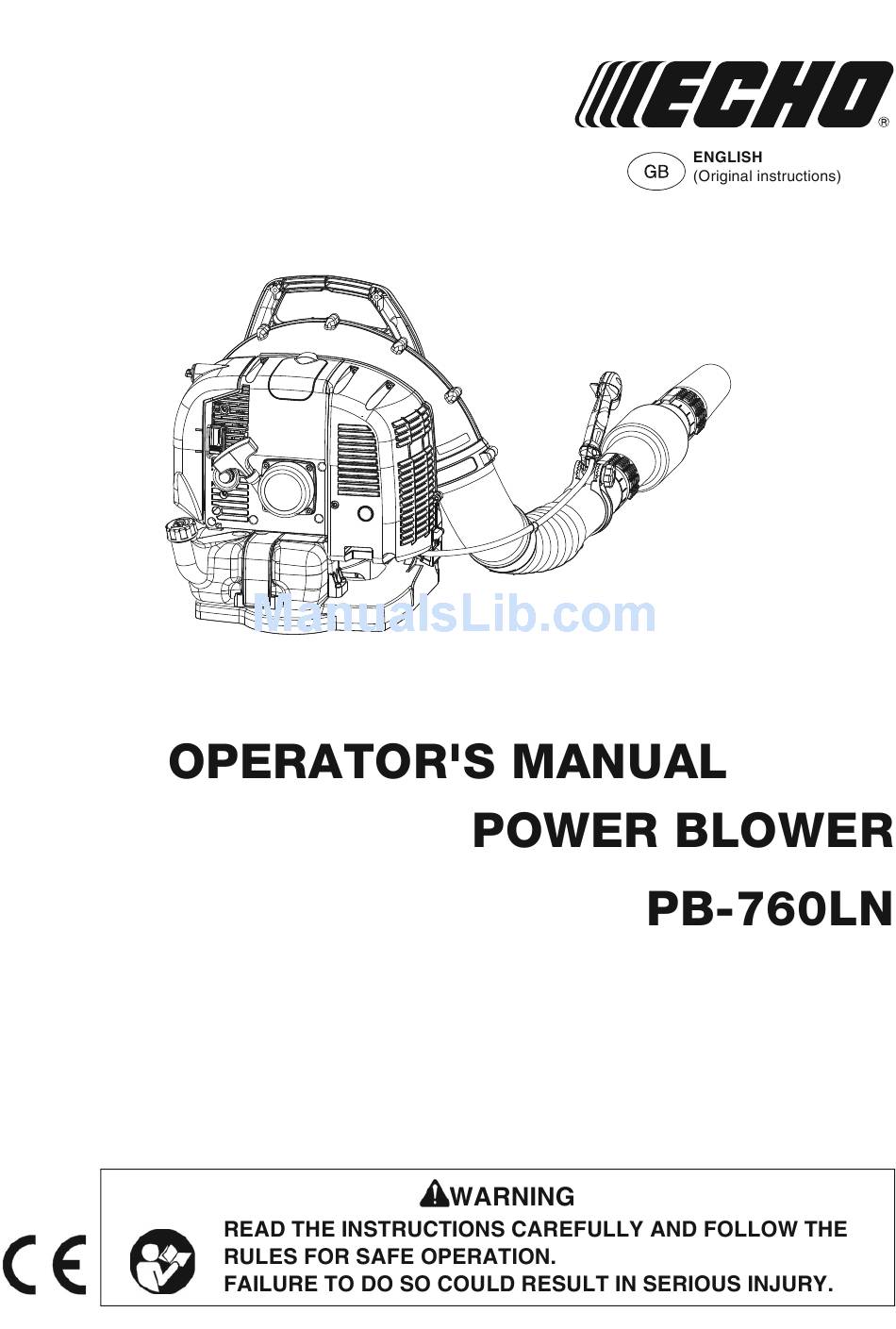

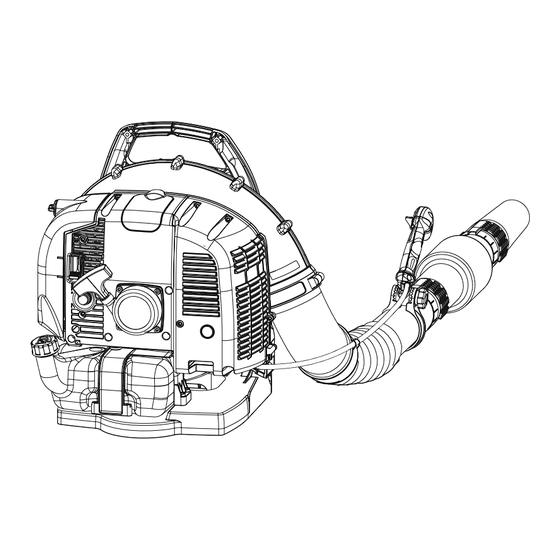

- Page 1 1T op cover...
-
Page 2: Important Information
Always keep your manual in a place where it is readily accessible. If you have lost your manual or it is damaged and no longer readable, please purchase a new one from your ECHO DEALER. -
Page 3: Table Of Contents
Contents For safe use of your product....................4 Warning notices ......................4 Other indicators ......................4 Symbols ......................... 4 Location in which the safety decal is attached............... 6 Handling fuel........................7 Handling the engine....................... 8 Handling the product ..................... 9 Packing list........................ -
Page 4: For Safe Use Of Your Product
For safe use of your product For safe use of you r product Be careful to read this section before using your product. The precautions described in this section contain important safety information. Please observe them carefully. You must also read the precautions that appear in the body of the manual itself. Text following a [diamond mark] mark describes the potential consequences of failing to observe the precaution. - Page 5 For safe use of your product Symbol form/shape Symbol description/applica- Symbol form/shape Symbol description/applica- tion tion Choke Control Do not use the product in plac- "Cold Start" es with poor ventilation Position (Choke Closed) Choke Control "Run" Beware of fire Position (Choke Open) Beware of electric shocks...
-
Page 6: Location In Which The Safety Decal Is Attached
If the decal becomes unreadable due to wear and tear or damage, or peels off and is lost, please purchase a replacement decal from your ECHO DEALER and attach it in the location shown in the illustrations below. Ensure that the decal is readable at all times. -
Page 7: Handling Fuel
If you do find fuel leaks or discharges, stop using the Tighten the fuel tank cap securely after refuelling. product immediately and contact your ECHO DEALER Fuel spills can cause fire and burns when ignited. to have it repaired. -
Page 8: Handling The Engine
Turn the engine off and do not attempt to check or main- once the engine starts. Do not use the product if there tain the product until the engine has cooled are abnormal vibrations or sounds. Contact your ECHO You could burn yourself. DEALER to have it repaired. -
Page 9: Handling The Product
For safe use of your product Handling the product General precautions WARNING Operator's manual Loaning or assigning your product Be careful to read the operator's manual When loaning your product to another party, ensure properly before using your product in or- that the person borrowing the product receives the op- der to ensure correct operation. - Page 10 For safe use of your product Precautions for use WARNING Users of the product Using the product The product should not be used by: When using the product, pay special attention to observe people who are tired the following precautions. people who have taken alcohol Do not allow people who are irrelevant to the work con- people who are on medication...
- Page 11 (RSI). Contact your ECHO DEALER for repair. To reduce the risk of RSI, do the following: Continuing to use parts when they are damaged could lead Avoid using your wrist in a bent, extended or twisted to an accident or serious injury.
-
Page 12: Packing List
Packing list Packing list The following parts are packed separately in the packing box. When you have unpacked the box, please check the parts that it contains. Contact your ECHO DEALER if anything is missing or broken. Number Part name Quantity... -
Page 13: Description
Description Description 1. Spark plug Provides spark to ignite fuel mixture. 10. Shoulder harness Used to support unit on operator's 2. Spark arrester - Catalytic silencer / Silencer The silenc- back. The straps are adjustable. er or catalytic silencer controls exhaust noise and emis- 11. -
Page 14: Before You Start
Before you start Befo re you start Assembly WARNING Read the operator's manual carefully to ensure that you assemble the product correctly. Never perform maintenance or assembly procedures with engine running. Using a product that has been incorrectly assembled could lead to an accident or serious injury. Install blower pipes Assemble clamp onto end with smaller diameter of flexible pipe. - Page 15 Before you start NOTE Blower use will eventually loosen pipe connections. Exclusive positive locking system allows pipes to be tightened. If loosen- ing occurs, remove straight pipe and round straight nozzle and install according to instructions 8 & 9. 1. Swivel pipe 2.
-
Page 16: Preparing The Fuel
If you do find fuel leaks or discharges, stop using the product immediately and contact your ECHO DEALER to have it repaired. If the fuel ignites, it could cause burns and fire. -
Page 17: Engine Operation
Engine operation Engine operation Starting the engine WARNING When starting the engine, observe the precautions described from Page 4 in the section "For safe use of your prod- uct" to ensure that you operate the product correctly. Failure to observe the precautions could cause an accident or injury, or even lead to a fatality. NOTE Pull out the starter grip gently at first, and then more rapidly. -
Page 18: Stopping The Engine
Move Throttle position lever all the way forward to (Stop) position. WARNING 1. Throttle position lever If engine does not stop when Throttle position lever is moved to STOP position, close choke - position- to stall engine. Have your ECHO dealer repair stop switch before using blower again. -
Page 19: Operation
Operation Operation Operating blower WARNING Always wear safety glasses, hearing protection, face filter mask and take all safety precautions or serious personal in- jury may result. Do not point the blower pipe in the direction of people or pets. IMPORTANT To avoid engine damage due to over revving, do not block blower pipe opening. -
Page 20: Cold Weather Operation
Operation Cold weather operation Install intake cover when you feel cold on your back. Remove back cushion from frame. 1. Back cushion Install intake cover on frame over air intake. Install back cushion to frame over intake cover. NOTE Blower performance may be reduced slightly. 1. -
Page 21: Maintenance And Care
Time intervals are maximum. Actual use and your experience will determine the frequency of required maintenance. Maintenance and care If you have any questions or problems, please contact your ECHO DEALER. Cleaning air filter Tools required: 25-50 mm (1-2 in.) Cleaning brush... - Page 22 Maintenance and care Replacing fuel filter Tools required: 200-250 mm (8-10 in.) length of wire with one end bent into a hook, clean rag, funnel, and an approved fuel container Parts required: Fuel line and filter DANGER Fuel is VERY flammable. Use extreme care when mixing, storing or handling.
- Page 23 Maintenance and care Cooling system maintenance IMPORTANT To maintain proper engine operating temperature, cooling air must pass freely through the cylinder fin area. This flow of air car- ries combustion heat away from the engine. Overheating and engine seizure can occur when: Air intakes are blocked, preventing cooling air from reaching the cylinder, Dust and grass build up on the out side of the cylinder.
-
Page 24: Exhaust System
Maintenance and care Exhaust system Spark Arrester Screen Tools required: Torx L-Wrench T27, Soft metal brush Parts required: Spark arrester screen, Gasket IMPORTANT Carbon deposits in silencer will cause a drop in engine output and overheating. Spark arrester screen must be checked peri- odically. - Page 25 Maintenance and care Check spark plug Tools required: T-Wrench, Feeler gauge Parts required: Spark plug IMPORTANT Use only NGK BPMR6Y spark plug otherwise severe engine damage may occur. Check plug gap. Correct gap is 0.6 mm to 0.7 mm. Inspect electrode for wear. Inspect insulator for oil or other deposits.
-
Page 26: Troubleshooting Table
ECHO DEALER. Do not attempt to dismantle the product. Consult your ECHO DEALER in the event of a problem that is not covered in the table above, or other such concerns. For spare parts and consumables, please use only genuine parts and designated products and components. Using parts from... -
Page 27: Long-Term Storage(30 Days Or More)
Fit the spark plug. (Do not connect the spark plug cap. ) Remove blower pipe assembly from unit. 1. Spark plug 2. Spark plug cap Please contact your ECHO DEALER in order to dispose of the product or its parts in compliance with national laws. -
Page 28: Specifications
Do not use fuel containing methyl alcohol or more than 10 % of ethyl alcohol. Two stroke, air-cooled engine oil. ISO-L-EGD Stand- ard (ISO/CD 13738), JASO FC,FD grade and ECHO Premium 50 : 1 oil. Ratio 50 : 1 (2%) -
Page 29: Declaration Of Conformity
OHME; TOKYO 198-8760 JAPAN This declaration of conformity is issued under the sole responsibility of the manufacturer. Declares that the hereunder specified new unit: POWER BLOWER Brand: ECHO Type: PB-760LN Assembled by: ECHO, INCORPORATED 400 Oakwood Road Lake Zurich, Illinois 60047-1564 U.S.A. - Page 30 1No tes a nd rear co ver 7-2 SUEHIROCHO 1-CHOME, OHME, TOKYO 198-8760, JAPAN PHONE: 81-428-32-6118. FAX: 81-428-32-6145. X753-006 17 0 Printed in Japan 0x0xxxx zzzz ES X753 112-510 6 © 2012...
