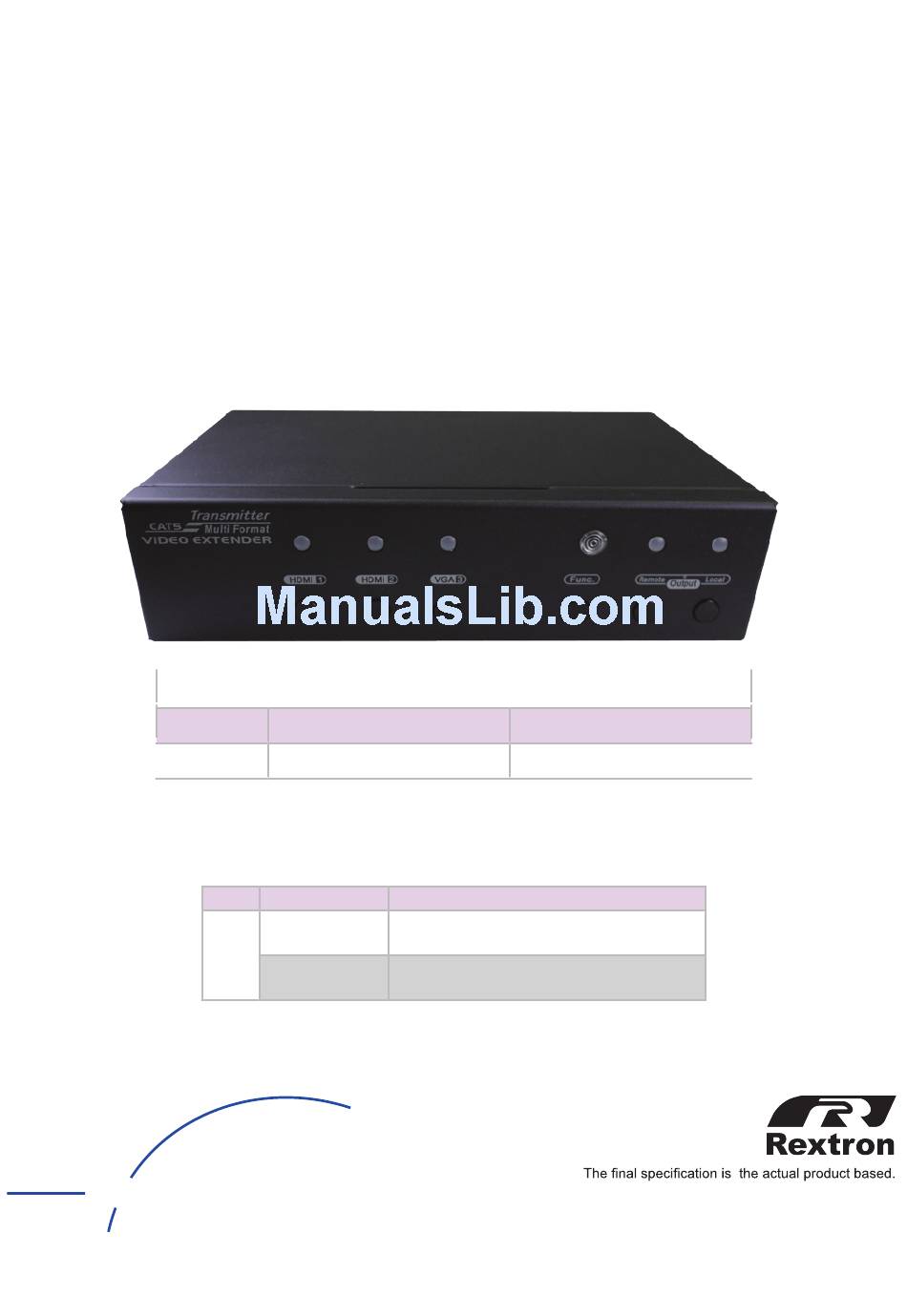

User's Manual
4K2K HDMI / VGA HDBaseT
electronic components GmbH
Maybachstrasse 39
73037 Göppingen
Transmitter over CAT5
with GUI, Serial & IR
Type
Tx
EVBMV-1391L
Related Products
Type
100M
EVBM-107R
EVBM-110R
Rx
EVBM-K107R
EVBM-K110R
E N
V
M E D I A T E C H N O L O G Y
Tel: +49 7161 60686 0 www.evn-components.de
Fax: +49 7161 60686 29 info@evn-components.de
100M
EVBMV-1371L
Function
CATx HDMI Receiver (Max. 4Kx2K)
CATx HDMI Receiver with Scaling
(Max. Full HD 1080p)
70M
◘
◘
Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
PP5-RHAA12Z-000
TM
RoHS
Advertisement
Table of Contents
Summary of Contents for Rextron EVBMV-1371L
- Page 1 User's Manual 4K2K HDMI / VGA HDBaseT Transmitter over CAT5 with GUI, Serial & IR Type 100M EVBMV-1391L EVBMV-1371L Related Products Type 100M Function EVBM-107R CATx HDMI Receiver (Max. 4Kx2K) EVBM-110R EVBM-K107R CATx HDMI Receiver with Scaling EVBM-K110R (Max. Full HD 1080p) ◘...
- Page 2 Features ● Transmit HDMI / VGA+audio signal over CATx cable of up to 70/100 meters ● Provide various ways to control via (1) Front panel push button (2) IR remote controller (3) Serial control-simple serial connection (4) GUI operation ● Use HDBaseTTM technology ●...
- Page 3 Rear Panel Grounding Connect to VGA + Analog stereo source I Input Port Connect to an HDMI source Ro Remote Output Port Connect to a receiver Lo Local Output Port Connect to an HDMI display S1 EDID Setting Switch See the diagram of EDID Setting Switch S2 EGO Setting Switch See the diagram of EGO Settinng Switch S3 Link Port Switch...
- Page 4 Front Panel 1 Input Port Button Source selection 2 Function Button 3 Input Port LED Please see LED Indicator (in User's Manual) 4 Output Port Button Turn ON / OFF Output Signal 5 Output Port LED Please see LED Indicator (in User's Manual) 6 IR Sensor IR remote controller sensor...
- Page 5 Transmitter Model EVBMV-1371L EVBMV-1391L HDMI x 2 Input VGA + Analog Stereo x 1 Output HDMI x 1 + Analog Stereo x 1 Connection RJ-45 x 1 LED Indicator Source x 3 (Power / Status) Remote x 1, Local x 1...
- Page 6 Rear Panel EDID Setting Switch Mode Video Audio Va). Aa). Auto Auto (Min.) Va). Ai). Auto Inventory Vi). Aa). Inventory Auto (Min.) Vi). Ai). Inventory Inventory Va). Video Auto Mixing: Automatically optimize all valid video outputs for minimum requirement Aa). Audio Auto Mixing: Automatically perform the minimum audio format of all attached displays Vi).
- Page 7 Link Port Switch Auto Power Saving: Automatically save energy when source or monitor connected failure Normal: Normal operation (up to 4K2K) Long Reach: Extend distance from 100M to 150M (up to Full HD 1080p) (EVBMV-1391L only) Installation WARNING ● Ensure that all devices are powered off before connecting to the Unit. ●...
- Page 8 Connection Pattern For more operations, such as EDID Setting, please refer to User's Manual (CD).
