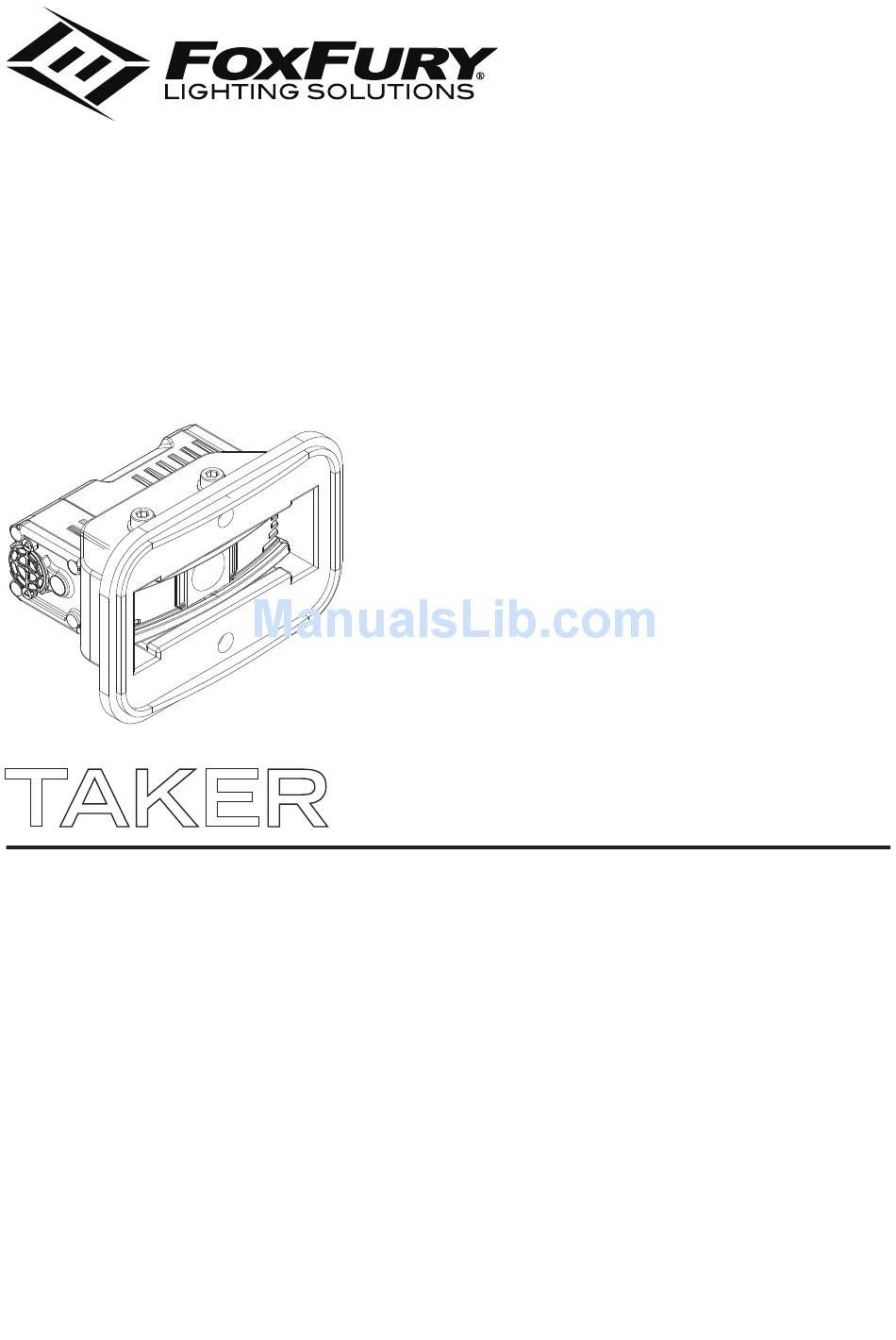

- Page 1 TAKER R40 700-331 PRODUCT MANUAL...
-
Page 2: Taker R40 Reference Guide
Physical Characteristics & Warnings SHROUD POWER/MODE SWITCH M6 BOL T POWER PACK HOLES (2) Charging the Power Pack Reassembling the Taker R40 after Charging Power Pack Life OPERATION Operational Modes SHIELD INSTALLATION Removing the Adaptor Shroud CHARGE INDICATOR CAPTURE ADAPTOR... -
Page 3: Charging The Power Pack
OVERVIEW CHARGING THE POWER PACK The Taker R40 is a compact and powerful LED Light, the first of its kind, which has the ability to be fastened to a riot or capture shield, held by hardware or with industrial-strength Reclosable fasteners. Mounted to the inside of the shield, it prevents the light from being grabbed by the opposing force, and gaining control of the shield. -
Page 4: Removing The Adaptor Shroud
REMOVING THE ADAPTOR SHROUD REASSEMBLING THE R40 AFTER CHARGING Install the Power Pack to the Light Head—confirm position of alignment posts to their respected cavities. Push both halves together. A ‘click’ should be heard as they become locked together. Test the light to make sure that the Power Pack is properly connected to the Light Head by pressing the Power/Mode Switch. - Page 5 RIOT SHIELD INSTALLATION RIOT SHIELD INSTALLATION INSTALLING THE R40 TO A RIOT SHIELD USING BOLTS INSTALLING THE R40 TO A RIOT SHIELD USING THE 3M RECLOSEABLE FASTENER ADAPTOR INCLUDED HARDWARE INCLUDED HARDWARE Bolts (2) M6 Bolts (2) Washers (2) Bolts (2) Nuts (2) Washers (8) Nuts (4)
-
Page 6: Capture Shield Installation
MAINTENANCE CAPTURE SHIELD INSTALLATION REPLACING THE O-RING (P/N 51-112) INCLUDED HARDWARE M6 Bolts (2) Bolts (2) Washers (8) Nuts (4) CAPTURE SHIELD Place the shield in “O”-RING FRONT of the R40. RETAINING TAB (The shield pictured is cut in half for this visual) Separate the Power Pack from the Light Head (follow steps 1–2 in the “Charging the Power Pack”... -
Page 7: Warranty And Other Information
OR USED IN STRICT ACCORDANCE SET FORTH HEREIN. TO THE WITH MANUFACTURER’S FoxFury, LLC is not responsible EXTENT THAT THIS LIMITED PRODUCT NAME: Taker R40 SPECIFICATIONS AND INSTRUCTION WARRANTY IS INCONSISTENT WITH for any injury or damage caused MODEL NUMBER: 700-331... - Page 8 FOR USE WITH THE TAKER R40 (P/N 700-331) INSTRUCTIONS INSTRUCTIONS: Use this template to drill the required holes for mounting the Taker R40 to a Use this template to drill the required holes for mounting riot shield. the Taker R40 to a Riot shield.
- Page 9 FOXFURY .COM 5/2017...
