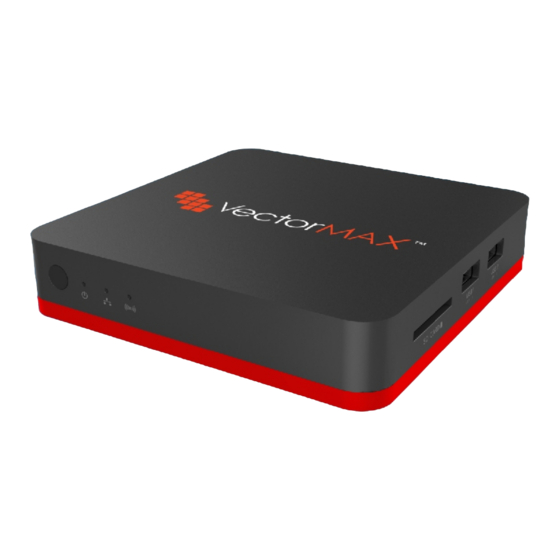

VECTORMAX A8E User Manual

VECTORMAX A8E User Manual

Hd smart terminal stb

Advertisement

Quick Links

User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the A8E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VECTORMAX A8E

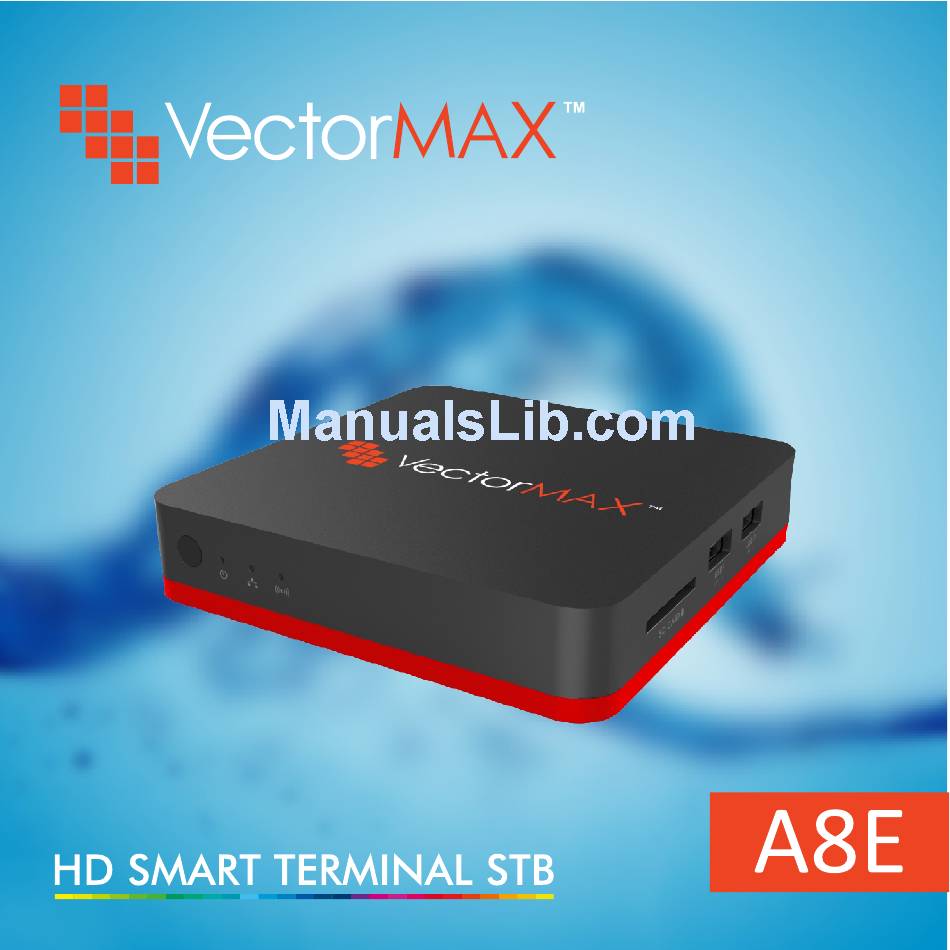

  • Page 1 User Manual...
  • Page 2 Content General information Main features For your safety Unpacking Front Panel Real Panel Installation System and activation Update Troubleshooting...
  • Page 3 General information Smart Internet TV is a high-end entertainment equipment of modern family life, which combines high-definition television, network television, local audio and video playback, entertainment, games, news, stock quotes, life service, multi-screen interactive functions into one, its depth customized TV operating system, a delicate UI design, personalized user experience and a wealth of boutique applications to meet your pursuit of high...
  • Page 4 General information Main Features Vmx player includes 67 Internet channels from multiple countries; Web browser and a multitude of applications; Support 1080p, with HDCP copy protection as well as PAL and NTSC that can switchover automatically; Video decoder supporting Dvix H.264 MPEG- 1/2/4(ASP) VC-1 WMV3 XviD...
  • Page 5 General information For Your Safety Keep the receiver away To avoid electric-shock from flower vases, tubs, hazards, do not open the sinks, etc., in order to avoid cabinet, refer servicing to damaging the equipment. qualified personnel only. Do not expose the receiver Do not block ventilation un-der the sunlight.
  • Page 6 General information Do not touch the receiver W h e n t h e a b n o r m a l during thunder, since that phenomenon occur, you might create electric-shock should cut off the power hazards. immediately. FCC STATEMENT 1.This device complies with Part 15 of the FCC Rules.
  • Page 7 General information This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 8 General information Unpacking User Manual 1. Receiver 5. HDMI cable 1 6. User manul 1 2. Remote Control 1 7. AV cable 1 3. AAA batteries 2 4. External power supply 1...
  • Page 9 General information Function Standby On/Off When watching a channel, mute the sound Enter number of the required menu item or select a channel number to watch BACK Switches back to previous channel Call up the EPG (Electronic Program Guide) Displays the favorite group list Switch to radio mode RADIO INFO...
  • Page 10 General information Function GAME Enter into games PROMO Cycle through additional language audio tracks LANG Cycle through subtitle tracks SUBTITLE ACCOUNT Enter into account settings Enter into some help pages HELP INTERACTIVE...
  • Page 11 General information Front Panel The picture is only for reference, please make the object as the standard.
  • Page 12 General information Rear Panel SD Card slot Connect to USB device Power On/Off Connect to power supply Connect to internet Connect to infrared receiver (optional) Connect to TV Set HDMI input Connect to AV convertor Connect to digital amplifier The picture is only for reference, please make the object as the standard.
  • Page 13 Installation Connecting to TV using AV cable AUDIO VIDEO The picture is only for reference, please make the object as the standard.
  • Page 14 Installation Connecting to TV using HDMI support HDMI The picture is only for reference, please make the object as the standard.
  • Page 15 Menu Operation System activation 1.Language setting Click the language button to choose between Spanish and English.
  • Page 16 Menu Operation 2.Ethernet connection Connect the Ethernet cable to the box. And in this step it will detect the connecting status and inform you.
  • Page 17 Menu Operation 3. Update: Keep your box with the latest version and enjoy the latest features. Turn to the system update item in settings. Here are two ways to update your box: 1. Upgrade by USB disk Insert a USB disk with the latest firmware, click your USB disk.
  • Page 18 Menu Operation Then choose Ok in this pop-up window:...
  • Page 19 Menu Operation 2. Upgrade by OTA Clicking “Check OTA upgrade” will upgrade system automatically.
  • Page 20 Menu Operation If the OTA update shows following message then you don't need to do update operation.
  • Page 21 Troubleshooting No power 1. Please check the main cable which is plugged into the power socket, when the light shows green which means is turned on and red means is on standby. 2. If there is still no power, please retry to plug into the power socket.
  • Page 22 Troubleshooting Blank Screen or Pictures showed abnormal 1. Please check whether the AV Cable or HDMI cable connected is fine. 2. Please check whether the input mode of system or TV is set up correctly. The RCU is not working 1.
