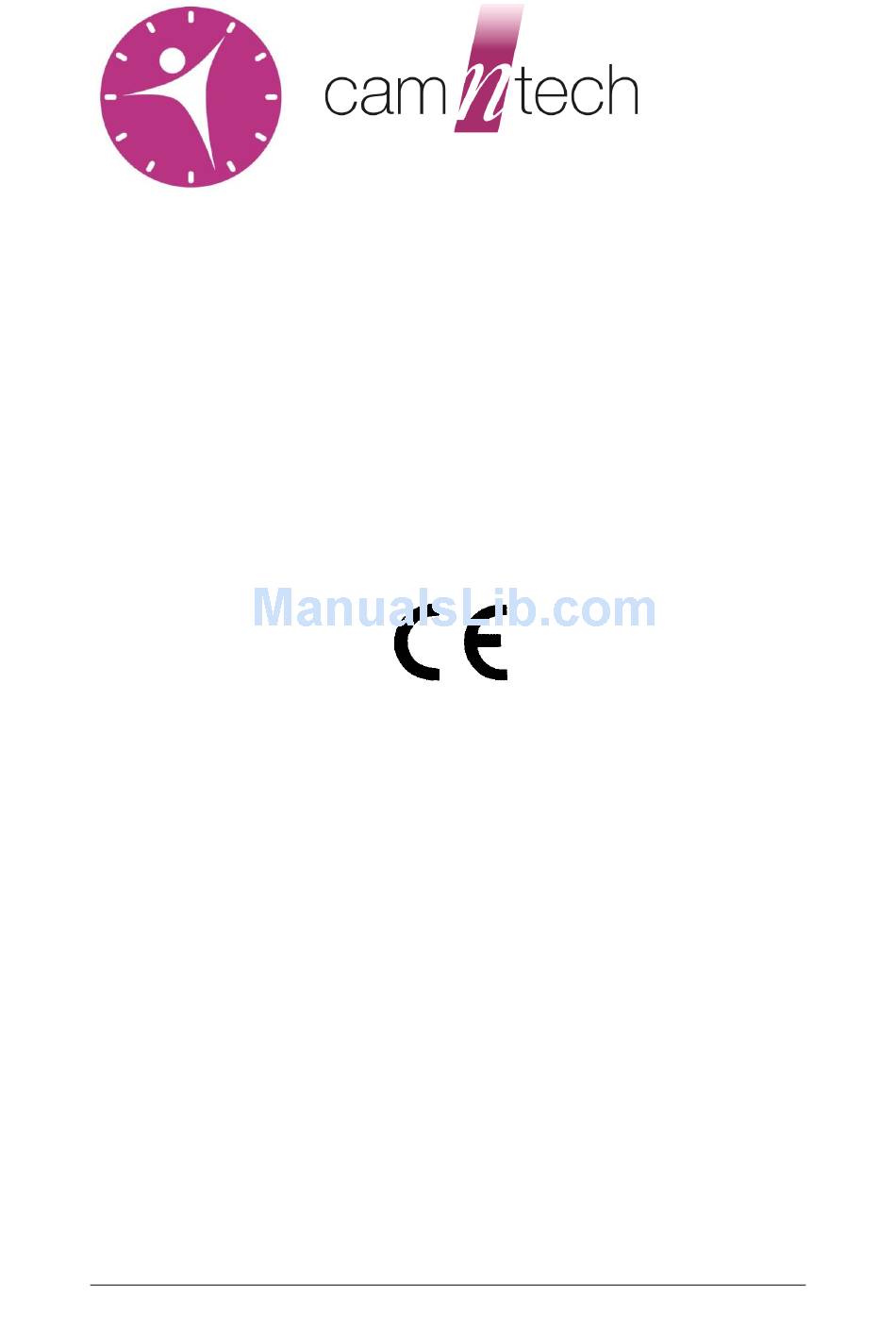

- Page 1 The MotionWatch 8 and MotionWare User Guide Document Reference: 30147 Version: 1.2.1 Date of current version: 30/03/2017 The MotionWatch is a Class I Medical Device (EU) Document revision history located at end of document MW8 & MotionWare User Guide: Issue 1.2.1...
- Page 2 ARTG with ref no: 219452 Australian Sponsor: Please note that the sponsor should be contacted ONLY to report adverse events – all sales and support issues must be directed to CamNtech in the UK. Emergo Australia Level 20...
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNINGS Coin cell battery – potential swallowing hazard for small children! Not Defibrillation proof. Not indicated for use on areas of broken or irritated skin. Devices removed from subjects must be considered to be contaminated –... -
Page 4: Table Of Contents
Contents IMPORTANT SAFETY INFORMATION ..............3 WARNINGS ....................... 3 Safety Classification Information: ............... 3 Device and Packaging Symbols and Markings: .......... 3 Introduction to the MotionWatch System ............8 1.1 An Overview of the MotionWatch System ..........8 Components Required for a System ............8 The MotionWatch .................. - Page 5 Downloading Data ..................23 4.1 MotionWatch Download ................23 4.2 Saving MotionWatch Data................ 23 4.3 Shutdown after Download ................ 24 4.4 Join Files ....................24 Preparing to Analyse Data ................25 5.1 Selecting Recent Recordings ..............25 5.2 Managing Recent Recordings ..............25 5.3 Browse for Recordings ................
- Page 6 7.2 Reference ....................42 7.3 Analysis ....................42 7.4 Non-Parametric Variables ................ 43 7.5 Exporting NPCRA Analysis Results ............44 7.6 Printing NPCRA Analysis Results ............44 7.7 Save NPCRA Analysis Period ..............44 24 Hour Average Plot ..................45 8.1 Select Data for Analysis ................
- Page 7 A1 - The Utilities Tab ..................65 A2 - Firmware Update ..................66 A3 - Shutdown Options ..................66 A4 - Test Watch....................67 A5 - Changing the Battery ................67 A6 - Waterproof Seal ..................68 A7 - MotionWatch Strap ................... 68 A8 –...
-
Page 8: Introduction To The Motionwatch System

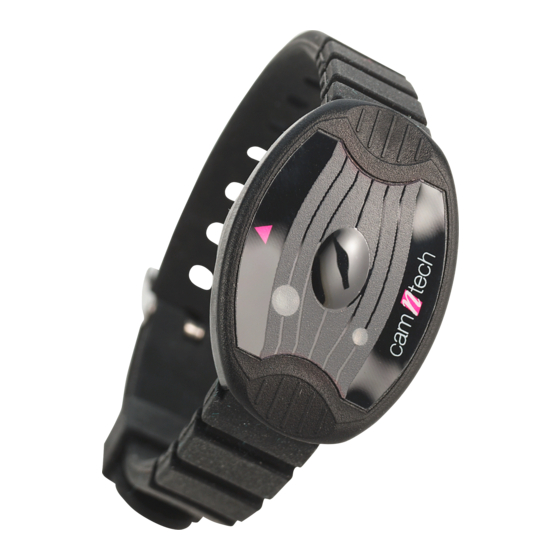

1 Introduction to the MotionWatch System 1.1 An Overview of the MotionWatch System The MotionWatch is a compact, lightweight, body-worn activity monitoring device that may be used to document physical movement associated with applications in physiological monitoring. The device is intended to monitor limb or body movements during daily living and sleep. -
Page 9: Opening The Motionwatch Casing
Opening the MotionWatch Casing The MotionWatch utilises a novel ‘twist-lock’ casing which provides a waterproof seal for the electronics and USB connection while facilitating easy access to the battery. To open the casing, grasp the front of the watch by the two finger grips and rotate anti-clockwise by approximately... -
Page 10: Closing The Motionwatch Casing
When the MotionWatch is connected for the first time, the USB drivers will automatically be installed (see Section 2.4 Installing the USB Drivers). Closing the MotionWatch Casing The casing must be closed with the parts correctly aligned. To aid with alignment, coloured indicators have been provided as shown in the figure below: Alignment Indicators With the indicators aligned, drop the top part of the casing... -
Page 11: Required Skills, Training & Knowledge Of Intended Users
occurs, remove the watch and do not wear it for 2-3 days to allow the irritation to clear. 1.4 Required Skills, Training & Knowledge of Intended Users It is intended that the device be administered only by duly qualified health care professionals, researchers and or trained nursing staff, possibly in a hospital environment. -
Page 12: Installing The Motionware Software
2 Installing the MotionWare Software 2.1 System Requirements The MotionWare software is supplied on a CD-ROM or USB Memory Stick containing all of the components required to install the software package. The following are the minimum requirements of a host PC for installing the MotionWatch software: ... -
Page 13: Updating The Software
the software in the default location. The operation of this software on a remote server is not guaranteed as network settings vary considerably. The MotionWare software requires the Microsoft .Net Framework to be installed; the installation wizard will check and install this if required. This may result in a protracted installation procedure. -
Page 14: Software Serial Number
If you do not already have a serial number you will need to register the software. Click the ‘Get Serial Number’ button to link to the CamNtech website and register the software (note: you will need the reference number supplied on the CD or media). -
Page 15: Motionware Settings
2.7 MotionWare Settings Click on the Settings button on the start-up screen to open the MotionWare settings Window: View or Enter Software Serial Number Click this button to open the serial number entry window, section 2.5 above Set Institution Name You may also choose to enter an institution name in the settings window, which will then be included near the top of all printed reports. -
Page 16: Default Action For Recent Items
Default Action for Recent items Choose whether to open the data with either Sleep analysis or Daytime Activity Analysis upon double click in the recent items list. Automatically show the MotionWatch Manager… Controls whether or not to automatically show the MotionWatch Manager Window when a MotionWatch is connected to the computer. -
Page 17: Automatically Check For Updates
Click the Yes button to start the download. This will produce the following window: When the download has completed, click the Exit & Run Update button to close the application and initiate the installer. Automatically Check for Updates Tick this checkbox if you would like the application to automatically check for new versions once a day. -
Page 18: The Motionwatch Manager
3 The MotionWatch Manager 3.1 MotionWatch Current Set-up With the MotionWare Software already started, connect a MotionWatch to the USB cable; the watch will automatically be detected and the ‘MotionWatch Manager’ screen will be displayed as shown below: CURRENT SETUP INFORMATION Details of the current set-up stored in the MotionWatch. -
Page 19: Applying A New Set-Up
3.2 Applying a New Set-up Click the ‘Setup Watch’ button, the new setup tab is activated and the settings may now be edited: User ID: Enter characters to identify the subject/patient/study. Full Name: [optional] Enter characters to identify the patient/study. Note that the maximum length is 64 characters shared between user ID and Full Name. -
Page 20: Recording Mode
Recording Mode The MotionWatch offers the following recording modes: MotionWatch Mode 1 – This is an epoch based recording mode designed to produce similar behaviour to legacy Actiwatch and similar products, using a single axis algorithm and peak detection. ... -
Page 21: Battery Life Gauge
all affect the maximum recording length. The following table summarises the (rounded) recording lengths for each setting. Recording lengths for MotionWatch Mode Epoch Activity Activity & Activity (Seconds) Only (days) Light (days) Compressed* *see below for details of data compression Note that for Tri-Axial Mode, the maximum recording time is limited to 90 days due to battery life. -
Page 22: Battery Life
Battery Life The MotionWatch uses a standard non-rechargeable CR2032 coin cell which is easily replaced by the user (Appendix A5 - Changing the Battery). The MotionWatch incorporates smart battery monitoring to measure actual device usage and battery voltage to calculate an expected life remaining. -
Page 23: Downloading Data
4 Downloading Data 4.1 MotionWatch Download From the MotionWatch Manager Window click on the ‘Read Data’ button. The download will begin and the progress notification will be displayed… If the data download is not required, click the cancel button and the operation will be aborted. When the all data has downloaded (full memory will take less than 1 minute) the ‘Save Recording…’... -
Page 24: Shutdown After Download
the ‘Save’ button. The file will be saved in the default *.MTN format. If you do not wish to save the file, click the ‘Cancel’ button to return to the MotionWatch Manager. Note that the MotionWatch Manager will not automatically close when the MotionWatch is disconnected if data has been downloaded and not saved. -
Page 25: Preparing To Analyse Data
5 Preparing to Analyse Data 5.1 Selecting Recent Recordings When data is saved following download, the file automatically appears in the ‘Recent Recordings’ list on the front screen of the software. The recent recordings list provides a quick access method to the most recently opened or downloaded files. -
Page 26: Browse For Recordings
5.4 Import Legacy Recordings As certain legacy products (such as CamNtech Actiwatch) used an open file format, it is possible to import existing .AWD format files. To import a legacy file, follow the instructions to browse for a file in Section 5.3 above and then change the file-type filter to ‘Actiwatch (*.AWD)’:... - Page 27 .csv format and then use the csv import utility to re- save the data in compatible format (see Appendix E1 – CSV Import Utility). MW8 & MotionWare User Guide: Issue 1.2.1 Page 27...
-
Page 28: The Motionwise Window
5.5 The MotionWise Window When a recording is opened the MotionWise window is displayed: The MotionWise window provides a multiple-day, single or double plotted motion graph (actogram) within a flexible, scalable and scrollable window. The MotionWise window is the key tool for the selection of data for more detailed analysis. -
Page 29: The Motionwise Graphs
5.6 The MotionWise Graphs For each day containing data, a graph similar to that shown below will be displayed. Light Plot Event Marker No Data (Yellow) (Blue) (Grey) Reduce Reduce Activity Light Scale Scale Increase Increase Light Activity Scale Scale Activity Plot (Black) 5.7 MotionWise... -
Page 30: Row Height
Row Height Using this slider, you can adjust the heights of each row of the Actogram to show lots of detail on each graph, or very compressed rows to present a longer time period onscreen. Note that the range available here depends on the setting of the ‘Horizontal scale’... -
Page 31: Select Any
Select Any The ‘Select Any’ option provides a flexible means of selecting any analysis period between your chosen start and end points. In the MotionWise window, choose the period of data for analysis by pointing at the start point, hold down the left mouse button and then drag to select the period required. -
Page 32: Editing Data
5.11 Editing Data It is possible to edit periods where there is believed to be some problem with the recorded data to change or remove the activity during that period. This may be necessary where for example the watch was not worn for a period, or where it is believed an activity gave particularly misleading activity counts for analysis purposes. -
Page 33: Generating Reports
the 24-hour period between midnights which contains the start time of the edit. Original data – because all of the data and changes are contained as an audit log within the motion file, this option allows you to restore the original values first recorded before any edit took place. -
Page 34: Transpose Table
Transpose Table Select this sub-option to swap the row/column layout of the report. Copy with Rounded, Formatted Values This sub-option applies to data exported via the clipboard only. When selected, the results will contain rounded values with periods formatted as hours and minutes. When un-selected, the results will be exported as un-rounded values and periods will be formatted in seconds. -
Page 35: Print
The print preview window has a number of formatting and zoom options. There is also a ‘Print’ button in the menu to allow printing without the need to close the window. Print Having selected the required report options, click the ‘Print’ button to send the report to the printer. -
Page 36: Restore Original Download
settings of the computer (typically add or remove 1 hour of data at 2am.) This can be undone – see 5.14 below. Select ‘No’ to ignore the daylight saving adjustment (Adjustment can be applied later if required) It is possible to apply the daylight saving adjustment by clicking on the ‘Tools’... -
Page 37: Sleep Analysis
6 Sleep Analysis 6.1 Introduction The Sleep analysis function is designed to provide a number of objective sleep measures from overnight actigraphy data. It can be easily applied either to normal overnight periods, or used to examine any sleep period from an altered phase recording such as a shift worker. - Page 38 and use these results to provide a number of measures from the period. These are described below: The total elapsed time between the ‘Lights Time in bed: Out’ and ‘Got Up’ times. The total elapsed time between the ‘Fell Assumed sleep: Asleep’...
-
Page 39: Saving Or Removing Analysis Statistics
Total activity score: The total of all the activity counts during the assumed sleep period. Mean activity /epoch: The total activity score divided by the number of epochs in the assumed sleep period. Note that this result will be expected to scale depending on the length of the epoch. -
Page 40: Exporting Sleep Analysis Results
6.5 Exporting Sleep Analysis Results The ‘Copy Results’ button and ‘Epoch Results’ or ‘Statistics’ options will allow you to transfer either the detailed epoch-by-epoch results or the overall statistics easily into a spreadsheet program or similar. Simply click the button, transfer to a spreadsheet window on your computer, and use the normal Windows paste function to create a table of your results. - Page 41 Analysis. This will perform the analysis on the visible data. After checking the data and results for any anomalies, you must then re-save the sleep period to capture the night’s results for the report output. MW8 & MotionWare User Guide: Issue 1.2.1 Page 41...
-
Page 42: Npcra Analysis
7 NPCRA Analysis 7.1 Introduction Traditional analysis of circadian rhythms has attempted to fit physiological indicators to a Cosine waveform shape (Cosinor analysis). Activity-rest data do not typically fit well with this type of analysis, hence the MotionWare software provides the function of Non-Parametric Circadian Rhythm Analysis (NPCRA). -
Page 43: Non-Parametric Variables
7.4 Non- Parametric Variables The NPCRA window provides a table of resulting Non- Parametric variables with the following meanings: IS (Interdaily Stability): quantifies the degree of regularity in the Activity-Rest pattern with a range of 0 to 1 where a value of 0 indicates a total lack of rhythm and a value of 1 indicates a perfectly stable rhythm. -
Page 44: Exporting Npcra Analysis Results
M10 Start Hour: Indicates the onset of the M10 sequence and provides an indication of the phase of the most active hours. RA (Relative Amplitude): First we calculate the Amplitude (AMP) which is the difference between the average activity level in the M10 and that in the L5 periods. To remove sensitivity to overall activity level, we then calculate the RA by dividing the AMP by the sum of the L5 and M10. -
Page 45: 24 Hour Average Plot
8 24 Hour Average Plot 8.1 Select Data for Analysis From the MotionWise window, use the ‘select days’ option to choose a range of days or use the ‘select all’ option to analyze all days. The analysis window will open automatically;... -
Page 46: Nap Analysis
9 Nap Analysis 9.1 Overview The Nap analysis function allows detection of periods of inactivity that could be attributed to daytime napping or micro-sleeps. The function provides user adjustable parameters for duration and threshold to detect the potential naps. 9.2 Select Data for Analysis From the MotionWise window, use the ‘select any’... -
Page 47: Select Max Nap Length
9.5 Select Max Nap Length Set the maximum period of inactivity required to be scored as a nap. The value should be typed in the format hh:mm:ss. Periods longer than the selected value will not be scored as a nap period. 9.6 Analysis Results The analysis window will show the number of potential... -
Page 48: Day Activity Analysis
10 Day Activity Analysis 10.1 Overview The day activity analysis function provides an overview and summary of the activity levels of the wearer during the daytime. It is intended to assist in monitoring of the amount of time spent active on a daily or weekly basis, and the approximate intensity of that activity. -
Page 49: Selecting Days
Selecting Days To select which day of the recording to view, note the sequence of small day graphs across the top of the Day Analysis window. You can click on any of these to view that day in more detail below. You can also scroll this selection to view more days later in the recording. -
Page 50: Set Calibration
Empty Time The total amount of time when the recording did not take place – such as at the start or end of the recording (for example the difference between 00:00 and the start time or the end time and 24:00). - Page 51 counts are within an acceptable range. These can be selected as alternative calibration values but they may not reflect the values of a brisk walk and should be used with caution. Calibration periods can also be selected manually by dragging the mouse cursor over a period on the activity graph, or by entering fixed values in the thresholds fields [4].
- Page 52 Definition Physical activity includes everyday activity such as walking and cycling to get from A to B, work-related activity, housework, DIY and gardening. It also includes recreational activities such as working out in a gym, dancing, or playing active games, as well as organised and competitive sport. (See the Chief Medical Officers' [CMOs'] report.) National recommendations...
-
Page 53: Weekly Summary
10.4 Weekly Summary The Weekly Summary window can be opened through the Tools menu of the Day Analysis window. It shows a graph of the wearer’s activity levels over a single week at once: Selecting a Week The available weeks can be scrolled through in the first graphic of the Weekly Summary window. -
Page 54: Weekly Summary Totals
day of the selected week. You can see both how the time each day compares to the target time illustrated by the black line, and how it varies across the week. For instance, the graphic above clearly shows that whilst the target for moderate activity was missed during most of the week, the wearer was then very active on Saturday. -
Page 55: Totals & Averages
10.5 Totals & Averages The Totals & Averages window can be opened through the Tools menu of the Day Analysis window. This window is designed to illustrate the variation of activity over the full length of the recording. The upper graph shows the changes between weeks, and the lower graph shows the average variation within weeks. - Page 56 the recording. This shows up any variation caused by weekly patterns of behaviour. In the example shown the wearer is clearly far more active on Saturday than on an average weekday, but there is more variation within those also. Note that both graphs can be affected by the View and Options menus.
-
Page 57: Cloud Data Management (Cdm)
All data is encrypted using the encryption keys created at your HQ management site, and is completely secure when distributed from Branch to Cloud to HQ. Note: CamNtech has no access to your raw data or encryption keys at any time. 11.2 HQ /... -
Page 58: Enter Login Information
If you lose the encryption keys, you will lose access to all of your data encrypted with them. CamNtech will not be able to help you read your encrypted data – we do not have copies of your keys. -
Page 59: Sync Folder
Enter all of the fields and click on the Save button. This will allow the software to connect to the data server as necessary. Sync Folder You must also select a folder for the software to store data on the HQ computer. Click on HQ Configuration Set Local Sync Folder in the menu to do so. -
Page 60: Branch Configuration File
These recordings can be opened by selecting them in the recordings list and clicking the Sleep Analysis / Day Analysis options. 11.4 Branch Configuration File A configuration file is used to automatically configure your branch computer(s) to sync recordings with the cloud. The configuration file is created by your HQ site computer and contains information such as login details and public encryption key. - Page 61 Overview of fields: Site Name: provide a name for the site which the configuration file will be used on. Site Code: provide a site code used to identify the site’s recordings when data is synchronised with the HQ site. Recordings Folder Location: this is location of the Recordings Folder Name (see below) on the branch computer where the encrypted recordings will be stored after they have been downloaded from a MotionWatch.
-
Page 62: Branch Site Computer Configuration
At this stage, you should transfer the configuration file to your branch site(s) using your own delivery method (such as secure email). 11.5 Branch Site Computer Configuration Ensure you have created a configuration file as discussed section 11.4. Loading a Configuration File Open the Cloud Data Configuration window from the ... -
Page 63: Auto-Upload
To load a configuration file, click the Browse… button and select your configuration file using the file selection dialogue. The configuration information will be loaded and a configuration file and login check will be performed. A green tick will be shown next to the Configuration File field and one will be shown next to the Login Check field if these checks succeed. - Page 64 If previously downloaded recordings were not uploaded (such as loss of Internet connection), you can manually sync them by clicking the Sync Now button on the Settings menu (Main Window Menu Sync Now). The sync indicator will show on the Main Menu: Clicking this indicator will open the Sync Status window: MW8 &...
-
Page 65: Appendix A - Maintenance And Utilities
Appendix A - Maintenance and Utilities A1 - The Utilities The MotionWatch manager has an additional tab called ‘Utilities’, click on this tab to display a window similar to the following: This screen shows some technical information about the MotionWatch: ... -
Page 66: A2 - Firmware Update
A2 - Firmware Update The MotionWatch has the ability to be re-programmed when new features become available. It is always recommended that the most up-to-date firmware and PC software are used to avoid possible conflicts and data loss. To check for an update, select the ‘Utilities’ tab then click on the ‘Check for Update’... -
Page 67: A4 - Test Watch
A4 - Test Watch These functions are not required in normal use of the MotionWatch. Do not use unless instructed to do so by a CamNtech representative. A5 - Changing the Battery The MotionWatch has been designed to facilitate quick and simple battery changing. -
Page 68: A6 - Waterproof Seal
This sequence is critical to the correct watch operation – if the LED does not flash, remove the battery and repeat the process. The MotionWare software will automatically detect that a new battery has been fitted and display a warning message requesting confirmation. -
Page 69: A8 - Alternative Mountings
Replacement straps and alternative straps are available from CamNtech. It is possible to use any standard watch strap with a 12 to 14mm shoulder with the MotionWatch. A8 – Alternative Mountings The MotionWatch may be worn at locations on the body other than the wrist. -
Page 70: Appendix B - Faq & Troubleshooting
Appendix B – FAQ & Troubleshooting What does ‘No data integrity check’ mean? The data is protected by a security key which is generated when the data is originally downloaded. Any changes to the data after the download (e.g. data corruption, tampering, editing, daylight saving adjustment) will result in the data integrity check failure. -
Page 71: Appendix C - Safety & Environmental Information
CamNtech has registered with an approved producer compliance scheme (PCS) in accordance with the requirements of the WEEE Directive. CamNtech will provide free recycling for all of its WEEE products when returned to CNT. CamNtech WEEE products will be designed with recycling, reuse and waste management as a consideration. -
Page 72: C5 - Emc Declaration And Guidance
C5 - EMC Declaration and Guidance The following tables provide a declaration of compliance and user guidance regarding Electromagnetic compatibility of the MotionWatch system. Electromagnetic Emissions Guidance and Manufacturers Declaration – Electromagnetic emissions The MotionWatch is intended for use in the electromagnetic environment specified below. -
Page 73: Electromagnetic Immunity
Electromagnetic Immunity Guidance and Manufacturers Declaration – Electromagnetic Immunity The MotionWatch is intended for use in the electromagnetic environment specified below. The customer or the user of the MotionWatch should assure that it is used in such an environment. Immunity Test IEC 60601 Test Compliance Electromagnetic... -
Page 74: C6 - Applicable Standards
C6 - Applicable Standards: The appropriate clauses of the following standards have been used as a means of demonstrating compliance. Standard Description Medical electrical equipment – Part 1: General requirements for EN60601-1:2006 basic safety and essential performance. Medical electrical equipment – Part 1-2: Collateral standard: EN60601-1-2:2007 Electromagnetic compatibility –... -
Page 75: Appendix D - Technical Specifications
Appendix D – Technical Specifications Specifications Functional Specifications Size mm: 36(l) x 28.2(w) x 9.4(d) excluding strap Weight: 9.1 grams (including battery, excluding strap) Tri-axial, MEMs technology. 0.01g to 8g range, 3 – 11Hz Sensor: Battery: CR2032 Lithium Coin Cell Battery Life: 4 Months run time*;... -
Page 76: Accelerometer Processing
Accelerometer Processing Raw acceleration measurements are processed by the on-board software of the MotionWatch to produce a quantitative measure of the activity during each epoch. This is a four stage process which is applied to the accelerometer data: 1. The channel perpendicular to the watch is separated and subjected to the bandwidth filtering specified above (3-11Hz). -
Page 77: Tri-Axial Mode Data Processing
Tri-Axial Mode Data Processing This is similar to above except all three axes are utilized to form counts based upon a peak vector magnitude. 1. The X, Y and Z axes are sampled with filtering at 3-11Hz. 2. The peak X value is found per second. -
Page 78: Appendix E - Utilities
Appendix E – Utilities E1 – CSV Import Utility To allow import of data recorded with the Actiwatch Spectrum or Actiwatch 2, a CSV import utility is provided. Three steps are required to import the data: 1. Export the data in CSV format from the Actiware Software. -
Page 79: Step 3 - Load The Awd File
Browse to locate the CSV file saved in step 1 and click ‘Open’ The user ID, Gender etc. from the exported CSV file should be displayed. Confirm that the recording details are correct in the display. If the details are not correct, the export may not be in the correct format –... - Page 80 Document Revision History Date Description Initiator Issue Issue From 28/05/12 First draft Issue 30/05/12 First Issue 01/06/12 Added Utilities Tab information to section 8 24/08/12 Added MotionWise view menu options + minor tweaks & additions 10/10/12 Corrected MotionWatch counts mode 07/01/13 Removed warning regarding use with pacemakers (section 10.5) Added 24 hour average graph, recent file management, csv import, moved...
