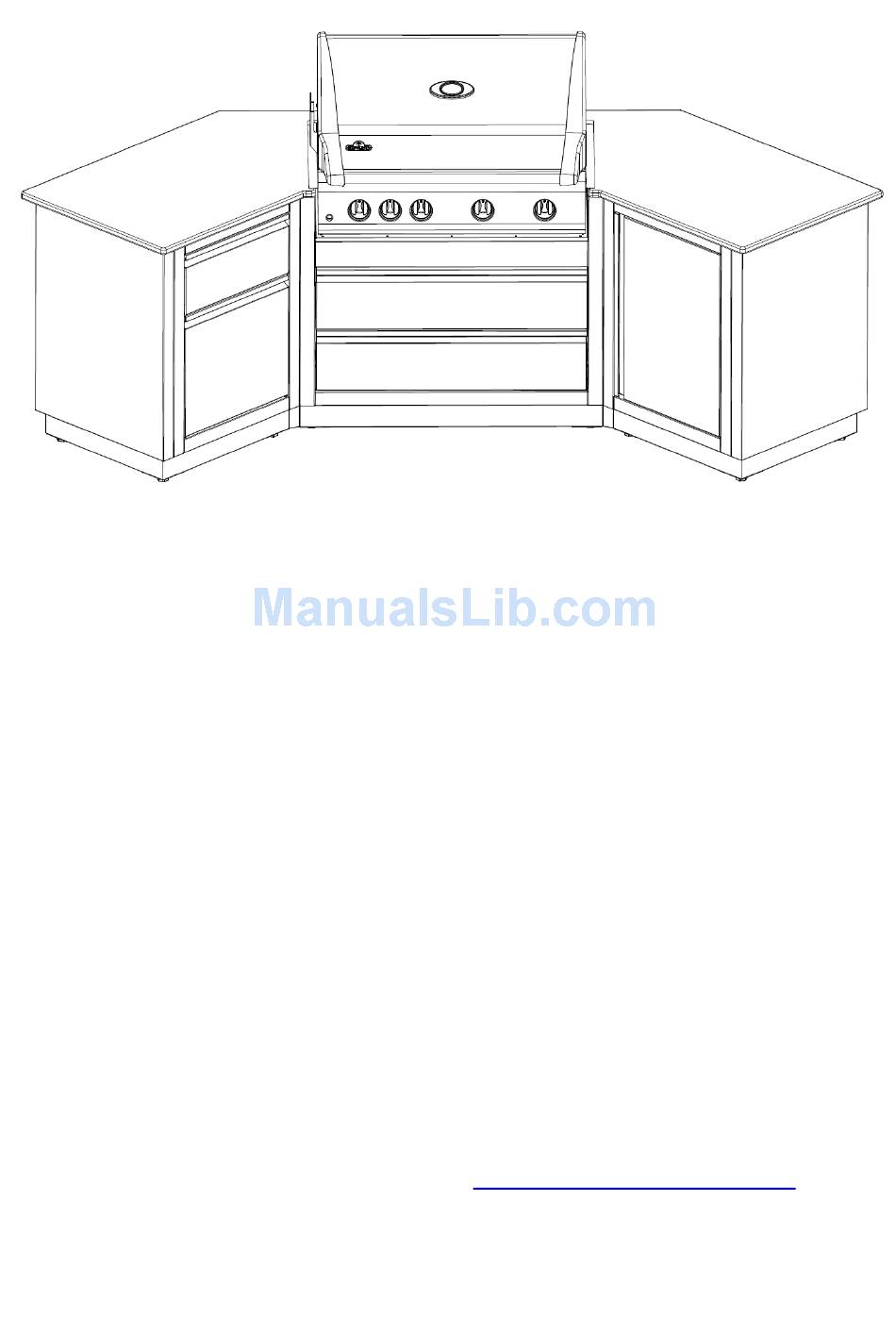

MODULAR CABINET ASSEMBLY INSTRUCTIONS
Use this manual in conjunction with your main manual to properly assemble your built-in grill. Refer to the, main
manual for operating, cleaning, and maintenance instructions. This grill is designed for NON-COMBUSTIBLE, enclosures
only, and must be installed and serviced by a qualified installer to local codes.
Exim International (Australia) Pty Ltd
24 Harrington Street, Arundel Industrial Park,
Arundel, QLD 4214
Free call: 1300 361557 E-mail:
info@napoleongrills.com.au
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Island series and is the answer not in the manual?

Questions and answers

Summary of Contents for Exim International Island series

  • Page 1 This grill is designed for NON-COMBUSTIBLE, enclosures only, and must be installed and serviced by a qualified installer to local codes. Exim International (Australia) Pty Ltd 24 Harrington Street, Arundel Industrial Park, Arundel, QLD 4214 Free call: 1300 361557 E-mail: info@napoleongrills.com.au...

  • Page 2: Conditions And Limitations

    EXIM PRESIDENT'S LIMITED LIFETIME WARRANTY Exim warrants the following materials and workmanship in your new product against defects for as long as you own it. This covers: stainless steel panels, stainless steel drawer fronts. Subject to the following conditions. During the first ten years Exim will provide replacement parts at our option free of charge. From the eleventh year to lifetime Exim will provide replacement parts at 50% of the current retail price.

  • Page 3: Tools Required

    TOOLS REQUIRED Check for missing or damaged parts before you begin and consult your local retailer if necessary. TOOLS SUPPLIED (ONLY WITH SC-UNI) USING AN ELECTRIC DRILL WILL SIGNIFICANTLY REDUCE ASSEMBLY TIME AND FACILITATE ASSEMBLY M6 Hex Bit M10 Hex Bit Flexible extension bit holder.
  • Page 4 PLANNING YOUR MODULAR OUTDOOR ISLAND The Outdoor Modular Island series has been developed with versatility in mind. The cabinets can be assembled in virtually any combination to suit your individual needs. They can be assembled against a house wall or as a standalone island, becoming the focal point of your backyard.
  • Page 5 SC-UNI UNIVERSAL SIDE CABINET ASSEMBLY INSTRUCTIONS: SC-UNI SC-UNI BOTTOM SHELF AND FEET ASSEMBLY BOTTOM SHELF FEET ASSEMBLY...

  • Page 6: Side Panel Assembly

    SC-UNI SIDE PANEL ASSEMBLY SC-UNI REAR PANEL ASSEMBLY...
  • Page 7 SC-UNI TOP/BOTTOM RAIL ASSEMBLY SC-UNI CABINET END PANEL ASSEMBLY END PANEL CAN BE INSTALLED LEFT OR RIGHT SIDE...
  • Page 8 SC-DK DRAWER KIT ASSEMBLY INSTRUCTIONS SC-DK DRAWER SLIDES ASSEMBLY ATTENTION Ensure sliders are put on correct sides...
  • Page 9 SC-DK S EPERATION PANEL SHELF&DOOR KIT ASSEMBLY INSTRUCTIONS SC-SK SEPERATION PANEL ASSEMBLY ATTENTION ATTENTION Ensure that all tabs Ensure that all tabs are bent up before are bent back down installation after installation SC-SK SEPERATION PANEL AND SHELF ASSEMBLY HINT: Before bending down the left tab of the separation panel, ensure ATTENTION! the gas hose is inserted through the...

  • Page 10: Cabinet Door Assembly

    SC-SK DOOR MAGNET ASSEMBLY (TOP/BOTTOM RAIL) SC-SK CABINET DOOR ASSEMBLY SC-PTK PROPANE TANK SLIDER KIT ASSEMBLY DOOR CAN BE MOUNTED AS LEFT OR RIGHT OPENING.
  • Page 11 SC-PTK PROPANE TANK SLIDER ASSEMBLY ATTENTION! SEPERATION PANEL MUST BE USED WHEN INSTALLING A SIDE BURNER ABOVE THE LPG TANK. SC-PTK PROPANE TANK SLIDER ASSEMBLY...
  • Page 12 SC-PTK PROPANE SUPPLY HOSE ROUTING The gas connection of the grills is at the right of the control panel. Placing the tank enclosure cabinet to the right of the unit cabinet will make for easier gas piping. Knockouts have been punched in the sides and back panels to provide easy routing of gas or electrical piping.
  • Page 13 CABINET TO CABINET ASSEMBLY SC-45T CABINET 45 DEGREE CONNECTION (OPTIONAL)
  • Page 14 SC-45T X 2 CABINET 90 DEGREE CONNECTION (OPTIONAL) BLACK GRANITE COUNTERTOP ASSEMBLY GRANITE COUNTER CAN BE SECURED WITH LIQUID NAILS OR SILICON. GAPS CAN BE FINISHED WITH EPOXY OR SILICON GRANITE OPTIONAL SIDE BURNER GRANITE BACK STRIP CABINET COUNTERTOP OR SINK GRANITE TOP G504(780*160mm) GT01(712*712mm) GT02(712*712mm)
  • Page 15 CUSTOM MADE COUNTERTOP COUNTERTOP TO BE FASTENED AS PER MANUFACTURER’S INSTRUCTIONS. HOLES HAVE BEEN PLACED ON THE TOP FLANGE OF THE SIDE PANELS TO ALLOW FOR FASTENERS. REFER TO BUILT-IN MANUAL THAT ACCOMPANIES THE GRILL FOR COMPLETE INSTRUCTIONS. GAS PIPING MUST BE DONE BY A LICENSED GAS INSTALLER.
  • Page 16 CABINET LEVELING PROCEDURE  To adjust the feet, use M6 Hex bit or screwdriver.
  • Page 17 UGC-485/UGC-605/UGC-730 Part # UGC485 UGC605 UGC730 Description MC1-485 MC1-605 MC1-730 Drawer drip-shield MC2-485 MC2-605 MC2-730 Top Rail MC-300 MC-300 MC-300 Side Panel UNI-400 UNI-400 UNI-400 Drawer Rail MC5-485 MC5-605 MC5-730 Drawer MC6-485 MC6-605 MC6-730 Bottom Rail MC7-485 MC7-605 MC7-730 Bottom Shelf MC8-485 MC8-605 MC8-730...
  • Page 18 SC-UNI/SC-SK/SC-PTK Part # Part Ref # Description UNI-300 Side Panel UNI-200 Separation Panel UNI-100 Back Panel UNI-500 End Panel UNI-600 Top Rail UNI-601 Magnetic Catch UNI-602 Door Magnet Bracket P-100 Screw UNI-700 Tank Drawer UNI-800 Tank Drawer Support Bracket UNI-900 Door UNI-610 Bottom Rail...
  • Page 19 SC-UNI/SC-DK Part # Part Ref # Description UNI-300 Side Panel Screw UNI-100 Back Panel UNI-500 End Panel UNI-400 Drawer Rail UNI-600 Top Rail UNI-610 Bottom Rail UNI-501 Drawer UNI-910 Leveling Foot...
