Summary of Contents for DLD technology Revolution

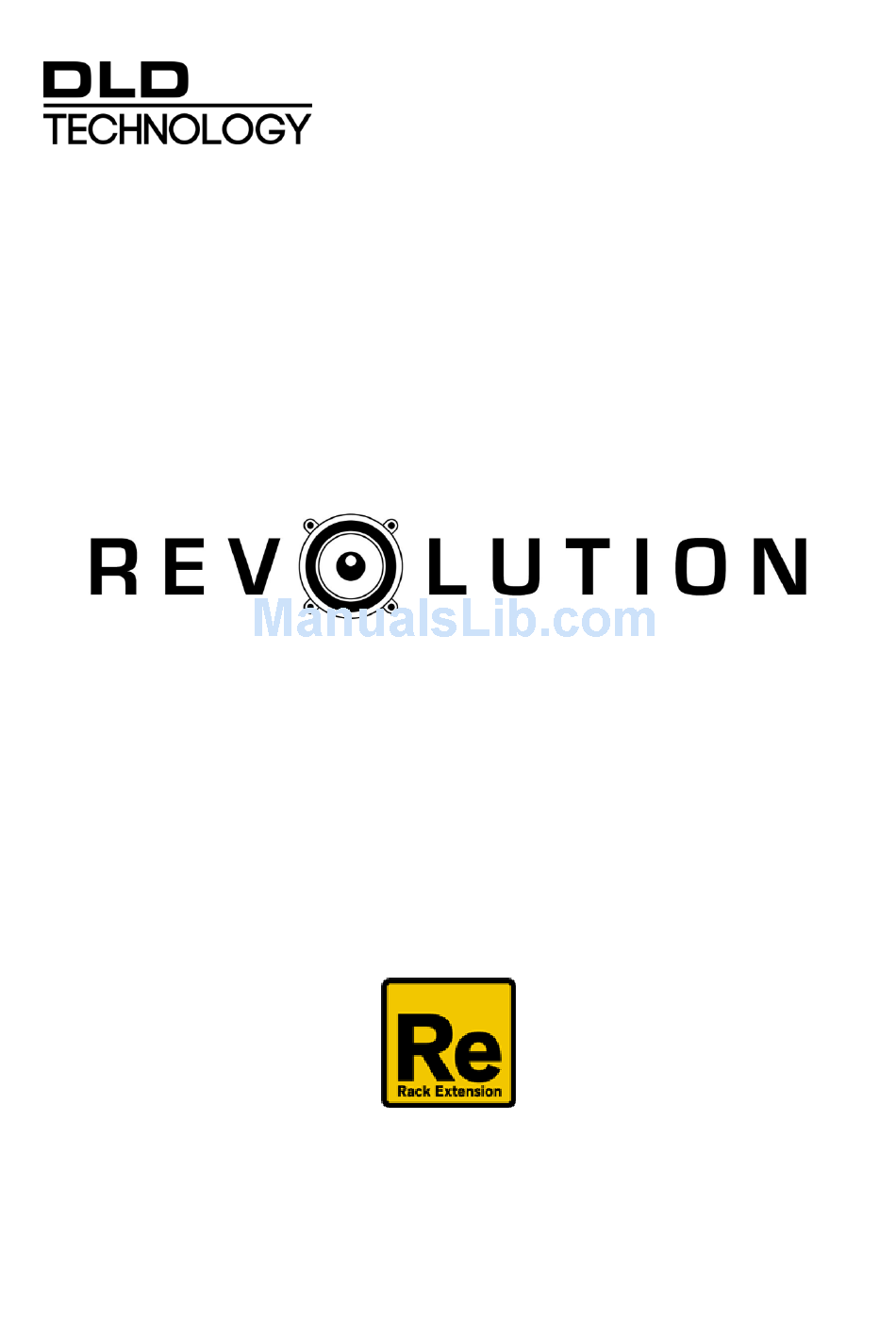

- Page 1 Rack Extension for Propellerhead Reason User Manual Version 1.0...
- Page 2 Revolution makes use of these changes to trick the brain in to believing that a sound is placed outside of the normal left - right audio field that standard stereo panning allows.
- Page 3 Whilst Revolution offers an elevation control, our brains are less sensitive to locating the height of a sound source. (There are no changes in audio delay due to elevation which is the main cue we use for location.) The 3D effect will not work with mono speakers (such as mobile phones) although the 3D audio will mix down to mono reasonably well.
- Page 4 USAGE INSTRUCTIONS – FRONT PANEL SPEAKER POSITION The green speaker represents the source of the audio. It can rotate around the listener, and move further or closer to the listener. Changing the Angle knob will rotate the speaker through 360°. Alternatively, grab the speaker on the display with the mouse and move it around the centre position.
- Page 5 The Angle CV output gives a control signal that represents the current angle of the speaker. One use for this is to pass this signal into the Angle input of a second Revolution device, and then apply an offset using the Angle knob on the front panel.
- Page 6 Applying further effects to this audio may reduce the 3D effect. RECORDING MOTION By default, Revolution does not create a Reason track. If you wish to record the motion of the speaker, then you must right click on the device and select the 'Create Track for …' option.
- Page 7 Design and coding by Richard Harvie, DLD Technology Ltd – http://www.dldtechnology.com Logos and additional graphics by Steven James, Chimera Creations - http://www.chimeracreations.co.uk Additional patches by Linus Wileryd, Navi Retlav & Simon Bader. Thanks to all that have helped test Revolution on the DLD beta test group.
