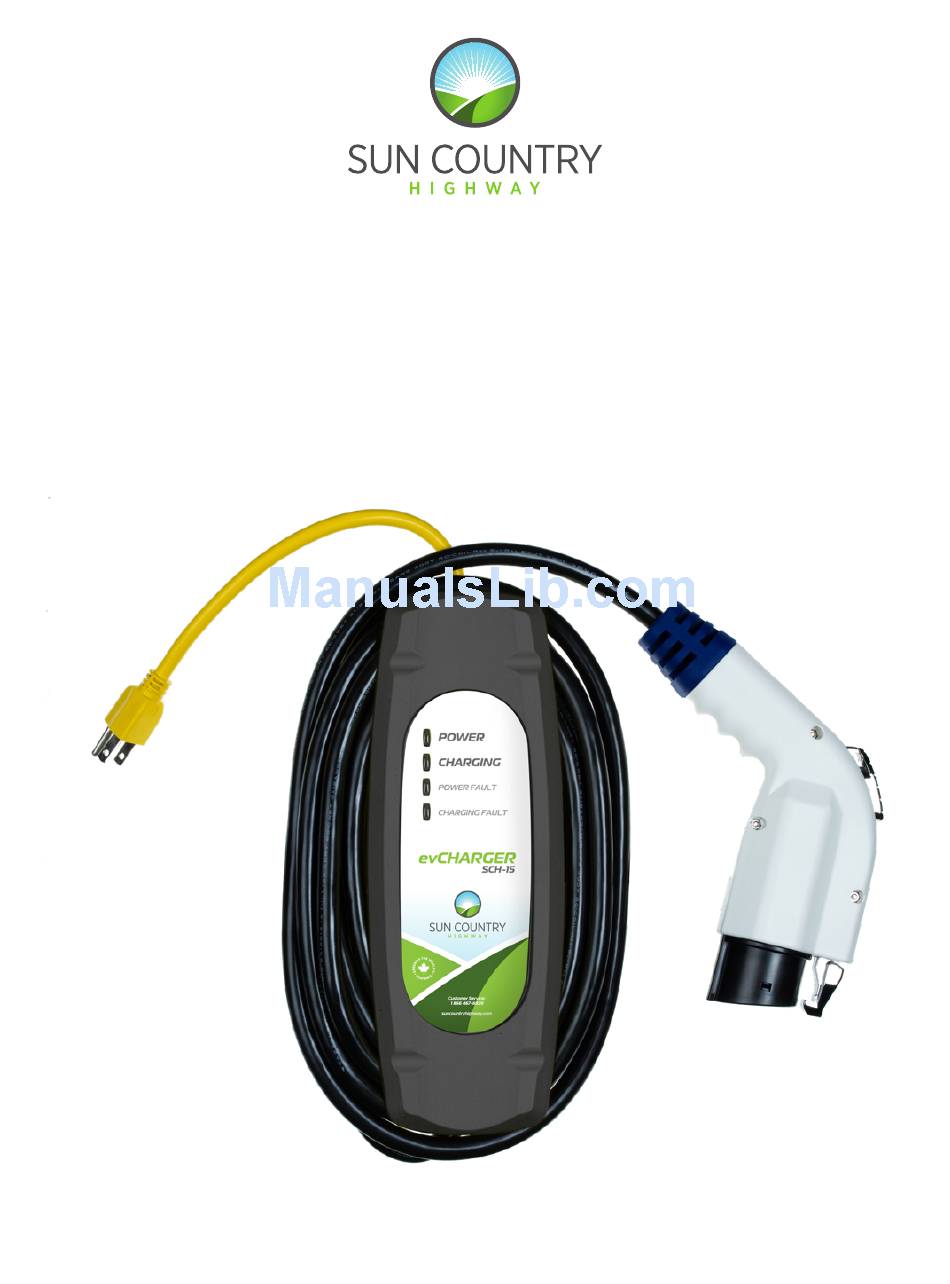

- Page 1 B R I N G I N G S U S TA I N A B I L I T Y T O L I F E User’s Manual 15 amp evCharger...
- Page 2 PLEASE NOTE This user’s manual includes the latest information at the time of printing. Sun Country Highway, Inc. reserves the right to make changes to this product without further notice. Changes or modifications to this product by other than an authorized service facility could void the product warranty.
-
Page 3: Table Of Contents
CONTENTS IMPORTANT SAFETY INSTRUCTIONS SAFETY INFORMATION FCC INFORMATION OPERATION FRONT PANEL SPECIFICATIONS MAINTENANCE CUSTOMER SUPPORT WARRANTY INFORMATION... -
Page 4: Safety Information
The 25 amp Charger is not equipped to control ventilation fans. If an exhaust fan is requested, the 25 amp Charger will not charge the vehicle. If this function is required, ask your Sun Country Highway representative for information on other products which have the exhaust fan control feature. -
Page 5: Operation
OPERATION The 15 amp Electric Vehicle Charging Station is a compact wall-mounted charging station that provides the Plug-in Hybrid or Battery Electric Vehicle (together Plug-In Electric Vehicles, or “PEV”) user with a safe and manageable link between the power grid and the PEV. Figure 1. -
Page 6: Front Panel
FRONT PANEL The front panel on the 15 amp Charger has four indicator lights: Power (yellow), indicates that power is available. Charging (green), indicates that AC power is currently applied to the vehicle. Power Fault (red), indicates that the 15 amp Charger is not wired correctly. The problem can be due to improper grounding or a missing earth ground. -
Page 7: Specifications
CALL. These can be found on the side of the enclosure. If your call is made after business hours or on weekends, please leave your name, telephone number, the unit’s serial number, and a brief description of the problem. A Service Representative will call back at the earliest opportunity. Please visit Sun Country Highway’s Website @ www.suncountryhighway.ca ... -
Page 8: Warranty Information
Representative, its Sub-Representatives and their customers: Product 3-year parts, 3-year factory labor, Sun Country Highway, Inc. warrants this product to be free from defects in material and workmanship. The warrantee period shall commence on the date of installation date (first use). - Page 9 Sun Country Highway or an authorized Sun Country Highway representative or dealer has been advised of the possibility of such damages or of any claim by any other party.
- Page 10 Sun Country Highway 306 Saskatchewan Crescent Saskatoon, SK S7N 0K6 1-866-467-6920 info@suncountryhighway.ca...
