Summary of Contents for Dukane ITP65A

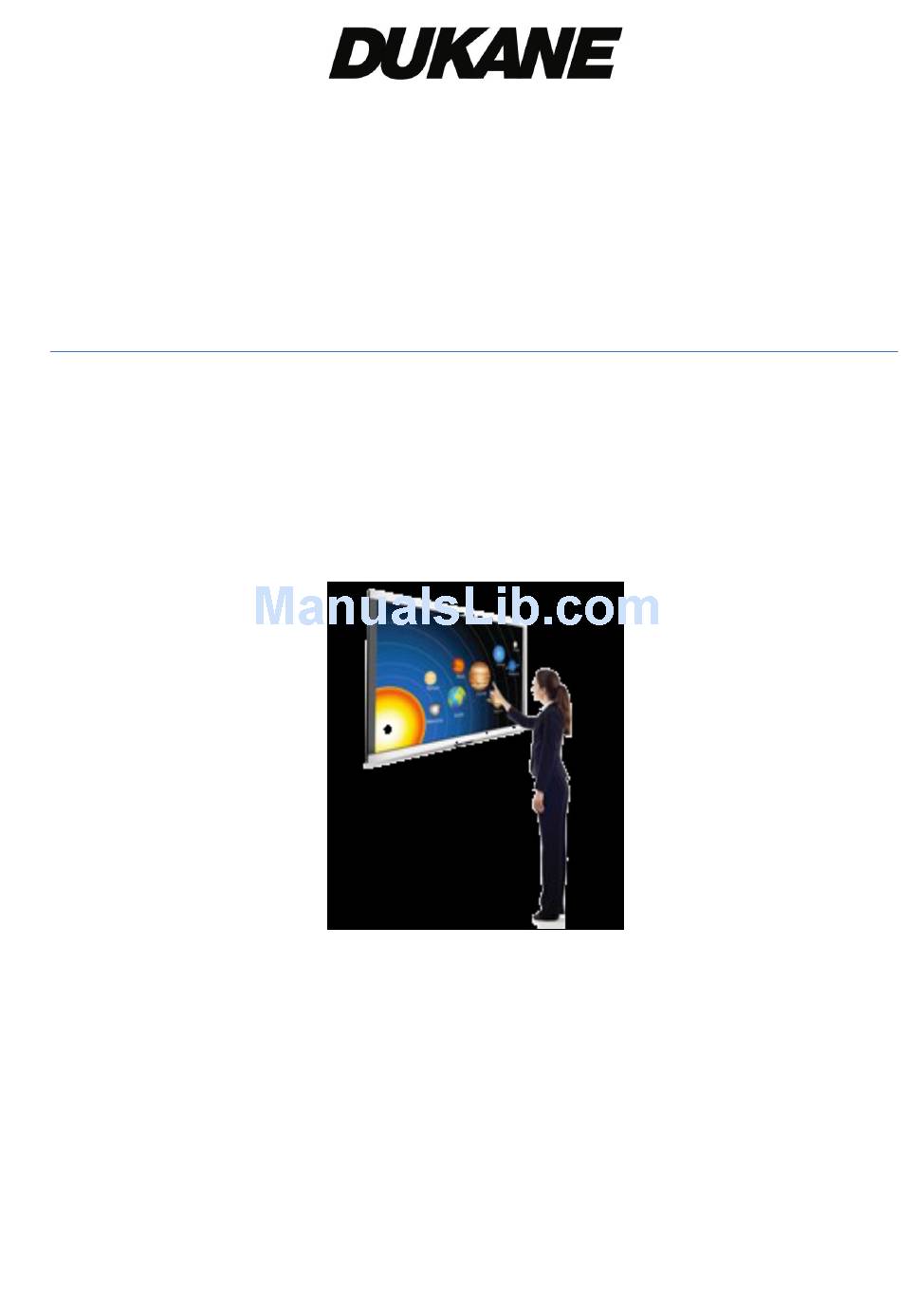

- Page 1 ITP65A Interactive Touch Panel User Guide for Windows and Mac ITP65A_UserGuide _Win_or_ Mac-v00...
-
Page 2: Notes
If an antenna is connected to the panel it must be isolated from grounding, otherwise it may cause fire hazard during electrical storms (use an antenna isolator between the antenna and the antenna interface of the product). DUKANE CORP Audio Visual Products Division 2900 Dukane Drive, St. Charles, Illinois 60174 Toll-free: 888-245-1966 Fax: 630-584-5156 E-mail: avsales@dukane.com... -
Page 3: Table Of Contents
ANEL IR R EMOTE ONTROL .............................. 16 SELECT PANEL INPUT SOURCE ............................17 PANEL SETTINGS ................................18 USE DUKANE ANNOTATION SOFTWARE ......................... 19 ANDROID OS OPERATION .............................. 20 TV TUNER ..................................21 TROUBLESHOOTING ..............................22 ................................22 EMOTE ONTROL IDEO AND UDIO ................................ -
Page 4: Startup With A Windows Or Mac Computer
Startup with a Windows or Mac computer The Dukane model ITP65A can be a touch display for your PC or Mac. Access files and run the programs on your computer just like you were using your mouse. Interact with your finger for intuitive control right from the display. - Page 5 8. Choose your connected source (HDMI or VGA) by pressing the TV/AV button on the panel bezel, or by pressing the INPUT button on the remote control, or by swiping up with your finger from the bottom of the screen to get the Navigation menu as shown on the following image. On the Navigation menu (shown above) select the Source icon by double tapping with your finger.
-
Page 6: General Information
General Information Introduction Dukane large-size Interactive Touchable LCD panels combine bright display and interactive touch technology. With this panel you can access files and run programs on your computer just like you were using your mouse. Interaction is by using your finger or stylus for intuitive control right from the display. -
Page 7: Features
Dukane touch software is available for use with a Windows or Mac computer. A view of the software showing a world map follows. Features Interactive touch function The panel has an interactive 10 touch capability using an edge embedded high-speed infrared touch detection system. - Page 8 images, play movies, listen to music, etc. by accessing the files on the memory stick. Multimedia function The panel has HDMI and VGA ports, so it can be used as computer monitor. It also has, USB, and composite video inputs, plus audio input / output for use with a variety of external devices. It has stereo speakers to provide sound output.
-
Page 9: Accessories
USB and HDMI cables Cables Note that the User Guide and User Guide at Touchable LCD other support items are http://dukaneav.com/ Information sheet available on the Dukane www.dukaneav.com/ product web page Short Wi-Fi antenna on panel Antenna 5” Antenna rear... -
Page 10: General Preparation
General Preparation Using the Remote Control Use the remote control by pointing it towards the remote sensor window located at the lower left front of the panel. Cautions Regarding Using of Remote Control Do not expose the remote control to impacts or other rough treatment. In addition, do not expose the remote control to liquids, and do not place it in an area with high humidity. -
Page 11: Identification Of Components
Identification of Components Panel (Front View) Front view Power receptacle and switch Rear view Note: The power cord receptacle and the power rocker switch are on the bottom left side of strip 3. - Page 12 1. USB ports 2. Indicator 3. Keypad. USB Ports; At location 1 on the front panel bezel lower left. These 2 front bezel USB ports are routed to the 2 open USB cables on the rear of the panel. The cables have USB Type A connectors. They are used for connection to an optional computer if it is installed.
- Page 13 Bezel Keypad Buttons; At bottom right front bezel on the panel. 2. Keypad buttons ; 2.1 Menu Press this button to display the OSD (On Screen Display) menu items for the panel settings. Except when an Android screen is present, then Android icons for the Wallpaper and Widgets appears. 2.2 AV/TV/Source Press this button to provide the row of input source ions as shown below.
-
Page 14: Panel (Rear View)
Panel (Rear View) List of connections 1.RJ45 Connect to the Internet or LAN for the internal Android OS. 2. VGA Input (DB-15) Connect to the VGA output jack on your computer. 3. YPbPr Input Audio (3.5 mm mini) Connect to the audio output jacks of a DVD player or Set-Top Box. 4. - Page 15 Location 4 on rear of the panel, in vertical position Input 1. HDMI 1 & 2 Input ports For connecting units with a HDMI or DVI interface such as a computer or a DVD player. (A HDMI-to DVI adapter cable is required when you are connecting a DVI device to this panel.) 2.
-
Page 16: Ir Remote Control Unit
IR Remote Control Unit 1. POWER Press to turn panel ON or OFF. 2. MUTE Press to mute sound, press again to restore sound. 3. 0-9 Keys Press any number of 0-9 buttons to select a TV channel. 4. This key has no function. 5. -
Page 17: Select Panel Input Source
Press the arrows to navigate through the menus or adjust an item. Press ENTER to confirm a selection or enter a submenu. When watching digital TV programs, press button to record a program; press button to display Recorded List; press button to time shifting;... -
Page 18: Panel Settings
Panel Settings The bezel MENU button opens the panel settings menu as shown below, when an external source is selected (will not open if the Android OS window is present, see Note at section end). This menu permits adjustment of the external input image properties; Picture, sound, timers, menu display time and 3D effects. -
Page 19: Use Dukane Annotation Software
2. For Windows copy the zip file to your PC, extract the zip file and double click Autorun.exe. 3. For Mac copy the zip file to your Mac, extract the zip file and double click the .dmg file. This is the main window for the Dukane IP Board Touch Software Use your own annotation software: 1. -
Page 20: Android Os Operation
Android OS Operation The panel has a internal Android OS which permits independent touch screen operation. Using the internal system images files can be viewed, videos shown, and the contents of the USB and SD port memory devices shown. A web browser using wireless Wi-Fi or the wired RJ-45 port is also operational. The Android home screen is accessed by upward swiping from the screen bottom to get the Navigation menu. -
Page 21: Tv Tuner
To us the apps touch the applications icon. The Applications window will open. To view the files in the USB port devices, the ES File Explorer can be used. To use the Web Browser activate the Wi-Fi reception or use a wired LAN connection. The antenna for the WI-Fi should be installed on the panel rear. -
Page 22: Troubleshooting
Troubleshooting If, after reading User Guide, if you have additional questions related to the use of your Touch Panel, display please contact your dealer. Before calling service, please identify the symptoms and try following the suggested solutions. Remote Control Problem Possible Solutions Remote Control does not operate ... -
Page 23: General Problem
Note: If your problem is not solved, turn your unit off and then on again. Never attempt to repair a defective panel yourself. Specifications Item Specification Model ITP65A Size 65" Diagonal Max. Colors 1.06 Billion Colors Pixel Pitch 0.74 mm x 0.74 mm Max. - Page 24 Power Standby < 0.5 W MTBF +50,000 hours Dimensions 60.1" x 35.5" x 3.6" Weight 150 lbs. Specifications of Touchable LCD panel Control Board OSD Language , English, Chinese Panel Type LCD with LED, TFT Screen Interface Dual/ Single LVDS Interface ( Max: 10 bit) Max Resolution 1920 X 1080 TV Receiver...
- Page 25 Power Management Stand-by Power Consumption < 0.5W (Board Only) Comb Filtering Function Release Interleave Function 3D Weak Signal Enhanced Function De-noise Function Extended Function DVD, External USB, External HDMI, External AV Input USB Function For Multimedia Play and Software Upgrade Key Function Menu, Ch+, Ch-, Vol-, Vol+, Signal Source, Power 1 IEC Connector (PAL 75 ohm type )
- Page 26 Windows 7/ 8 /10 /Mac / Linux Firmware Upgrade Function Support USB upgrade Note; Specifications subject to change without notice. Latest manuals and software at Dukane AV Div website; www.dukaneav.com DUKANE CORP AV SERVICE DEPT 2900 Dukane Drive St Charles, IL 60174...
