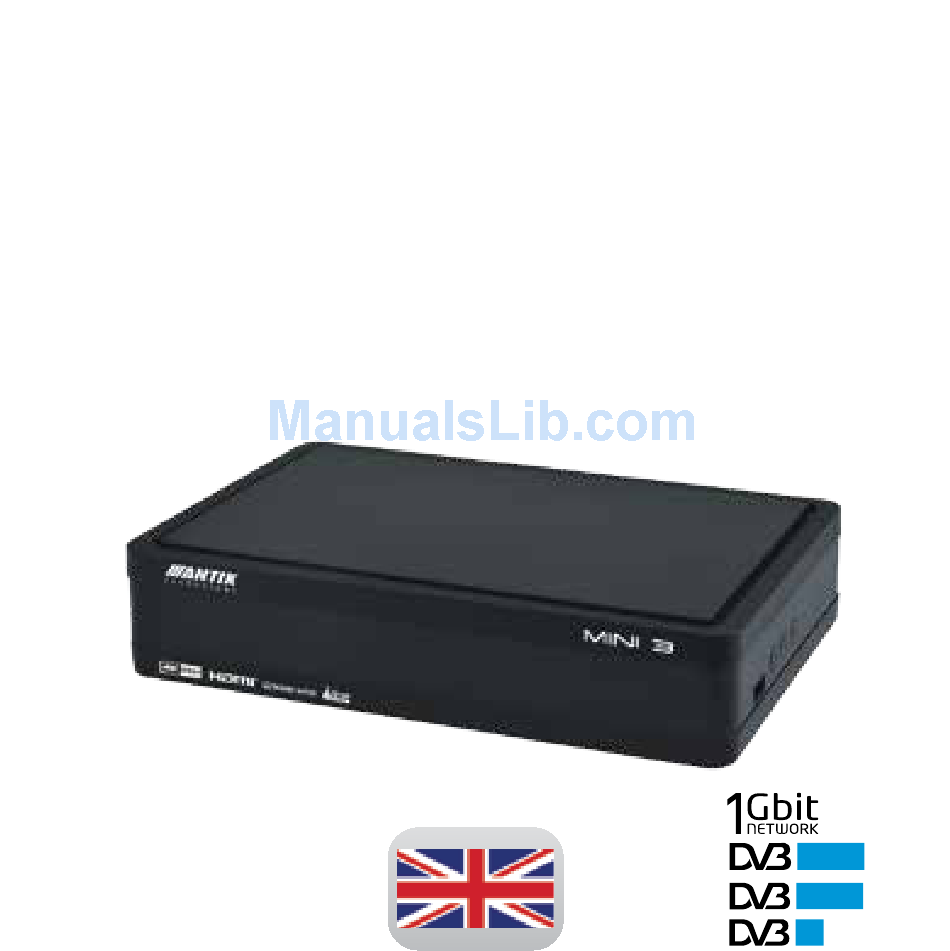

- Page 1 MINI 3 IPTV Set-top Box Detailed user manual download from www.antiktech.com S/S2 T/T2...
- Page 2 Dolby Digital: Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. HDMI: Transferring uncompressed video data and compressed or uncompressed dig- ital audio data from a HDMI-compliant source device. MPEG2: Audio and video compression and transmission. Note: Set-top Box ´s firmware is subject of ongoing software development therefore not all the functionalities described in the manual respont to the current status.
-
Page 3: Table Of Contents
Content Content Important safety instructions and warnings Connecting of Set-top box to your local network Connecting of Set-top box to satellite set Connecting of Set-top box to terrestrial antenna Connecting of Set-top box to your Wi-Fi network Connecting of Set-top box to a television Connecting of Set-top box to a television using analogue AV cable Controlling of Set-top box by IR2 Connecting of Set-top box to the mains supply... -
Page 4: Important Safety Instructions And Warnings
IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS POZOR! Nebezpečenstvo úrazu elektrickým prúdom! Neotvárajte zariadenie! WARNING! To reduce the risk of fire or electric shock, do not expose the device to rain or moisture. - Read these instructions carefully! - Follow these instructions! - Mind all the warnings! •... -
Page 5: Connecting Of Set-Top Box To Your Local Network
Set-top Box is automat- ically shut down after 2 hours of remote control inactivity. Router Number of RJ45 connectors on the back panel depends on the version of Mini 3 Set-top Box. - 5 -... -
Page 6: Connecting Of Set-Top Box To Satellite Set
CONNECTING OF SET-TOP BOX TO SATELLITE SET How to connect a STB with satellite set to receive satellite broadcast. 868MHz INTERNET/MODEM RF cable with F connector - 6 -... -
Page 7: Connecting Of Set-Top Box To Terrestrial Antenna
CONNECTING OF SET-TOP BOX TO TERRESTRIAL ANTENNA How to connect a STB with terrestrial antenna to receive DVB-T/T2 broadcast. 868MHz INTERNET/MODEM RF cable with F connector - 7 -... -
Page 8: Connecting Of Set-Top Box To Your Wi-Fi Network
CONNECTING OF SET-TOP BOX TO YOUR Wi-Fi NETWORK *Wifi available only on selected models. Possibilty of adding external Wifi antenna. Place your Set-Top Box within the reach of wireless network Connect Set-Top Box to wireless network Use the following steps to set the connection in Menu: Settings >... -
Page 9: Connecting Of Set-Top Box To A Television
CONNECTING OF SET-TOP BOX TO A TELEVISION Connecting to a Television by a HDMI cable. HDMI cable - TV/Set-top Box 868MHz MODEM Using this type of connection set in Menu: Settings / TV Outputs / Type of connection – HDMI / HD resolution – 1080i,720p or 576i (480i for NTSC) depending on type of TV. -
Page 10: Controlling Of Set-Top Box By Ir2
CONNECTING OF SET-TOP CONTROLLING OF BOX TO A TELEVISION USING SET-TOP BOX BY IR2 ANALOGUE AV CABLE Controling a STB by a IR2 sensor, if STB is hidden ( e.g. in furniture). Connecting to a Television by a AV adaptor cable. IR2 sensor - to be placed in visible area AV cable... -
Page 11: Connecting Of Set-Top Box To The Mains Supply
CONNECTING OF SET-TOP IDENTIFICATION BOX TO THE MAINS SUPPLY OF PARTS Front panel After connecting of a Set-top box to a Television or PC screen by one of the mentioned options, plug the set-top box into the mains supply. In order to put Set-top box into standby mode use standby button on remote control. -
Page 12: The Remote Control (Rc) Functionality
THE REMOTE CONTROL (RC) FUNCTIONALITY On/Off- Standby Numeric Keys 0-9 switching the channels Switching the channels for 2 and 3 digits program number * TV * Radio VOL - VOL + SOURCE MENU- to display or exit the menu Volume settings 25** **26 SEARCH... -
Page 13: The Remote Control (Rc) Functionality- Learning / Universal Buttons- Settings
THE REMOTE CONTROL (RC) FUNCTIONALITY -Learning / universal buttons- settings Step 1 – Put 2 Remote Controls IR Krok 1 Položte 2 DO oproti sebe facing in 1 cm. IR diódou na vzdialenosť 1 cm. Step 2 – Keep pressing Stanby TV and Krok 2 Zatlačte spoločne tlačidlá... -
Page 14: Main Menu
MAIN MENU Move through the Main Menu to the left or to the right by using direction arrows on remote control. OTHER OPTIONAL SET-TOP BOX FEATURES Detailed user manual on www.antiktech.com Archive- Archive by genre Media player (music, pictures, movies) - 14 -... - Page 15 Multi EPG Youtube Weather Video on Demand Mosaic Internet Browser Other optional features of Set-top Box depends on the actual STB firmware developement. - 15 -...
-
Page 16: Channel Browsing
CHANNEL BROWSING Move by 1 channel a time using up and down arrows on remote control. Move by 8 channels by using EPG Electronic The name of the Program Guide (for Current time program service selected channels) Use the left arrow Use the right arrow The numerical position button on RC to move... -
Page 17: Settings- Tv Outputs
SETTINGS - TV OUTPUTS Use right arrow to enter the right side of Settings. Use Menu button to return to the left side of Settings. TV aspect ratio: Image stretching / HDMI- CEC set TV and Switching the formats cropping settings: STB to turn on/ turn off 16:9 / 4:3 Fullscreen / LetterBox/... -
Page 18: Frequently Asked Questions (Faq)
FREQUENTLY ASKED QUESTIONS (FAQ) Before you contact your provider regarding any troubles with your set-top box, check these Frequently Asked Questions. You might find your answer right here. PROBLEM POSSIBLE SOLUTION Picture on the screen is OK • double check Menu/Settings/TV Outputs – if all selected options are in compli- ance with connection of set-top box to your TV (depending on type of your TV) but there is no sound •... -
Page 19: Technical Specification
TECHNICAL SPECIFICATION 183 x 137 x 47 (mm) Dimensions: Power Supply: 12V/2A (external power supply adaptor 100-240V, 50/60Hz) HDMI 2.0a AV connector (CVBS, L+R audio) Connectors: TOSLINK (S/PDIF digital optical audio output) antenna RF input (optional) CPU: HiSilicon Hi3798CV200 4xCortex A53 (15000 DMIPS) GPU: MALI - T720 DRAM: 2GB (DDR3 - 1866) Flash: eMMC 8GB... - Page 20 - 20 -...
