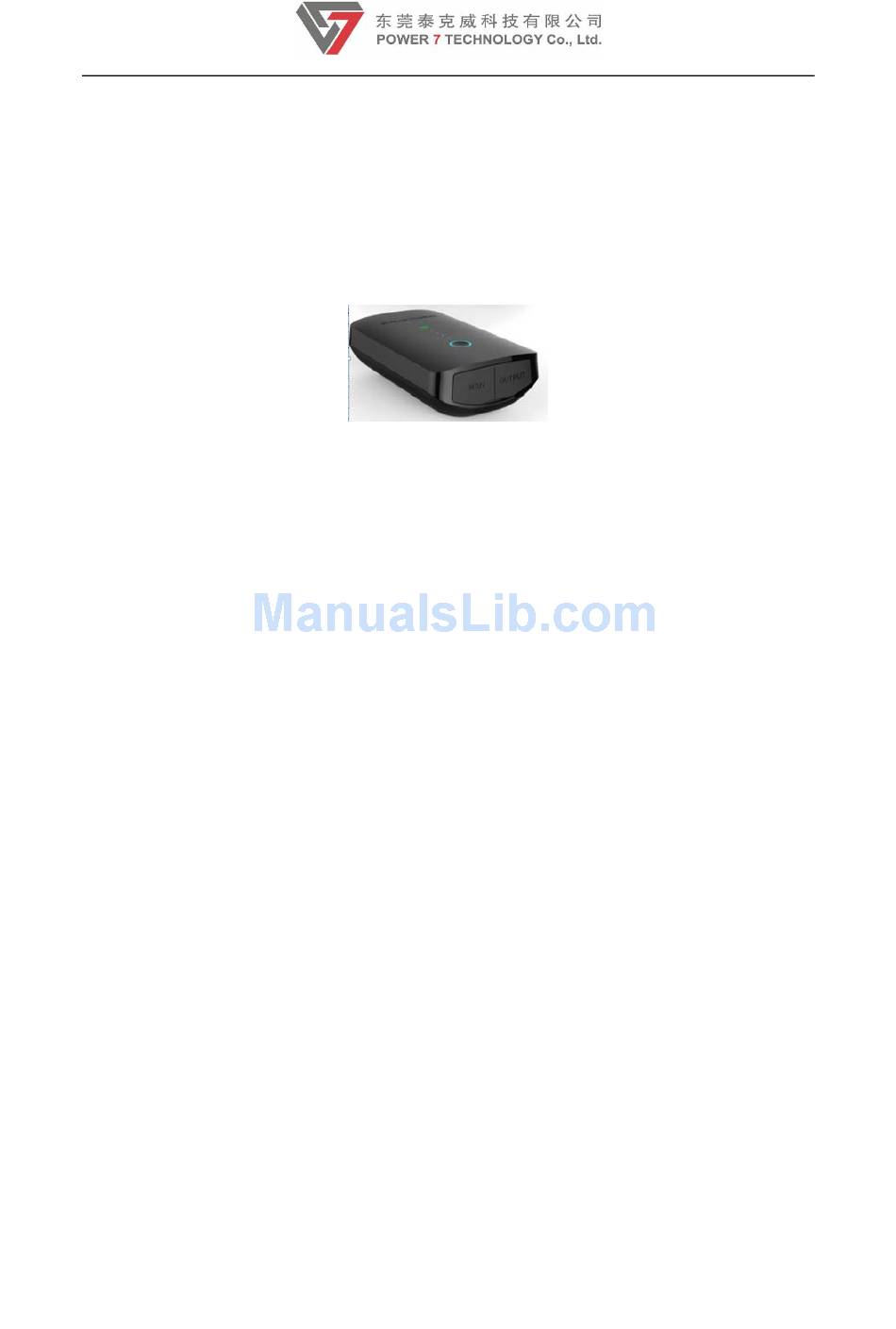

Power 7 WiFi Storage Device
Introduction ......................................................................................................................... 2
Target Users/Markets .......................................................................................................... 2
Features .............................................................................................................................. 3
Applications ......................................................................................................................... 4
Hardware Specifications ..................................................................................................... 5
Software Specifications ....................................................................................................... 6
File & System Manager App ............................................................................................... 8
System Requirements ......................................................................................................... 9
Client Tools ......................................................................................................................... 9
Seabird on the Beach ....................................................................................................... 10
(SeaBird)
Datasheet
Table of Content
Version 0.1
Last Updated: Dec.9th, 2014
Author: Power 7 PM Department
pm@power7tech.com.cn
1
Advertisement
Table of Contents
Related Manuals for Power7 RP-WD03
Summary of Contents for Power7 RP-WD03
-
Page 1: Table Of Contents
Power 7 WiFi Storage Device (SeaBird) Datasheet Table of Content Introduction ......................... 2 Target Users/Markets ......................2 Features ..........................3 Applications ......................... 4 Hardware Specifications ..................... 5 Software Specifications ....................... 6 File &... -
Page 2: Introduction
Introduction Power7 WiFi dongle device(Project Name: Seabird)is a portable wireless storage device with one USB 2.0 host. Seabird allows you to convert any USB external storage devices into a WiFi accessible media. Connect your USB external storage into the built-in USB port. Power the unit on and you can now wirelessly access your videos, music, photos, data and stream it to your iPad®, iPhone®, tablets, smartphones, and notebooks. -
Page 3: Features
for you. Salesman Seabird may save mobile sales person like insurance broker, realty broker from carrying bulky brochure or flyers. Legacy USB External HDD Device Hater Just can not stand anymore to be tethered by USB cable whenever you need to transfer files between your notebook and external HDD? Seabird is the answer for you! ... -
Page 4: Applications
Friendly user interface design with wizard guide to assure even the novice can get Seabird start to operate in minutes. Applications Bridge to Internet Access Scenario 1 - If you got an existing WiFi router for Internet access Wirelessly Bridge to Internet Access Scenario 2- If you got an existing wired router for Internet access Wired Bridge to Internet Access (via RJ45 Ethernet Port) -
Page 5: Hardware Specifications
Hardware Specifications Project name Seabird Model name RP-WD03 Model MT7620N Frequency MIPS24KEc 580MHZ Model EN25Q64 Flash Capacity 8MByte SPI flash SDRAM Capacity DDR1 32MByte (256Mbit) standard 802.11b/g/n Frequency 2.4GHz WiFi Antenna Array 2T2R Signal strength 17dBm Speed Max 300Mbps... -
Page 6: Software Specifications
battery only, up to 1A current. USB host interface In power on mode, it can connect USB storage for WiFi accessing. In power on &off mode, It can charge your mobile device(iPhone/iPAD/iPAD mini, other smart phone/PAD) , up to 1A current. - Page 7 configuration setting Factory default To restore default system setting setting restore originated in factory production File system NTFS A) Support Microsoft Windows NTFS file system B) Application tools: Tuxera NTFS tool for mounting file system NTFS file system inspection and repair tool FAT16/FAT32 A) Support Microsoft Windows...
-
Page 8: File & System Manager App
B) No authentication C) No authentication Network WiFi setting WiFi login history cache Management WiFi auto login A) Available wireless networks display WAN side setting Static IP Dynamic IP PPPoE(PPTP) LAN side setting A) IP setting B) Subnet mask setting C) DHCP server setting... -
Page 9: System Requirements
Playing music/video/photos by iPhone®, iPad® and tablet and smartphone (JPG, mp3, mp4, decoding ability more dependent on the system, file format depend on the player software installed on you device, Power7 suggest to use RockPlayer/Mobo Player on the Android and Oplayer/GoodPlayer on iOS). -
Page 10: Seabird On The Beach
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. - Page 11 USA OFFICE TAIWAN OFFICE CHINA OFFICE World Headquarters Power 7 Technology Corporation Power 7 (Shenzhen)Technology Company, Ltd. 4601 E. Airport, Drive, Ontario, CA 91761, USA 5F-3, No.258, Liancheng Road, Zhonghe Building A, Zhangkeng Industry Zone, Minfu Road Minzhi http://www.power7tech.com District, New Taipei City 235, Taiwan(R.O.C.) Village, Longhua Town, Baoan District Shenzhen, Guandong...
