Summary of Contents for TGA TVB01

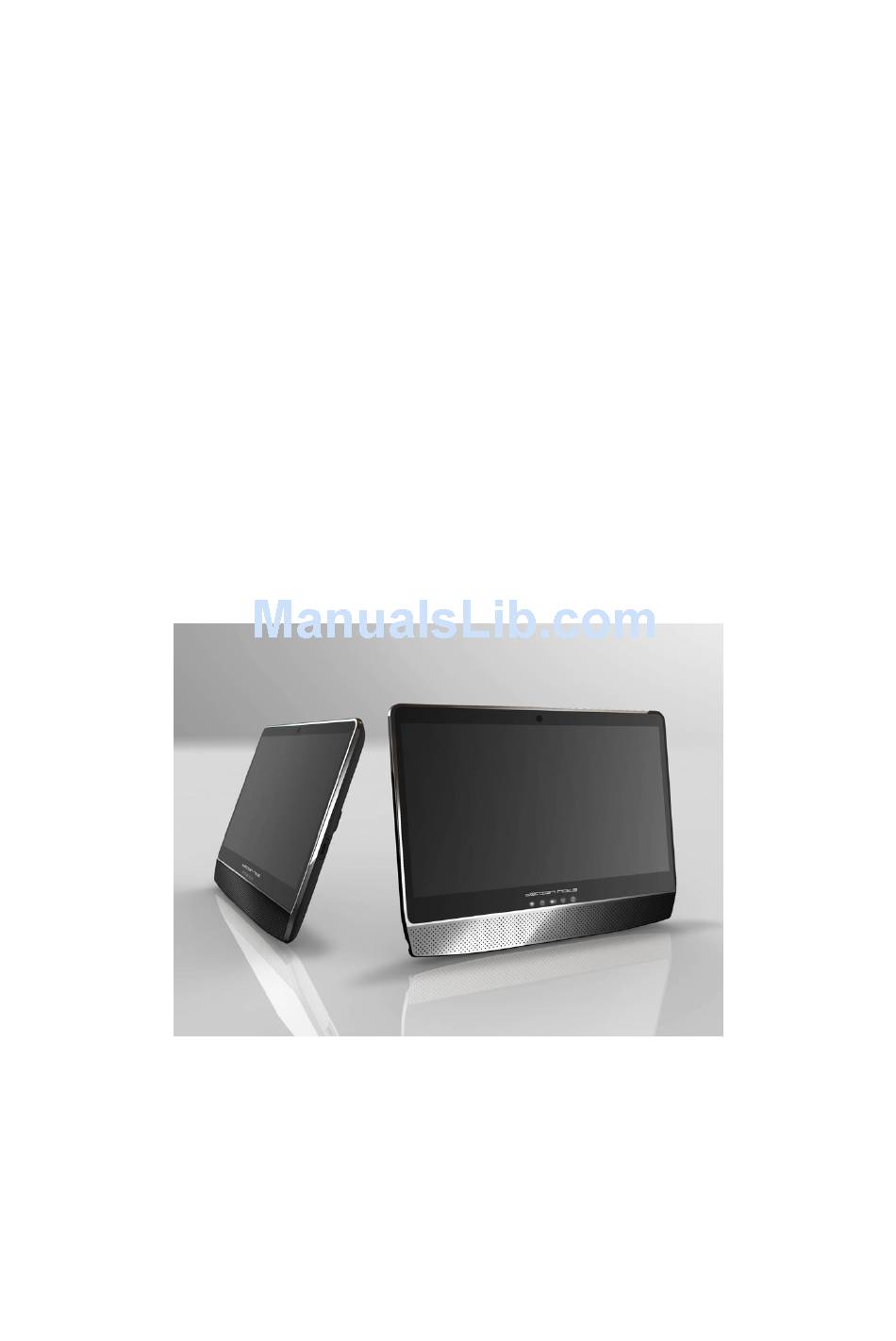

  • Page 1 TVB01 User Guide...
  • Page 2 ablet PC User Guide Copyright © 2010 All Rights Reserved - Printed in Taiwan Tablet PC User Guide Original Issue: 2010/10 This manual guides you in setting up and using your new Tablet PC. Information in this manual has been carefully checked for accuracy and is subject to change without notice.
  • Page 3 Tablet User Guide FCC Information to User Safety and Care Instructions No matter what your level of experience with computers, please make sure you read the safety and care instructions. This information can help protect you and your computer from possible harm. Important Safety Instructions This section gives you detailed information about how to maintain a safe working environment while using the Tablet PC.
  • Page 4 ablet PC User Guide personal injury from electrical shock or hot surfaces, disconnect the power cord from the wall outlet, and allow the internal system components to cool before touching. 10. Refer your system for servicing to qualified service personal under the following conditions: When the power cord or plug is damaged or frayed.
  • Page 5 Tablet User Guide transportation shall be reduced objects entering the equipment, please do not remove dummy card from the product. Installation Restrictions If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating.
  • Page 6 ablet PC User Guide English CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS. French IL Y A DANGER D'EXPLOSION S'IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE.
  • Page 7 Tablet User Guide tilsvarende type anbefalt av apparatfabriknten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. Finnish Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainostaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käyteet paristo valmistajan ohjeiden mukaisesti. Power Adapter For indoor use only. For use with information technology equipment.
  • Page 8 ablet PC User Guide Protect the power cord form being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 9 Tablet User Guide This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC RF Exposure FCC RF Radiation Exposure Statement: Warning: Use the specified shielded power cord and shielded signal cables...

  • Page 10: European Notice

    ablet PC User Guide 15.247 (b)(4), the EUT meets the requirement that it be operated in a manner that ensures the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines (1.1307, 1.1310, 2.1091 and 2.1093) 5.21 Regulatory information/Disclaimers Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the...
  • Page 11 Tablet User Guide This device complies with the essential requirements of the R&TTE Directive 1999/5/EC and EMC directive 2004/108/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC and EMC directive 2004/108/EC: The equipment was passed.
  • Page 12 ablet PC User Guide frequency range and must be restricted to indoor use." VCCI instruction...

  • Page 13: About Your Tablet Pc

    Tablet User Guide About Your Tablet PC ongratulation for having purchased your Tablet PC. This tablet PC can go anywhere you go. Use it like a pad of paper. You can write, sketch, and view material directly on the screen.

  • Page 14: About Your User Guide

    ablet PC User Guide About Your User Guide elcome to your Tablet PC User Guide. This manual gives you the information you need to maximize the use of your Tablet PC. Read this guide to familiarize yourself with this Tablet PC and its features. This manual is divided into five chapters.

  • Page 15: Table Of Contents

    Tablet User Guide Table of Contents ABOUT YOUR TABLET PC ..............13 ABOUT YOUR USER GUIDE............... 14 INTRODUCTION................17 ..............18 EATURE IGHLIGHT PC ........... 20 RONT IEW OF THE ABLET Tablet PC LED Status Indicator........... 21 PC .......... 23 IGHT ANEL OF THE ABLET...
  • Page 16 ablet PC User Guide USB P ..............46 SING THE SIM C ..............47 SING A Inserting and Removing a SIM Card..........47 ......... 49 SING THE XTERNAL UDIO YSTEM LAN............50 SING THE IRELESS CARING FOR YOUR TABLET PC..........51 PC..............

  • Page 17: Introduction

    Introduction 1 Introduction our Tablet PC is a very thin light-weight designed for mobility, it is a natural traveling companion. With your Tablet PC, you can access office networks and e-mails at anytime, from any location. Your Tablet PC makes an ideal choice for use in the schoolroom, at home, on the road and all other occasions.

  • Page 18: Feature Highlight

    ablet PC User Guide Feature Highlight Before we go to identify each part of your Tablet PC, we will first introduce you to other notable features of your Tablet PC. Processing Unit • Your tablet runs on Intel® Atom N455 and N550 Processor that is integrated with 512KB L2 Cache.
  • Page 19 Introduction Graphic System Provides blazing graphics controller embedded with Intel NM10 PCH/Intel Atom N455 Processor. USB 2.0 Provides two USB2.0 ports for I/O data transmission. Audio System Compliant with Intel HD Audio (Azalia 2 channels) Serial ATA (SATA) Controller Supports data transfer rates of up to 3.0 GB/s (300MB/s) Flash BIOS Flash BIOS allows you to easily upgrade the System BIOS using the Phoenix Flash utility program.

  • Page 20: The Front View Of The Tablet Pc

    ablet PC User Guide The Front View of the Tablet PC The Tablet PC is compact with features on every side. First, look at the front view of the system. The following sections describe front view features. 1. Webcam 2. Integrated Microphone 3.

  • Page 21: Tablet Pc Led Status Indicator

    Introduction • Built-in Stereo Speakers Integrated left and right mini stereo speakers for sound and audio output for your multimedia presentations or listening pleasure. • LED Indicators Keeps you informed of your Tablet PC’s current power status and operating status. Description of the status icons appears in the latter part of this section.
  • Page 22 ablet PC User Guide 1. Webcam Indicator 2. WiFi/Bluetooth/3G Access 3. Battery Charging LED 4. Drive Access 5. Power Indicator • Webcam Indicator When LED turns on in white light indicates that the Webcam module is activated. When LED lights off, it indicates that the function is disabled. •...

  • Page 23: The Right Panel Of The Tablet Pc

    Introduction • Power Indicator Lets you know that system is turned on. Lights on when the system is powered on. Lights blinking when the system is in Standby mode. The Right Panel of the Tablet PC The system ports at the right panel of your Tablet PC can connect various devices.
  • Page 24 ablet PC User Guide 1. Three-direction Switch 2. Microphone Jack 3. Headphone Jack 4. USB 2.0 Port 5. USB 2.0 Port 6. SIM Card Slot • Three-direction Switch This switch can let you browse the contents with sliding this switch up or down, then press switch for carriage.

  • Page 25: The Left Panel Of The Tablet Pc

    Introduction • Headphone Jack Lets you plug in a stereo headphone, powered speakers, or earphone set with 1/8 inch phone plug for personal listening. • USB 2.0 Ports The Universal Serial Bus (USB) port allows you to connect USB 2.0- compliant devices (for example, printers, scanners and so on) to your Tablet PC.
  • Page 26 ablet PC User Guide • WiFi/3G/Bluetooth Button Press this button to enable or disable the WLAN/3G/Bluetooth utility. When you press this button, the screen pop-up the WLAN, 3G and Bluetooth icons for function selection. Press the WLAN, 3G or Bluetooth, respectively, to light green or gray for activating or inactivating the quick accessing function.

  • Page 27: The Rear Side Of The Tablet Pc

    Introduction • Power On/Resume Button Switches the computer power on and off, or resumes whenever it is in Suspend mode. • DC Power Port Lets you connect the AC power adapter in supplying continuous power to your Tablet PC and recharging the battery. The Rear Side of the Tablet PC The rear side of the Tablet PC offers the following features.
  • Page 28 ablet PC User Guide • 3G Module (option) This compartment lets you install 3.5G HSDPA. For 3.5G HSDPA (High-Speed Downlink Packet Access), it is a 3.5G (third generation) mobile telephony communications protocol in the High-Speed Packet Access (HSPA) family, which allows networks based on Universal Mobile Telecommunications System (UMTS) to have higher data transfer speeds and capacity.
  • Page 29 Introduction This page is intended to be blank.

  • Page 31: Getting Started

    Getting Started Getting Started our Tablet PC is designed and pre-configured for easy setup and use. This chapter describes the installation steps you should follow to get the Tablet PC up and running as quickly as possible.

  • Page 32: Connecting The Ac Power Source

    ablet PC User Guide Connecting the AC Power Source The AC adapter provides external power source to your Tablet PC and charges the internal a Lithium-Ion (Li-Ion) battery pack at the same time. The AC adapter also has an auto-switching design that can connect to any 100VAC ~ 240VAC power outlets.

  • Page 33: Starting Your Tablet Pc

    Getting Started For the power supply of this equipment, an approved power cord has to be used. Make sure the socket and any extension cord(s) you use can support the total current load of all the connected devices. Before cleaning the computer, make sure it is disconnected from any external power supplies (i.e.

  • Page 34: Using The Touch Screen

    ablet PC User Guide After the test, the screen will also display a message "press <F2> to enter SETUP". You don’t need to run this program at the moment as your dealer already made the necessary settings for your computer optimal operation. Refer to Chapter 5 on running the SETUP program later.

  • Page 35: Installing Windows 7 From Optical Disk Drive

    Getting Started NSTALLING INDOWS FROM PTICAL RIVE To install Windows 7 Home Premium directly from your USB - Slim Combo Drive (optional), please go to Boot menu of BIOS setup menu. Use arrow key to select "USB CDROM", then use " " or " " to move it to the top. Go to Exit menu and select "Exit Saving Changes".
  • Page 36 ablet PC User Guide "E:\Win7\x86\VGA\Setup.exe" Audio Device Driver "E:\Win7\x86\Audio\Setup.exe" Utility Program Component Device Driver "E:\Win7\x86\Utility Program Component\Setup.exe" G-Sensor Driver "E:\Win7\x86\SensorDRV\Setup.exe" Hotkey Utility "E:\Win7\x86\Hotkey\setup.exe" AzureWave WLAN/BT Device Driver "E:\Win7\x86\WLAN+BT\setup.exe" AzureWave Wireless LAN Device Driver "E:\Win7\x86\Wireless Lan\setup.exe" ETCom 3G Device Driver (Option) "E:\Win7\x86\3G Module\Autorun.exe"...
  • Page 37 Getting Started...

  • Page 39: Using Your Tablet Pc

    Using Your Tablet PC Using Your Tablet PC his chapter describes how to operate the standard built-in features of the Tablet PC that you normally would use in your day-to-day computer work. If you are new to computers and to your operating system, you also need to read the manual for the operating system on how to work with your Tablet PC.

  • Page 40: Screen Hotkey Utility For Function Controls

    ablet PC User Guide Screen Hotkey Utility for function controls Your Tablet PC has a number of function controls on the screen for preprogrammed with special functions. Please just position your finger on the screen where you want to execute a command. PECIAL UNCTION ONTROL...
  • Page 41 Using Your Tablet PC 1. Show Desktop 2. Volume 3. Brightness 4. Webcam 5. Video Decoder 6. Screen Rotation Show Desktop To hide the Wizard from view on the screen, press the button for minimization the Wizard to the task bar. Press the Volume command to adjust the audio volume, the Volume adjustment bar appear for you to increase or decrease the audio volume incrementally.

  • Page 42: About Screen Rotation

    ablet PC User Guide Press the Brightness command to adjust the screen’s brightness, the Brightness adjustment bar appear for you to increase or decrease the display brightness incrementally. Press the Webcam command to enable or disable the Webcam function. Press the Video Decoder command to enable or disable the video decoder function.

  • Page 43: Configuring Your Screen Display

    Using Your Tablet PC Configuring Your Screen Display OSSIBLE ISPLAY ONFIGURATIONS The table below shows you the possible display resolution you can set when using either the display screen or the external monitor (CRT):...
  • Page 44 ablet PC User Guide Display Possible Resolution Maximum Colors Widescreen 1024 x 600 16 million colors 10.1" WSVGA LCD CRT Only 1400 x1050 16 million colors (Maximum resolution) The Panel Resolution with 800x600 will not work with 90-degree. This is the DirectX runtime library limitation from MS.

  • Page 45: Connecting To Peripherals

    Connecting to Peripherals Connecting to Peripherals his chapter describes how you attach peripheral devices to your Tablet PC. You can attach a printer or mouse; connect an external monitor and keyboard, or other peripheral device. You will learn how to use these peripheral devices with the step-by- step instructions depicted in this chapter.

  • Page 46: Using The Usb Port

    ablet PC User Guide Using the USB Port USB (Universal Serial Bus) is a hardware interface that enables you to connect multiple devices (such as printers, mice, keyboards, storage devices, digital cameras, and video conference cameras, etc.) to your Tablet PC, and up to 127 devices can be attached.

  • Page 47: Using Asim Card Slot

    Connecting to Peripherals Using a SIM Card Slot Your Tablet PC has a 3.5G HSDPA module that can work with SIM card. SIM C NSERTING AND EMOVING A Inserting a SIM Card To insert a SIM card into the slot, please pay more attention whenever insert the SIM card into the slot with the correct side.
  • Page 48 ablet PC User Guide Removing a SIM Card To remove the SIM card, you can pull out the card directly, there is no release button for SIMCard slot. To remove a SIM Card from the SIMCard slot: Turn off your Tablet PC. Pull out the card directly, when the SIM Card has moved out a space out of the slot, hold the edges of the card and slowly slide it out.

  • Page 49: Using The External Audio System

    Connecting to Peripherals Using the External Audio System At the right panel of your Tablet PC, you will find the built-in audio ports. You can connect Microphone jacks, earphone or powered speaker. To connect to an audio jack: Locate the audio port (Microphone, Headphone) that you want to use to the target device.

  • Page 50: Using The Wireless Lan

    ablet PC User Guide If you use external speakers and experience the sound distortion or feedback, please lower the volume. Some factors is caused by too close locating the microphone and speakers from each other, moving away the external audio option from the unit may also help. Using the Wireless LAN This computer integrates built-in 802.11 b/g/n wireless LAN module.

  • Page 51: Caring For Your Tablet Pc

    Caring for Your Tablet PC Caring for Your Tablet our Tablet is equipped with the latest features in mobile computing technology. If properly cared for and maintained, the performance and reliability of the computer can be greatly prolonged.

  • Page 52: Cleaning Your Tablet Pc

    ablet PC User Guide Cleaning Your Tablet PC Your Tablet PC needs occasional cleaning to prolong their life. Please read this section carefully to ensure proper care of Tablet PC. When it is necessary to clean it, use a soft, lint-free cloth, slightly dampened with a mild detergent solution or use the contents of any commercially available computer cleaning kit.
