OPERATION MANUAL
Model TMM4 Series

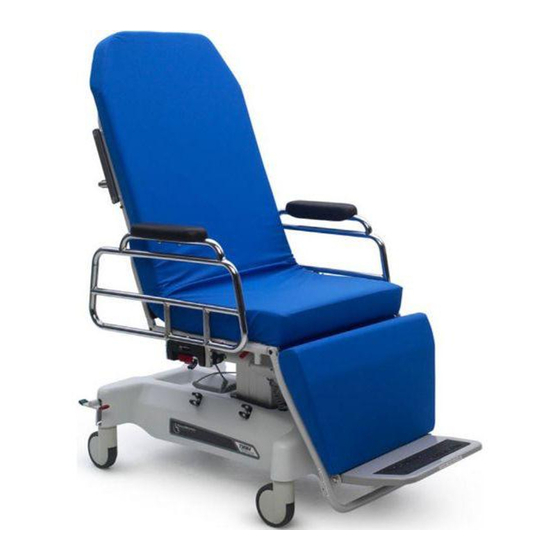

Multi-Purpose Stretcher-Chair
Options:
W
Wide
T
Tall
R
Rail on Back Section
Q
Scale
L
Low
G
ENG Headpiece
F
Folding Footrest
E
Export
B
Battery
A
AC Power
st
5516 S.W. 1
Phone: 1-800-237-3377 - Fax: 1-352-854-9544
www.transmotionmedical.com
Page 1 of 30
Lane – Ocala, FL 34474
Document No.: OM TMM4 SERIES
Revision: X
Advertisement
Table of Contents
Summary of Contents for TransMotion Medical TMM4 Series
- Page 1 Wide Tall Rail on Back Section Scale ENG Headpiece Folding Footrest Export Battery AC Power Lane – Ocala, FL 34474 5516 S.W. 1 Phone: 1-800-237-3377 - Fax: 1-352-854-9544 www.transmotionmedical.com Document No.: OM TMM4 SERIES Revision: X Page 1 of 30...
-
Page 2: Table Of Contents
“A” OPTION: AC POWER (for on-board batteries and charger) ................25 SWITCH SCHEMATIC ....................... 26 CLEANING INSTRUCTIONS ..................... 27 PAD REMOVAL INSTRUCTIONS ......................... 29 PREVENTIVE MAINTENANCE ....................29 SERVICE INFORMATION ......................30 Document No.: OM TMM4 SERIES Revision: X Page 2 of 30... -
Page 3: Important Notes About This Manual
IMPORTANT NOTES ABOUT THIS MANUAL This Operations Manual is designed to assist you with operating your TransMotion Medical Product. Carefully read this manual before using the equipment or doing service / maintenance on it. If you are unable to understand the WARNINGS and CAUTIONS and instructions, contact TransMotion Medical customer service before attempting to operate or service the equipment. -
Page 4: Safety Precautions
Do not sit or stand on the ends of the stretcher-chair. Instruct patients to not stand on footrest during egress / ingress. Due to the unique nature of each patient’s body shape, caregiver should exercise sound judgment when positioning patient on the device. Document No.: OM TMM4 SERIES Revision: X Page 4 of 30... - Page 5 If mounting accessories to back surgical rails, ensure accessory is properly installed and securely engaged prior to transporting patient/chair, and prior to use. Only equipment approved by TransMotion Medical is to be mounted on surgical rails. TransMotion Medical is not responsible for damage, and assumes no liability, caused by the use of unapproved equipment or accessories.
- Page 6 The max weight capacity of each back surgical bar is 50 pounds. To prevent personal injury to patient, do not mount equipment weighing more than 50 pounds to device. Weight of patient plus weight of equipment should not exceed 500 pound weight capacity of TransMotion Medical stretcher-chair. EMI CAUTION:...
-
Page 7: Labeling Diagrams (Tmm4-Wtfb Shown)
INSPECT LABELS PERIODICALLY Every three months, inspect all labels and ensure that they are legible, and not tattered, torn, or missing. Refer to label locations in figures below. If labels need replacing, contact TransMotion Medical Customer Service at 1-800-237-3377. Document No.: OM TMM4 SERIES... - Page 8 Document No.: OM TMM4 SERIES Revision: X Page 8 of 30...
- Page 9 Document No.: OM TMM4 SERIES Revision: X Page 9 of 30...
-
Page 10: Operating Instructions
COULD RESULT IN THE BACK RELEASE LEVER FUNCTIONING IMPROPERLY DURING AN EMERGENCY. To ensure proper operation, activate quick release every thirty days. If quick release does not operate properly, please contact TransMotion Medical Customer Service at 1-800-237-3377. Document No.: OM TMM4 SERIES Revision: X... -
Page 11: Caster Brake Operation
This mode locks caster (near patient’s right foot) parallel to base, but allows this wheel to spin. Other three casters swivel, and wheels spin freely. Document No.: OM TMM4 SERIES Revision: X Page 11 of 30... -
Page 12: Side Rail Operation
Remove cushion and seat pan by removing four pan head screws. NOTICE Do not discard seat pan, pan head screws, or additional hardware removed during this step. Parts will be reused after adjustment. Loosen top jam nut. Document No.: OM TMM4 SERIES Revision: X Page 12 of 30... - Page 13 To move inward, rotate bottom jam nut as shown. To move outward, rotate bottom jam nut as shown.. Document No.: OM TMM4 SERIES Revision: X Page 13 of 30...
- Page 14 5) Ensure top jam nut engages at least two full threads. Do not over tighten top jam nut (there is no need). Reattach seat pan and cushion. Document No.: OM TMM4 SERIES Revision: X Page 14 of 30...
-
Page 15: Pendant (Controller)
Press left button to raise chair’s leg section and lower chair back, resulting in stretcher configuration. Press right button to lower chair’s leg section and raise chair back, resulting in chair configuration. Document No.: OM TMM4 SERIES Revision: X Page 15 of 30... -
Page 16: Patient Ingress / Egress
6. WITH PATIENT EXITING TO SIDE OF CHAIR, assist patient in rotating their body by placing their legs over one side of chair. 7. Assist patient into standing position from seated position. Document No.: OM TMM4 SERIES Revision: X Page 16 of 30... -
Page 17: Patient Transfer
Grasp push bar handle while pulling out red release knob. Lower push bar into “down” position. RAISING PUSH BAR Lift push bar handle until it is in “up” position. Red release knob will engage (lock) automatically. Document No.: OM TMM4 SERIES Revision: X Page 17 of 30... -
Page 18: Options
“W” OPTION: WIDE WIDTH For “W” option, patient surface width is 28”. Standard width is 24”. “T” OPTION: TALL HEIGHT For “T” option, chair height travel is 16”. Standard travel is 8”. Document No.: OM TMM4 SERIES Revision: X Page 18 of 30... -
Page 19: R" Option: Rails On Back Section (Near Patient's Head)
“R” OPTION: RAILS ON BACK SECTION (near patient’s head) Rails located on back section operate and adjust same as side rails. Document No.: OM TMM4 SERIES Revision: X Page 19 of 30... -
Page 20: Q" Option: Scale
Accuracy / Repeatability: 0.2 lbs or 0.2% of Patient’s Weight (whichever is greater) Powered by: 9V DC Internal Battery SCALE SHOULD ONLY BE OPERATED BY TRAINED *Recommended Weighing Position MEDICAL PERSONNEL. Document No.: OM TMM4 SERIES Revision: X Page 20 of 30... - Page 21 Industrial battery. 3) Replace battery cover. To ensure proper scale function, test scale annually using a known weight. If a discrepancy exists; please contact TransMotion Medical Customer Service at 1-800-237-3377. Document No.: OM TMM4 SERIES Revision: X Page 21 of 30...
-
Page 22: L" Option: Low Height
2) Tighten two black knobs in a clockwise direction until tight. TO PREVENT POTENTIAL INJURY, ENSURE KNOBS ARE COMPLETELY TIGHTENED PRIOR TO CHAIR USE. Document No.: OM TMM4 SERIES Revision: X Page 22 of 30... -
Page 23: F" Option: Folding Footrest
“A” option power cord is directly attached to chair. “B” option power cord is attached to battery charger (# TMA57-15). Power cords depicted in image may not match power cord shipped with your chair. Document No.: OM TMM4 SERIES Revision: X Page 23 of 30... -
Page 24: B" Option: Battery Pack
Additional battery may be stored in wall charger or on mobile battery stand. For more information related to the battery and charger, see Battery Charger Installation and Usage Instructions (IM TMA57- 15). Document No.: OM TMM4 SERIES Revision: X Page 24 of 30... -
Page 25: A" Option: Ac Power (For On-Board Batteries And Charger)
Then unplug the battery pack cord shown. Document No.: OM TMM4 SERIES Revision: X Page 25 of 30... -
Page 26: Switch Schematic
PORTS #1 (AND PORT #2 FOR TMM4-T) BACK SECTION ACTUATOR – PLUGS INTO PORT #3 LEG SECTION ACTUATOR – PLUGS INTO PORT #4 PORT #5 IS EMPTY PENDANT CABLE PLUGS INTO PORT #9 Document No.: OM TMM4 SERIES Revision: X Page 26 of 30... -
Page 27: Cleaning Instructions
Consult manual provided by accessory manufacturer. Accessories facility policies * Use of Facility approved detergents and disinfectants must comply with the instructions provided by the manufacturer(s) of those products. Document No.: OM TMM4 SERIES Revision: X Page 27 of 30... - Page 28 Upholstery Care & Cleaning Instructions Proper care is essential in ensuring the durability and reliability of TransMotion Medical upholstery. In general, all products should be: 1. Cleaned 2. Disinfected (in accordance with facility policy) 3. Rinsed 4. Allowed to air dry It is important to note that the terms “disinfecting”...
-
Page 29: Pad Removal Instructions
Test function of Service if each button pendant is not Pendants Every three months Inspect pendant functioning or label to ensure it label is is readable. unreadable Document No.: OM TMM4 SERIES Revision: X Page 29 of 30... -
Page 30: Service Information
Recommended to replace battery every two years or as required. Customer service and support are important aspects of each TransMotion Medical product. Prior to contacting TransMotion Medical for assistance with your chair, please HAVE YOUR CHAIR’S SERIAL NUMBER HANDY. (Refer to label diagram for location.)
