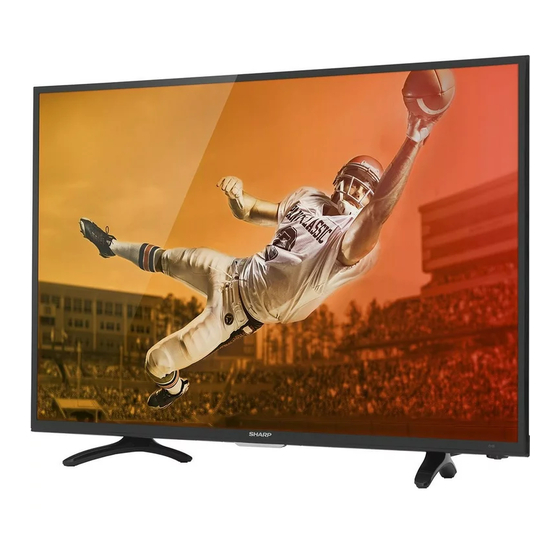

Sharp LC-50N3100U Quick Start Manual

Hide thumbs

Advertisement

Quick Links

ES-G1612C8-1

Advertisement

loading

  Related Manuals for Sharp LC-50N3100U

  Summary of Contents for Sharp LC-50N3100U

  • Page 1 ES-G1612C8-1...
  • Page 2 Model LC-50N3100U Quick Start Guide Help SHARP improve the environment by reducing paper waste. For detailed instructions and feature descriptions, access the full User Manual online.
  • Page 3 Hisense Company Ltd. and its subsidiaries. This product is sold to you under one or more license agreements between Sharp Corporation and Hisense International (Hong Kong) America Investment Co. Ltd. All other trademarks are the property of their respective holders.
  • Page 4 Enjoy TV in a Super Simple and Super Unique Way! LED TV with Popular Features Multiple Connection Methods • LED backlight that offers better brightness and contrast • 1 Digital Audio Out port • Energy-efficient design to reduce your utility bill •...
  • Page 5: Register Your Tv

    TV. For detailed instructions, access the User Manual on the support pages listed below. Because we value your business, we want to keep you in the know of 'all things SHARP'. Using your mobile phone, scan the Registration page QR code to register your TV.
  • Page 6: Packaged Contents

    Packaged contents Your package in which you purchased your new TV contains the following items: A left and right leg that forms the TV stand Remote Control 2 AAA batteries A/C power cord Quick Start Guide (this document) Important Safety Information and Warranty Card leaflet 4 screws (M4×20) IMPORTANT: To prevent accidentally discarding items that came with your TV, be sure to check ALL of the foam in the carton box.
  • Page 7: Buttons And Ports On The Tv

    BUTTONS AND PORTS ON THE TV Back View of the TV TV Side View Power Input TV Bottom View AUDIO HDMI 1/ARC...
  • Page 8 STEP 1. Attach the TV stand or wall mount bracket (not included) Attach the TV Stand (For steps to attach the wall mount see page 6) CAUTION: Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount brackets. The LED display is very fragile and must be protected at all times when installing the legs that form the stand.
  • Page 9 Attach the Wall Mount Bracket (not included) • To prevent internal damage to the TV and ensure it is mounted securely, be sure to use fixing screws (not Before you begin the third-party manufacturer instructions, be provided) that are 9.5 - 11.5 mm in length when measured sure to do the following things: from the attaching surface of rear cover.
  • Page 10 STEP 2. Connect devices to your TV Check to ensure that you have selected the right cables for the ports and that they are connected securely. Loose connections can affect the quality of the picture image and color. TV label Port Cable External Equipment...
  • Page 11: Digital Output

    TV label Port Cable External Equipment Brief Description Connect an optical cable from an external DIGITAL OUTPUT digital audio system. Audio Amplifier Speaker Connect headphones to hear audio from the / AUDIO OUT Connect an audio adapter (not provided) from White an external analog audio system.
  • Page 12: Buttons On Your Tv Remote

    Buttons on your TV remote Infrared transmitter Power on/off Select input source INPUT Select TV / AV / USB source Select picture mode Select component source Select HDMI source Select sound mode Zoom button Set the sleep timer Display current time Audio select button Adjust closed caption mode TIME...
  • Page 13: Step 3. Begin Using Your Remote

    3. Replace the battery compartment cover. A list of SHARP codes for the most common Cable and Satellite Important Information about the remote and batteries: providers are listed below. Use the SHARP code that is associated • Discard batteries in a designated disposal area. Do not...
  • Page 14: Step 4. Power On The Tv

    STEP 4. Power on the TV If your Cable or Satellite provider does not have a SHARP code available, please contact us at one of the phone numbers on Page 2. Plug one end of the power cord into the AC INPUT connector on the back of your TV and the other end into a power outlet.
  • Page 15: Step 6. Selecting The Input Source

    STEP 5. Complete the first-time setup menu STEP 6. Selecting the Input Source After the splash screen that shows the SHARP logo appears, When you finish the first-time setup menu, Source INPUT begin the first-time setup menu. you must select the TV signal source.
  • Page 16: Product Specifications

    PRODUCT SPECIFICATIONS Model Name LC-50N3100U Dimension Without Stand 44.1 × 25.5 × 3.1 inches (W × H × D) (1119 × 648 × 80 mm) With Stand 44.1 × 27.5 × 9.6 inches (1119 × 698 × 245 mm) Weight Without Stand 26.5 lbs (12 kg)
  • Page 17: Quick Problem-Solving Tips

    QUICK PROBLEM-SOLVING TIPS When you experience an issue with your TV, turn it off and on again. If this does not resolve the problem, then refer to the tips below. If the problem is still not resolved, then contact us at one of the phone numbers on Page 2. ISSUES POSSIBLE SOLUTIONS •...
  • Page 18: Need More Help

    The plastic cabinet makes a • The 'click' sound can occur when the temperature of the television changes. This change causes the television "clicking" type of sound cabinet to expand or contract, which makes the sound. This is normal and the TV is OK. •...
  • Page 19: Certification And Compliance

    ©2016. All rights reserved. SHARP and the SHARP logo are registered However, there is no guarantee that interference will not trademarks of SHARP. Other brand and product names are registered occur in a particular installation.
