Summary of Contents for Carmelli NG1040

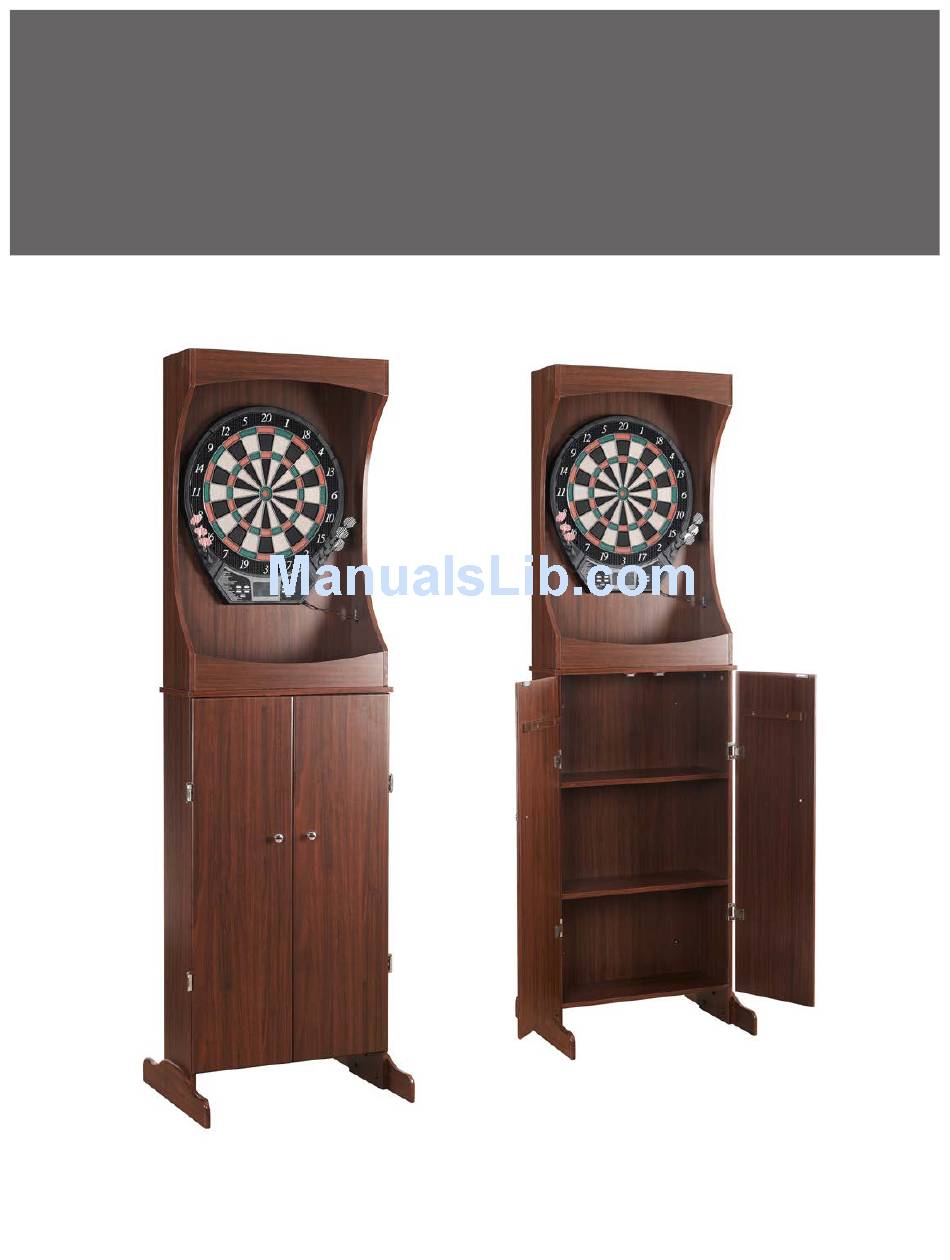

- Page 1 OUTLAW FREE STANDING DART CABINET ASSEMBLY INSTRUCTIONS NG1040...
- Page 2 THANK YOU! Thank you for purchasing this product. We work around the clock and around the globe to ensure that our products maintain the highest possible quality. However, in the rare instance that your product is defective or missing parts, contact your retailer, or call 800-759-0977, to submit parts requests or warranty claims.
- Page 3 PARTS IDENTIFIER (NOT TO SCALE) TOP BACK BOARD BASE PLATE COVER PLATE SIDE PANEL CROSS BOARD 1 pc 1 pc 1 pc 2 pcs 2 pcs COVER PLATE DOOR STORAGE BOARD SIDE PANEL BOTTOM BACK BOARD 2 pcs 1 pc 2 pcs 3 pcs 1 pc...
-
Page 4: Assembly Tips
ASSEMBLY TIPS 1. Find a clean, level surface to begin the assembly of your game table. The table will be par- tially assembled upside down and then turned over onto its legs. This is a heavy game and turning it over will require at least two strong adults. 2. - Page 5 ASSEMBLY INSTRUCTIONS Step 1: Screw thread bolts #21 into the side panel #1A and #1B, and cross board #2A and #2B as shown below. Insert gears #20 into cover plate #3, base plate #4 and cross board #2A and #2B. Note: see illustration below for alignment of gear to hole. Attach cross board #2A to base plate #4 with gears #20.
- Page 6 ASSEMBLY INSTRUCTIONS (CONT.) Step 3: Screw thread bolts #21 into cover plate #7 and side panel #6. Insert gears #20 into storage shelves #9. Attach cover plate #7 and storage shelves #9 to side panel #6 with gear #20 4. Attach each LEG BRACE #5 to LEGS as shown with SMALL BOLT #8 and SMALL FLAT as shown.
- Page 7 ASSEMBLY INSTRUCTIONS (CONT.) Step 5: Attach the dart holder #12 using the pre-drilled holes on the door with screw #18. Attach the doors #8 to the bottom cabinet with hinges #13 and screw #16 and screw #17. Attach the legs #11 to the cabinet bottom with washer #15 and bolt #14. Note: see Step 7 4.
- Page 8 ASSEMBLY INSTRUCTIONS (CONT.) Step 7: Attach the electronic dartboard #25, using the threaded holes on backboard, with bolts #24. 4. Attach each LEG BRACE #5 to LEGS as shown with SMALL BOLT #8 and SMALL FLAT WASHER #9. Feed wire leads through gasket, and carefully turn table over. * Before turning the table over, carefully feed two wire leads...
-
Page 9: Care And Use
CONGRATULATIONS! You have now assembled your Game Table. Please note the Care and Use instructions below to ensure years of trouble free use of your game table. CARE AND USE 1. This product is intended for INDOOR use only. 2. Do NOT sit, climb or lean on the table. 3. - Page 10 180-DAY LIMITED WARRANTY This product is warranted to the original purchaser to be free from defects in material or workmanship for a period of 180 days from the date of the original retail purchase. This warranty does not cover defects or damage due to improper installation, alteration, accident or any other event beyond the control of the manufacturer.
- Page 11 OUTLAW FREE STANDING DART CABINET- NG1040 Parts List PARTS #1 NGP5914L #2 NGP5915 #3 NGP5916 #4 NGP5917 #5 NGP5918 #6 NGP5919L #7 NGP5920 NGP5914R NGP59151 NGP5919R SIDE PANEL- COVER PLATE- BASE PLATE TOP BACK BOARD SIDE PANEL - TOP CROSS BOARD...
