Summary of Contents for Soberlink Cellular

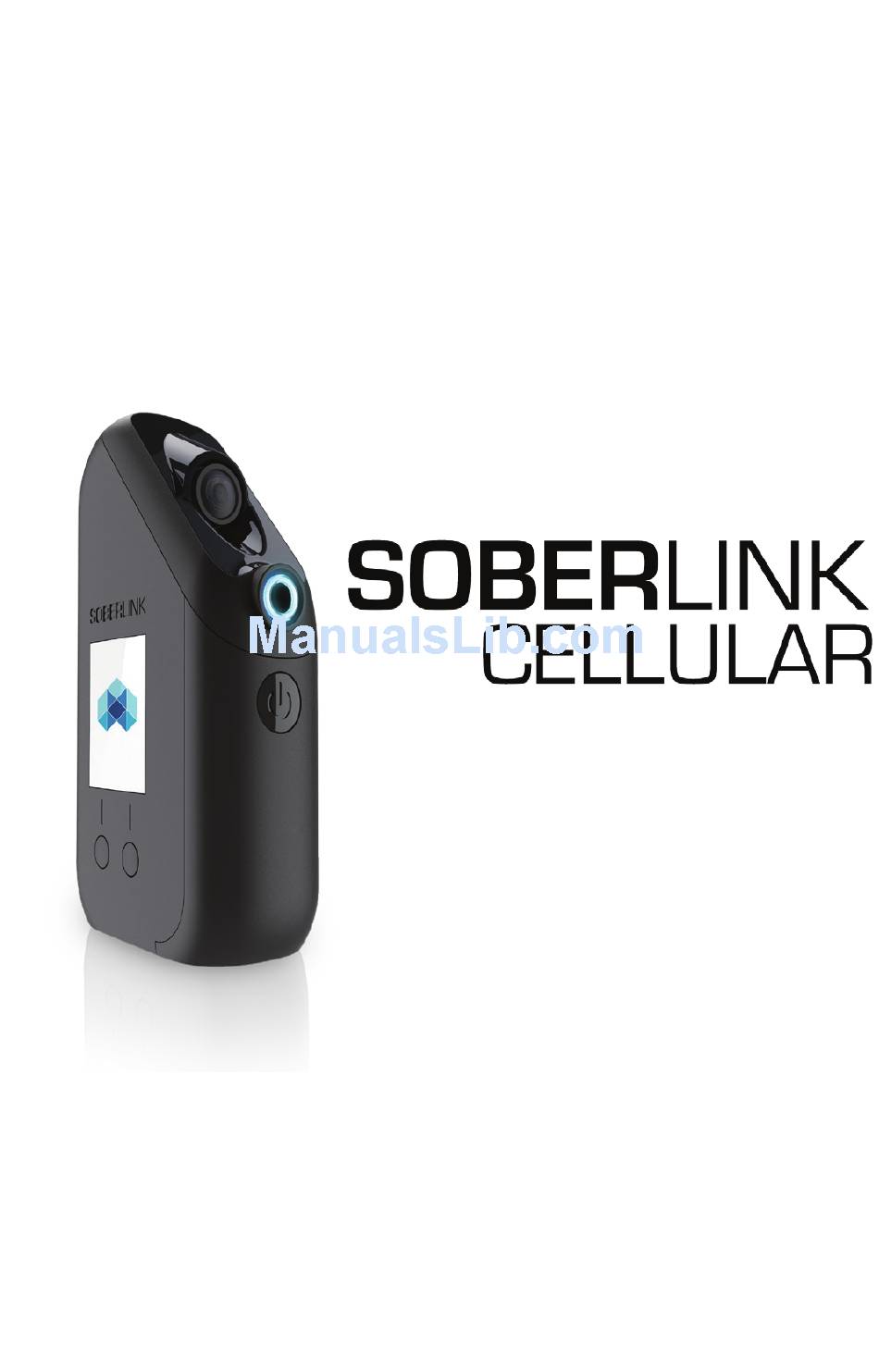

- Page 1 Device Quick Start Guide...
-
Page 2: Table Of Contents
Table of Contents Intended Use................1 Device Recalibration..............1 Disclaimers..................1 Device Diagram................2 Accessories...................3 Preparing to Submit a Test............4 Submitting a Test................5 Client Text Notifications...............6 Device Operating Information...........7 Troubleshooting................8... -
Page 3: Intended Use
Intended Use The Soberlink Cellular Device is intended to quantitatively measure alcohol in human breath. Measurements obtained by this Device are used in the diagnosis of alcohol intoxication. For Prescription use and OTC use. DEVICE RECALIBRATION IS REQUIRED AFTER 1,500 TESTS. -
Page 4: Device Diagram
Device Diagram Camera Status light/ Mouthpiece port Power button Device screen Left and Right display buttons Micro USB charging port... -
Page 5: Accessories
Plug the charging base into an electrical outlet. Mouthpiece Insert the small, flanged end of the Mouthpiece into the Device. Note: Always use a Soberlink Mouthpiece when submitting a test. Device Case To protect the Device when not in use, keep it stored in the Device Case. -
Page 6: Preparing To Submit A Test
Preparing to Submit a Test This document, and any other provided training material, should be fully understood by the user before submitting a test. Wait 20 minutes after eating, drinking, or smoking before submitting a test. Failure to wait may result in inaccurate test results. Rinsing out the mouth with water does not act as a substitute for the 20-minute waiting period. -
Page 7: Submitting A Test
1. Press the Power button to turn on the Device. The Device screen will display a “Welcome to Soberlink” message. 2. Insert the small, flanged end of the Soberlink mouthpiece into the Device. 3. Use the left display button on the Device to select Submit. -
Page 8: Client Text Notifications
Client Text Notifications Once a schedule is enabled on the Sober Sky Web Portal, Soberlink’s automated system will send text message reminders directly to the Client’s phone. Note: Upon entry of a mobile number on the Sober Sky Web Portal, the... -
Page 9: Device Operating Information
4 seconds Operating Temperature 32°F - 122°F (0°C - 50°C) Sensor Accuracy .+/- .005 BAC Detection Range .000 - .400% BAC Cellular Carrier Verizon Private Network Calibration Every 1,500 tests Device Screen Display LCD, digital Camera Color, digital, infrared technology... -
Page 10: Troubleshooting
DO NOT submerge the Device in water. Repairs of the Device may be performed only by Soberlink Healthcare or an authorized service technician. Only original parts may be used in the Device. For Warranty information, review the Soberlink General Terms and Conditions found... - Page 11 Contact Us If you have any questions, please contact us at support@soberlink.com or 844-265-0463. Soberlink Healthcare LLC 16787 Beach Blvd. #211 Huntington Beach, CA 92647 Copyright 2016 Soberlink. All rights reserved. QSG-SCD-16-005...
