88 4508 95
Prep & Serve Cart
(Black Finish)
IMPORTANT NOTE
Carefully remove all the parts from the carton and put them I
ndividually on a soft cloth to prevent scratches or other damages
occuring to the wood parts.
We have taken great care in the design of this product and request that you carefully
and strictly follow our assembly instructions to ensure a completed product as it was designed.
A.
Top
1 pc.
H.
Back Piece
1 pc.
K.
Leg
4 pcs.

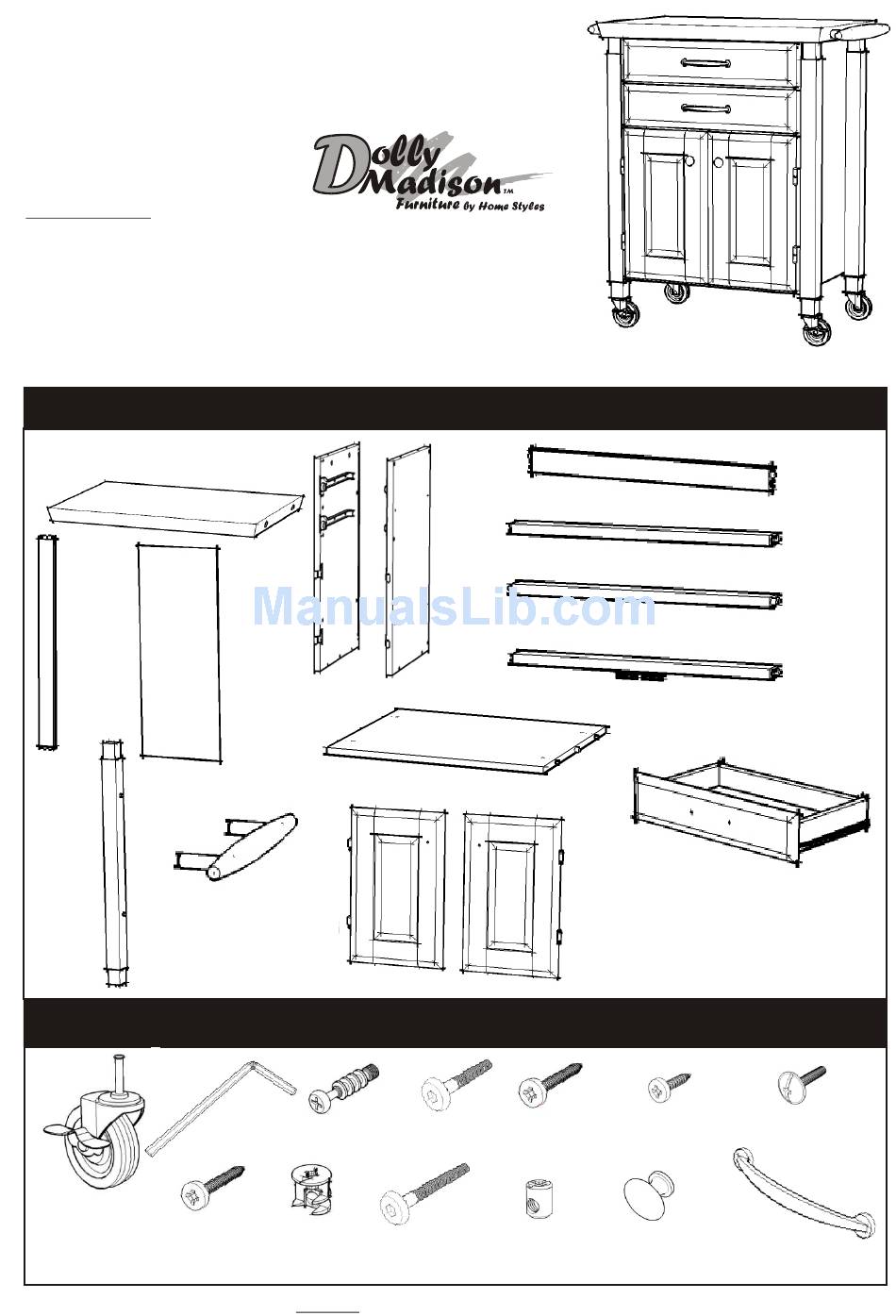

HARDWARE LIST
Caster
two lock
two non-lock
Wood Screw
4 pcs.
for Side Bar
4 pcs. (+1 extra)
Tools Required For Assembly : Phillips screwdriver
B.
Side Panel
1 pc.
I.
Back Panel
2 pcs.
M.
L.
Door
Side Bar
1 pc.
2 pcs.
Cam Lock Screw
Hex Wrench
4 pcs. (+1 extra)
1 pc.
Cam Lock
4 pcs. (+ 1 extra)
C.
Side Panel
1 pc.
Wood Screw (long)
Head Cap Bolt
for Drawer Side Part
16 pcs. (+1 extra)
16 pcs. (+1 extra)
Cross Dowel
Head Cap Bolt (long)
4 pcs. (+1 extra)
4 pcs. (+1 extra)
J.
Base
1 pc.
O.
KD. Drawer
2 pcs.
(Knock-Down Construction,
N.
Door
please refer to the last page of
1 pc.
instructions for steps to complete
assembling drawers)
Wood Screw (short)
for Drawer Base Part
12 pcs. (+1 extra)
Drawer Pull Handle
Door Pull Handle
2 pcs.
2 pcs.
D.
Back Piece
2 pcs.
E.
Front Piece
1 pc.
F.
Front Piece
1 pc.
G.
Front Piece
1 pc.
Machine Screw
6 pcs.
Advertisement
Table of Contents
Summary of Contents for Dolly Madison 88 4508 95
- Page 1 88 4508 95 Prep & Serve Cart (Black Finish) IMPORTANT NOTE Carefully remove all the parts from the carton and put them I ndividually on a soft cloth to prevent scratches or other damages occuring to the wood parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
- Page 2 Assembly Instructions 2/5 IMPORTANT Do not tighten up all the screws until each part is properly assembled. You should keep Hex Wrench in the safe place as you may need to tighten up the Head Cap Bolts in the future. Head Cap Bolt STEP 1 Upper Position...
- Page 3 Assembly Instructions 3/5 Head Cap Bolt STEP 3 Attach Side Panel (C) to the unit with Head Cap Bolts, Head Cap Bolts (long) and Cross Dowel. Cross Dowel Head Cap Bolt (long) Head Cap Bolt Locking Caster STEP 4 Attach Leg (K) to the unit with Head Cap Bolts. Locking Caster Attach 4 Casters to the underside of the legs.
- Page 4 Assembly Instructions 4/5 Wood Screw Cam Lock Screw (Figure 1) STEP 5 Turn over Top (A) upside down and place it on a soft, non-scratching surface. Attach Side Bar (L) to Top (A), using Wood Screws. Put Cam Lock Screws into the pre-drilled holes at Top (A). (See figure 1) Place Top (A) onto the unit, using Cam Locks.
- Page 5 Assembly Instructions 5/5 Drawer STEP 1 Attach O1 to O3 and O4, using a Phillips screwdriver and the long wood screws (4X), (Figure 1) tighten halfway. Attach O2 to O3 and O4 using MAKE SURE ROLLER the long wood screws (4X), IS ON THE BACK tighten halfway.
