JAN 2011

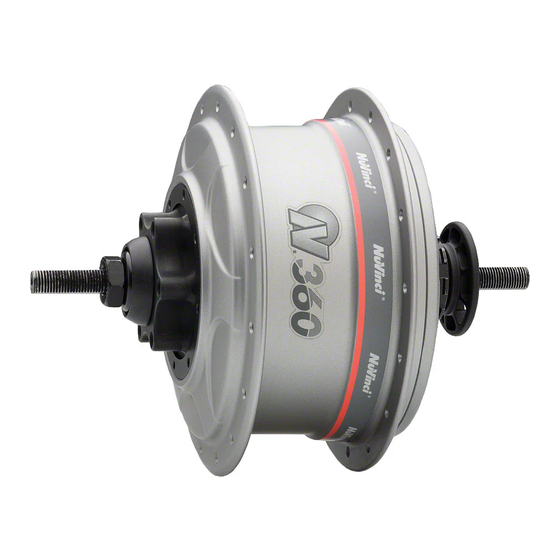

NuVinci
VIDEOS ONLINE: Go to www.nuvinci.com/N360video
Chain Requirements (3/32" Only)
1
Due to tight clearances at the N360 Hub
Interface, the NuVinci N360 is incompatible
with 1/8 inch (3.18mm) single-speed chains.
Use only 3/32 inch (2.3mm) chains and
sprockets.
„ If using a NuVinci supplied 17, 18, or
20-tooth sprocket, only use 7 or 8-speed
chains (9 or higher speed chains are too
narrow for the NuVinci sprocket).
Shifter / Cable Handling
2
As shown in the Technical Manual, install
cable end hardware only by pulling cables at
the end of the housing (1).
„ Never rotate the grip (2) with cables
unattached, as they can bind inside
the shifter.
Checking Shift Range
3
With installation complete, check the shift
range while pedaling the bicycle.
„ The NuVinci N360 cannot be shifted (3)
completely through the ratio range while
stopped.
„ 50-70% range is typically accessible,
with the remainder accessible with very
little pedal rotation (4).
*B35-N360-02*
READ ME FIRST!
N360
®
TM
TM - READ ME FIRST
*B35-N360-02*
CVP Setup Guidelines
1
1/8"
2
1
3
ENGLISH
ü
3/32"
4
2
3
1
Advertisement
Related Manuals for NuVinci N360
Summary of Contents for NuVinci N360
-
Page 1: Read Me First
CVP Setup Guidelines ® VIDEOS ONLINE: Go to www.nuvinci.com/N360video Chain Requirements (3/32” Only) Due to tight clearances at the N360 Hub Interface, the NuVinci N360 is incompatible with 1/8 inch (3.18mm) single-speed chains. Use only 3/32 inch (2.3mm) chains and sprockets. - Page 2 N360 CVP Setup Guidelines ® Cable End Hardware Assembly Aids If your NuVinci N360 came with two plastic aids for installing the cable end hardware, follow the directions below; otherwise refer to “Installing Shift Cables and Hardware” in the N360 Technical Manual (Section 2.15).
- Page 3 Tel: +1 (512) 279-6200 Fax: +1 (512) 267-0159 www.nuvinci.com support@nuvinci.com © 2011 Fallbrook Technologies Inc. NuVinci, N360, Fallbrook Technologies and their respective stylized logos and elements are trademarks or registered trademarks of Fallbrook Technologies Inc. All rights are reserved. 360-TM-RMF-1-2011-ENG. Printed in USA.
- Page 4 28 & Below Frame Mount Motor E-Bikes Motor Motor 250W (rated) Motor + Human Power through NuVinci N360 CVP Minimum Sprocket Ratio = (Front Chain Ring Teeth) / (Sprocket Teeth) 2.1 : 1 Rear Sprocket Minimum Sprocket Ratio ü ü ü ü ü ü ü...
