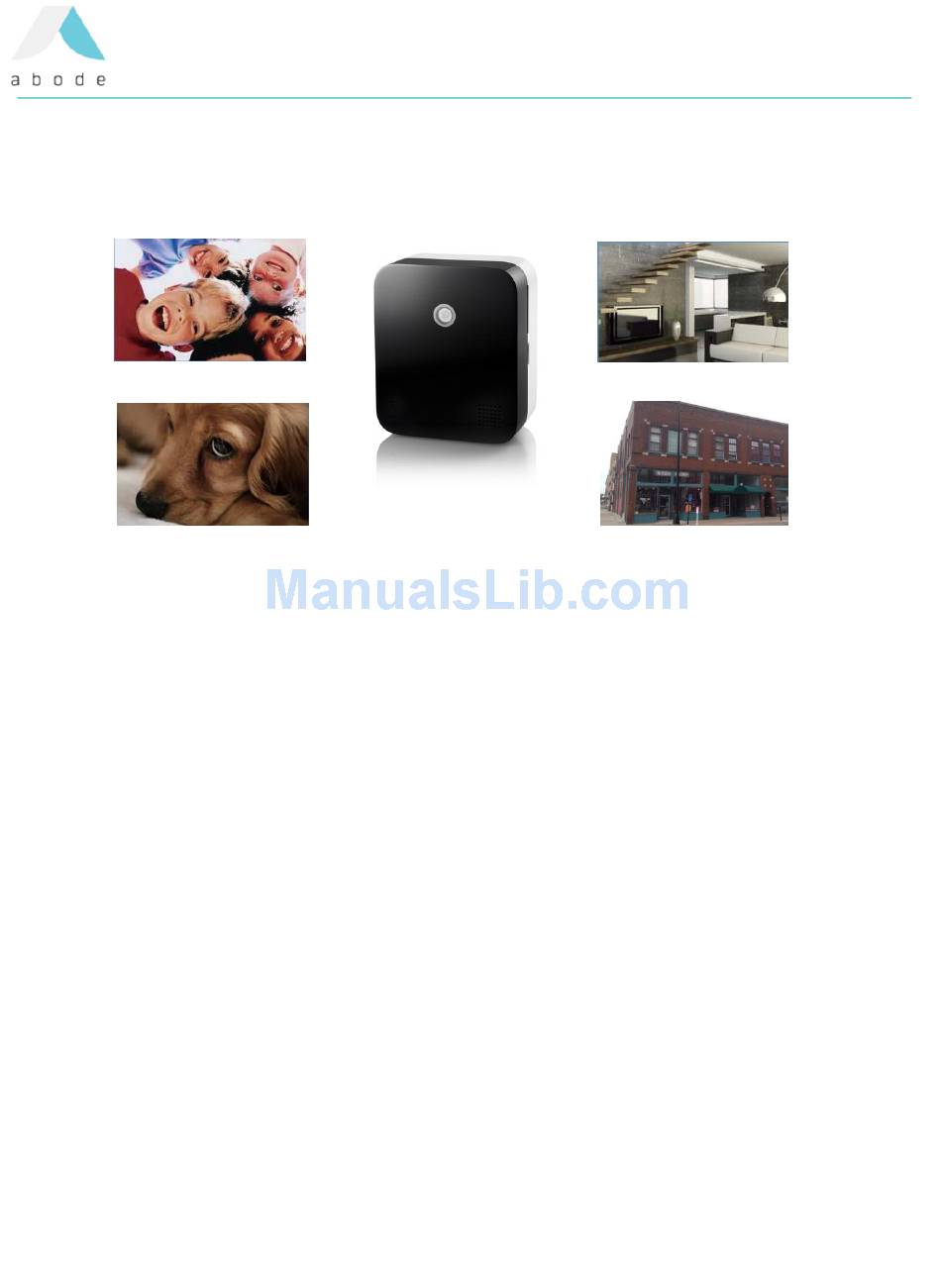

abode IP Streaming Camera User Guide
See if your children stay and
play safely at home
Watch your pet.
The abode streaming camera can be viewed from the abode web or mobile app, and captures video clips when the
alarm is activated or on request.
Product Features
• Night vision & IR illuminators, Wide angle lens
• Ethernet & Wi-Fi capable: 802.11b/g
• Encrypted secured stream JPEG & H.264
• Different storage options including local
video storage
• Privacy Button
• 2 sec pre-alarm and 8 sec post alarm capturing
• Wall mount bracket (Adjustable swivel)
Specifications
• Image sensor: 1.3 megapixel progressive scan
CMOS sensor
• Lens focus: 4.2mm F1.6 fixed focus
• Wired internet connectivity: RJ-45 Ethernet
connector and
built in Wi-Fi
• Video compression: JPEG & H.264
• Video resolution: 1280 x 720
• Power supply included: 5V/2A, 100~240V AC
wall transformer w/6' cord
• Local storage: Micro SD card 4GB
• Motion detection: Video motion detection (future)
• 2-way voice / Talk & Listen (Future)
• Dimensions: 3.5''x 4''x 2.5''
• Operating temperature: -14° to 113° deg
• Operating humidity: Up to 85% non-condensing
abode reserves the right to update this product information at any time without notice.
radio 802.11b/g
abode Systems Inc. Website: www.goabode.com 2015
Keep an eye on valuables.
Your Business
Product Use
The abode streaming Camera Series creates limitless
possibilities in one simple solution.
• Live-feed video streaming
• Alarm-triggered video recording that includes Pre-alarm
recording
• On Demand request for video clip recording from the
web or mobile app.
Operation
The IP Camera will capture video in the following
situation:
1. When an alarm is activated by the abode system, the
streaming Camera will capture a 10 sec video clip.
2. When the user manually request a video using the
abode web or mobile app.
The length of captured video is 10 seconds, with 2 seconds
of video showing pre-alarm/activation
1
