Introduction
1.

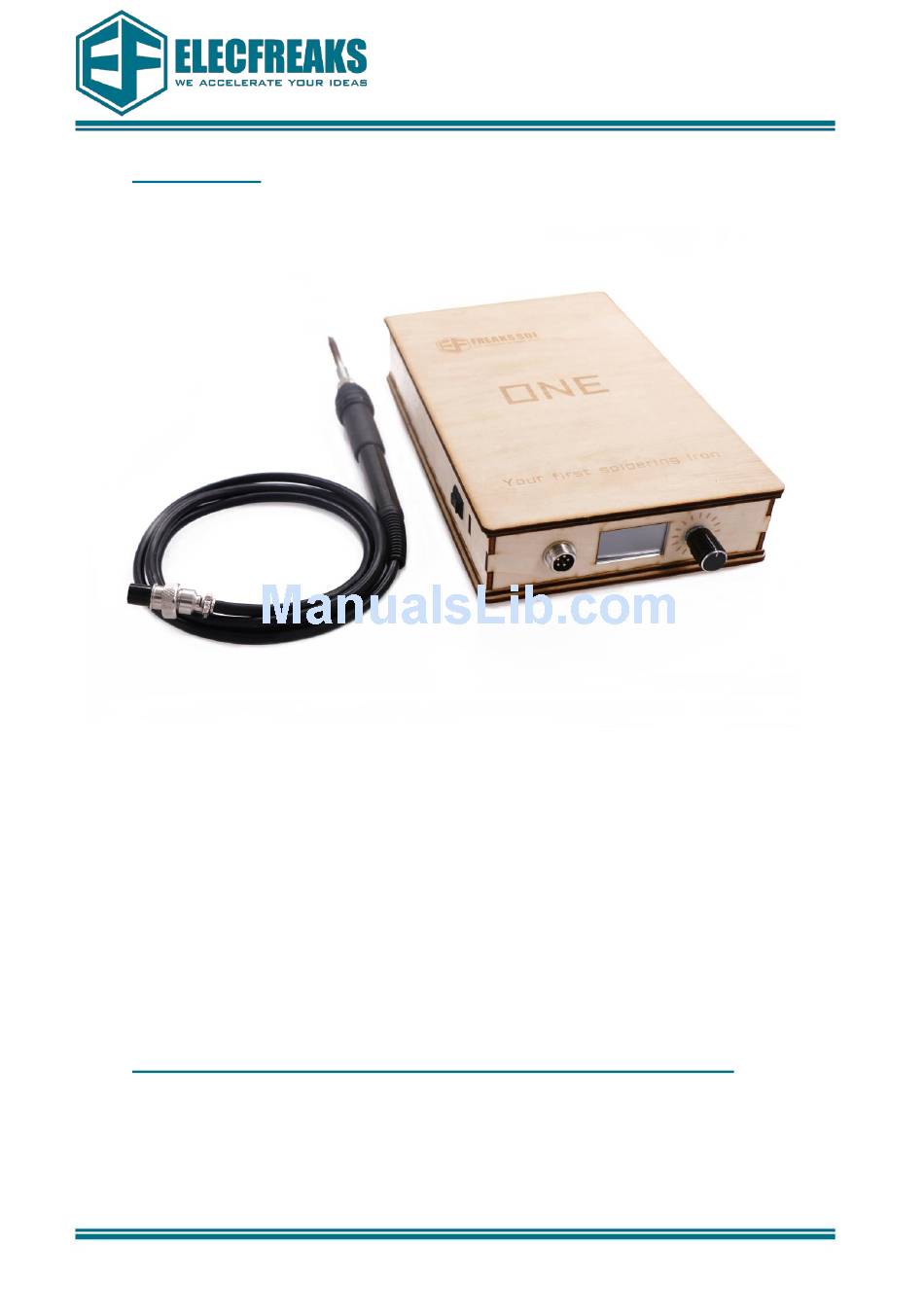

SOI one is the first portable instant soldering iron for the maker market, developed by
ELECFREAKS. It only takes 7 seconds for the soldering bit to reach standard working
temperature from cooling state, and 5 seconds for better soldering bits. When it instantly reaches
the desired temperature, the temperature will be kept static as your setting value. The moment the
soldering bit meets the material, the controller will fast respond and increase the temperature to
the setting value so as to prevent the soldering bit from damaging the circuit board or parts.
SOI one has powerful performance, as well as an unparalleled smart control system with
functions such as preference setting, standby sleep, boost mode, wakeup mode, sensing mode and
voltage protection. The smart control system is also running in three languages-Mandarin, English
and Korean, catering to geeks from different corners of the world.
Differences between SOI ONE and common soldering irons
2.
SOI one uses a constant temperature iron, which has high heating effectiveness and heat
conductibility than common soldering irons.
1，
High heating effectiveness. It only takes 20w power to achieve the soldering
performance of 40w power.
Datasheet
SOI ONE User Guide
1
support@elecfreaks.com
Advertisement
Summary of Contents for Elecfreaks SOI ONE
- Page 1 SOI ONE User Guide Introduction SOI one is the first portable instant soldering iron for the maker market, developed by ELECFREAKS. It only takes 7 seconds for the soldering bit to reach standard working temperature from cooling state, and 5 seconds for better soldering bits. When it instantly reaches the desired temperature, the temperature will be kept static as your setting value.
- Page 2 SOI ONE User Guide Precise temperature control. It won’t damage heating parts, so it’ll not ask much 2， experience from users as common soldering irons do. High soldering dependency. The temperature of the soldering bit drops when meeting the soldering material which will ensure the current reaches the setting value.
-
Page 3: Basic Operation
SOI ONE User Guide 5、 Real-time temperature of the soldering iron. ERROR occurs when unconnected, and it only shows real-time iron temperature when the soldering iron is inserted. 5. Menu 中文 English Korean 设置菜单 Main menu 메인메뉴 ┣基本设置 Base setup 기본셋팅... - Page 4 SOI ONE User Guide increase (temperature adjustable, default 50° C). 3：Go to standby mode by pressing and holding the encoder for 1 to 2 seconds, the screen will show Standby temperature (default standby temperature 200° C). 4：You can go to menu setting by pressing and holding the encoder longer than 2 seconds, go to submenu by touching the screen, go back to upper menu by switching counterclockwise and exit menu by pressing and holding.
- Page 5 4、 Drawer Firmware ELECFREAKS provides firmware for SOI one. You need TTL downloading cable to update the firmware. First connect RX, TX and GND (beneath the encoder), double click available firmware and click “Start to update”. When you see “Detecting a single chip Datasheet support@elecfreaks.com...
- Page 6 Please follow ELECFREAKS official forum. Development announcement SOI one is a great product, however ELECFREAKS allows geeks to do the secondary development of SOI one, including its software, hardware and structure. ELECFREAKS highly supports the secondary development of SOI one, and rewards those who would improve and upgrade this product.
- Page 7 SOI ONE User Guide stops heating and starts cooling. It won’t wake up unless you lower the sleep voltage or switch off the system to charge. The battery is well protected in this way. Low voltage protection can be disabled by setting buzzer voltage and sleep voltage to 4V.
- Page 8 SOI ONE User Guide 11. Tips 1、 Make sure the soldering temperature is 5-10° C above the required temperature. SOI one lasts longer working under 300° C. 2、 Don't knock or swing the soldering iron, or it would break or cause poor contact.
- Page 9 SOI ONE User Guide ┣步进设置 Stepping temp 스텝 온도 ┣屏幕设置 Screen setup 화면설정 ┃┣标题位置 Title line 표제위치 (上/下) (TOP/BOTTOM) (상/하) ┃┗屏保时间 Saver ActTime 대기시간 ┣蜂鸣设置 Buzzer setup 알람설정 ┃┣蜂鸣开关 Sound enable 알람사용 (关/开) (OFF/ON) (정/부) ┃┗提醒方式 When to beep 알람 방식 (保存/全部 ） (Save/All) (저장 /전부) ┣恢复默认...
