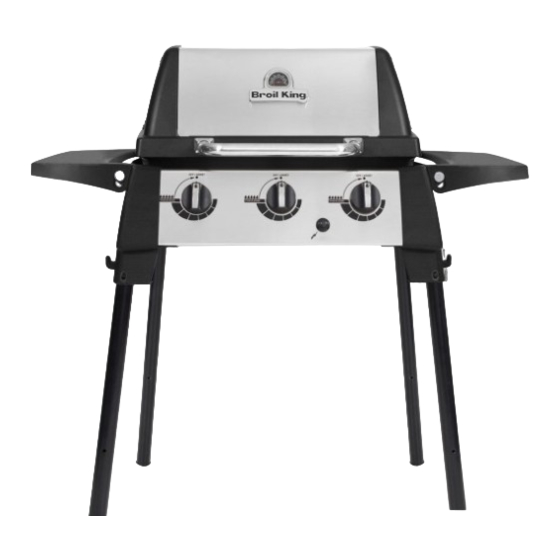

Broil King 9002-13 Owner's Manual

For use with butane or propane gas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GAS BARBECUES
OWNER'S MANUAL
FOR USE WITH BUTANE OR PROPANE GAS
CATEGORY I 3+(28-30/37) , CATEGORY I 3B/P(30)
CONTENTS
SAFETY ............................................................. 2
REGULATOR / GAS HOSE .............................. 3
BUTANE ............................................................ 4
PROPANE ......................................................... 5
LEAK TESTING ................................................ 6
VENTURI TUBES .............................................. 7
LIGHTING .......................................................... 8
OPERATION ..................................................... 9
COOKING TECHNIQUES ................................. 9
MAINTENANCE .............................................. 10
TROUBLE SHOOTING ................................... 11
WARRANTY .................................................... 12
READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING YOUR GAS BARBECUE
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
10095-EU REV J 04/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9002-13 and is the answer not in the manual?

Questions and answers

Related Manuals for Broil King 9002-13

Summary of Contents for Broil King 9002-13

  • Page 1: Table Of Contents

    GAS BARBECUES OWNER'S MANUAL FOR USE WITH BUTANE OR PROPANE GAS CATEGORY I 3+(28-30/37) , CATEGORY I 3B/P(30) CONTENTS SAFETY ............. 2 REGULATOR / GAS HOSE ......3 BUTANE ............4 PROPANE ............5 LEAK TESTING ..........6 VENTURI TUBES ..........7 LIGHTING ............

  • Page 2: Safety

    HEAT HEAT MAIN When storing the appliance for long periods of time, remove INPUT INPUT BURNER the cylinder and cover the barbecue. Store the cylinder 9002-13 4.1kW 298 g/h 0.99mm outdoors in a well ventilated place. 9003-13 4.1kW 298 g/h 0.99mm...

  • Page 3: Regulator / Gas Hose

    REGULATOR / GAS HOSE REGULATOR This appliance must be fitted with a regulator complying with the local/national standards and/or norms with a nominal outlet pressure of: CATEGORY I 3+(28-30/37 ) Propane 37 mbar. Butane 28-30 mbar. CATEGORY I 3B/P(30) Propane/Butane 30 mbar. NEVER use an unregulated gas supply.

  • Page 4: Butane

    CHANGING A GAS CYLINDER - BUTANE This appliance may be used with butane at an operating pressure of 28 - 30 mbar. NEVER use an unregulated gas supply or a regulator for other operating pressures. WARNING: Changing a cylinder must be carried out in a flame free environment. BUTANE cylinders have various types of connections a) Screw-On Connection.

  • Page 5: Propane

    CHANGING A GAS CYLINDER - PROPANE This appliance may be used with propane at an operating pressure of 30-37 mbar. NEVER use an unregulated gas supply or a regulator for other operating pressures. WARNING: Changing a cylinder must be carried out in a flame free environment. Propane cylinders have various types of connections.

  • Page 6: Leak Testing

    LEAK TESTING PORTA-CHEF 320 All factory-made connections have been rigorously tested for gas leaks. However, shipping and handling may have loosened a gas fitting. AS A SAFETY PRECAUTION: • Test all fittings for leaks before using your gas grill. • Test the cylinder valve for leaks each time the cylinder is filled.

  • Page 7: Venturi Tubes

    VENTURI TUBES PORTA-CHEF 100 / 120 PORTA-CHEF 320 Always keep venturi tubes clean. Blockages in the venturi Always keep venturi tubes clean. Blockages in the venturi tubes caused by spiders, insects and nests can cause a tubes caused by spiders, insects and nests can cause a flashback fire.

  • Page 8: Lighting

    LIGHTING PORTA-CHEF 320 PORTA-CHEF 100 PORTA-CHEF 120 A. BURNER CONTROL D. HANDLE B. IGNITOR E. CYLINDER VALVE C. MANUAL LIGHTING HOLE F. REGULATOR LIGHTING INSTRUCTIONS Push and turn right main burner control knob to “HIGH.” The appliance must be assembled as per the assembly instructions.

  • Page 9: Operation

    OPERATION COOKING TECHNIQUES First Time Use: Before cooking on your gas grill for the DIRECT GRILLING first time, burn it off to rid it of any odors or foreign matter The direct grilling method involves cooking the food on in the following manner: grids directly over a lit burner.

  • Page 10: Maintenance

    MAINTENANCE REGULAR MAINTENANCE ANNUAL MAINTENANCE The following components should be inspected and The following components should be inspected and cleaned (as necessary) before every usage of your gas cleaned at least once a year or after any period of storage grill to ensure optimal performance, safety and efficiency.

  • Page 11: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION SHUT OFF LP CYLINDER VALVE AT ONCE. SMELL OF GAS DO NOT USE THE APPLIANCE UNTIL LEAK IS SEALED. 1. Regulator fitting loose. 1. Tighten fitting and “Leak Test.” (page 5) Leak detected at cylinder, regulator or other connection.

  • Page 12: Warranty

    WARRANTY PORCELAIN-COATED COOKING GRIDS The OMC Warranty is effective from date of purchase and is limited to the repair or replacement of parts at no charge All OMC cast iron cooking grids are coated with a durable which prove to be defective under normal domestic use. porcelain enamel to assist in cleaning and reduce the tendency of food sticking to the grid.

This manual is also suitable for:

9506-539526-539003-13

Table of Contents
