- Page 1 Queue Wireless Calling System User Manual Wireless calling system...
- Page 2 Queue Wireless Calling System User Manual Summary Thanks for choosing the queue wireless calling system. It adopts RF wireless technology with millions of different learning codes. The system includes 999-channel call buttons keypad and portable buzzer&vibration receivers. The call button keypad has 16 battery charging slots. Each receiver is rechargeable and labeled with a number.

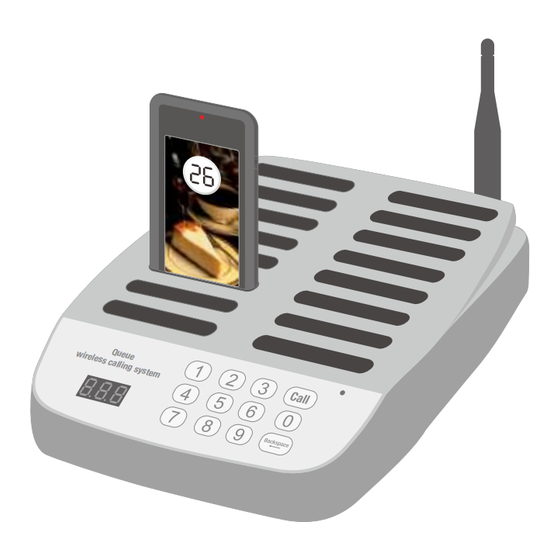

- Page 3 Keypad call button Working voltage DC12V/3A power adapter Working frequency 433.92MHz Standby current 24±5mA Transmit current 100±30mA Learning code (AM) Encoder Dimmension 157*234*36mm Diagram of call button keypad Power in Antenna Receiver Number paper Charging slot Number display Keypad area...
- Page 4 Diagram of receiver LED1 Charging LED Paper slot Power ON/OFF Reset LED2 LED3 Mode switch (vibration/ vibration&buzzer) Built-in battery Pairing button Charging pins Transparent Number paper Front Side Back cover Button function 【Power】 Press and hold the button for 3sec to power on the receiver, press again to power off. Short press the button to reset standby status while there is calling.
- Page 5 corresponding receiver receives the information and prompts vibration/buzzer/light for 15 times, 5 sec later, it prompts vibration/buzzer/light 3 times, 5 sec later again and 5 sec later again, in total 3 times additional to avoid ignoring it. After that only the 3 LED indicators flicker. When there is a calling...
- Page 6 Charge the receiver Plug the receiver to the charging slot, the blue charging LED indicator will flicker, while the battery is full, the LED indicator will be on all the time. Problems Reasons Solutions While power on, the number The power adaptor is broken. Change the power adaptor.
