SONASONIC S4 Vehicle Tracker

User Guide

Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S4 and is the answer not in the manual?

Questions and answers

Summary of Contents for SONASONIC S4

  • Page 1: User Guide

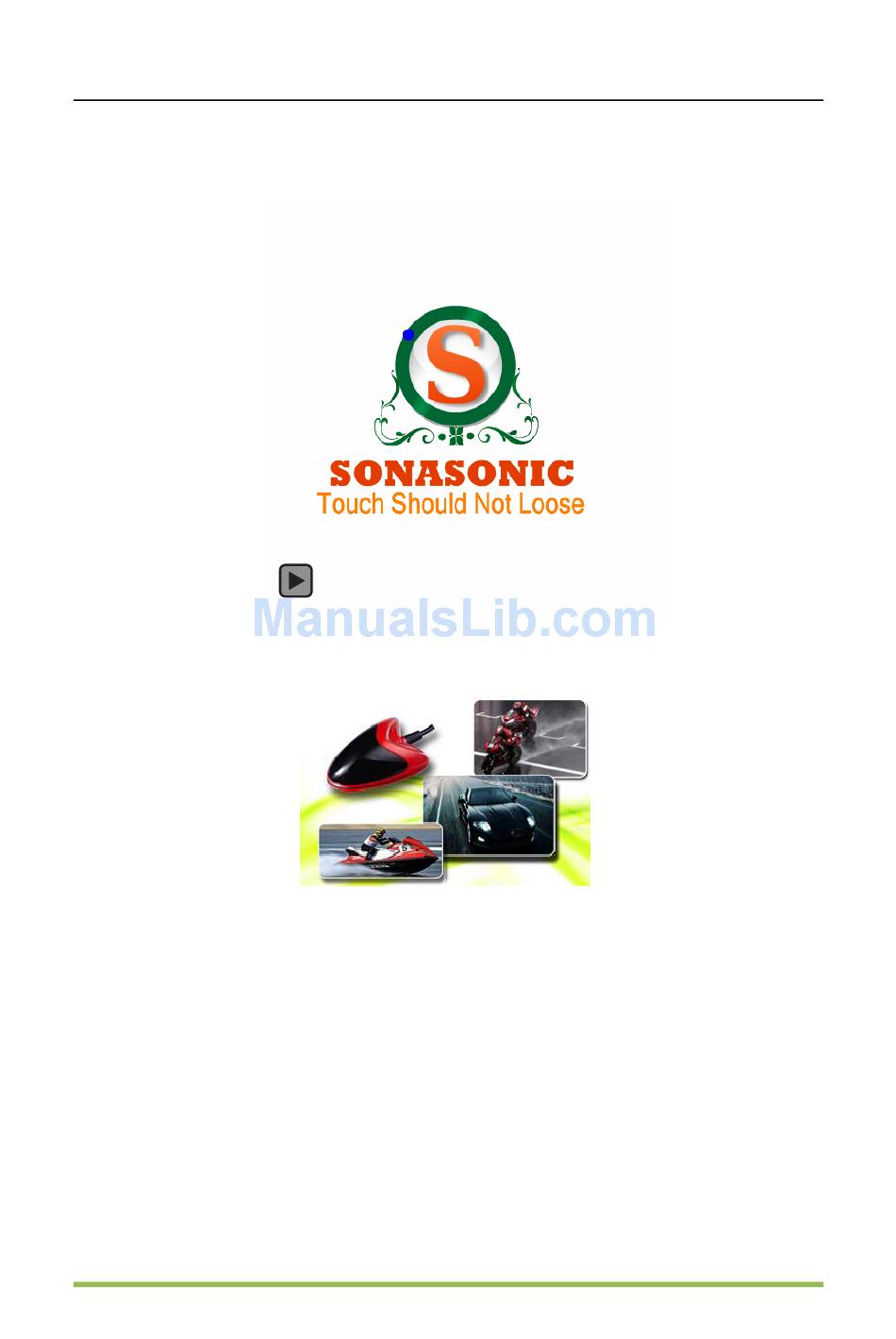

    SONASONIC S4 Vehicle Tracker User Guide Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.

  • Page 2: Table Of Contents

    7.1.1 Power/GND (PIN1, PIN2) ..............17 7.1.2 Digital Input (PIN 3, Negative Triggering)/SOS ........18 7.1.3 Digital Input (PIN10, Positive Triggering) ..........18 7.1.4 Output (PIN6) ..................18 7.2 Mount the S4 unit ..................19 Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.

  • Page 3: Copyright And Disclaimer

    In no event shall SONASONIC be liable for direct, indirect, special, incidental, or consequential damages (including but not limited to economic loss, personal injury, and loss of asset and property) arising out of the use or inability or illegality to use the product or documentation.

  • Page 4: Specifications

    GPS Sensitivity -161dB Positioning Accuracy 10 meters, 2D RMS 2 Digital Input (1 negative triggering and 1 positive triggering) 1 Analog Input Detection 1 Output 1 USB port for configuration only Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.

  • Page 5: S4 And Accessories

    If you require the function of sending an SMS location report to the authorized phone number when it makes a call to the S4, please make sure the SIM installed supports displaying caller ID. Before installing the SIM card, turn off the power for S4.

  • Page 6: Charging

    Configuration and testing suggested prior to installation. Indications 6.3 LED Press and hold the Power On/Off button for 3~5 seconds to turn on/off S4 GPS LED (Blue) One button is pressed or input is active. Flashing ( every 0.1 second)

  • Page 7: Track By Calling

    Password is 4 digits only and defaulted as 0000. You can change the password by SMS command. S4 will only accept commands from a user with the correct password and report SMS report to the user. If preauthorized phone number was set, only this phone number can receive SMS reports.

  • Page 8: Installation

    TTL232 Rx (S4 Tx) (For Configuration Only) Orange TTL232 Tx (S4 Rx) Black Ground 7.1.1 Power/GND (PIN1, PIN2) Connect GND (-Black) and Power (+Red) wires to the battery of motorcycle/vehicle. Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.

  • Page 9: Digital Input (Pin 3, Negative Triggering)/Sos

    7.1.2 Digital Input (PIN 3, Negative Triggering)/SOS 7.1.3 Digital Input (PIN5, Positive Triggering) 7.1.4 Output (PIN7) Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.

  • Page 10: Mount The S4 Unit

    Three mounting options: Option 1: Using 3M sticker Option 2: Using Screws Option 3: Using internal super magnet Please do not hesitate to email us at info@sonasonic.com if you have any questions. Copyright © 2014 Sonasonic Technologies Private Ltd. All rights reserved.
