User Interface - TWIG Protector EasyS Quick Manual

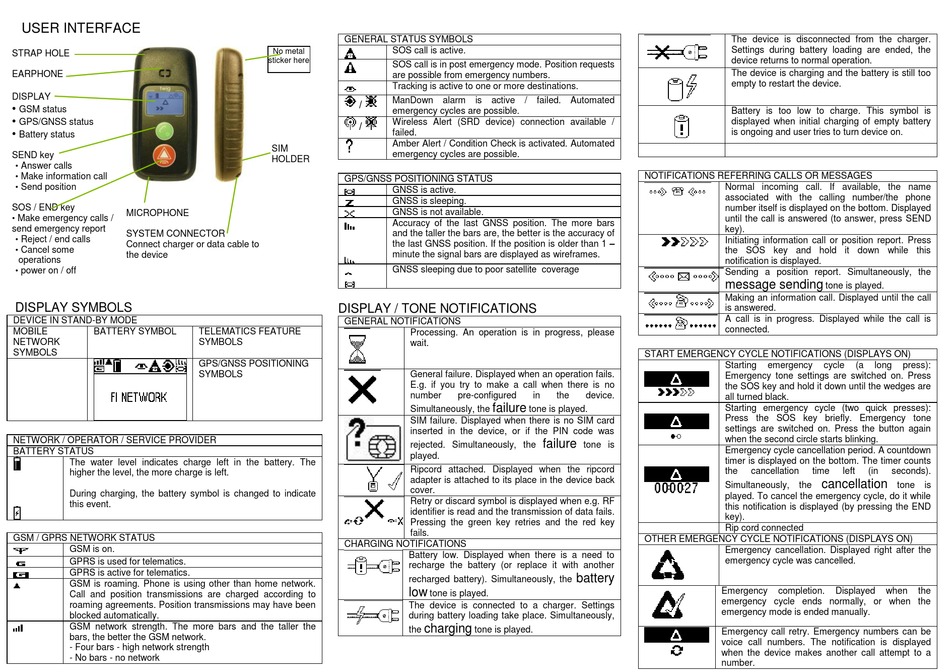

USER INTERFACE

STRAP HOLE
EARPHONE
DISPLAY
•
GSM status
•
GPS/GNSS status
•
Battery status
SEND key
• Answer calls
• Make information call
• Send position
SOS / END key
MICROPHONE
• Make emergency calls /
send emergency report
SYSTEM CONNECTOR
• Reject / end calls
Connect charger or data cable to
• Cancel some
the device
operations
• power on / off
DISPLAY SYMBOLS
DEVICE IN STAND-BY MODE
MOBILE BATTERY SYMBOL
NETWORK
SYMBOLS
NETWORK / OPERATOR / SERVICE PROVIDER
BATTERY STATUS
The water level indicates charge left in the battery. The
higher the level, the more charge is left.
During charging, the battery symbol is changed to indicate
this event.
GSM / GPRS NETWORK STATUS
GSM is on.
GPRS is used for telematics.
GPRS is active for telematics.
GSM is roaming. Phone is using other than home network.
Call and position transmissions are charged according to
roaming agreements. Position transmissions may have been
blocked automatically.
GSM network strength. The more bars and the taller the
bars, the better the GSM network.
- Four bars - high network strength
- No bars - no network
GENERAL STATUS SYMBOLS
No metal
sticker here
http://ww
w.mouser
/
.fi/Search/
Refine.as
/
px?Keyw
ord=HHM
SIM
1517
HOLDER
GPS/GNSS POSITIONING STATUS
DISPLAY / TONE NOTIFICATIONS
GENERAL NOTIFICATIONS
TELEMATICS FEATURE
SYMBOLS
GPS/GNSS POSITIONING
SYMBOLS
CHARGING NOTIFICATIONS
SOS call is active.
SOS call is in post emergency mode. Position requests
are possible from emergency numbers.
Tracking is active to one or more destinations.
ManDown alarm is active / failed. Automated
emergency cycles are possible.
Wireless Alert (SRD device) connection available /
failed.
Amber Alert / Condition Check is activated. Automated
emergency cycles are possible.
GNSS is active.
GNSS is sleeping.
GNSS is not available.
Accuracy of the last GNSS position. The more bars
and the taller the bars are, the better is the accuracy of
the last GNSS position. If the position is older than 1 –
minute the signal bars are displayed as wireframes.
GNSS sleeping due to poor satellite coverage
Processing. An operation is in progress, please
wait.
General failure. Displayed when an operation fails.
E.g. if you try to make a call when there is no
number pre-configured in the
failure
Simultaneously, the tone is played.
SIM failure. Displayed when there is no SIM card
inserted in the device, or if the PIN code was
failure
rejected. Simultaneously, the
played.
Ripcord attached. Displayed when the ripcord
adapter is attached to its place in the device back
cover.
Retry or discard symbol is displayed when e.g. RF
identifier is read and the transmission of data fails.
Pressing the green key retries and the red key
fails.
Battery low. Displayed when there is a need to
recharge the battery (or replace it with another
recharged battery). Simultaneously, the
low
tone is played.
The device is connected to a charger. Settings
during battery loading take place. Simultaneously,
charging
the tone is played.
The device is disconnected from the charger.
Settings during battery loading are ended, the
device returns to normal operation.
The device is charging and the battery is still too
empty to restart the device.
Battery is too low to charge. This symbol is
displayed when initial charging of empty battery
is ongoing and user tries to turn device on.
NOTIFICATIONS REFERRING CALLS OR MESSAGES
Normal incoming call. If available, the name
associated with the calling number/the phone
number itself is displayed on the bottom. Displayed
until the call is answered (to answer, press SEND
key).
Initiating information call or position report. Press
the SOS key and hold it down while this
notification is displayed.
Sending a position report. Simultaneously, the
message sending
Making an information call. Displayed until the call
is answered.
A call is in progress. Displayed while the call is
connected.
START EMERGENCY CYCLE NOTIFICATIONS (DISPLAYS ON)
Starting
Emergency tone settings are switched on. Press
the SOS key and hold it down until the wedges are
device.
all turned black.
Starting emergency cycle (two quick presses):
Press the SOS key briefly. Emergency tone
settings are switched on. Press the button again
when the second circle starts blinking.
tone is
Emergency cycle cancellation period. A countdown
timer is displayed on the bottom. The timer counts
the cancellation
Simultaneously, the
played. To cancel the emergency cycle, do it while
this notification is displayed (by pressing the END
key).
Rip cord connected
OTHER EMERGENCY CYCLE NOTIFICATIONS (DISPLAYS ON)
Emergency cancellation. Displayed right after the
emergency cycle was cancelled.
battery
Emergency
emergency cycle ends normally, or when the
emergency mode is ended manually.
Emergency call retry. Emergency numbers can be
voice call numbers. The notification is displayed
when the device makes another call attempt to a
number.
tone is played.
emergency cycle (a long press):
time left (in seconds).
cancellation
tone is
completion. Displayed when the
