Summary of Contents for StreetWise PFBCPRO

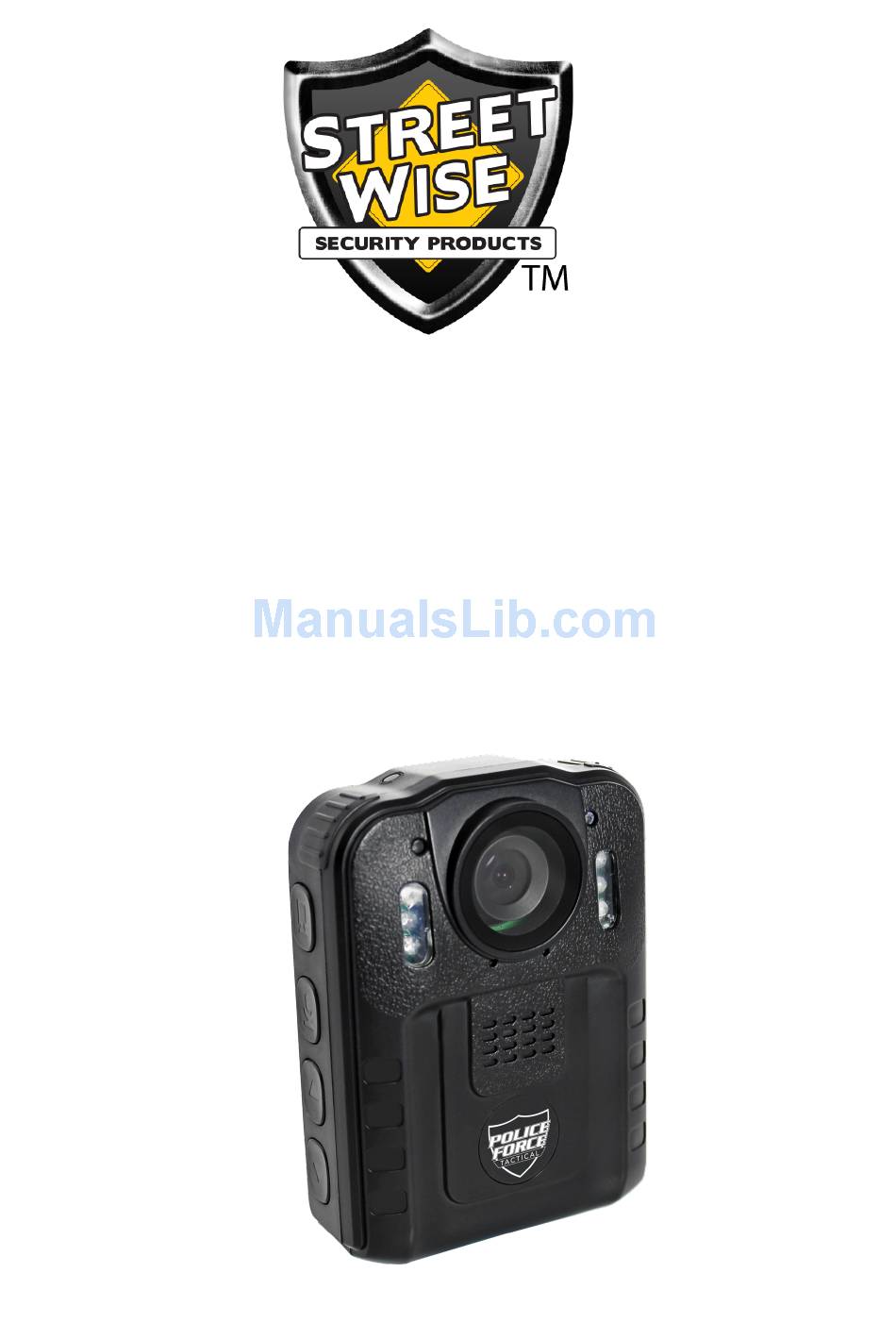

- Page 1 Body Cam Pro PFBCPRO...
- Page 2 Important ： 1. To avoid a loss of data stored in the camera, we recommend transferring the data to your computer's hard drive. 2. Immediately charge the camera when the battery is low. Letting the battery completely drain may damage the battery and void the warranty.
- Page 3 I. User Guide 1. Diagram HD lens High power infrared Video/Confirm night vision lights Speaker Audio Up/Infrared Down Charging Status Indicator Lights 360°rotating clip Mount Photo OK/Menu Reset HD 2〞LCD USB/TV port Power on/off HDMI port...
-
Page 4: Lcd Display
2.LCD display ① Memory Capacity ② Mode Icon ③ Video resolution ④ Battery capacity 3 . Charging the Battery Low battery indicator: when the battery is low the battery capacity icon on the bottom right corner of the LCD Screen will turn red and flash and sound a warning. -
Page 5: Basic Operation
To charge the battery connect the camera to your PC using the provided USB cable. The battery charging status is displayed on the LCD icon when the camera is on and on the Charging Status Indicator Lights when the camera is off. While charging the LED is Red. When fully charged the LED will turn off. -
Page 6: Audio Only
4 . Video Press the “Video” button to start recording. The recording time will display in the upper right-hand corner. Press the “Video” button again to stop recording, the videos will be saved on the SD card automatically and display will return to standby mode. - Page 7 2. Connect the camera to PC via the USB cable, long press “Power on” button to access the files on the SD card. When you switch to internal card (build in memory) (refer to 1.3), you will see the internal card files on PC. When you switch to external card (removable SD card) (refer to 1.3), you will see the external card files on PC.
- Page 8 III . Specifications Video input Built-in lens resolution up to 1920＊1080 LCD display 2.0inch 16:9 TFT LCD Lens angle 170degree wide angle Focus 0.3~∞ CMOS sensor 1/4" Color CMOS sensor Body size 83mm×55mm×28mm (LWH) Photo JPG format resolution up to 8M pixel Video recording 1280×720；848×480；640×480 Video format Exposure Mode Auto Exposure Built-in 6 high-power infrared light, night photography and video support, can IR night vision identify faces in 8 meters Audio Built-in microphone / speaker Pickup 64KHZ Memory Built-In 16GB TF memory, Supports up to 32GB TF card Shutter / Shutter Speed Electronic Shutter/1/2-1/2000s Filter Switch Switchable lens filter, suitable for both daytime and night use White Balance Automatic USB Interface Mini USB/USB 2.0 High-capacity polymer battery; Lithium Battery 3.7V 1500mAh(default) , 2000mah, 2600mah, three options Operating...
-
Page 9: Troubleshooting
VI . Warranty Information 1. Streetwise Security Products extends a one-year warranty for defects in materials or workmanship, with the following exceptions: A. The warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, moisture, the affixing of any attachment not provided with the product, loss of parts, or recharging the unit in any manner not in accordance with the included instructions. - Page 10 RoHS ...
