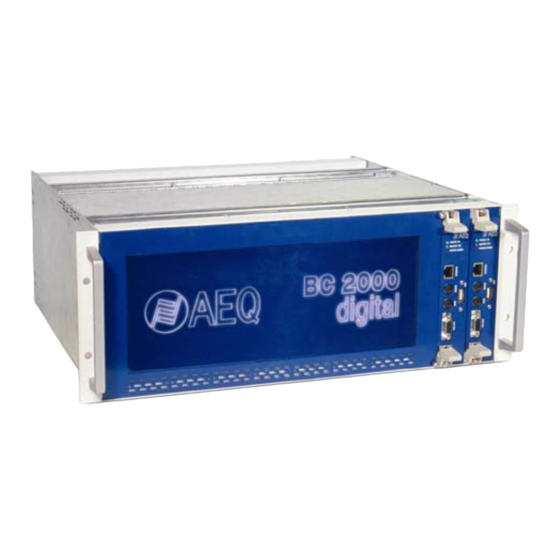

BC 2000
DIGITAL
Audio Routing, Mixing and Processing System for
Program Production Centers
HARDWARE MANUAL
ED. 11/14
V 1.1 - 01/12/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BC 2000 and is the answer not in the manual?

Questions and answers

Related Manuals for AEQ BC 2000

Summary of Contents for AEQ BC 2000

  • Page 1 BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL ED. 11/14 V 1.1 - 01/12/2016...
  • Page 2 It’s also important to keep clean the air holes of rear boards and front cover, as well as the boards connectors. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 3: Table Of Contents

    5. Standard wiring systems for BC-2000D system.............. 5.1. Individual connection components................ 5.1.1. BC 2000 CAB RACK chassis..............5.1.2. BC 2000 CAB W connection modules............. 5.1.3. RJ45 to 4 XLR connection modules............5.1.4. Cables with connectors................5.1.5. Loose cables and connectors..............

  • Page 4: Introduction: Organization Of Bc-2000 D System Manuals

    8. Real Time Control software for the BC-2000 D matrix/multiplexer User’s Manual. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 5: Bc2000Df / Bc2000Df-3. System Rack

    21 input/output boards. There are two slots at the left end of the chassis (“E“) to house one or two BC2240 controller modules. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers...

  • Page 6: Ventilation Units

    There are 3 kinds of ventilation units, depending on if there are 6 frontal ventilation fans (BC 2000 FAN DOWN), 6 rear ventilation fans (BC 2000 FAN UP) or 6 frontal and 6 rear ventilation fans (BC 2000 FAN MIDDLE).

  • Page 7: Inputs/Outputs, Communications And Control Modules

    (GPO). This operation way of 'HW ERROR' LED is valid for 2.04 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 8 - Distortion: less than 0.09% in the bandwidth. - Input + output noise level (in audio frequencies): -76 dBu. - Cross-talk: less than -70 dB in the bandwidth. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 9 - Approximate consumption: 9 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 315 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 10: Bc2202. Aes/Ebu Digital Inputs/Outputs Module

    '4' RJ45 type connector: 4 independent outputs configurable as general purpose outputs (GPO). This operation way of 'HW ERROR' LED is valid for 4.06 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 11 FPGA programmable device: manages SRCs and the TDM bus. The firmware versions can be brought up to date by using the “BC2000D Firmware Upgrade” software application. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 12 - Approximate consumption: 4 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 295 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 13: Bc2203Mh. Analog Mic/Lin Inputs And Headphone Outputs Module

    '4' RJ45 type connector: 4 independent outputs configurable as general purpose outputs (GPO). This operation way of 'HW ERROR' LED is valid for 2.23 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 14 40-20,000 Hz @ +/- 0.5 dB. 20-20,000 Hz @ +/-1.5 dB. Distortion: - Mic and line inputs (nominal levels): < 0.1% @ 50-20,000 Hz. < 0.39% @ 20-20,000 Hz. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 15 - Approximate consumption: 7.5 watts. - Approximate dimensions: Front: 34 x 172 mm. Depth: 255 mm. - Approximate weight: 560 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 16: Bc2203M. Analog Mic/Lin Inputs Module

    (GPO). This operation way of 'HW ERROR' LED is valid for 2.23 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 17 - Approximate consumption: 6 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 400 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 18: Bc2203Mhl. Analog Mic/Lin Inputs And Headphone Outputs Module

    These outputs can be configured to accept low impedance (8-ohm) headphones. This operation way of 'HW ERROR' LED is valid for 2.23 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 19 - Approximate consumption: 7.5 watts. - Approximate dimensions: Front: 34 x 172 mm. Depth: 255 mm. - Approximate weight: 560 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 20: Bc2203Ml. Analog Mic/Lin Inputs Module

    This operation way of 'HW ERROR' LED is valid for 2.23 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 21 - Approximate consumption: 6 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 400 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 22: Bc2204. Analog Line Inputs Module

    '4' RJ45 type connector: 4 independent outputs configurable as general purpose outputs (GPO). This operation way of 'HW ERROR' LED is valid for 2.04 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 23 - Approximate consumption: 9 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 295 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 24: Bc2205. Analog Line Outputs Module

    '4' RJ45 type connector: 4 independent outputs configurable as general purpose outputs (GPO). This operation way of 'HW ERROR' LED is valid for 2.04 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 25 - Approximate consumption: 9 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 300 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 26: Bc2206. Aes/Ebu Digital Inputs Module

    '4' RJ45 type connector: 4 independent outputs configurable as general purpose outputs (GPO). This operation way of 'HW ERROR' LED is valid for 4.06 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 27 IN 3 (2L) P GPI3 GPO3 IN 1 (1L) N GND GPI1 GND GPO1 IN 1 (1L) P GPI1 GPO1 Chassis NOTE: Pin layout corresponds to T568B standard. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 28 - Approximate consumption: 4 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 280 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 29: Bc2207. Aes/Ebu Digital Outputs Module

    '4' RJ45 type connector: 4 independent outputs configurable as general purpose outputs (GPO). This operation way of 'HW ERROR' LED is valid for 4.06 microcontroller module firmware version (and later versions). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 30 OUT 3 (2L) P GPI3 GPO3 OUT 1 (1L) N GND GPI1 GND GPO1 OUT 1 (1L) P GPI1 GPO1 Chassis NOTE: Pin layout corresponds to T568B standard. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 31 - Approximate consumption: 4 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 280 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 32: Bc2208. Analog Line Inputs/Outputs Module With Transformer Balanced Inputs

    Configurable as 2 stereo inputs. Multipin connectors: 4 analog monophonic outputs with line level, electronically balanced. Configurable as 2 stereo outputs. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 33 - Approximate consumption: 6 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 342 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 34: Bc2208Xf. Analog Line Inputs/Outputs Module With Transformer Balanced

    Configurable as 2 stereo inputs. Multipin connectors: 4 analog monophonic outputs with line level, transformer balanced. Configurable as 2 stereo outputs. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 35 - Approximate consumption: 6 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 342 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 36: Bc2209. 8 Analog Line Inputs/Outputs Module

    Multipin connector: common ground connector for inputs and outputs. Multipin connectors: 8 analog monophonic outputs with line level, electronically balanced. Configurable as 4 stereo outputs. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 37 - Approximate consumption: 8 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 299 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 38: Bc2210. Intercom Panels Interfaces Module

    Terminal no. 6. '7' RJ45 type connector: Connects to Digital Intercom Terminal no. 7. '8' RJ45 type connector: Connects to Digital Intercom Terminal no. 8. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 39 - Approximate consumption: 10 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 400 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 40: Bc2211. Aes 10 Madi Module For Linking Racks

    The BC2211 board manages 56 or 64 TDM bus time-slots to send and/or receive them through a 125-Mbps MADI multichannel digital audio link using coaxial or optical fiber cable. This board allows you to interconnect two BC 2000 D racks, or to connect any other MADI equipment item. It is compliant with the AES-10 standard.
  • Page 41 - Approximate consumption: 8.5 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 310 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 42: Bc2212. Dual Aes 10 Madi Module For Linking Racks

    These two MADI links are independent. This board allows you to interconnect up to three BC 2000 D racks (you can use each of the two MADI links to connect to other 2 BC2211 or BC2212 boards placed in different racks), or to connect any other MADI equipment item.
  • Page 43 - Approximate consumption: 10.5 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 335 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 44: Bc2312. Dual Aes 10 Madi Module For Linking Racks With Sfp Transceivers

    (through SFP - Small Form Pluggable transceivers). These two MADI links are independent. This board allows you to interconnect up to three BC 2000 D racks (you can use each of the two MADI links to connect to other 2 BC2312 boards placed in different racks), or to connect any other MADI equipment item.
  • Page 45 - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 333 grams (including transceivers). Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 46: Bc2213. Digital Audio Transmission Module Through High Speed Optical Fiber

    1.96Gbps. This board allows you to interconnect two BC 2000 D racks with up to 16 MADI circuits each one (16 x 64 = 1024 audio channels). You can also interconnect several 1024 audio channels BC2000D subsystems with AEQ HSCS matrix in order to create systems of up to 5120 x 5120 circuits.
  • Page 47 - Approximate consumption: 5 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 322 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 48: Bc2214 And Bc2224. Multi-Channel Audio Over Ip Module With Dante Protocol

    *LAN 1 must always be wired, while LAN 2 is only used when the system is wired in “Daisy Chain” mode (to primary network) or a redundant system is set up (to secondary network). BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 49 - Approximate consumption: 5 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 263 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 50: Bc2215. E1/T1/J1 Communications Module

    RJ48 type connector: twisted pair cable interface with software configurable impedance: 120 / 75 ohms for E1 and 100 ohms for J1 and T1. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 51 - Line impedance: 100Ω. J1 Interface: - Characteristics similar to those of T1 interface with CRC6 management and yellow alarm according to the Japanese standard. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 52 - Approximate consumption: 4 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 260 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 53: Bc2216. Ethernet Communications Module

    100 Mbps. When off it indicates 10 Mbps. 'LINK' green LED: indicates that a bidirectional link with the other extreme is established. RJ45 type connector: Ethernet connection for twisted pairs. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 54 - Approximate consumption: 2 watts. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 252 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 55: Bc2217. Cu (Commentary Unit) Linking Module

    When an error is detected in any link, the corresponding LED will turn off for a second at least, in order to detect the failure easily. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 56 - Approximate consumption: 4 watts (with no CUs connected). - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 262 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 57: Bc2219. Ip Audio Inputs/Outputs Module

    CU 1 is correctly received. 'LINK' green LED: when it’s blinking, indicates there is activity in Ethernet link. Multipin connectors: 4 analog monophonic outputs with line level, electronically balanced. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 58 - Approximate consumption: 5 watts maximum. - Approximate dimensions: Front: 17 x 172 mm. Depth: 255 mm. - Approximate weight: 319 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 59: Bc2220 And Bc2221. Dsp Board. Processing, Routing And Vu Meters

    Before the board is inserted, these handles must be retracted. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 60 IMPORTANT NOTE: there are specific firmware versions for each type of board and, besides, there are different versions depending on the BC 2000 D system working mode as a mixing console or as a switching matrix. General characteristics.

  • Page 61: Bc2240. Master Controller Module With Usb, Ethernet And Rs232/422 Port

    Compact Flash memory. This flash memory contains both the operating system and the configuration data. it allows you to record and play identification audio messages from PC board to/from the system through an ISA interface. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 62 BC2290 or BC2291 external power supply is used. When a BC2292 power supply module is used this connector will not be used. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 63 - Maximum current: 1 A @ 30 V DC, 0.5 A @ 125 V AC. - Maximum voltage: 110 V DC or 125 V AC. - Maximum power: 30 W, 62.5 VA. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 64 - Approximate consumption: 10 watts. - Approximate dimensions: Front: 34 x 172 mm. Depth: 255 mm. - Approximate weight: 658 grams. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 65: Bc2250. Front Control Panel

    LED: indicates communication between BC2215* controller board. 'EXT. SYNC' green LED: indicates that the system synchronism clock external. See BC2000D Multiplexer system users manual. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 66 The firmware versions can be brought up to date by using the ”BC2000D Firmware Upgrade” software application. General characteristics. - Approximate consumption: 7 watts. - Approximate dimensions: Front 99.5 x 172 mm. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 67: Power Supplies

    Output voltage: 48 volts DC. Maximum power: 300 W. Height: 2U. Depth: 340 mm. Weight: 8 kg. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 68 10.5 W BC2312 board 10 W BC2213 board BC2214/BC2224 board BC2215 board BC2216 board BC2217 board BC2219 board BC2220/BC2221 board BC2240 board 10 W BC2250 board BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 69: Bc2291. 350W Power Supply

    10.5 W BC2312 board 10 W BC2213 board BC2214/BC2224 board BC2215 board BC2216 board BC2217 board BC2219 board BC2220/BC2221 board BC2240 board 10 W BC2250 board BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 70: Bc2292. 200W Power Supply Module

    Output voltage: 48 volts DC. Maximum power: 200 W. Approximate dimensions: Front: 43 x 172 mm. Depth: 145 mm. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 71 10.5 W BC2312 board 10 W BC2213 board BC2214/BC2224 board BC2215 board BC2216 board BC2217 board BC2219 board BC2220/BC2221 board BC2240 board 10 W BC2250 board BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 72: Bc2293. 2X800W Power Supply

    Power supply: Autoranging, from 90 to 250 VAC, 50/60Hz, with automatic power factor correction. Output voltage: 48 volts DC. Maximum power: 800 W. Height: 2U. Depth: 340 mm. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 73 10.5 W BC2312 board 10 W BC2213 board BC2214/BC2224 board BC2215 board BC2216 board BC2217 board BC2219 board BC2220/BC2221 board BC2240 board 10 W BC2250 board BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 74: Standard Wiring Systems For Bc-2000D System

    Its special design, with upper and lower slots that permit access to the rear part from the front panel, allows both the 8-pole plus ground RJ45 cables that go to the BC 2000 D rack and the 2- pole plus ground cables that come out of the WAGO or XLR connectors to be led in either from the front or rear panel.

  • Page 75: Bc 2000 Cab W Connection Modules

    5.1.2. BC 2000 CAB W connection modules. Code 620-000-001. BC 2000 CAB W. Each connection module allows 3 shielded RJ45 ribbon cables to be connected and led out to the BC2000DF rack boards, and separates the four signals carried by each ribbon cable, taking each one of them to a WAGO 3-pole connector.

  • Page 76: Rj45 To 4 Xlr Connection Modules

    This type of module allows you to connect a maximum of 24 circuits in each rack. XLR connector pin-out: Pin 1: GND Pin 2: V+ Pin 3: V- Dimensions: 71.6 x 122 mm. Approximate weight: 233 grams. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 77: Cables With Connectors

    Code 522-300-106: XLR female BLUE cable, 4 meters length, for insertion in WAGO male. 5.1.5. Loose cables and connectors. Listed below are some types of cables and connectors that are highly useful for wiring BC 2000 D systems in radio studios.

  • Page 78: Wiring Kits For Bc2000D System

    • BC 2000 CAB RACK: One 4 U x 19” connection rack. • 5 units of BC 2000 CAB W, 3 RJ45 to 12 Wago connection modules including female connector. • 1 unit of BC 2000 CAB MF, 1 RJ45 to 4 XLR female connection module.
  • Page 79 DIAGRAM OF THE STANDARD WIRING KIT APPLIED TO A TYPICAL CONFIGURATION OF THE AEQ BC 2000 D CONSOLE BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 80: Additional Control Wiring

    To ensure that you will have the additional elements needed for wiring everything from the control equipment to the WAGO exposed female connectors that are supplied with the BC 2000 CAB W panels, we offer two additional component kits made up of cables for digital and analog audio and connectors.

  • Page 81: Switch

    BC 2000 D installation. Any good quality switch can be used. If you are not sure which product to choose for the best operation, we offer a good AEQ-compatible switch which is available as a stand-alone or rack-mountable unit (1 U x 19”) with universal power supply.

  • Page 82: Control Surfaces

    This equipment is described at a functional level in the relevant manual, which is written with the users in mind. In order to understand the connections better, refer to the diagram in section 3.2.1. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 83: Arena Dm Control Module

    AES/EBU audio input for CUE. 7. AES MIC Out+: AES/EBU audio output from the ARENA DM microphone. 8. AES MIC Out-: AES/EBU audio output from the ARENA DM microphone. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 84 AES/EBU audio input for VU meter 2. 3. AES VU2 In -: AES/EBU audio input for VU meter 2. The cable used to connect to BC 2000 CAB W module is as follows: IMPORTANT NOTE: Pin 1 (GND) is soldered to chassis in XLR connector. •...

  • Page 85: Arena D10 Channel Expansion Module

    Make sure, therefore, that in each ARENA D10 the position of the set of dip- switches is different from all the rest of the dip-switches. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 86: Titan. Router Concentrator 5080 X 5080 Audio Channels

    Front Panel Description. System ventilation grilles, with 2 ventilation fans installed each side. LEDs front panel for system status information. See detailed description on the next page. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 87 BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 88 FPGA programmable device: manages the alarms and the audio channels of the 5 high speed links (including its routing). The firmware versions can be brought up to date by using the ”BC2000D Firmware Upgrade” software application. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
  • Page 89 - Maximum power: 40VA per module. General characteristics. - Approximate consumption: 28 watts. - Height: 1U. - Depth: 320 mm. Characteristics are subject to change without notice. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...

  • Page 90: Additional Information

    Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. BC 2000 DIGITAL Audio Routing, Mixing and Processing System for Program Production Centers HARDWARE MANUAL...
