Summary of Contents for Powr-Flite PDS1

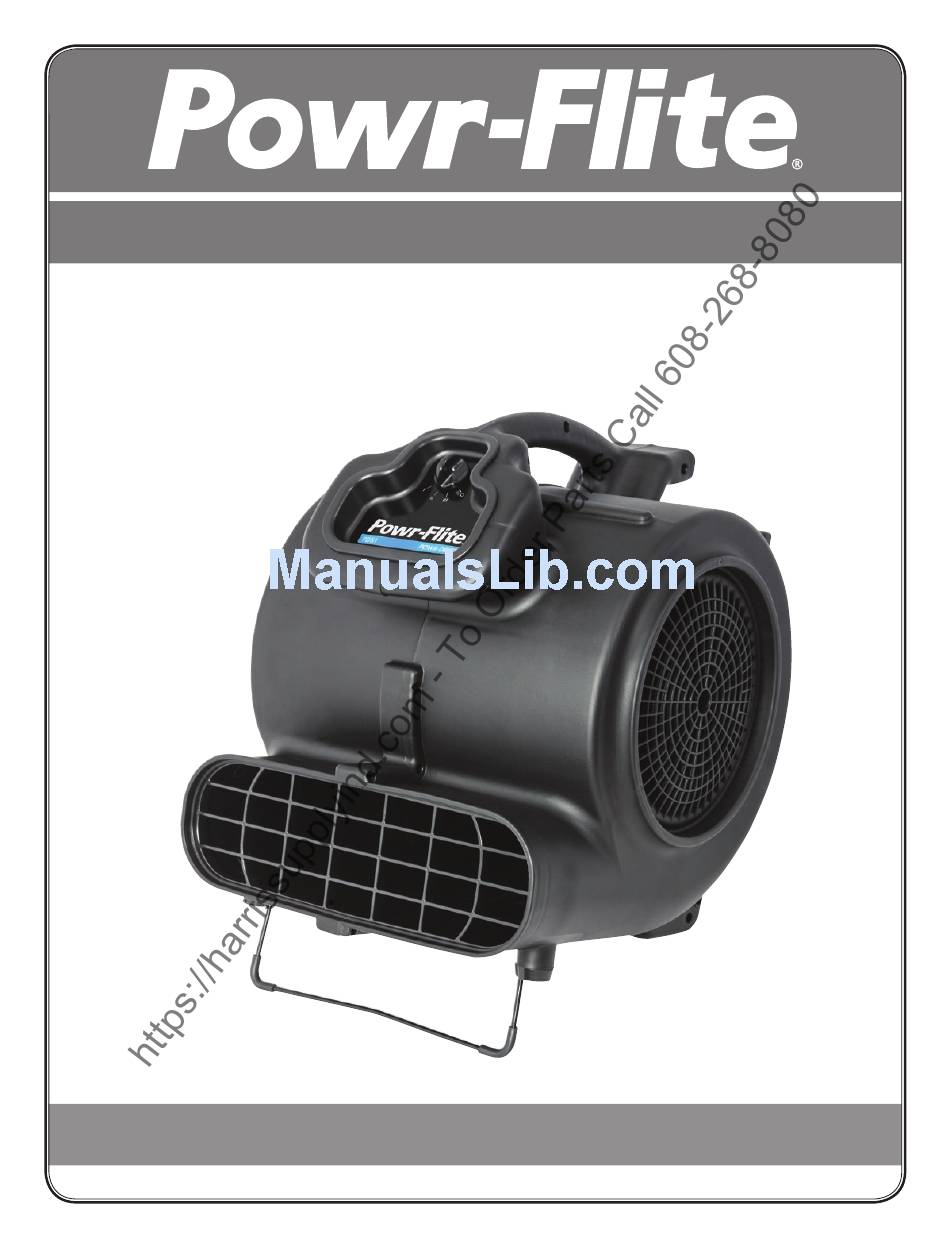

- Page 1 OPERATOR’S MANUAL & PARTS LIST COMMERCIAL AIR MOVER PDS1 and PDS1DX Models WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE OPERATING THIS EQUIPMENT. © Tacony, Inc., All rights reserved X1505 11/2016 Save These Instructions...
- Page 2 Check the carton for shipping damage. Carefully unpack and Introduction ...........2 inspect your new Powr-Flite dryer for shipping damage. Each unit is tested and thoroughly inspected prior to shipping. If Safety Instructions ........3 damage is discovered, immediately notify the transportation company that delivered your machine and request an Grounding Instructions .........5...
- Page 3 WARNING! Read all instructions before using. Save These Instructions. Following the cleaning instructions will prolong the life of your Powr-Flite Dryer. To reduce the risk of fire, explosion, electric shock, or injury, the following precautions should always be followed. 1. Use only as described in this manual. Use only manufacturer’s recommended attachments.
- Page 4 20. Branchez le cordon uniquement sur une prise correctement mise à la terre. Instructions de mise à la terre. 21. Cette unité est protégée thermiquement. 22. Afin d’éviter un choc pouvant causer des blessures sévèrves ou mortelles, tous les fil électriques et leurs composantes doivent être gardés au sec en tout temps. CONSERVEZ CES INSTRUCTIONS Powr-Flite.com...
- Page 5 Cutting off the ground wire or using a cord that is not equipped with a ground plug will void the warranty on the unit. Powr-Flite will accept NO liability associated with the unit. Improper connection of the equipment-grounding conductor can result in a risk WARNING! of electric shock.
- Page 6 Speeds - Low/Med/High 710 rpm/1105 rpm/1550 rpm motor from overheating. Should the shut-off thermal Power Cord Length 18.5 ft / 5.6 m sensor trip, it will reset automatically when the motor Sound Pressure Level LpA 69 dBA has cooled sufficiently, usually after 15-30 minutes. Protection Grade IP20 Powr-Flite.com...
- Page 7 chematIc and artS ITEM PART NO. DESCRIPTION X1438 FAN ASSEMBLY X1414 KICKSTAND ASSEMBLY X1378 GRILL X1440 CONTROL PANEL ASSEMBLY X1370 HOUSING (LEFT) X1371 HOUSING (RIGHT) X1443 MOTOR AND CAPACITOR ASSEMBLY A732-8314 HOUSING FASTENERS X1419 WIRING AND SWITCH ASSEMBLY X1420 WHEEL AND HANDLE ASSEMBLY KIT (DX Model) X1524 HANDLE AND HARDWARE ASSEMBLY (DX Model) X1422...
- Page 8 LIte ImIted arranty Powr-Flite will repair or exchange parts for your dryer in the event of a This warranty covers normal use and does not cover damage which occurs manufacturing defect as follows: in shipment or failure resulting from alteration, accident, misuse, abuse, neglect, or improper maintenance.
