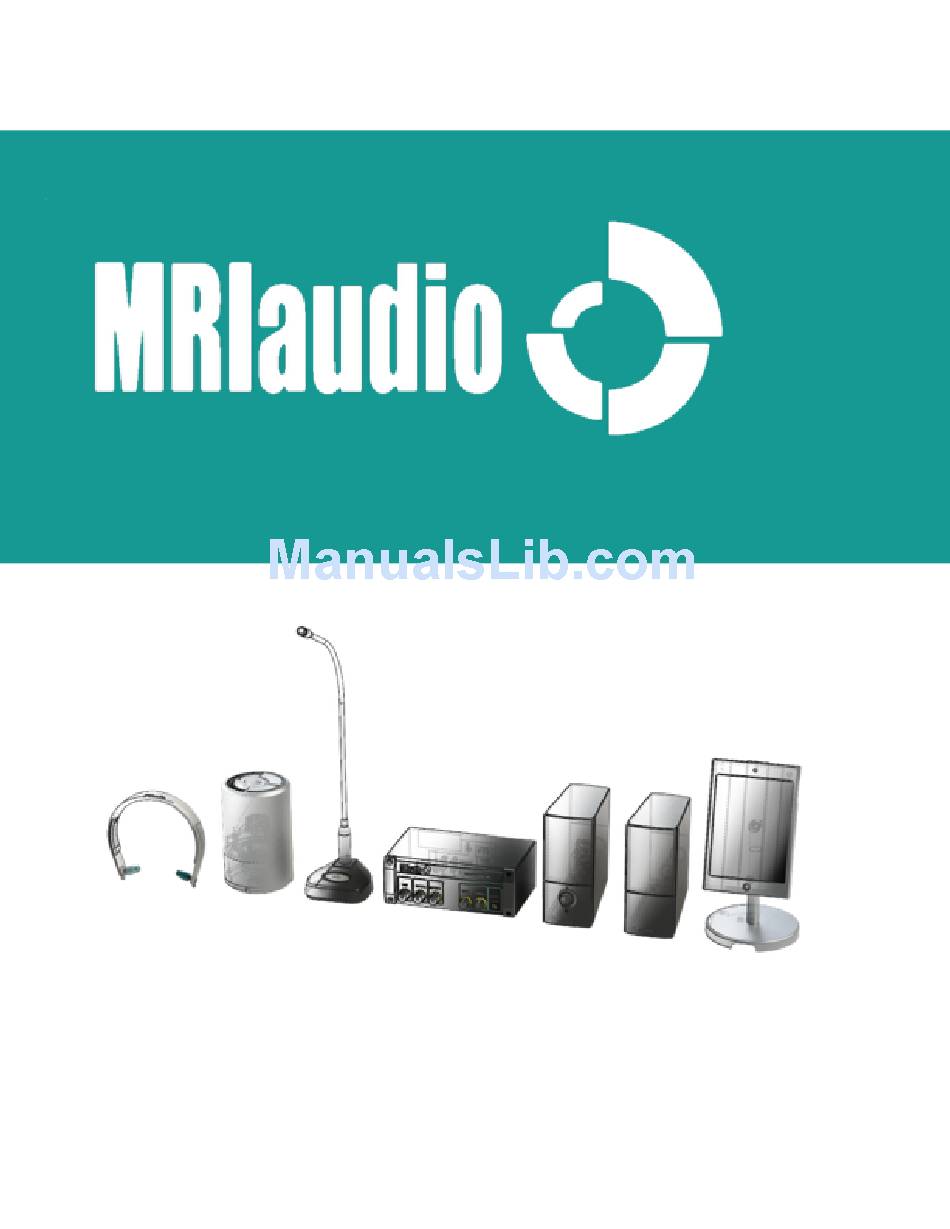

- Page 1 USER MANUAL Model: MRIaudioPREM UM-001-Rev A-March 2016 ! of !
-
Page 2: Table Of Contents
Contents: Warning and Cautions………………………………3-4 Product Description and Intended Use……………5-8 Operation……………….………………………………9 Troubleshooting………………………………………10 Customer Support……………………………………11 UM-001-Rev A-March 2016 ! of ! -
Page 3: Warning And Cautions
Warnings and Cautions Please read this manual and follow its instructions carefully. The words, warning, caution and note carry special meaning and should be carefully reviewed: Warning Indicates risks to the safety of the patient or user. Failure to follow warnings may result in injury to the patient or user. - Page 4 Warnings To avoid potential serious injury to the user and the patient and/or damage to this device, please note the following warnings: Check for any obvious damage prior to using equipment. If damage is detected , refer to the standard warranty Test the volume level prior to giving the patients the headphones.
-
Page 5: Product Description And Intended Use
Product Description and Intended Use The MRIaudioPREM system is an MRI conditional audio solution that provides MRI patients with music, direct communication, and hearing protection. Using a proprietary actively shielded transducer and a 35 watt digital amplifier MRIaudio has achieved a frequency response of 120htz-20,000htz providing patients with... -
Page 6: System Components
System Components TRANSDUCER; PART#: 3GCAPSULE MRI Conditional. Sits inside of the MRI suite at the front foot of the MRI. The Transducer is the speaker enclosure that funnels sound into pneumatic air tubing. TrueTone Transducer should be kept at least 2 feet away from the bore of the MRI -Lifetime warranty DIGITAL AMPLIFIER;... - Page 7 TECHNOLOGIST SPEAKERS; PART# TECHSPEAKERS MRI Unsafe. Allows for the technologist to listen to the same music as their patient. Independent volume control does not affect patients volume.. MICROPHONE; PART# TECHMIC MRI Unsafe. Our push-to-talk microphone overrides the patient's music, allowing clear and direct communication directly through their headphones.
- Page 8 100’ COAXIAL BNC CABLE; PART# COAX100 MRI Unsafe. Connects MRIaudio Amplifier to the Penetration Panel. Can be cut to exact length during installation. OPTIONAL COMPONENTS CUSTOMIZED IPAD; PART# CUSTOMIPAD -Create custom, commercial playlists based on artist, song or genre preferences.
-
Page 9: Operation
The active input is illuminated with a small green light, this ensures music is playing 3. MRIaudio recommends testing the audio volume of each media input and the microphone before each patient’s scan, and with each patient to ensure the music is audible but not overly loud. Prolonged exposure to loud noises can cause hearing damage! i. -
Page 10: Troubleshooting
TROUBLESHOOTING If audio is not working, double-check the system to ensure: -Volume on the media input itself (e.g. Pandora radio volume) is turned up -Volume for the media input is turned up on the amplifier and Input light is green. -Audio is playing (not paused) on the media input -The media input is connected to the internet (if applicable) -Headphones are fully plugged into the pneumatic tubing... -
Page 11: Customer Support
Distributed and Manufactured by MRIAUDIO, INC 2262 Rutherford Road. Suite 107 Carlsbad, CA 92008 +1 (858) 914-4217 +1 (858) 449-9853 (after hours) email: support@mriaudio.com web: www.mriaudio.com UM-001-Rev A-March 2016 of !
