DVB-T2 DIGIBOX

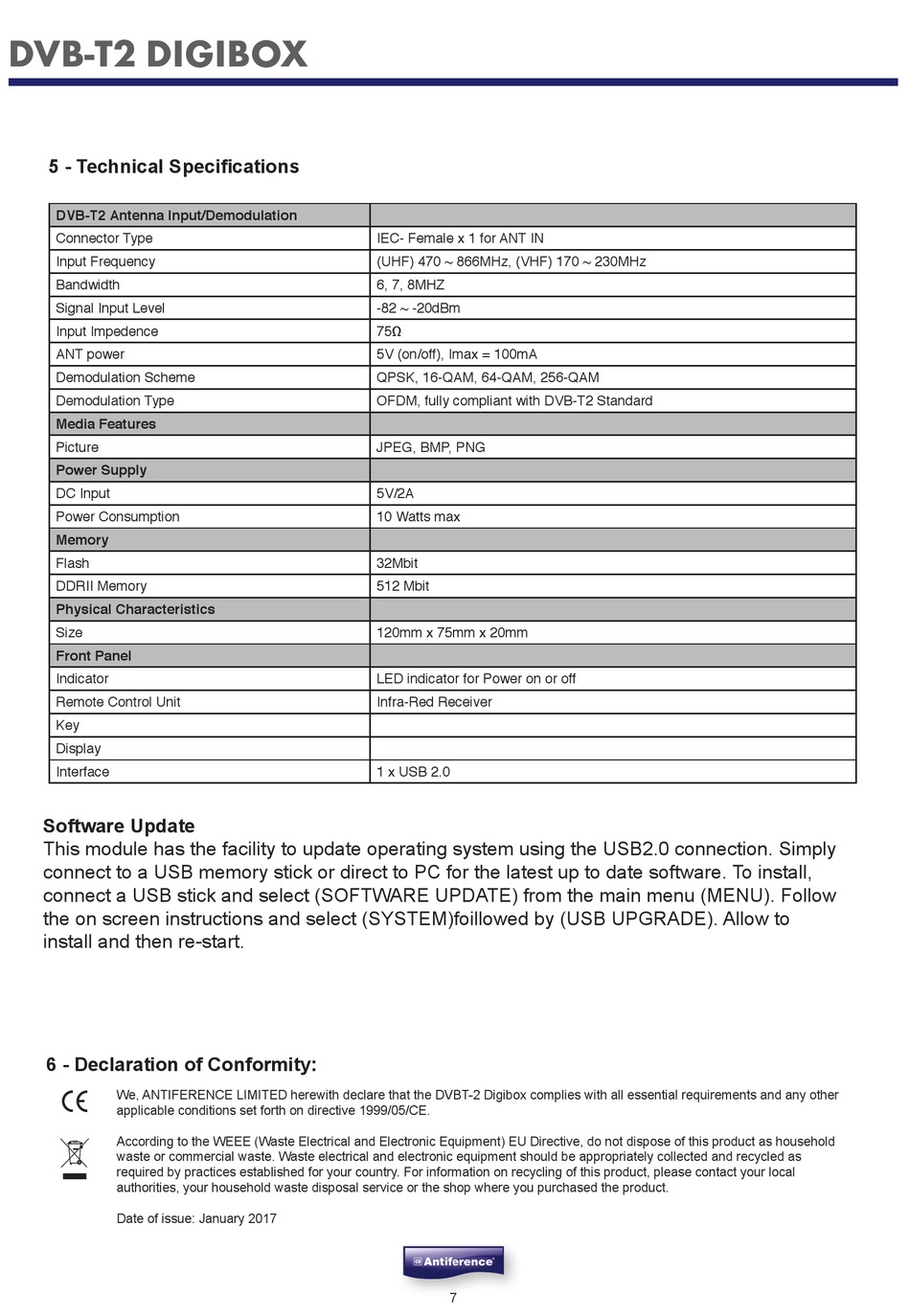

5 - Technical Specifications

DVB-T2 Antenna Input/Demodulation
Connector Type
Input Frequency
Bandwidth
Signal Input Level
Input Impedence
ANT power
Demodulation Scheme
Demodulation Type
Media Features
Power Supply
DC Input
Power Consumption
Memory
Flash
DDRII Memory
Physical Characteristics
Size
Front Panel
Indicator
Remote Control Unit
Key
Display
Interface

Software Update

This module has the facility to update operating system using the USB2.0 connection. Simply
connect to a USB memory stick or direct to PC for the latest up to date software. To install,
connect a USB stick and select (SOFTWARE UPDATE) from the main menu (MENU). Follow
the on screen instructions and select (SYSTEM)foillowed by (USB UPGRADE). Allow to
install and then re-start.

6 - Declaration of Conformity:

We, ANTIFERENCE LIMITED herewith declare that the DVBT-2 Digibox complies with all essential requirements and any other
applicable conditions set forth on directive 1999/05/CE.
According to the WEEE (Waste Electrical and Electronic Equipment) EU Directive, do not dispose of this product as household
waste or commercial waste. Waste electrical and electronic equipment should be appropriately collected and recycled as
required by practices established for your country. For information on recycling of this product, please contact your local
authorities, your household waste disposal service or the shop where you purchased the product.
Date of issue: January 2017
IEC- Female x 1 for ANT IN
(UHF) 470 ~ 866MHz, (VHF) 170 ~ 230MHz
6, 7, 8MHZ
-82 ~ -20dBm
75�
5V (on/off), Imax = 100mA
QPSK, 16-QAM, 64-QAM, 256-QAM
OFDM, fully compliant with DVB-T2 Standard
JPEG, BMP, PNG
5V/2A
10 Watts max
32Mbit
512 Mbit
120mm x 75mm x 20mm
LED indicator for Power on or off
Infra-Red Receiver
1 x USB 2.0
