IESKOKIT GUDRUCIO GUDRUTIS S15 Quick Instruction Manual

For children
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GUDRUTIS "S15"
Quick Instruction Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GUDRUTIS S15 and is the answer not in the manual?

Questions and answers

Summary of Contents for IESKOKIT GUDRUCIO GUDRUTIS S15

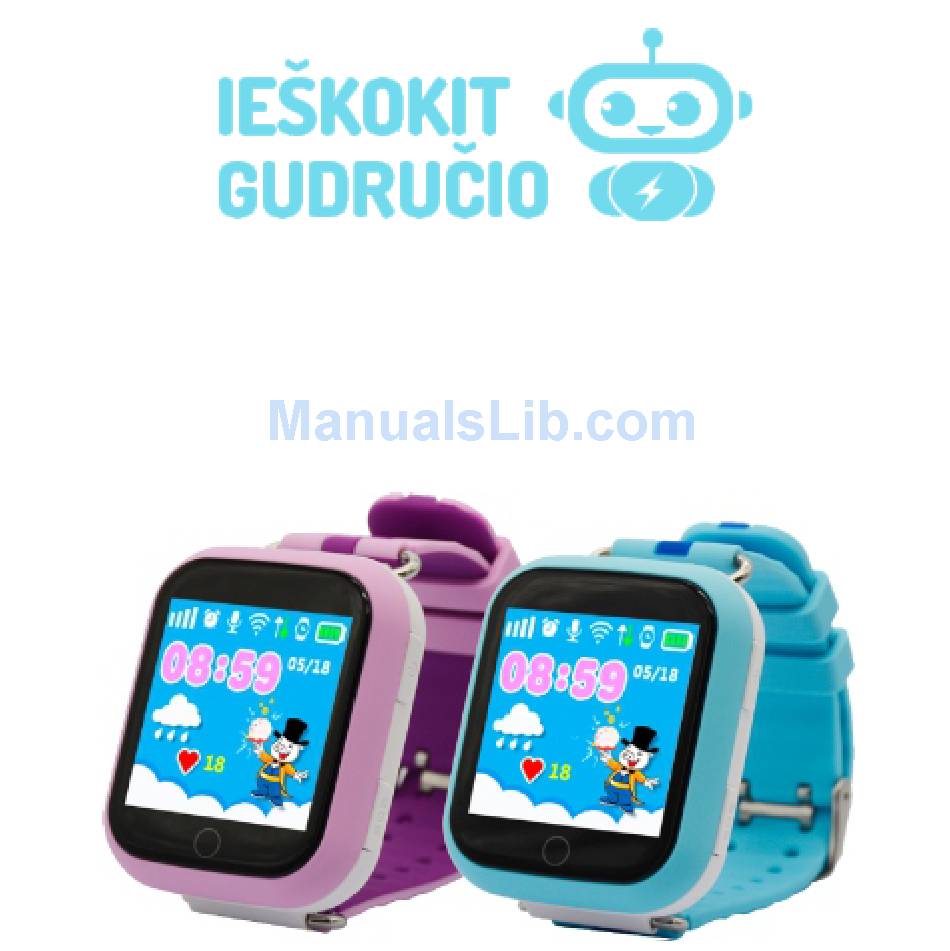

  • Page 1 GUDRUTIS “S15“ Quick Instruction Guide...
  • Page 3 "Gudrutis S15“ helps children to keep in touch with parents and for parents to know where their children are. „Gudrutis S15“ watch is synchronized with an APP in the parents smart phone. In this way parents can see where their children are at any time.

  • Page 4: Functions And Features

    · Make sure that mobile internet is enabled in the micro SIM card. · Install APP to your smart phone, using one of the following ways: 1. Scan QR code from the back of the box; 2. Find it in the app store (Google Play, iTunes) "SeTracker" ; 3.
  • Page 5 3. Buttons: Turn on/off; End a call SOS button Go back button; Answer a call...
  • Page 6 · Home page: Upper small icons band shows GSM signal, ringing mode, mobile data indicator, location - GPS icon, battery level. Time and date, hearts are displayed below. · Phone book: Click on the icon to see the contacts. Click on the green phone icon to dial the desired contact.

  • Page 7: User Manual

    · Download the APP: Two-dimensional bar code window is designed to download a phone app. Click on the icon to zoom in on the two-dimensional code ID (as shown below). 4. User manual: a. Registration: "License": The ID for registration can be accessed by scanning the bar-code at the back of the smart watch or input by hand.
  • Page 8 "Language": choose the language "Area": Select area "Europe and Africa“ Press "OK" to end registration. b. Log-in:...

  • Page 9: The Main Menu

    i. The main menu: After you've completed registration, you may input your account number and password, click login, and enter the main menu. 2-way calling: Connect your phone to the GPS watch. Once the light shows activation, turn on the record function. App will begin to record and send sound notes to the watch.
  • Page 10 GPS - the most accurate mode (~50 m accuracy) works only outside, LBS - approximate location mode (~ 500m - 2km accuracy), works when is no signal with GPS satelite (etc, inside, inside tunnel) Settings: set up every setting in the watch. 1.
  • Page 11 6. Recovery default work mode: Default work model-open APP for 24 hours, the upload interval time is 10 minutes. 7. Remote turn off: It can not press "OFF" key to turn off the watch once it start work normal. Only Through APP to remote turn-off. 8.
  • Page 12 You can change personal information, add or delete devices after pressing “ME” button. SOS emergency button Watch SOS emergency alert Long press SOS key for 3s. It will display SOS on screen. Watch will be on alert state. Circular dial 3 SOS numbers for two turns.
  • Page 13 6. Watch relative instructions 1. SMS emergency button:: Watch SOS emergency alert Long press SOS key for 3s. It will display SOS on screen. Watch will be on alert state. Circular dial 3 SOS numbers for two turns. It will stop when call answered. If not, it will continue until the two turns over.
  • Page 14 4. Remote turn off: You can press OFF key, remote turn off from APP and power off without card. 5. Phone book: Address list 10 phone numbers are available to set. And those phone number can dial to watch. Implement two-way talk. 6.

  • Page 15: Technical Data

    7. Technical data: • GPS: GPS MTK3337, 22 channels; • 1.54 TFT touchscreen; • AGPS: GPRS Class12; • LBS: L1, 1575.42MHZ C/A code; • GSM: GPRS 850/900/1800/1900; • G-Sensor; • Processor: MTK2503, 260MHZ; • Operating system: MTK G; • Colors: Pink, blue, black; •...

  • Page 16: Troubleshooting

    7. Troubleshooting: If watch does not connect to the server after first turning on, please: 1. Check if SIM card is inserted correctly; 2. Check or PIN code security in the SIM card is turned off; 3. Check if mobile internet is active in the SIM card; 4.
  • Page 17 Warranty ant maintenance For Ieškokit Gudručio products are given 2-year manufacturer' s warranty. The guarantee is only valid, if the failure is not caused by mechanical damage or misuse, but due to the manufacturer's defects. For the battery are given 6 months of warranty. To activate warranty, please register your watch: http:/ /ieskokitgudrucio.lt/registracija Official warranty is provided by:...
