Summary of Contents for TechLogix Network TL-DA18-HD2

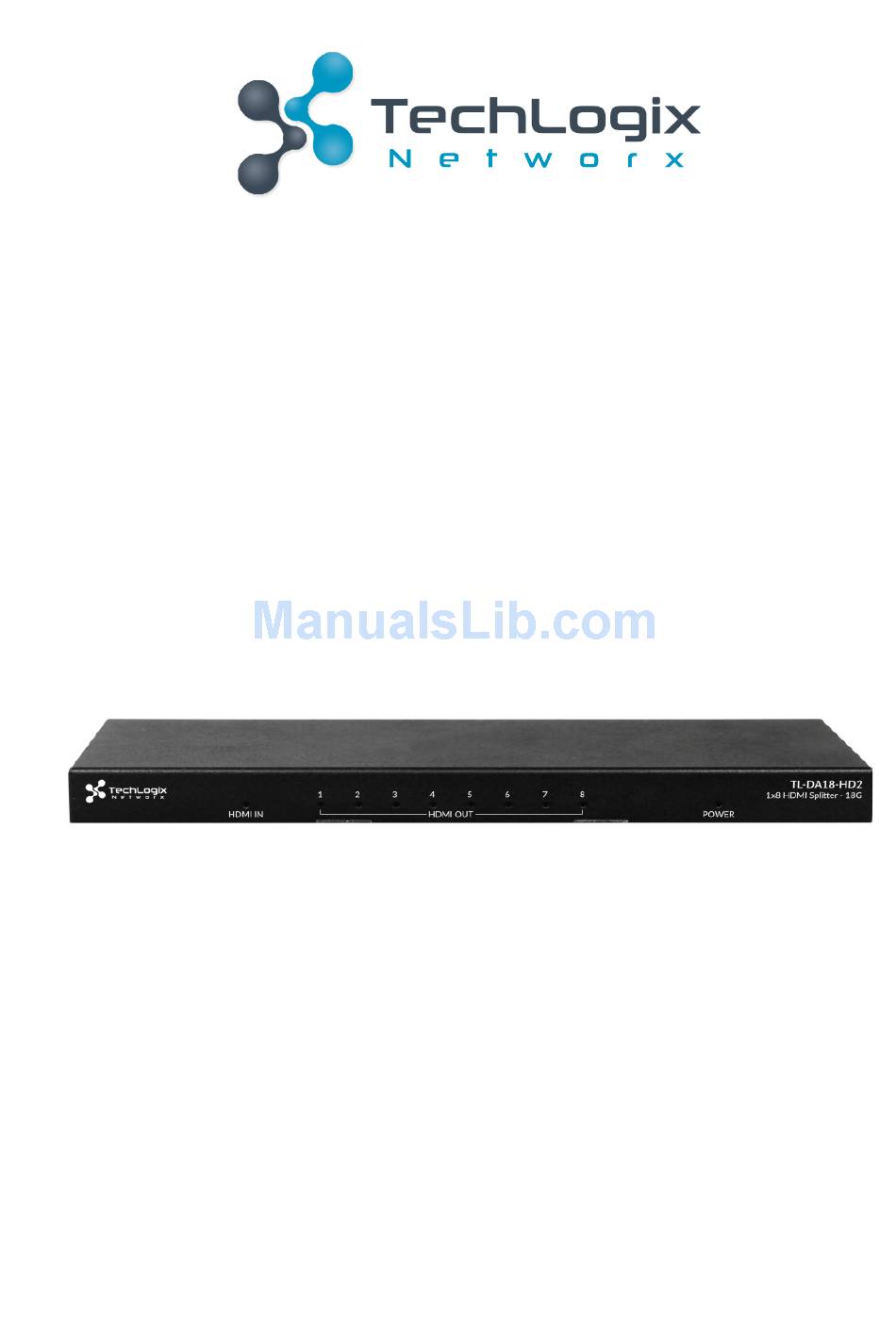

- Page 1 User Manual TL-DA18-HD2 1x8 HDMI 4K Splitter with HDCP 2.2 All Rights Reserved Version: TL-DA18-HD2_161031...
-
Page 2: Fcc Statement
TL-DA18-HD2- User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, slight differences may be evident on the real product. This manual is only for operation instruction only, not for any maintenance usage. - Page 3 TL-DA18-HD2- User Manual SAFETY PRECAUTIONS To insure the best experience from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for...
- Page 4 TL-DA18-HD2- User Manual 1. Introduction TL-DA18-HD2 is a 1x8 HDMI splitter with HDMI 2.0 and HDCP 2.2 compliance, and reliably distributes one HDMI source signal to 8 HDMI displays. It supports HDMI 2.0 specification features including data rates up to 18Gbps 4K@60Hz video, and automatic HDCP 2.2 compatibility.
- Page 5 TL-DA18-HD2- User Manual 1.2 Package List ü 1 x TL-DA18-HD2 ü 1 x Mounting brackets (Pair) ü 1 x Power Adapter (DC 12V 1.5A) ü 1 x Phoenix male connector (3 Pin 3.5mm) ü 1 x User manual QR Card &...
- Page 6 TL-DA18-HD2- User Manual 2. Appearance Front Panel Name Description ON: An HDMI source is connected to the splitter. Input LED OFF: No HDMI source is connected to the splitter. ON: HDMI display is connected to the splitter. Output LED OFF: No HDMI display is connected to the splitter.
- Page 7 TL-DA18-HD2- User Manual 3. Appearance EDID (Extended Display Identification Data) is data generated from each display in the system to communicate the capabilities of the device. The splitter features an EDID copy mode that can be used when the EDID does not meet the installation requirements. The EDID mode has several options available to encourage device communication.
-
Page 8: System Connection
The figure below illustrates a typical connection that can be utilized with TL-DA18-HD2: Step1. Connect an HDMI source (e.g. a Blu-ray DVD) to INPUT port of TL-DA18-HD2; Step2. Connect HDMI displays (e.g. a LCD TV) to OUTPUT ports of TL-DA18-HD2;... -
Page 9: Specification
TL-DA18-HD2- User Manual 5. Specification Technical Input 1 x HDMI IN (Type A female connector) HDMI 2.0 Input Signal Type HDCP 2.2 VESA: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz. SMPTE: Input Resolution Support 720x480p@59.94Hz/60Hz,... - Page 10 TL-DA18-HD2- User Manual Input Video Level 0.5-1.2 V p-p Maximum Pixel Clock 600 MHz Output 8 x HDMI OUT (Type A female connector) HDMI 2.0 Output Signal Type HDCP 2.2 VESA: 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1400x1050@60Hz,...
- Page 11 TL-DA18-HD2- User Manual General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV(Air-gap discharge)/ ±4kV(Contact discharge) Power Supply DC 12 V/1.5 A Power Consumption...
-
Page 12: Panel Drawing
TL-DA18-HD2- User Manual 6. Panel Drawing 7. Troubleshooting & Maintenance Problems Causes Solutions Color loss or blurry/ double Poor quality of the HDMI Change for qualified HDMI image on HDMI display cable cable. No power Power up the unit Power led is off, operations Make sure power adapter is don’t work... -
Page 13: After Sales Service
TL-DA18-HD2- User Manual 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems referenced in this user manual. 4) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years.
