Summary of Contents for SinoVoip Banana PI

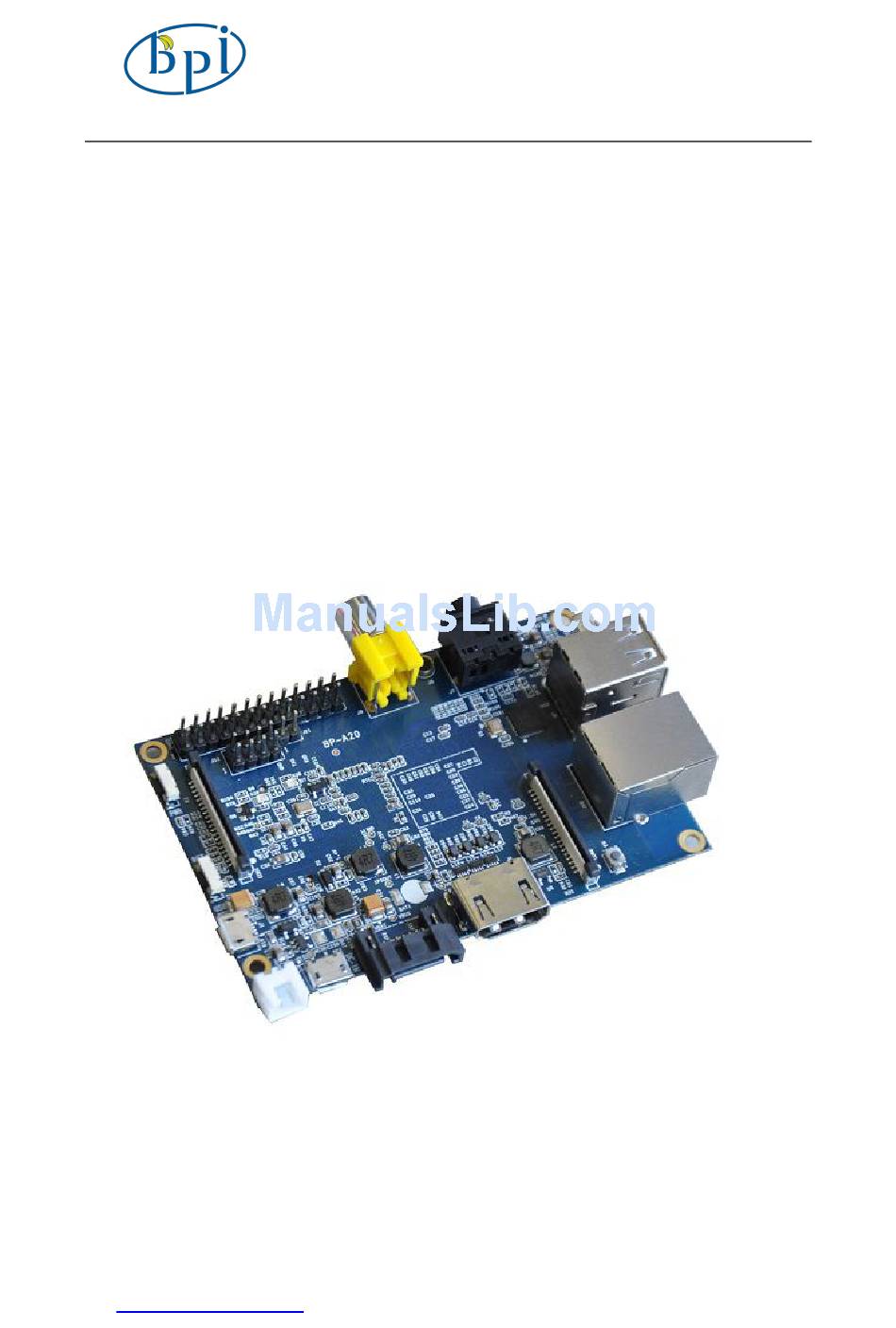

- Page 1 Banana PI User Manual SinoVoip CO.,LTD Banana PI User Manual <Version: V2.0 > www.sinovoip.com.cn www.banana-pi.com...
- Page 2 Banana PI with Gigabit ethernet port, SATA Socket. It can run with Android 4.2.2 smoothly. The size of Banana PI M1 like the credit card, it can easily run with the game it support 1080P high definition video output, the GPIO compatible with...
- Page 3 Banana PI User Manual USB 2.0 2 (direct from Allwinner A20 chip) Ports Reset button: Next to MicroUSB connector Buttons Power button: Next to Reset button Boot button (Optional): Behind HDMI connector GPIO(2X13) GPIO,UART,I2C bus,SPI bus with two chip selects, CAN bus,ADC,PWM,+3.3v,+5v,ground.
- Page 4 Banana PI User Manual Back: www.sinovoip.com.cn www.banana-pi.com...
- Page 5 Banana PI User Manual Interface www.sinovoip.com.cn www.banana-pi.com...
- Page 6 Banana PI User Manual Hardware connect sketch map www.sinovoip.com.cn www.banana-pi.com...
-
Page 7: Use Method
Banana PI User Manual Use method Step 1: Get what you need First time to enjoy your Banana Pi, you need at least the accessories in the table below. Item Minimu recommended specification & notes Minimum size 4Gb; class 4 (the class indicates how fast ... - Page 8 Step3: Prepare your SD card for the Banana Pi In order to enjoy your Banana Pi, you will need to install an Operating System (OS) onto an SD card. Instructions below will teach you how to write an OS image to your SD card under Windows and Linux.
- Page 9 Banana PI User Manual Unzip the download file and run the setup.exe to install the tool on your machine. iii. In the "Options" menu, set "FORMAT TYPE" option to QUICK, "FORMAT SIZE ADJUSTMENT" option to "ON". Check that the SD card you inserted matches the one selected by the Tool.
- Page 10 Run dd if=[imagename] of=/dev/sdx command to write image file to SD card. Wait patiently to successfully complete writing. Step4: Set up your Banana Pi According to the set up diagram below, you can easily set up your Banana Pi. www.sinovoip.com.cn www.banana-pi.com...
- Page 11 4. Just under the USB ports on the right edge is the ethernet connector for anyone who wants to plug the Banana Pi into a wired network. 5. Finally, at the very left of the bottom edge is the micro-usb power connector.
- Page 12 Banana PI User Manual If all goes well, the Banana Pi will boot in a few minutes. The screen will display the OS GUI. Step5: Shut down your Banana Pi You can use the GUI to shut down the Banana Pi safely.
- Page 13 Banana PI User Manual sudo shutdown –h. This will shut down the PI safely, (just use the power key to turn off might damage the SD-cards file system). After that you can press the power key for 5 seconds to turn it off.
- Page 14 Banana PI User Manual Debian system screen Raspberry Pi www.sinovoip.com.cn www.banana-pi.com...
- Page 15 Banana PI User Manual GPIO define www.sinovoip.com.cn www.banana-pi.com...
- Page 16 Banana PI User Manual Banana Pi V1.4 PIN define PIN define GPIO CON1-P01 LINEINL CON1-P02 LINEINR CON1-P37 CON1-P36 CON1-P07 FMINL CON1-P09 FMINR CON1-P04 ADC_X1 CON1-P06 ADC_X2 www.sinovoip.com.cn www.banana-pi.com...
- Page 17 Banana PI User Manual CON1-P08 ADC_Y1 CON1-P10 ADC_Y2 CON1-P13 LRADC0 CON1-P15 LRADC1 CON1-P33 RESET# CON1-P17 CSI-D0 CON1-P19 CSI-D1 CON1-P21 CSI-D2 CON1-P23 CSI-D3 CON1-P25 CSI-D4 CON1-P27 CSI-D5 CON1-P29 CSI-D6 PE10 CON1-P31 CSI-D7 PE11 CON1-P20 CSI-PCLK CON1-P24 CSI-MCLK CON1-P28 CSI-VSYNC CON1-P30 CSI-HSYNC...
- Page 18 Banana PI User Manual CON2-P19 LCD0-D05 CON2-P21 LCD0-D06 CON2-P23 LCD0-D07 CON2-P25 LCD0-D08 CON2-P27 LCD0-D09 CON2-P29 LCD0-D10 PD10 CON2-P31 LCD0-D11 PD11 CON2-P33 LCD0-D12 PD12 CON2-P35 LCD0-D13 PD13 CON2-P37 LCD0-D14 PD14 CON2-P39 LCD0-D15 PD15 CON2-P40 LCD0-D16 PD16 CON2-P38 LCD0-D17 PD17 CON2-P36 LCD0-D18...
- Page 19 Banana PI User Manual CON3-P23 SPI0_CLK PI11 CON3-P21 SPI0_MISO PI13 CON3-P19 SPI0_MOSI PI12 CON3-P24 SPI0_CS0 PI10 CON3-P26 SPI0_CS1 PI14 CON3-P05 TWI2-SCK PB20 CON3-P03 TWI2-SDA PB21 CON3-P15 UART2_CTS PI17 CON3-P22 UART2_RTS PI16 CON3-P11 UART2_RX PI19 CON3-P13 UART2_TX PI18 CON3-P10 UART3_RX CON3-P08...
