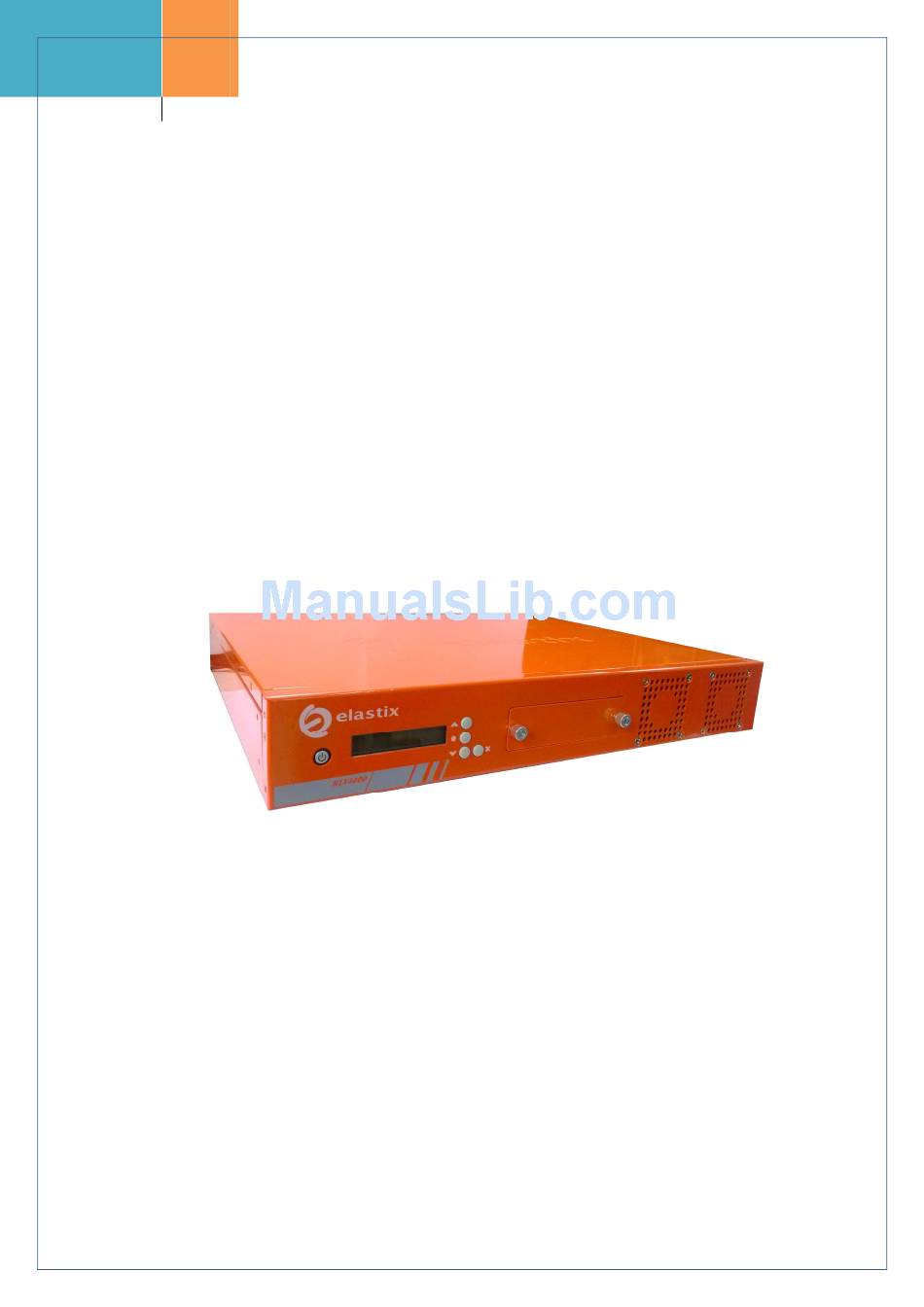

- Page 1 Elastix NLX4000 User Manual...
-
Page 2: Fcc Warning Statement
Elastix has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact Elastix to ensure you have the latest version of this document. -
Page 3: Recycling / Disposal
---------------------------------------------------- Lithium-Ion Battery Warning CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturerís instructions. www.elastix.com... -
Page 4: Chapter 1 System Introduction
Welcome! This chapter lists the system features, including introduction on the front and rear panel, and internal components, Thank you for choosing the elastix NLX4000. The system motherboard supports the Intel Atom N2600XX/D2500XX series processors and combined with the Intel NM10 Chipset to set a new benchmark for an effective desktop platform solution. - Page 5 Power connector. This connector is used for the power cable and plug. (input AC100V_240V) Internal components The illustration below is the internal view of the system when you remove, the top cover and the power supply unit. The installed components are labeled for your reference. www.elastix.com...
- Page 6 This chapter provides instructions on how to install components in the system step-by-step. Preparation Before you proceed, make sure that you have all the components you plan to install in the system. Basic components to install Motherboard DDR Memory Module (SODIMM) Expansion solts Hard disk drive Optical drive www.elastix.com...
- Page 7 The following figure illustrates the location of the sockets 2.4 Expansion slots Elastix NLX4000 Based on plug-in modular design. It allows users to integrate up to 2 pieces of PCI-E x1 telephony cards and supports to combine with analog, BRI, PRI, GSM .
-
Page 8: Chapter 3 Motherboard Info
Support PXE (for remote booting) I/O: 1*DB15 VGA port, 5*USB 2.0 port Board size: 6 x 6" (152.4 x 152.4 mm) Temperature: 0°C to 60°C (contact factory for more temp. options) Firmware: AMI_UEFI BIOS PCB layer: 4 Power dissipation: ~7.8W (Minimum Power Dissipation) www.elastix.com... - Page 9 CN10 PCIe x4 Golden Finger Clear CMOS CN15 Main Power in Jacket CN16 Power Supply Jacket DDR3 Memory Slot CN11 mSATA Slot CN13 Mini PCIe Slot Ethernet 1 Ethernet 2 SATA Interface SATA power supply USB Port LPC interface www.elastix.com...
- Page 10 Temperature: 0°C to 60°C (contact factory for more temp. options) Firmware: AMI_UEFI BIOS PCB layer: 4 Power dissipation: ~7.8W (Minimum Power Dissipation) Connector and Jumper Description JP1 clear CMOS Setting Function Close 1-2 Clear CMOS Open 1-2 (default) Normal CN15 Main Power Jacket DC in @12V www.elastix.com...
- Page 11 ATOM N2600 CPU Support Max Memory Size 2GB of DRAM ATOM D2550 CPU Support Max Memory Size 4GB of DRAM CN13 Mini PCIe Slot Attach 3G SIM card to CN14, and attach Mini PCIe 3G module to CN13， implement 3G function for NLX4000. www.elastix.com...
- Page 12 CN2/CN3 Giga Ethernet Port Name BI_DA+ BI_DA- BI_DB+ BI_DC+ BI_DC- BI_DB- www.elastix.com...
- Page 13 Receive + Ground CN4 SATA Power Supply Name Ground Ground CN8 USB Port 2 USB2.0 ports. 500 mA Continuous Current per Channel. Short-Circuit and Thermal Protection with Overcurrent Logic. Name Name Data- Data- Data+ Data+ Ground Ground CN9 USB connector www.elastix.com...
- Page 14 Data+ Data- Ground CN1 LPC Interface Name Name LPC_CLK SERIRQ +3.3V FRAME# 48MHz_CLK JP5 Manual Reset In Setting Function Close 1-2 Reset System Open 1-2 (default) Normal CN6 External LEDs and GPIO 2*4*2.0mm header 3.3V 200mA max CMOS output www.elastix.com...
- Page 15 3. clear the 500H+0FH, bit28 4. the LED will dark 1. Set 500H+0DH, bit13 ,means direction is input 2. press SW1 ,then 500H+0DH ,bit13 will be changed to 0 3. when SW1 release, 500H+0DH ,bit13 will be changed to 1 (default) www.elastix.com...
- Page 16 Press the “del” key, Enter the BIOS, system will display information as following: PXE remote boot function setup a. Enter Boot menu – >CSM Parameters Options b. Highlight PXE OpROM control, press enter key, system will prompt as following: www.elastix.com...
- Page 17 Address: F/3, Building No.127, Jindi Industrial Zone, Shazui Road, Futian District, Shenzhen, Guangdong 518048, China Tel:+86-755-82535461, 82535095, 82535362, Fax:+86-755-83823074 Business Contact: sales@elastix.com.cn Technical Support: support@elastix.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.elastix.cn Thank You for Choosing Elastix Products! www.elastix.com...
