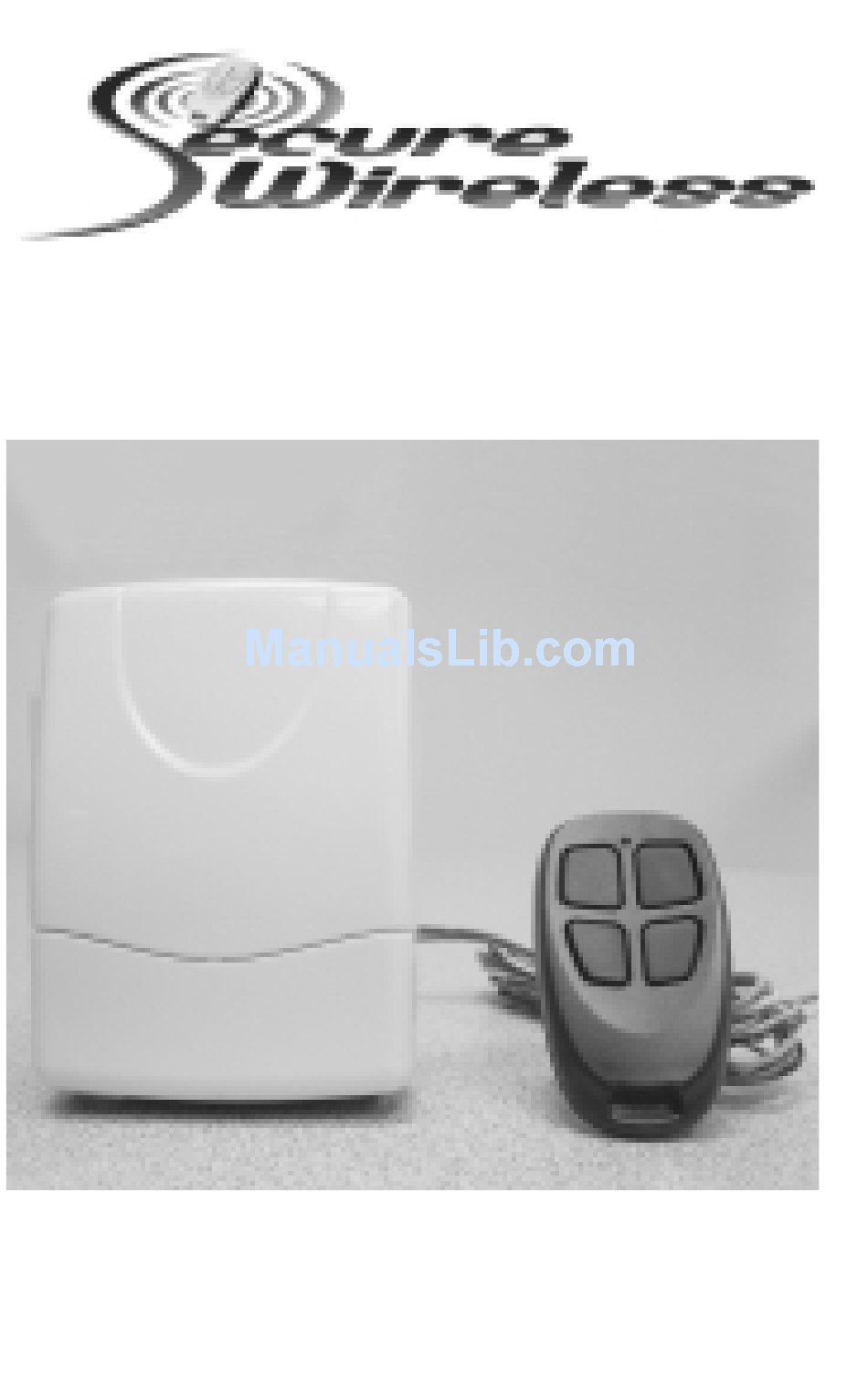

Summary of Contents for Secure Wireless EV-REC3 Evolution Series
- Page 1 EVOLUTION SERIES EVOLUTION SERIES “The Next Generation in Security Peripherals” “The Next Generation in Security Peripherals” EV-REC3 Technical Assistance is available Monday-Friday 7:00am-5:00pm PST Rev. 2 866-908-TECH(8324)
-
Page 2: Installation & Programming
Set-Up The REC 3 is made to operate with any Ademco panel that is wireless compatible. The process to enroll the REC wireless devices is virtually the same as installing an Ademco receiver and devices. If you have any questions please feel free to call technical assistance for help at (866)908-TECH (8324). -
Page 3: Zone Types
Step 11) Keypad will display programming overview, PRESS * Step 12) Once faulted and restored the serial number and loop will automatically be displayed on the keypad. IMPORTANT: It may take up to 2 seconds after faulting and restoring before serial number is displayed. This delay only occurs during programming and will not be present during normal operation. - Page 4 ** The REC3 will handle as many zones (up to 128) as the Ademco control panel you are connected to. For example, A Vista 20P can handle 48 wireless zones, so the REC3 will allow up to 48 devices. If Using Wireless Keys •...
- Page 5 Step 2) Press and HOLD the program button on the receiver while plugging power in. Step 3) Release program button and press program button one time for address 1, press program button two times for address 2 and so forth. Then WAIT 5 seconds and the LED will flash once to confirm address 1, twice for address two and so forth.
- Page 6 Wiring the Relay *Connect the N/O and C terminals to the garage door push button Used for N/C N/O Push Button C Push Button Applications Erasing Remote Buttons from the Relay Step 1) Press and HOLD the program button on the receiver, LED will turn RED Step 2) Continue to hold for approximately 10 seconds until the LED turn GREEN.
-
Page 7: Wiring And Set Up
Programming The REC3 default setting is to be the only receiver on an Ademco panel. If you wish to also use a 5800 series receiver you must program the REC3 to share address 00. Step 1) Unplug the REC3 harness Step 2) Press and HOLD the program button on the REC3 while plugging in the 4 wire harness. - Page 8 Wiring and Set Up (continued) Limitations If you are using an REC3 and an Ademco 5800 receiver the maximum number of combined zones will be defined by the 5800 receiver connected to the Vista panel. For example; if you are using a 6150RF and an REC3 on a Vista 20P the maximum number of wireless zones you will be able to use are 16 since the 6150RF will only allow a maximum of 16 wireless zones.
- Page 9 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1)This device may not cause harmful interference, (2)This device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, you are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
