sMRT V100/V100X User Manual

sMRT V100/V100X User Manual Version 1.0_28022017 February 2017

Table of Contents

Need help?

Do you have a question about the sMRT V100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marine Rescue Technologies sMRT V100

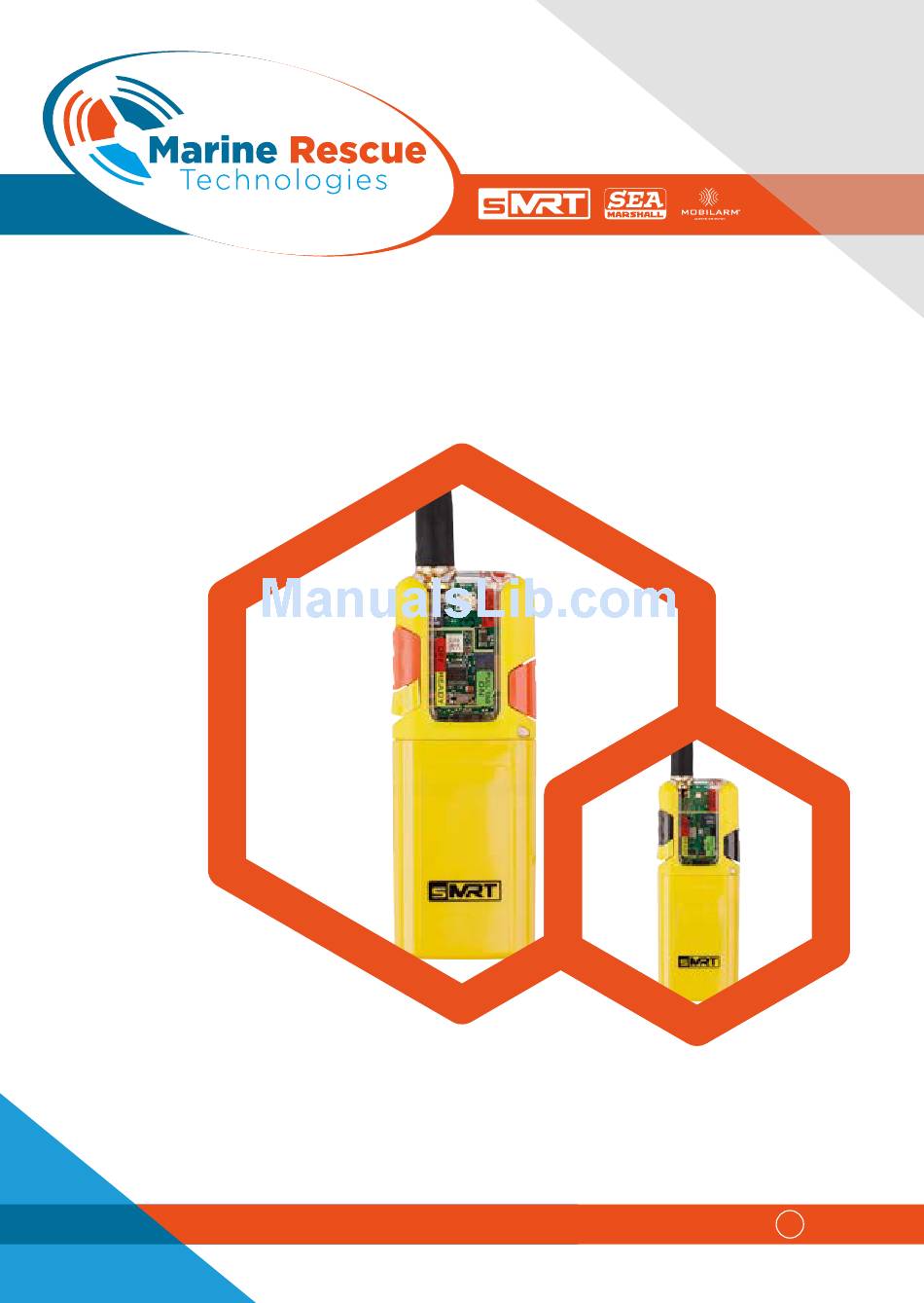

Page 1 Manufacturer and distributor of global leading Man Overboard Solutions from sMRT V100/V100X User Manual sMRT V100/V100X User Manual Version 1.0_28022017 February 2017...
Page 2: Table Of Contents
5 sMRT V100/V100X operation 1 Cancelling alerts 2 Testing the sMRT V100/V100X 6 Recertification and servicing 7 sMRT V100 Declaration of conformity 8 sMRT V100X Declaration of conformity 9 TRaC ATEX / IECEx Certification 10 Warranty 11 Terms & conditions of sale...
Page 3: Introduction
Introduction This user manual provides all the information required to operate and test the sMRT V100/V100X. The following symbols and conventions are used to indicate important information. Always observe these instructions. Ensure you read the ‘Warnings & safety information’ section of this manual before first use of the device.
Page 4 Using your sMRT V100/V100X for the ﬁrst time Carefully read the ‘Warnings & safety information’ section in this manual prior to using the sMRT V100/V100X for the first time. To operate correctly, the sMRT V100/V100X should be professionally fitted to an MRT approved PFD by an authorised MRT service centre.
Page 5: Glossary Of Terms & Acronyms
V100/V100X User Manual v1.0 • Glossary of terms & acronyms Automatic Identification System AMSA Australian Maritime Safety Authority Digital Selective Calling ECDIS Electronic Chart Display and Information System EPIRB Emergency Position Indicating Radio Beacon Federal Communications Commission Intrinsically Safe...
Page 6: Warnings & Safety Information
MRT Ltd. or an authorised MRT service agent is mandatory every 12 months. • Do not dismantle the sMRT V100/V100X as it contains no user serviceable parts. MRT Ltd. and authorised service agents offer a full and comprehensive service and repair facility for recertification of units and battery replacement.
Page 7 Inspect the device periodically for signs of wear and tear, visible cracks or other damage. The sMRT V100/V100X could save your life, treat it with respect at all times. MRT Ltd. © 2014...
Page 8: Smrt V100/V100X Overview
Search and Rescue (SAR) authorities. How the sMRT V100/V100X works The sMRT V100/V100X uses the marine VHF radio band to transmit DSC distress alerts and updated GPS positions regularly from the casualty in the water to VHF DSC radios, as well as AIS equipped vessels within range.
Page 9 5 mins for 30 mins, then every 10 mins until DSC acknowledgement or battery expires. Open loop transmissions until DSC Acknowledgement received. 2 minute VHF DSC receiver activation period after VHF-DSC transmissions; VHF radio acknowledgement may be received by sMRT V100/V100X. Prevention of accidental activation The flush-mounted design of the SWITCH LOCK, ARMING SWITCH and ACTIVATION TAB prevents the device from being accidentally activated.
Page 10 V100/V100X User Manual v1.0 sMRT V100 Product Range There are two versions of the sMRT V100 available for different marine operating environments. This manual is applicable to both these versions. V100: General Purpose • 24/7 Monitoring • Activates automatically on inflation of PFD, immersion in water or manually •...
Page 11: Smrt V100/V100X Features
V100/V100X User Manual v1.0 • sMRT V100/V100X features FLEXIBLE ANTENNA LEDs GPS ANTENNA STROBE LIGHT ACTIVATION TAB LANYARD ATTACHMENT HOLE WATER SENSOR SWITCH LOCK ARMING SWITCH 10 TEST SPOT (Side) MRT Ltd. © 2014...
Page 12 10 second time delay. Test Spot A TEST SPOT is located on the left side of the sMRT V100/V100X. Place the TEST MAGNET over the TEST SPOT to activate a full device test and verify GPS acquisition is functioning.
Page 13: Smrt V100/V100X Operation
[READY] position and send distress alerts. The sMRT V100/V100X must be professionally fitted to an MRT approved PFD to operate correctly, this ensures the device is in the most effective position for water activation and emergency transmissions.
Page 14 V100/V100X User Manual v1.0 Remove the yellow SWITCH LOCK from the device and slide the red (V100) or black (V100X) ARMING SWITCH to the [READY] position. Both LEDs will turn solid blue for 5 seconds to confirm it is in [READY] mode.
Page 15 V100/V100X User Manual v1.0 Close the access point zip securely. The sMRT V100/V100X and PFD is now ready for use. WARNING: After arming the unit it can remain in the PFD for 12 months until the PFD and PLB unit require annual servicing and recertification.
Page 16 V100/V100X User Manual v1.0 How to activate the device when armed When the sMRT V100/V100X is armed in the [READY] position, it can activate as follows: 1. Automatically via the water sensor after 2 seconds of continuous immersion. 2. Automatically when the PFD inflates in an emergency.
Page 17 V100/V100X User Manual v1.0 sMRT V100/V100X LED indications During operation, the LEFT LED indicates device status and the RIGHT LED indicates GPS status. The LEDs may display the following indications: LEFT LED LED Colour RIGHT LED LED Colour Radio transmission...
Page 18: Cancelling Alerts
V100/V100X User Manual v1.0 • Cancelling alerts Cancelling the distress alert after recovery of a man overboard or accidental activation To deactivate the device and cancel the distress alert: 1. Remove the SWITCH LOCK if it is in place and slide the ARMING SWITCH from [READY] to the [OFF] position.
Page 19: Testing The Smrt V100/V100X
2. Ensure the device has a clear view of the sky during testing to receive a GPS signal. 3. If the sMRT V100/V100X fails any element of a self-test or any full system test, take it out of service immediately.
Page 20 V100/V100X User Manual v1.0 Self-test The sMRT V100/V100X performs a self-test when the ACTIVATION SWITCH is moved from the [OFF] position to [READY]. Self-test LED indications are displayed for several seconds at this point and may display as follows:...
Page 21 During the test activation period: • The STROBE flashes 3 times • The PIEZO bleeps 3 times (not on the sMRT V100) 3. The unit will remain in test mode and attempt to acquire a GPS position (indicated by a GREEN LED) for a maximum of 5 minutes.
Page 22: Recertification And Servicing
NOT BE CERTIFIED FOR ANY FURTHER USE. Upon GPS testing or activation both LEDs will flash BLUE and MAGENTA 10 times if the sMRT V100/V100X has not been recertified as specified. MRT is not liable for any defect or failure of the unit and any resulting effect including personal injury or death.
Page 23 V100/V100X User Manual v1.0 Operational life The sMRT V100/V100X has an operational life of 5 years from first use and must be recertified annually. End of life statement Marine Rescue Technologies hereby declares that all materials, components and products supplied are in full compliance with RoHS &...
Page 24: Smrt V100 Declaration Of Conformity
V100/V100X User Manual v1.0 • sMRT V100 Declaration of Conformity MRT Ltd. © 2014...
Page 25: Smrt V100X Declaration Of Conformity
V100/V100X User Manual v1.0 • sMRT V100X Declaration of Conformity Declaration of Conformity Name of Manufacturer Exporter: Marine Rescue Technologies Limited Address of Manufacturer Exporter: Marshall House Zarya Court, Grovehill Road Beverley, East Yorkshire HU17 OJG Declares that product:...
Page 26: Trac Atex / Iecex Certification
V100/V100X User Manual v1.0 • TRaC ATEX / IECEx Certification MRT Ltd. © 2014...
Page 28: Warranty
V100/V100X User Manual v1.0 • Warranty This product is warrantied for 12 months from date of delivery and an additional 12 months following each annual recertification. It is important to register the purchase of MRT products by completing the warranty card enclosed with the product or on the company website: www.mrtsos.com.
Page 29: Terms & Conditions Of Sale
International Sale of Goods shall not apply to any Contract supplied under the Contract. made subject to these Conditions. Supplier: Marine Rescue Technologies Limited (Company No. Quantity and Description 04202403), Registered Office: Halifax House, 30-34 George (a) The quantity and description of the Equipment shall be as Street, Hull, East Yorkshire HU1 3AJ.
Page 30 V100/V100X User Manual v1.0 Customer's specification, which do not materially affect their Equipment and/or provision of warranty service or Annual quality or performance. Maintenance/Support and/or Annual Recertification (whether Prices ordered under the same contract or not) to the Customer;...
Page 31 V100/V100X User Manual v1.0 registration and to pay any associated costs, expenses or taxes. resides; Risk and Property (iii) such licence shall be terminable by either party on 28 days' (a) The Equipment shall be at the risk of the Supplier until written notice, provided that the Supplier may terminate only if delivery to the Customer.
Page 32 V100/V100X User Manual v1.0 14(e) below). referred to in clause 12(a). 12 Limited Warranty 13 Supplier remedy (a) The Supplier warrants to the Customer that the Equipment is (a) If the Supplier's performance of its obligations under the free from defects in workmanship and materials. The Supplier...
Page 33 V100/V100X User Manual v1.0 (c) If the Supplier manufactures the Equipment, or applies any (vi) the Customer ceases, or threatens to cease, to trade; or process to it, in accordance with a specification submitted or (vii) the Customer takes or suffers any similar or analogous action...
Page 34: Disclaimer
Misuse or false activation is unlawful and irresponsible, and could result in prosecution or penalty. The sMRT V100/V100X should not be relied on as the only source of man overboard notification and the vessel owner, operator or master must exercise common prudence and good seamanship at all times.
Page 35: Trademark Notice
Trademark notice Mobilarm Limited, trading as Marine Rescue Technologies Limited, is the 100% owner of Marine Rescue Technologies Limited in the United Kingdom. All trademarks owned by Marine Rescue Technologies Limited in the United Kingdom are therefore owned by Mobilarm Limited.
Page 36: Technical Specifications
V100/V100X User Manual v1.0 • Technical specifications GENERAL Standards Designed to RTCM STANDARD 11901.1 and draft ETSI EN 303 098-1 Standard (V100) Ex ib IIB T4 Gb) (V100X) Designed to IECEx International Standards ( Battery Type 9.0V 1500mAh Lithium Manganese Dioxide (LiMnO2) Battery Life Minimum of 12 hours at -10°C (14°F) and longer in warmer conditions.
Page 37: Index
V100/V100X User Manual v1.0 Index Accidental activation manual activation Automatic activation 9, 16 turn on/off water activation Battery: Overview replacing Piezo: service life test states shelf life Battery replacement Recertification Cancel alert Recovery Procedure Change of ownership Safety information...
Page 40 Manufacturer and distributor of global leading Man Overboard Solutions from Marshall House Zarya Court Grovehill Road Beverley East Yorkshire HU17 0JG United Kingdom Tel: +44 (0)1482 679300 info@mrtsos.com www.mrtsos.com...
