FORWORD
- Please read this manual carefully before using this product
and retain it properly for future reference.
- If there is any doubt or difficulty in the process of product usage,
please feel free to contact us or the dealer.
- The company reserves the authority to amend the specification.

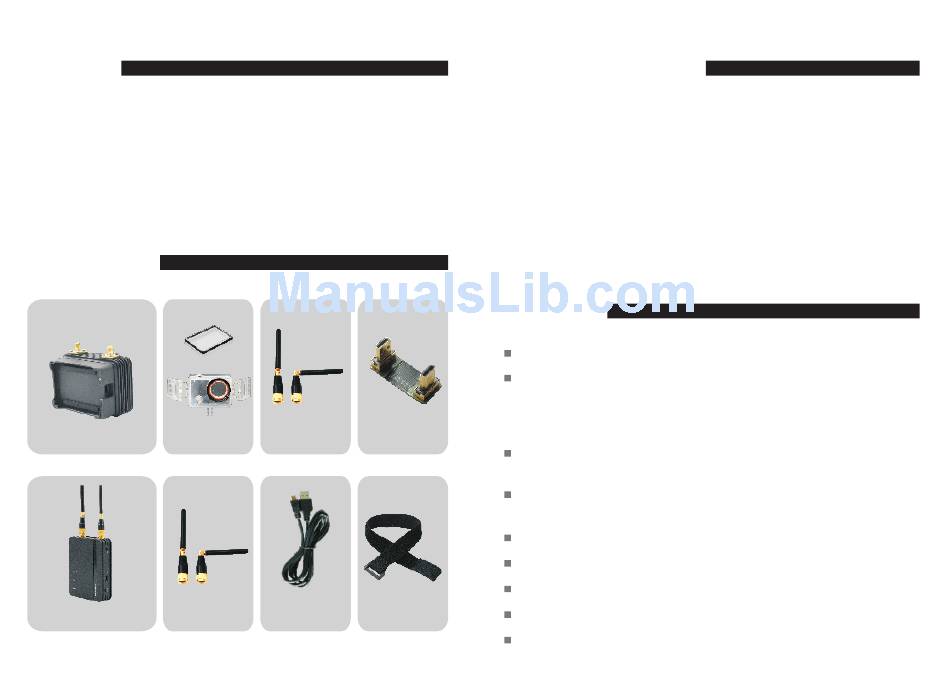

PACKING LIST
TX:
CP07029
x1
Waterproof Case x1
RX:
CP03029
x 1
Antenna x 2
11
Model: SH800T
MICRO HDMI
Antenna x2
Connector x 2
USB Cable
(Standard USB
Binding Belt x1
2.0 male & Mini USB) x1
* Please take all the actual accessories as the standard.
Product: FREECAST Transmitter
BRIEF INTRODUCTION
Freecast is designed for live video wireless monitoring for
TM
outdoor sports,outdoor video broadcasting, outdoor photography /
cinematographer.It seamlessly transmits footage captured by
action cameras in big range.It is a compact and portable device
with industrial dust and waterproof design,weighing only 400g.
Freecast supports video browsing via iOS and Android
OS devices. With good channel selection ability and video
encryption,it perfectly fits video transmission requirement
of outdoor applications.
FEATURES
Special wireless video transmission device for action camera.
Adopt High-speed wireless transmission technology,
it features ultra-low latency and long transmission range.
Support up to 3 smartphone clients live stream the footage
simultaneously.
Perfectly compatible with iOS / Android operating system
for real-time monitoring.
H.264 compression technology, high-quality intensive
compression, State-of-art video quality.
Supports manual channel switching.
Dustpoof and waterproof, up to IP68 (transmitter only).
Perfect environmental adaptability, operating temperature -10~50°C.
Compact and portable design.
The transmitter support Mini-USB power supply.
12
