Summary of Contents for SHEN JIZHUO TECHNOLOGY JZ861

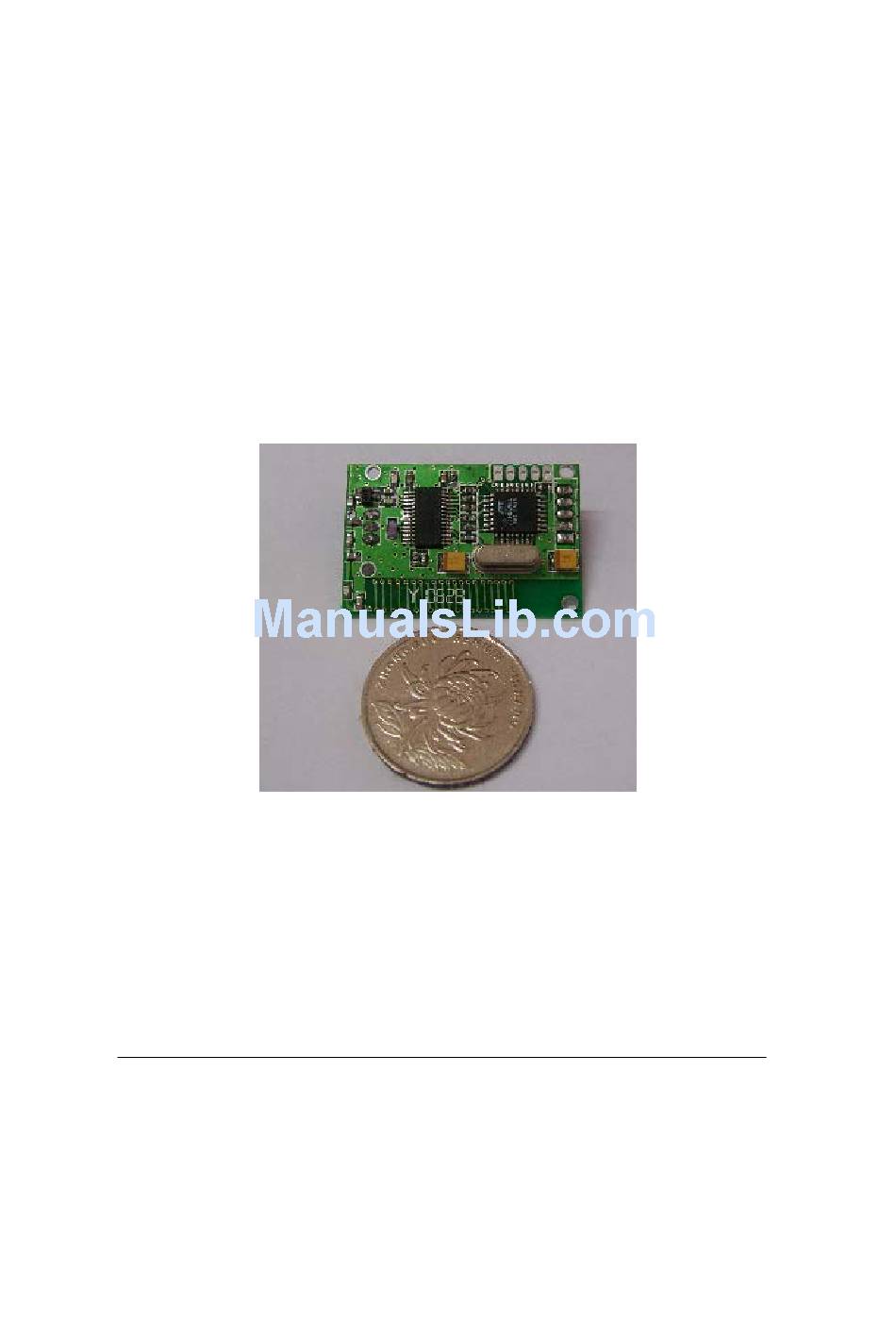

- Page 1 JZ861 Mini Power Wireless Module User’s Manual SHEN JIZHUO TECHNOLOGY CO., LTD TEL: +86-755-83304518 / 83308451/81353151 FAX: +86-755-83302824 Address: NO.813,212BLD,Tairan Tech Park, Futian District Shenzhen China Post Code：518040 Website：http://www. jizhuo.net Email:sale@jizhuo.com...
- Page 2 Tel: +86-755-81353151, 83304518. About JZ861 JZ861, a Mini power wireless module, is used as the wireless data transmission in short distance. With the characteristics of small size, light weight, low power consumption, good stability and reliability, it can provide bidirectional data transmission, test and control for users.
- Page 3 Watchdog monitors the inner function, so it can change the traditional product structure and improve the product reliability. Application of JZ861 JZ861 Mini micro power wireless module, Please don’t approach your MCU, the wire, the electric circuit board with copper sheet and the power unit of the equipment when install the antenna. 1、Dimensional drawing JZ861 接口示意...
- Page 4 JZ861 Mini Power Wireless Module User’s Manual 2、The definition of JZ861 Interface(J1)： 1.The user interface(J1) The user interface under the standard disposition, which is plastic plug, the gap faces below, from left to right, is 1,2,3,4,5. The definition of each pin are as follows:...
- Page 5 JZ861, which has the function of sleep, the function is off when they our of the factory, the user must set according to the JZ861 establishment software, to establish the hardware to awaken or the serial port awakens.
- Page 6 JZ861 Mini Power Wireless Module User’s Manual 4、Technical specification of JZ861 Modulation mode: FSK Working Frequency: 428---433MHZ Transmission power: <10mW Receiving sensitivity: -110dBm Transmitting current:: <35mA， Receiving current: <11mA Sleeping current: <15uA Channel speed rate: 1200/2400/4800/9600 Bit/s The user can set.
