Summary of Contents for VIDITECH Vibrodiag
- Page 1 Vibrodiag FW 0.04.41 and higher www.viditech.eu rev. 1.7 sales@viditech.cz...
-
Page 2: Table Of Contents
VIBRODIAG Content BASIC CHARACTERISTICS ........................2 IBRATION MEASURING ..........................2 ENERAL FUNCTIONS ..........................2 SPECIFICATIONS ............................3 VALUATING UNIT ............................3 CCURACY ..............................3 AMPLING PARAMETERS ..........................3 ........................... 4 ACCELERATION SENSOR INSTRUMENT DESCRIPTION ........................5 NSTRUMENT ASSEMBLY ..........................6 3.1.1... -
Page 3: Basic Characteristics
VIBRODIAG BASIC CHARACTERISTICS 1.1 Vibration measuring Two-channel portable instrument with input for ICP sensor Range of measured accelerations up to ±60g Range of measured velocities up to 200 m.s (using provided sensors) RMS vibration measurement according to ISO 2373 ... -
Page 4: Specifications
VIBRODIAG 2 Specifications 2.1 Evaluating unit Instrument type portable, two-channel Supply voltage 15V DC Battery type Li-pol, 1100 mAh, 3 hours of operation Consumption 3,5W normal operation 20 W charging 0 to +65 ◦ C Operation temperature Protection IP52 Chassis material... -
Page 5: Icp Acceleration Sensor
VIBRODIAG 2.4 ICP acceleration sensor Sensor type piezoelectric Frequency range of sensor 3dB 2 Hz – 10 kHz 100 mV/g ±20 % Sensor sensitivity ±60 g Range of measured accelerations Protection IP67 Chassis material stainless steel Dimensions 25x66 mm (diameter, height) -
Page 6: Instrument Description

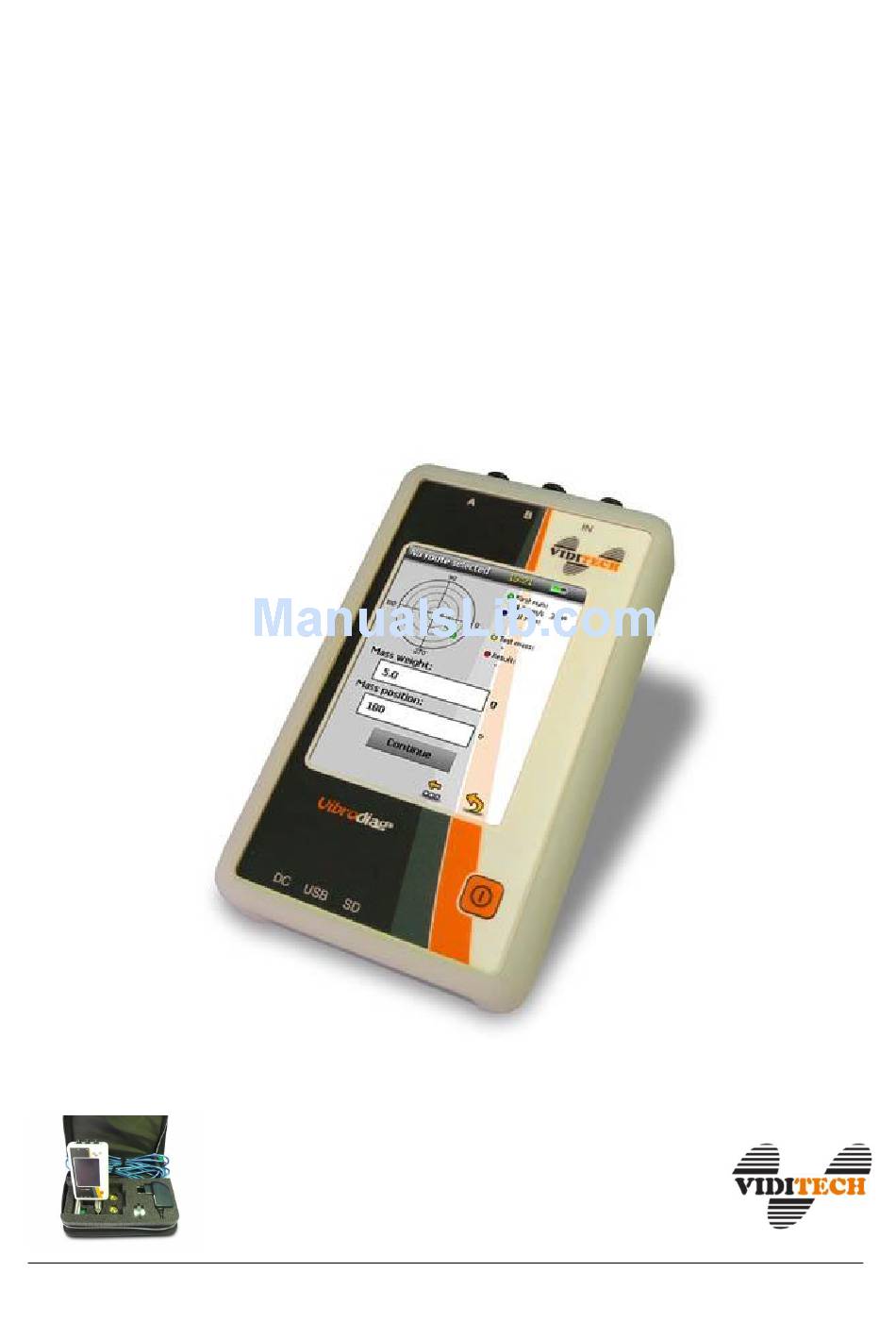

VIBRODIAG 3 Instrument description Fig. 1 Individual components with description. 1 – Evaluating unit 2 – Power button 3 – Display after instrument start up 4 – Socket for ICP sensor - channel A 5 – Socket for ICP sensor - channel B 6 –... -
Page 7: Instrument Assembly
VIBRODIAG 3.1 Instrument assembly 3.1.1 First run Instrument is switched on by pressing button 2 (fig. 1) for at least 3 seconds, before the message „Please wait…“ appears on the screen. Instrument is powered by the integrated battery. If the battery is flat, or a longer measurement is to be performed, it is necessary to connect the instrument to the power supply adapter (socket 7). -
Page 8: Menu Structure
VIBRODIAG 1 Hz – 1 kHz 4 Menu structure velocity 500Hz – 5kHz Main menu acceleration Order Route Measure measuring Custom Run up Waveform ISO velocity Coast down Saved Analysis data Saved Run up, data coast down Balancing Single plane... -
Page 9: Main Menu
VIBRODIAG 5 Main menu The instrument main menu contains four main items: Measure; Database, routes; VibroGuide and Setup. It is necessary to set/check the Setup item before further instrument use. It is necessary to define the measured places in detail in the Database, routes item, before measuring, and to create/choose a route for these places. -
Page 10: Instrument Setup
VIBRODIAG 5.1 Instrument setup Main menu Setup Instrument Language setup It is possible to choose from languages: Czech and English. The instrument will be supplied with German in the next update. Language selection is performed by tapping on the flag symbol. -
Page 11: Sensor Setup
VIBRODIAG 5.2 Sensor setup Main menu Instrument setup Sensor After preparing the instrument for measuring, it is suitable to enter (or check) the corresponding sensitivities of ICP sensors for both channels (A and B). Sensitivity of each sensor is marked on its upper part and is entered into relevant boxes, see fig. 5. For each channel, it is also possible to select a high pass filter with values 1 Hz, 3 Hz, or 10 Hz. -
Page 12: Database, Routes
VIBRODIAG Fig. 8 Limits setup for channel A and B. 6 Database, routes Main menu Database, routes 6.1 Measuring places The instrument requires the following to be defined in order: Factory – Building – Machine – Place. Entering a new item is done by tapping on , deleting an item by selecting the cross icon. - Page 13 VIBRODIAG Fig. 9 a) Factory definition b) Machine definition c) Machine information Fig. 10 a) Place definition b) Place setup c) Place setup Fig. 11 a) Route definition b) Adding place to route c) Display of places in route www.viditech.eu...
-
Page 14: Measuring
VIBRODIAG 7 Measuring After measuring initiation, the filters will stabilize (ca. 5 s), if the measuring request is initiated immediately after turning on the instrument, then this time can extend to 22 s (the filters are stabilizing during this period). Filter stabilization is always performed in case a different route/place is chosen, with its own setup (range, limits, high pass). -
Page 15: Analysis
VIBRODIAG 7.2 Analysis 7.2.1 Velocity analysis Main menu Measuring Analysis 1 Hz – 1 kHz velocity For each velocity analysis it is possible to use only one channel, see fig. 13b. After channel selection, the input signal is analysed, see fig. 13c. After process completion, the velocity frequency spectrum is displayed (fig. - Page 16 VIBRODIAG Fig. 13 a) Analysis selection. b) Channel selection. c) Running analysis. Fig. 14 a) Analysis display. b) Table of values. c) Optional analysis. Fig. 15 a) Saved analyses. b) Saved analysis. c) Adding new analysis to graph. www.viditech.eu sales@viditech.cz...
-
Page 17: Run Up, Coast Down
VIBRODIAG 7.3 Run up, coast down Main menu Measuring Run up, coast down Run up/Coast down/Saved data For recording vibration velocity during run up and coast down of the machine, the revolution sensor must be connected. Start of the test is performed by pressing , in this moment the instrument records the current values (revolutions, amplitude). -
Page 18: Balancing
VIBRODIAG Fig. 16 c) Graph options. d) Coast down display. Saved records can be displayed using Saved data (fig. 16a). After this selection, two columns are added to the saved items (ranged by sensing time – from the newest). The first column is for data sensed during run up and the second column during machine coast down. -
Page 19: Dual Plane Balancing
VIBRODIAG rotating. Unless this state is achieved, Please wait is displayed on the screen. After the analysis is performed, the value of vibration velocity and the position of the heavy place is displayed, see fig. 17a. Vibration velocity value is relative to the maximal amplitude of one dominant component in the spectrum –... - Page 20 VIBRODIAG The wizard in this case is informative and used for better orientation. The balancing result using the test weight does not depend on the wizard setup. It is possible to skip the wizard using Skip wizard and further the balancing continues as follows: First run: By selecting measurements and clicking on the forward arrow starts the rotating wheel vibration analysis in both channels.
-
Page 21: Grinding Wheels Balancing
VIBRODIAG c) calculated components d) the result of balancing ch. A e) the result of balancing ch. B 7.4.3 Grinding wheels balancing Main menu Measuring Balancing Grinding wheels This option is used for dynamic balancing of two rotating wheels on short shafts of rotating machines. -
Page 22: Displaying Saved Balancing
VIBRODIAG entered in the appropriate boxes (Fig. 19a). The test run is started by clicking on the forward arrow button. Result: After evaluating the previous two steps, the position displacement of individual weights is calculated (Fig. 19b). Balancing process can return one step back, leave, save the result and store parameters. - Page 23 VIBRODIAG Fig. 18 a) Saved data. b) Informative data. c) Measured results. www.viditech.eu sales@viditech.cz...
-
Page 24: Bearing Condition
VIBRODIAG 7.5 Bearing condition This function shows bearing condition in acceleration (plus additional information about vibration velocity). It is possible to save data for future use. There is implemented envelope method evaluation currently (measured in frequency band 500Hz...15kHz), but newer method (using concrete bearing fault frequencies evaluation) will be implemented soon. -
Page 25: Periodical Recorder
VIBRODIAG Fig. 20 a) Recorder menu. b) Threshold recorder. c) Running recording. 8.2 Periodical recorder Main menu Measuring Recorder Periodic recorder In the periodical recorder it is possible to select, which analyses are to be performed and in which period. - Page 26 VIBRODIAG Saved files are displayed in the Data card. In the first column from the left, date and time of the measurement are stated. In other columns the following are available, RMS vibrations , velocity analysis and acceleration analysis versus time. Tapping on the joining of row and column (item OK) the desired record is displayed graphically.
- Page 27 VIBRODIAG Fig. 22 a) Saved data from rec. b) Threshold rec. vibrations. c) Threshold rec. analyses. Fig. 23 a) Adding another analysis. b) Periodical rec. vibrations. c) Periodical rec. analyses. www.viditech.eu sales@viditech.cz...
