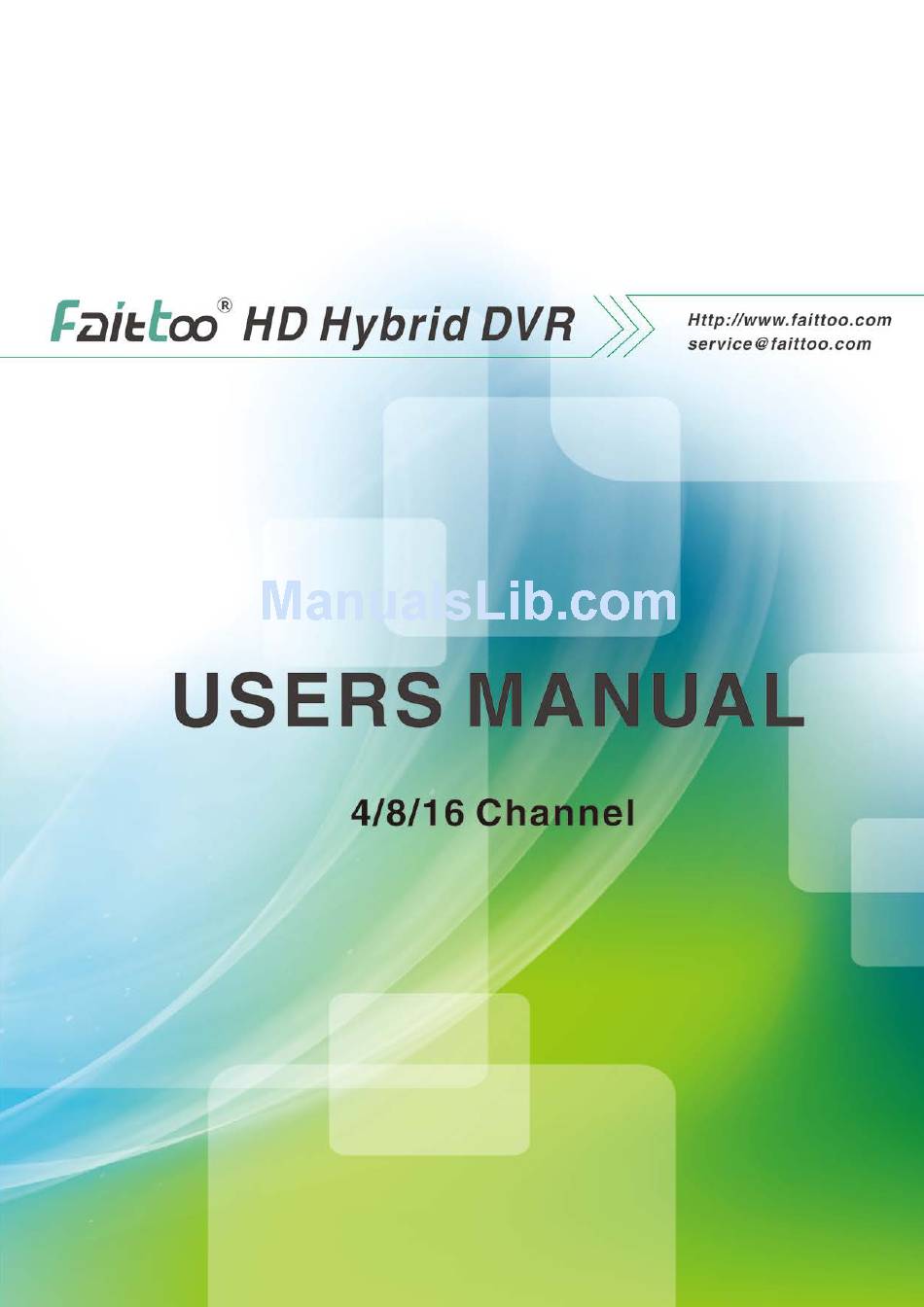

Faittoo FT-AVR2204H User Manual

Hd hybrid dvr
Hide thumbs Also See for FT-AVR2204H:
Table of Contents

Advertisement

Quick Links

See also: Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FT-AVR2204H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Faittoo FT-AVR2204H

Summary of Contents for Faittoo FT-AVR2204H

  • Page 2: Table Of Contents

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Catalog Preface ..............................4 1 Product Description ..........................5 1.1 Product Overview ........................5 1.2 Product appearance ........................5 1.3 Technical specification ......................... 5 1.4 Function Features ........................7 2 Introduction of product appearance and structure .................
  • Page 3 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 4.12.2 UTC coaxial control ....................... 25 4.12.3 PTZ control ........................25 4.12.4 To call a preset ......................26 4.12.5 Call the cruise line ......................26 4.13 Record function ........................27 4.13.1 Manual Record ......................
  • Page 4 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 6.1 Cloud ID login ..........................51 6.2 User name login ........................52 6.3 Playback ............................ 53 7 Client software ............................. 55 8 Mobile APP ............................56 8.1 APP Introduction ........................56 8.2 APP Installation..........................

  • Page 5: Preface

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Preface Statement ● We do our best to promise the integrity and accuracy of the content, but inevitably there could be technical inaccuracy, unmatched product function and operation or typographical errors. If there is any doubt or dispute, refer to the final interpretation of Juan.

  • Page 6: Product Description

    1.2 Product appearance Figure 1-1 1.3 Technical specification Specification/Model FT-AVR2204H FT-AVR2208H FT-AVR2216H Video output VGA/HDMI output Video input 16ch...
  • Page 7 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Hard disk type SATA, MAX 6TB/1PCS Storage Hard disk interface 1*SATA 1*SATA 2*SATA USB Backup Support Recording type manual recording / time recording/ motion detection recording Recording mode...

  • Page 8: Function Features

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 1.4 Function Features  Real-time monitoring  Support VGA/HDMI output at the same time  Support real-time video preview of 1/4/6/8/9/13/16channel  Support electronic zoom (preview and playback) ...

  • Page 9: Introduction Of Product Appearance And Structure

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 2 Introduction of product appearance and structure 2.1 Panel description Figure 2-1 Number Name Function descriptions Number Name Function descriptions IR receiver MENU Menu key POWER Power Indicator light...

  • Page 10: Mouse Operation Instructions

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Serial Serial Name Function descriptions Name Function descriptions number number 1-16 Video input interface NETWORK RJ-45 standard network interface AUDIO OUT Audio output interface Standard USB interface HDMI...

  • Page 11: Input Method Instruction

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Instruction ● If there are several devices at the same place, remote controller will first choose a device according to the equipment number. So you should define a unique device number for each piece of equipment, or remote controller may operate multiple devices with the same device number at the same time.

  • Page 12: Installation And Connection

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 3 Installation and connection 3.1 Installation notes 3.1.1 Check goods Check to see if the equipment packing is damaged. Product packaging is made of protective materials which can cope with most transportation accidents.

  • Page 13: Cctv System Connection

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 3.3 CCTV system connection...
  • Page 14 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com...
  • Page 15 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com...

  • Page 16: Operation System Instruction

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 4 Operation System Instruction 4.1 Boot / Login / Logout / Restart / Shutdown screen output / Shutdown 4.1.1 Boot Remark: Mare sure the access voltage matches with that of DVR and ensure the DVR GND correctly .

  • Page 17: Logout

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com  Valid password characters are numbers, letters, decimal points, * and #. Maximum 10 characters.  Forgotten password? If you forgot your password, continuously press upward key ▲ 10 times. You will see “restore default user”.

  • Page 18: Boot Wizard

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Boot Wizard When you first use the DVR, the system will automatically open the "Setup Wizard " interface guides after login, to lead user to the basic setups so that the unit is working properly. You can also right-click the mouse to enter and select “Setup Wizard”"...

  • Page 19: Channel Mode

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-9 If the auto-configuration problem persists, check that the current Internet access methods. If PPPOE access, click manual configuration, enter PPPOE setups, check on, enter your user name and...

  • Page 20: Access Analog Cameras And Ip Camera Added

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-12 4.3.6 HDD setup This displays all hard disk information for the DVR and does hard disk formatting shown below. click "Next" after setup completion. (See section “4.14.1.3 HDD Setup” for more details)
  • Page 21 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com The system default is auto mode. Automatic identification of high-definition analog camera access. If the camera does not recognize AHD or CVI Camera, click AHD or CVI mode.

  • Page 22: Screen Polling (Auto Switch)

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Delete a selected channel Delete Delete all Delete all the added channel Manual Edit edit added IPC connection Editable protocol, IP address, port, user name, password, etc. parameter in channel...

  • Page 23: Electronic Zoom

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com switching channel page at the set time, there are two kinds of screen 1,4 switching mode ● " Auto switch " such as checking the "Skip Video Loss " If there are no channels displayed on the screen , the channel screen polling will automatically skip this screen 4.6 Electronic zoom...

  • Page 24: Video Backup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Operation Procedure: Right click mouse to select the "Video Playback" →"Manual search" to enter file search interface , as shown below: Select video dates, and color numbers represent video data...

  • Page 25: Color Adjust

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-20 Click the mouse to select the channel Number (1~16). It needs to be backed up. To back up all channels select " All". The mouse needs to check backup record mode, / manual / time / move / alarm, system all types of video defaulted.

  • Page 26: Utc Coaxial Control

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Then set the PTZ CAMERA and DVR with same Protocol, Baud rate, Address code. For example, PTZ CAMERA Protocol is “Pelco-D”, Baud rate is “2400”, Address code is “1”, and connect this PTZ CAMERA to DVR's Channel 1, the DVR setting will be shown as below: Right- click into the "System Setup"...

  • Page 27: To Call A Preset

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com For example, to control the third channel PTZ, then double click on the third channel, let it display full screen, then right click the mouse to choose “PTZ Control”.

  • Page 28: Record Function

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-27 Channel, protocol, baud rate and other parameters can be adjusted. After the adjustment, click " ? " to enter the following: Figure 4-28 Click the " Up...

  • Page 29: Record Plan

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Illustration ● If it is needed to start the all channel record operation, check ☑ " All" or click " All on" button. ● After a successful manual record, the upper right corner of the channel will be displayed ●...

  • Page 30: Motion Record Plan

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-31 ☑ Click check / uncheck the "Time". The system will turn on / off time record. Click " Apply" or " OK" button. Illustration ● When time record is successful, the top right corner of the record channel will display ●...

  • Page 31: System Setup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com shown below: Figure 4-33 Click on ☑ check / uncheck "Motion" to turn the system on / off motion recording: Click " Apply" or " OK" button. To further set the Motion detection function see section “4.14.3.2 Video Detection".

  • Page 32: Time Setup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-35 Detailed functions: Function Type Description Remark Choose this function, system will logout automatically at Auto logout setting time. There is key buzzer with remote control and panel Key buzzer Choose this function, sound can be set up start/close.

  • Page 33: Hdd Setup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-37 Detailed functions: Function Type Description Remark Time Zone Setup world time zone Date format Setup date format: year / month / day, month / day / year, or day / month / year is optional.

  • Page 34: Screen Setup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 4.14.1.4 Screen setup Operation steps: Right click main menu “System Setup”→ “General setup”→ “Screen setup”, then get setting interface below: Figure 4-39 Detailed functions: Function Type Description Remark OSD Alpha This is menu transparency.

  • Page 35: Channel Setup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-40 Error Type: System error information type, as shown above ☑ Enable:" "means Enable ☑ Alarm:" "means Enable, Screen will display the alarm ☑ Buzzer:" "means Enable, The buzzer sounds ☑...

  • Page 36: Ptz Setup

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Function Type Description Channel It is used to show all the channel number of the device Encode mode It used to set up the encode mode of the device, including video only and AV steam(audio/video mixed).

  • Page 37: Channel Osd

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-42 When page setup is completed, click "OK" button, the setting information is saved and exit; click "Cancel" button, the setting information is not saved and exit.

  • Page 38: Video Detection (Motion Detection)

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-43 Select the channel, change the channel name Select the color adjustment, adjust the selected channel color 4.14.2.4 Video Detection (Motion detection) Operation steps: Right click the main menu “System Setup”→ “Channel setup”→“Video detection” then get setting...

  • Page 39: Bitrate

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Function Type Description Show the channels needed to setup. Channel Select the sensitivity of motion detection. If choosing "No Detection" the Sensitivity parameters in this page are invalid.

  • Page 40: Record Plan

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 4.14.3.1 Record plan For more detail refer to “4.13.2 Record Plan” 4.14.3.2 Sensor Setup (Not available) 4.14.4 Network Setup 4.14.4.1 Network setup Operation steps: Right click the main menu“System Setup”→“Network setup”, then get setting interface as below:...

  • Page 41: Ddns

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Illustration ● “Cloud (P2P)”: This ID is used for setting remote monitoring and relevant parameters. ● The web port default to 80.When this port is disabled or occupied, users have to change this value.

  • Page 42: E-Mail

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com as below: Figure 4-48 ☑ “ PPPOE”means connect network by PPPoE (Point-to-Point Protocol over Ethernet)， “□” means not start this function. PPPOE user: enter the user name provided by ISP.
  • Page 43 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Detailed functions: Function Type Description Remark ☑ means Enable, “□” means closed E-mail function SMTP server Select or enter SMTP server. SMTP server of email address, E.G. Hotmail: smtp.live.com...

  • Page 44: System Admin

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 4.14.5 System Admin 4.14.5.1 System version Operation steps: Right click the main menu“System Setup”→“System admin” →“System version” then get setting interface as below. Users can see the device name, device model, serial number, hardware version, software version, and other related information.

  • Page 45: System Log

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-51 4.14.5.3 System log Operation steps: Right click the main menu“System setup”→“System admin” →“System log”, then get setting interface as below: Figure 4-52 Choose event type, check time period, click "Search", then show corresponding log information.

  • Page 46: System Maintenance

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-53 When the setting is completed, click "OK", the setting will be saved and then exit. Click "cancel".The setting information is not saved and exit. Detailed functions:...

  • Page 47: Software Update

    Right click the main menu“System setup”→“System admin” →“System upgrade”, then get setting interface as below: Figure 4-55 Please go to the faittoo website www.faittoo.com, click "How to use" - "Faittoo DVR firmware upgrade", there are detailed instructions Figure 4-56 4.14.5.7 Factory setting Operation Steps: Right click the main menu “System setup”...
  • Page 48 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 4-57 In Admin interface, choose “factory reset” and enter setting interface. Select the item required for factory reset, click “OK” to save setting info and exit. Click “cancel”. The setting information is not saved and exit.

  • Page 49: Lan Web Remote Monitor

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 5 LAN WEB Remote Monitor 5.1 Log in Go to Main Menu → System setup → Network setup (Refer to Figure 4-49) Find out the DVR network “IP address”.

  • Page 50: Preview

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Illustration ● IP address can be checked from network setting in system setting ● Support multiple users log in different PC. ● If the web port No.is revised (default 80), when input IP address on browser, port No. is needed to input after IP address.

  • Page 51: Configuration

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 5-4 Setup checking time, type and channel. Click “Search”. Select the channel to check playback data. Click “play” to play the video. Click “Download” to backup the video files to your computer Illustration ●...

  • Page 52: Wan Ie Remote Monitor

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 6 WAN IE Remote Monitor 6.1 Cloud ID login Operation Steps: Open the IE browser Enter http://www.e-seenet.com , as shown below: Language setting Figure 6-1 Enter correct Cloud ID (refer to figure 4-46), user name and password (default user name is admin and password is blank).

  • Page 53: User Name Login

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 6.2 User name login (NOTE: This user name can be generic with the phone APP user name) Operation Steps: Open IE browser Enter http://www.e-seenet.com , select “user name log in”, shown below : (For the first time, click “New account”...

  • Page 54: Playback

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 6-5 6.3 Playback Operation Steps: Click playback sign on the preview page (refer to figure 6-2), into search page, click search, showed as below: Figure 6-6 Double click the files, the playback video will display on the right interface.
  • Page 55 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com...

  • Page 56: Client Software

    7 Client software Go to Faittoo website Http://www.faittoo.com, Click How to use → soft Download, see the picture below: Choose the client software for your computer system , click to download it , which includes the software installation procedures and instructions...

  • Page 57: Mobile App

    3) If you don't have a Google Play program on your android phone, you can also go to Faittoo website (http://www.faittoo.com/help/) to download the android App. 8.3 Software operation 8.3.1 Registered User Mode and Local Mode Open “IP PRO”...

  • Page 58: Add Device

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com you can’t use the alarm function. 8.3.2 Add device Click the sign “+” on the right upper side, choose cloud ID, fill in recorder’s connection info, as shown...

  • Page 59: Capture / Record / Quality

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Click Figure 8-4 Figure 8-5 Illustration ● Support max 16CH preview in the same time ● Support 4/6/8/9/13/16 ch split screen preview in the same time 8.3.4 Capture / record / quality...

  • Page 60: Mobile App Alarm

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Select the channel capture record audio Go back Select the date Play Select the time line Figure 8-7 Illustration ● Remote playback can pull the bars to select a specific certain period of time, select a specific channel to playback.
  • Page 61 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com Figure 8-8 Figure 8-9 Illustration ● Login with registered account, local login is unable to setup alarm. ● Before adding device, make sure to setup mobile APP alarm on the testing type column of device (refer details on 4.14.2.4 Video Detection Figure 4-44)

  • Page 62: Local Records

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com IOS phone: open the Android phone's settings option, set as shown below: Set to Allow Figure 8-13 Figure 8-14 Figure 8-15 8.3.7 Local records Refer to figure 8-8.Click “Local records”, as shown below. You can view image and video captured in the APP preview and playback.

  • Page 63: Appendix

    ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com 9 Appendix 9.1Hard disk capacity unit conversion capacity unit conversion capacity unit conversion Device Operation 1 B ＝ 8 b 1 B ＝ 8 b 1 MB ＝ 1000 KB 1 MB ＝...
  • Page 64 ® Faittoo HD Hybrid 5 in 1 DVR Manual V1.2 http://www.faittoo.com service@faittoo.com...
