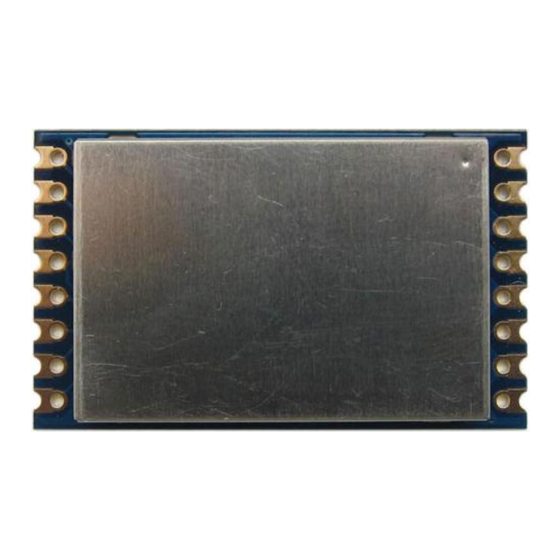

- Page 1 VT-CC1120PL-433M Wireless Module User Guide V-Chip Microsystems, Inc Add：6 floor, Longtang Building, Nan Shan Cloud Valley Innovation Industrial Park, No.1183, Liuxian Road, Nanshan District, Shenzhen city Tel：86-755-88844812 Fax：86-755-22643680 E-mail：sales@digirf.com ZIP：518055 Web：www.digiRF.com...
-
Page 2: General Description
VT-CC1120PL-433M General Description VT-CC1120PL-433M is based on RF Transceiver CC1120 of TI Chipcon，CC1120 is fully integrated single-chip radio transceiver designed for high performance at very low power and low voltage operation in cost effective wireless systems. Added PA, LNA circuit, enhanced output power and sensitivity.The module integrated many RF functions thus you can use it conveniently and reducing your development time. -
Page 3: General Characteristics
4． The antenna will strongly affect the communication distance, please select matched antenna and connect it correctly. 5． The module mount will affect the communication distance. COPYRIGHT @ 2013 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1120PL-2013... -
Page 4: Pcb Description
Module select (SPI), low level valid Status control RX=0,TX=1,SLEEP=0 Status control RX=1,TX=0,SLEEP=0 ground Antenna port Impedance 50 ohm 3.3V Work power DC 3.0-3.6V Power amplifier Power amplifier, default short circuit COPYRIGHT @ 2013 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1120PL-2013... -
Page 5: Configuration Registers
The configuration of CC1120 can be done with software SmartRF Studio7. Complete descriptions of the registers are given in the CC1120 datasheet. We can provide evaluation board and demo code to the customer to develop and evaluate the module’s capability. Dimension COPYRIGHT @ 2013 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1120PL-2013... - Page 6 Magnetic Mount Antenna（Optional） Characteristic: high gain, Magnetic Mount ， suitable for mount on iron box. Note: Standard is for free, optional need another payment and the cost refer to the antenna price. COPYRIGHT @ 2013 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1120PL-2013...
-
Page 7: Questions And Answers
Hard ware tools（TI Chipcon Evaluation Board） Note： 1． You can get the development package above from the salesman when you order the module. 2． As version update，please refer to our latest development materials. COPYRIGHT @ 2013 Shenzhen V-CHIP MICROSYSTEMS Co. Ltd VERSION: VT-CC1120PL-2013... -
Page 8: Important Notice
VT-CC1120PL-433M IMPORTANT NOTICE V-CHIP MICROSYSTEMS Co. Ltd (below called V-CHIP) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
