Summary of Contents for Aqua Metrix P/R65

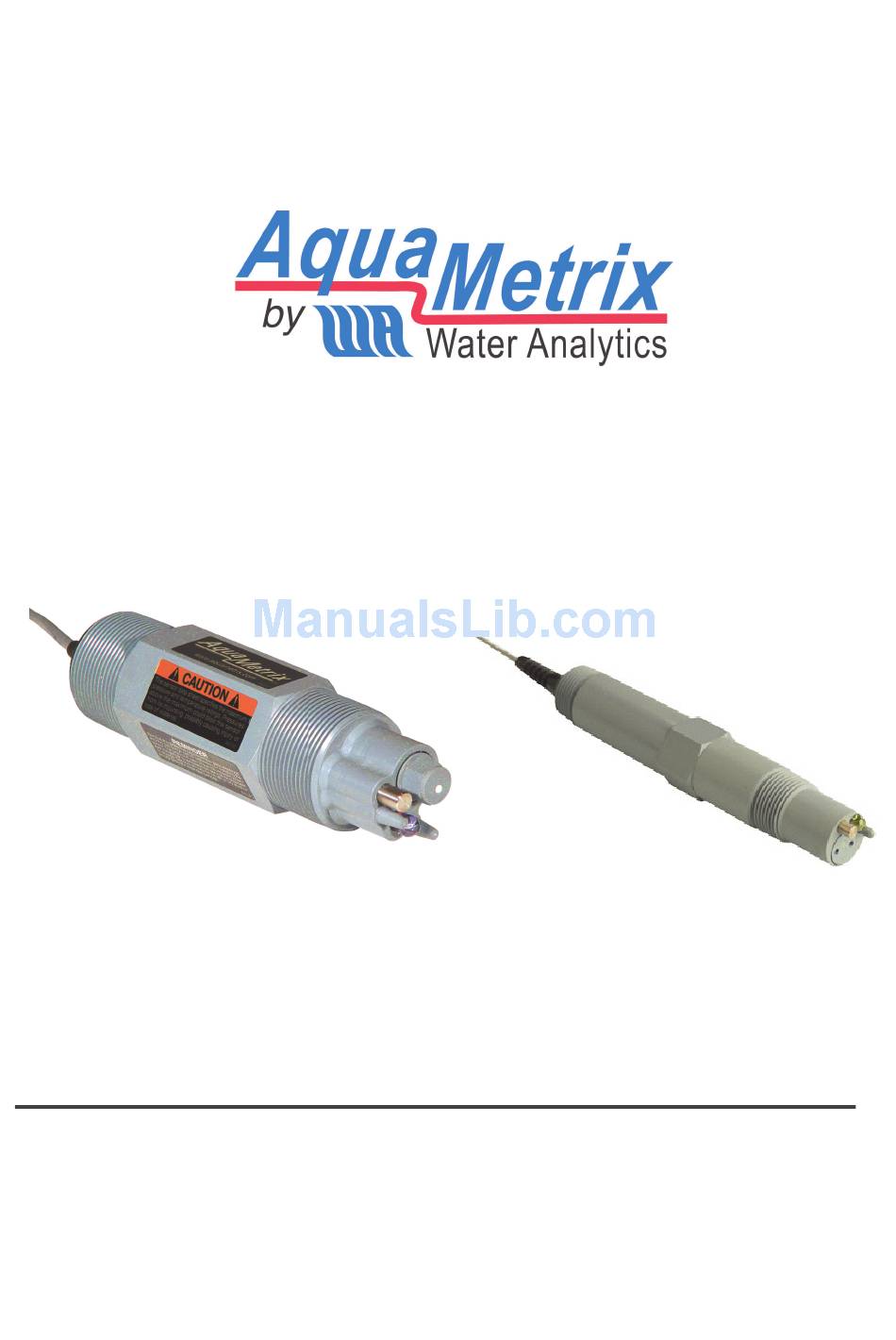

- Page 1 OPERATING INSTRUCTION MANUAL MODEL P/R65 DIFFERENTIAL 2-WIRE (4-20 mA) pH & ORP PROBES N116-139 REV. 0 Aquametrix, by Water Analytics Inc. Tel: (978) 749-9949 100 School Street Toll Free: (855) PH-PROBE Andover, MA 01810 Fax: (978) 749-9961 www.AquaMetrix.com Page 1...
-
Page 2: Table Of Contents
4, 5, 6, 7 & S D EPLACEMENT OF RIDGE FOR ERIES IFFERENTIAL ROBES 4.3. EPLACEMENT OF RIDGE FOR ERIES IFFERENTIAL ROBES 4.4. TORAGE TROUBLESHOOTING AND SERVICE 5.1. HECKING ROBES 5.2. ROUBLESHOOTING 5.3. USTOMER ERVICE 5.4. ARTS AND CCESSORIES DRAWINGS Page 2 P/R65... -
Page 3: General Information
“R” prefix refers to the ORP version. The P/R65 probe is a 2-wire device. It incorporates an encapsulated transmitter that outputs a 4-20 mA analog signal. It was designed to connect directly to a PLC or the AquaMetrix 2300 multi-input controller. -
Page 4: Specifications
Pressure Limits 100 psig @ 65 °C, 40 psig @ 95°C Power Supply Limit 24±4 VDC Probe Cable 15 ft. (4.6 m) Transmission Distance 3000 ft (900 m) Automatic Temperature 300 Ω NTC thermistor or 1000 Ω RTD Page 4 P/R65... -
Page 5: Installation
2300 Analog Connector Block Probe Probe Figure 1 - Left: Electrical connections for the P/R65, with a 24 VDC power supply and a PLC. Right Electrical connection for the P/R65 with the AquaMetrix 2300 controller or a PLC with Page 5... -
Page 6: S Ubmersion
Flow-through tee mounting Series 8 Differential Probes 1. Refer to Figure 5. 2. Apply pipe sealant to the electrode end of the probe and screw it into the AquaMetrix union tee w/ adaptor (Part No. AM-MH538N9A) or any standard 1-1/2” NPT tee. Page 6 P/R65... -
Page 7: Sanitary Probe
1. The probe should be kept reasonably clean to avoid measurement errors. Frequency of cleaning can only be determined by experience. To clean proceed as follows: 2. Rinse with clean warm water. 3. Soak the end of the probe in warm water and dish detergent for 3 or 4 minutes. Page 7 P/R65... -
Page 8: R Eplacement Of
NOT OVERFILL. It is important to leave space for the salt bridge thread and a small amount of air. 6. Screw the new salt bridge into the cavity until finger tight. Now perform a 1/4 turn with a 9/16” socket wrench. The salt bridge edges should be flush with the front of the probe face. Page 8 P/R65... -
Page 9: Storage
Sensors should not be left in dry lines or empty tanks for extended periods. 2. Do not store the sensors in a dry or humid location. When storing, check the protective cap(s) regularly to make sure the cotton ball remains moist. Improper storage of sensors voids the warranty. Page 9 P/R65... -
Page 10: Troubleshooting And Service
Rinse the probe and place it in the 200 mV solution. The ammeter should read between 6.4 and 8.0 mA. b. Rinse the probe and place it in the 600 mV solution. The meter should read between 12.2 and 15.0 mA. Page 10 P/R65... -
Page 11: Troubleshooting
–5°C. Water Analytics cannot be responsible for shipping damage nor for damage due to frozen electrodes. For safety reasons, Water Analytics cannot accept probes which have not been thoroughly cleaned to remove all process material. Page 11 P/R65... -
Page 12: Parts And Accessories
Salt bridge kit for Series –4, –6, –7 & –S (Package of 3 salt bridges and cell solutions) C35-17(K) Salt bridge kit for Series –8 (Package of 3 salt bridges and cell solutions) AM60-9765(K) Junction box with terminal strip JB-1 50 ft. 5-wire Interconnect cable dressed both ends C42-5P-050 Page 12 P/R65... - Page 13 Hot Tap Submersion Assembly Hardware P60-HTC STC 60L (for -8, -5 probes) Union Tee Junction box JB-1 MH538N9A (for -8 probes) ORP Calibration Calibration Solutions Solutions 200 mV: A35-40 4: A35-17 600 mV: A35-41 7: A35-14 10: A35-24 Page 13 P/R65...
-
Page 14: Drawings
DRAWINGS Di erential pH/ORP Probe Series (P/r-60/65-X) Dimensions P60C7 P60C5 P60C6 P60C8 N106-279 Figure 2 - Dimensions of -5, -6, -7 and -8 probes. Page 14 P/R65... -
Page 15: D Ifferential
Figure 3 - Installation of a series 6 differential probe. Page 15 P/R65... - Page 16 Figure 4 - Installation of a series 7 differential probe. Page 16 P/R65...
- Page 17 Figure 5 - Installation of a series 8 differential probe. For a series 5 probe the hardware is the same with the exception of the thread sizes of the tee, protector and submersion arm. Page 17 P/R65...
- Page 18 Figure 6 - Installation of salt bridge in a differential probe. The probe pictured is a series 6 or 7 probe. For a series 8 probe a hex driver is used to remove and install the salt bridge. Page 18 P/R65...
- Page 19 Page 19 P/R65...
- Page 20 Water Analytics Inc. 100 School Street Andover, MA 01810 Tel: (978) 749-9949 Toll Free: (855) PH-PROBE www.AquaMetrix.com Page 20 P/R65...
