Summary of Contents for Solton DSP 206

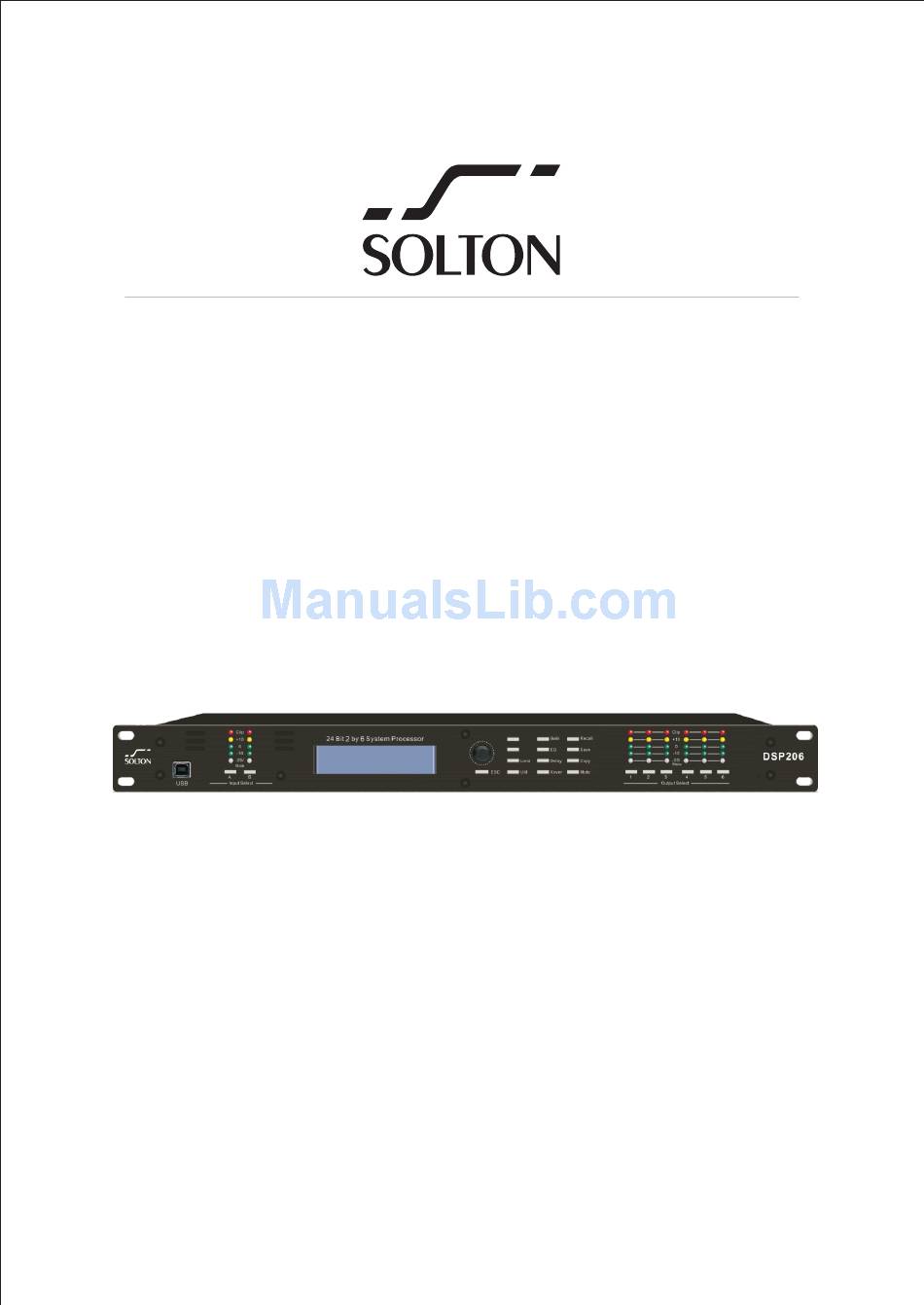

- Page 1 Professional Digital Audio Processor SOLTON DSP 206 Operation Manual...
- Page 2 PROFESSIONAL DIGITAL AUDIO PROCESSOR INPORTANT SAFETY INSTRUCTIONS TO PREVENT ELECTRIC SHOCK DO NOT REMOVE TOP OR BOTTOM COVERS.NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. 1.Read these instructions. 2.Keep these instructions. 3.Heed all warnings. 4.Follow all instructions. 5.Do not use this apparatus near water. 6.Clean only with a dry cloth.
-
Page 3: Dear Customer
PROFESSIONAL DIGITAL AUDIO PROCESSOR CAUTION Keep this device away fron rain and moisture! Unplug mains lead before opening the housing! For your own safety.Please read this user manual carefully before your initial start-up. DEAR CUSTOMER: Thank you choose our products! In order to ensure the safety of the machine and you, at the same time, make you can enjoy the best sound effects, back in before connecting or operating the machine be sure to read the instruction, please after reading this manual properly kept for future use. - Page 4 PROFESSIONAL DIGITAL AUDIO PROCESSOR BUYERS PLEASE CHECK THE CASE WHEN THE REAR PANEL IS COMPLETE, THE BAR CODE ON ALL ACCESSORIES ARE COMPLETE, ETC. THE SPECIFIED MAINTENANCE DEPARTMENT OPENED MACHINES WILL NO LONGER BE WITHIN WARRANTY SCOPE. SUGGEST YOU WILL REMOVE THE PACKING MATERIALS AND ACCESSORIES, SUCH AS SAVE FOR LATER USE WHEN HANDLING OR MAINTENANCE.
- Page 5 PROFESSIONAL DIGITAL AUDIO PROCESSOR Wireless Router This series product is the professional equipment, connection mode and the output voltage output of the machine is different from ordinary civil equipment, in the connection machine power or other equipment connection, must be in accordance with the instructions on the strict operation, otherwise there will be a serious danger! This series product is the professional equipment, machine has a high voltage electric equipment inside, not through again the specialized training and acquire qualifications of personnel, please do not attempt to open...
- Page 6 PROFESSIONAL DIGITAL AUDIO PROCESSOR FEATURE WIFI control via USB or TCP/IP LAN(Ethernet) 48KHz sampling rate 48 bit DSP ＞ Dynamic range: 110dB Maximun input level at +20dBu Maximun output level at +20dBu operational frequency range 20Hz to 20KHz Processing latency:110ms(output) 20 character blue crystal LCD display 30 pressets memory on hardware unit Butter worth,Bessel,Linkwitz-Riley filters...
-
Page 7: Front Panel
PROFESSIONAL DIGITAL AUDIO PROCESSOR FRONT PANEL USB INTERFACE It can connect to PC by one USB cable to operate the DSP processor DSP2X4 Processor As shown→ P:01 When switching on, the LCD display is on and show all parameters as they are edited and all menu selections. -
Page 8: Rear Panel
PROFESSIONAL DIGITAL AUDIO PROCESSOR REAR PANEL RS485 IN-OUT INPUTS POWER BUTTON ETHERNET 230Vac 60Hz Ethernet POWER CONNECTOR OUTPUTS POWER BUTTON Turn on or off the unit’s mains supply POWER CONNECTOR RS485 IN-OUT Used for transmission of remote control data over long distance or multiple unit applications ETHERNET Using one cable connections, one computers can control and monitor many DSP units, and the different DSP units can communicate each other by different ID sets. - Page 9 PROFESSIONAL DIGITAL AUDIO PROCESSOR CONNECTOR Use 3-pin male XLR connectors. Unbalanced line may also be used but may result in noise over long cable runs. Balanced input connector wire instructions These cables can be used in balance and imbalance forward unbalanced input and output signal. For an explanation of polarity connection such as the right: The balance of the connector for each card nong output;...
-
Page 10: Installation
PROFESSIONAL DIGITAL AUDIO PROCESSOR INSTALLATION IN THE COMPUTER RUNNING THE LATEST PC SOFTWARE After download and install the latest PC software can be connected to the PC through USB cable will this equipment, and to control others, but to manage equipment group, control group of the inside of the equipment Ensure that connection can normal communication Through the company's web site or random distribution wide achieving to obtain... - Page 11 PROFESSIONAL DIGITAL AUDIO PROCESSOR Notes...
- Page 12 Tel: +49 (0) 8531 / 913880 Fax: +49 (0) 8531 / 978507 Web: www.solton-acoustic.de E-mail: info@solton-acoustic.de All rights reserved to SOLTON Acoustic. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden.
