Summary of Contents for MIOCARE L130 SERIES

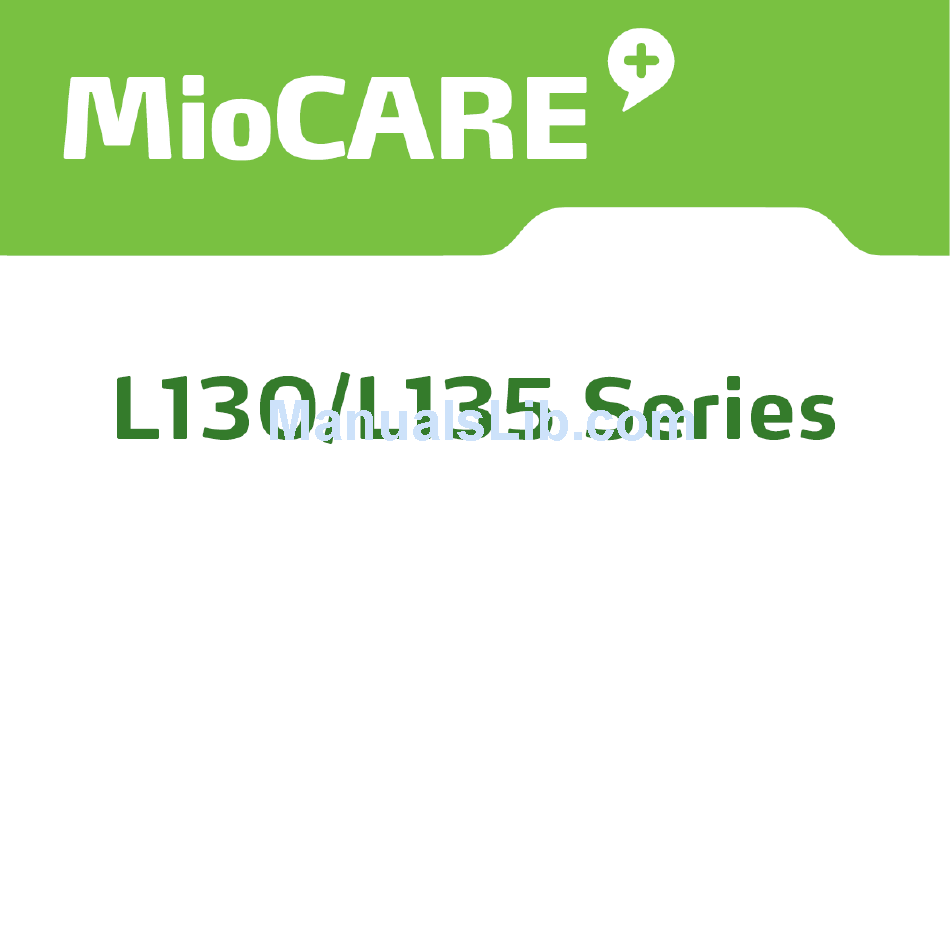

  • Page 1 User Manual...

  • Page 2: Getting To Know Your Device

    Welcome Thank you for purchasing a MioCARE product. This Quick Start Guide guides you through the successful setup of your device and familiarises you with the basic skills of using the device. Getting to know your device 1. POWER Button 2.

  • Page 3: Getting Started

    Getting started Charging the battery When charging the battery for the very first time, you should charge it for at least 8 hours (using the AC charger) with your device turned off. To charge the battery, plug the supplied power cable into the Power jack ( ) on the left of the device and the mains power charger into a power socket* ( ).

  • Page 4: Replacing The Battery

    Replacing the battery The device contains a replaceable LI-ION polymer battery. Follow the instructions below to replace the battery: 1. Open the battery cover and remove the battery. Note: When you remove the battery cover, the system will automatically enter Sleep mode. The device includes a hot-swap feature allowing the battery to be changed in Sleep mode.
  • Page 5 Installing the memory card and SAM card 1. Open the battery cover and remove the battery. 2. Follow the instruction below to install the cards (not supplied): a. SAM (Secure Access Module) card* b. MicroSD card * For selected models only. 3.

  • Page 6: Connecting Your Device To A Computer

    Connecting your device to a computer Connect the Micro-USB end of the USB cable to your device and the other end to a USB port in your computer ). Once connected, you will be able to transfer the files between your computer and device easily through MTP*.

  • Page 7: Operating Basics

    Operating basics Using the POWER button • To turn on the device Note: Before turning on the device, make sure that the battery is installed and the battery cover is closed securely. The device will not power on if the battery cover is missing or open. Briefly press the POWER button to turn the device on.

  • Page 8: Navigating On The Screen

    Navigating on the screen To operate your device, touch the screen with your fingertip*. You can perform the following actions: • Tap: Touch the screen once with your fingertip to open items or select onscreen buttons or options. • Tap and hold: Tap and hold on the desired item to open the pop-up menu that contains the available options for the item.

  • Page 9: Home Screen

    Home screen The Home screen is your starting place for tasks, providing quick access to frequently used applications and settings. Tip: To display the Home screen, tap the HOME button at any time. Customising your device You can customise the device through the Settings menu, including personalising the Home screen, changing the display and sound settings, configuring the connection settings, and more.

  • Page 10: Federal Communication Commission Interference Statement

    For initial support, contact your IT department or your local authorised dealer. Occasionally, MiTAC may offer free system updates to improve user experience. Please regularly check the website http://miocare.mio.com/ for more information. IP67 The IEC 60529/IP67 is a European system of test specification standards for classifying the degree of protection provided by the enclosures of electrical equipment.
  • Page 11 • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

  • Page 12: Regulatory Information (Ce)

    5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. Regulatory information (CE) For regulatory identification purposes, MioCARE L130/L135 is assigned a model number of N450. Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EC), the Electromagnetic Compatibility Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) - issued by the Commission of the European Community.
  • Page 13 EN 302 291-2: Electromagnetic compatibility and Radio spectrum Matters (ERM); Short Range Devices (SRD); Close Range Inductive Data Communication equipment operating at 13,56 MHz; Part 2: Harmonised EN under article 3.2 of the R&TTE Directive EN 50566: Product standard to demonstrate compliance of radio frequency fields from handheld and body- mounted wireless communication devices used by the general public (30 MHz —...

  • Page 14: Sar Information

    Declaration of Conformity Hereby, MiTAC Europe Ltd declares that N450 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Bluetooth SAR information The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR), which adopts the limit of 2 W/kg averaged over ten (10) gram of tissue.
