Page 1: User Manual

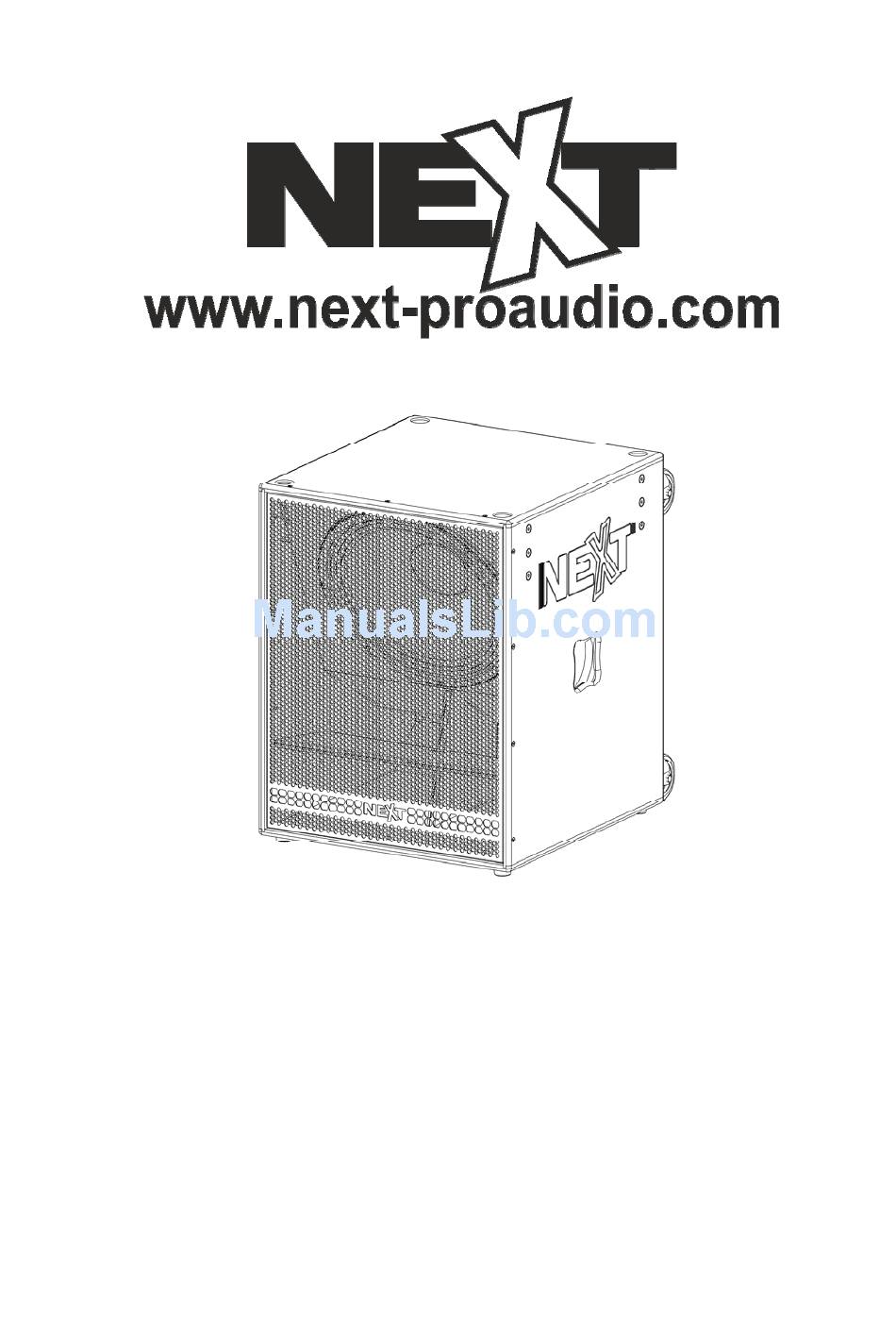

USER MANUAL PXL118 PX System Professional Subwoofer... -
Page 2: Table Of Contents
Next PXL118 User’s Manual www.next-proaudio.com Content INTRODUCTION - 2 - SAFETY FIRST - 2 - UNPACKING - 3 - PXL118 OVERVIEW - 3 - CABLE SELECTING - 4 - CONNECTION AND ELECTRIC DIAGRAM - 4 - ... -
Page 3: Introduction
Thank you for purchasing a NEXT PXL118 subwoofer. This manual will provide you with important information about your NEXT PXL118 Sub 1 and NEXT PXL118 Sub 2. Please devote some time reading this manual, and keep it close for future reference. NEXT-Proaudio is concerned with your safety and well-being, so please follow all instructions and heed all warnings. -
Page 4: Unpacking
. There are two different enclosures named PXL118 Sub 1 and PXL118 Sub 2. This is because of their configuration within the system. PXL118 Sub 1 is placed directly on the floor, and Sub 2 is placed on top of Sub 1. -
Page 5: Cable Selecting
PXH64. To achieve the highest possible sound pressure levels, the PXL118 was conceived with a hybrid bass horn driven by a very powerful long excursion 18” driver with a 100mm voice coil, for precise and powerful bass without any dynamic loss even under high SPL output. -
Page 6: Amplification
Electric Diagram AMPLIFICATION The PXL118 sub-woofers are designed to be used with professional power amplifiers capable of producing 1000W to 1400W into 8 ohms. When used in the PX system standard configuration, all processing and powering needs are taken care of by the PXA8000 element. -
Page 7: Troubleshooting
Next LAs218 User’s Manual www.next-proaudio.com Care should be taken to avoid amplifier clipping. It is important to understand that a low power amplifier driven into clipping is more likely to damage a loudspeaker than a higher power amplifier used within its ratings. This is because music signals have a high peak-to-average "crest"... -
Page 8: Technical Specifications
Next PXL118 User’s Manual www.next-proaudio.com TECHNICAL SPECIFICATIONS PXL118 TECHNICAL SPECIFICATIONS Design Hybrid Horn Nominal Impedance 8Ω Continuous Power Handling 1400W Sensitivity (1W/1m Half-Space) 104dB Maximum SPL (calculated) 135dB Frequency Response (-10dB) 32Hz - 180Hz Crossover Frequency (active) LP 150Hz (24dB/Oct. L/R) Components 1 x 18”... -
Page 9: Warranty
NEXT-Proaudio cannot be held responsible for defects caused by unauthorized modifications, improper use, negligence, exposure to inclement weather conditions, act of God or accident, or any use of this product that is not in accordance with the instructions provided by NEXT- Proaudio. NEXT-Proaudio is not liable for consequential damages. -
Page 10: Contacts
Next PXL118 User’s Manual www.next-proaudio.com CONTACTS In case of any doubts or any information just: Write us: NEXT-PROAUDIO Rua da Venda Nova, 295 4435-469 Rio-Tinto Portugal Contact us: Tel. +351 22 489 00 75 Fax. +351 22 480 50 97 Send an e-mail: info@next-proaudio.com...
