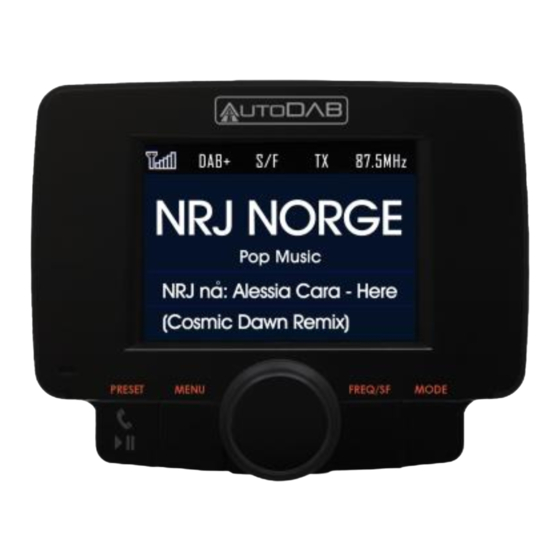

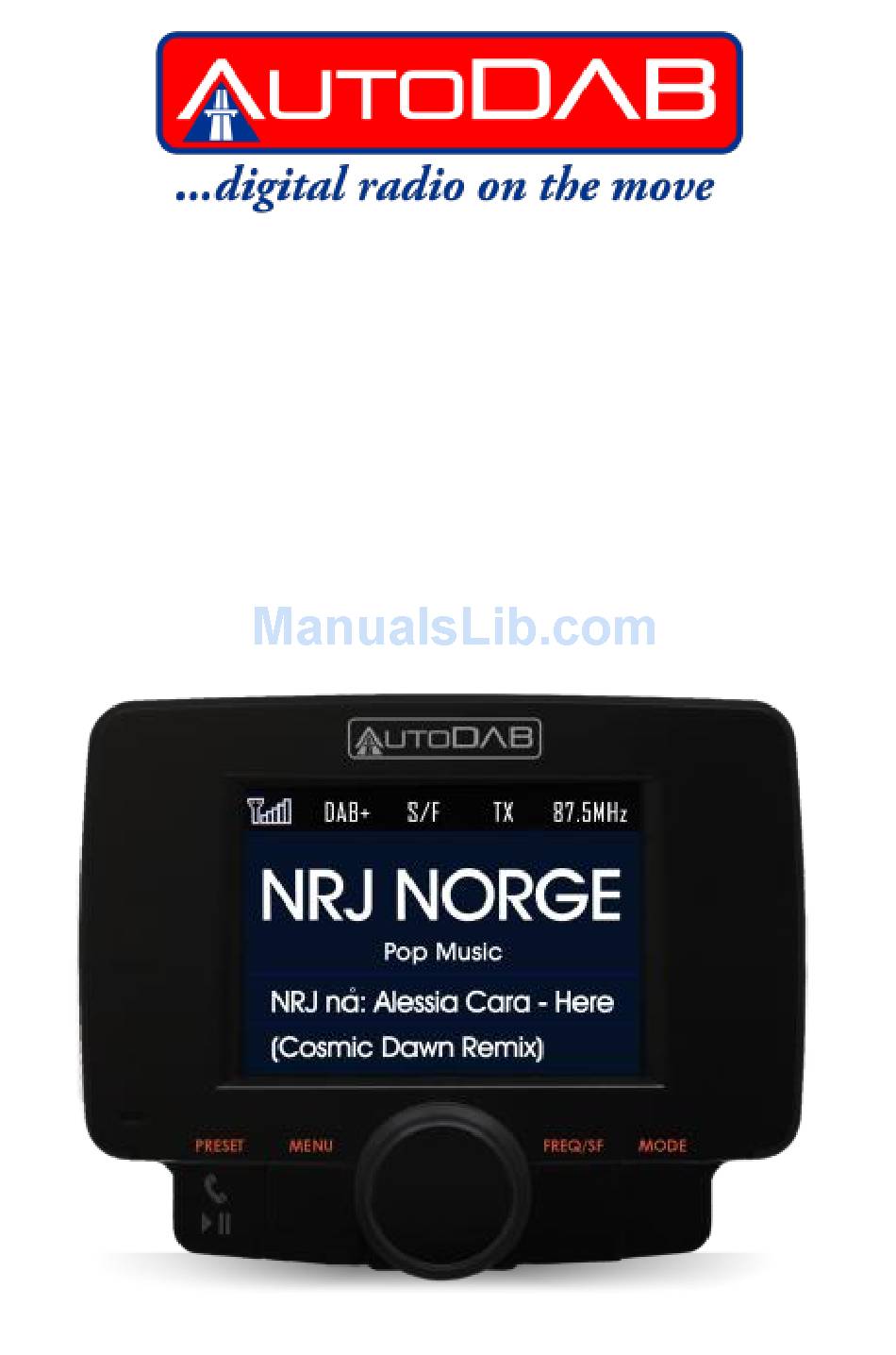

- Page 1 AutoDAB GO-S Digital In-Car DAB+ Digital Radio with FM Transmitter & Bluetooth Hands-Free, DAB to DAB Service Following, & Traffic Announcements...
-
Page 2: Safety Instructions
Safety Instructions Warning Do not expose this radio to rain or moisture. Obey local traffic laws and do not use whilst driving. Clean with a dry cloth. Do not block any ventilation openings. Do not use near heater vents. Use accessories provided by manufacturer. Do not leave your radio where excessive heat could cause damage. -
Page 3: Table Of Contents
CONTENTS Controls and Connectors Operating the AutoDAB GO-S DAB+ Antenna Installation Selecting Audio Output DAB+ Search DAB+ Service Information DAB Service Following Control Traffic Announcements Preset Stations Bluetooth Aux In Settings 23 Technical Specs... -
Page 4: Controls And Connectors
Controls and Connectors... -
Page 6: Operating The Autodab Go-S
Connect one end of the USB power supply cable to the Micro USB socket on AutoDAB GO-S and the other end to the dual USB car charger. Plug the dual USB car charger into the car 12V power socket. -
Page 7: Dab+ Antenna Installation
DAB+ Antenna Installation DAB+ Antenna Diagram... - Page 8 The antenna should be fitted on the passenger side of the front windscreen. Ensure that there is a 15cm gap at the top of the antenna film and a 5cm gap from the side of the windscreen to the vertical strip of the antenna film as shown. Wipe the inside of the windscreen were the antenna is to be fitted before fixing.
- Page 9 Route the antenna lead down the A pillar to where the AutoDAB GO-S is to be mounted. Ensure you do not trap any leads as you go. Do not attach the DAB antenna above heater wires, in a location which would obstruct the view of the driver, or in a location that would receive interference from metal.
-
Page 10: Selecting Audio Output
Connect the supplied 3.5mm Audio Cable to the 3.5mm Line Out connector on the side of the AutoDAB GO-S and then connect to the Aux in of the car stereo. Note: In AUX OUT mode, there will be no FM transmission to the car stereo. - Page 11 Once it is selected, press the TX/SCAN button to confirm and exit. If the TX/SCAN button is not pushed within 3 seconds the AUTODAB GO-S will revert back to normal DAB+ mode and no changes will be made.
-
Page 12: Dab+ Search
DAB+ Search Press the MODE button until DAB mode is found. Use the Tuning Knob to select the desired DAB+ channel. Alternatively, to view DAB+ stations in a list, press the MENU button. Use the Tuning Knob to scroll up or down to select the desired DAB+ channel and press the MENU button again to select. -
Page 13: Dab+ Service Information
DAB+ Service Information Relevant service information data broadcast by the radio station will be displayed with scrolling text on the screen of the AutoDAB GO-S. While listening to DAB+, the display will show the following if applicable: Channel Name Frequency Multiplex Name（DLS）... -
Page 14: Traffic Announcements
MENU to exit menu. To cancel an active traffic announcement, simply press PLAY/PAUSE button once. GO-S will return to the radio station you were listening to. When TA is ON and while you are listening to music through... -
Page 15: Preset Stations
Preset Stations Storing Preset Stations: To program and store your favourite DAB+ preset stations: Press and hold the PRESET button for 3 seconds to enter Store Preset Stations mode. Use the Tuning Knob to scroll up or down to select a number in the memory bank to store your favourite station. - Page 16 Bluetooth Pairing a Phone: When pairing a phone with AutoDAB GO-S for the first time, follow the below procedures: Press the MODE button until you scroll the screen to Bluetooth mode. Press and hold the TX/SCAN button to put the AutoDAB GO-S device into pairing mode.
-
Page 17: Bluetooth
Bluetooth device is not connected. Once it is connected, the icon will stop flashing. Manage Phone Call: When there is an incoming call, the AutoDAB GO-S plays a ringtone. Press PRESET to answer a call. The speaker phone volume and call duration will be displayed at the bottom of the screen. - Page 18 When in Car Speaker mode, the voice volume can only be adjusted by the car stereo volume control button. Car Speaker will be displayed at the bottom of the AutoDAB GO-S screen. Note: When the Car Speaker is selected, the phone voice can be input into car stereo by either using AUX OUT or FM Transmitter.
- Page 19 Press PRESET button to play or pause the music playback. Use the Tuning Knob to select next or previous songs. Note Once your phone is paired to the AutoDAB GO-S, the connection between both devices will be automatically re-established each time you enter your vehicle if the AutoDAB GO-S is powered on.
- Page 20 Aux In The AutoDAB GO-S features a 3.5mm Aux-IN jack on the right-hand side. External analogue audio source from an iPad, iPhone, iPod, Tablet, Android phone or MP3 players etc. can be fed wirelessly through the FM transmission into your car stereo audio system.
- Page 21 Settings Screen Background/Font Colour The colour of the screen background and font can be set to four different combinations to match with your overall car dashboard colour: 1. Black background/white font 2. Black background/blue font 3. Black background/orange font 4. Colour To set the colour, follow the procedure below: Press and hold the MENU button for 3 seconds and scroll to Colour Setting.
- Page 22 Language Selection Press and hold the MENU button Use the Tuning Knob to scroll to Language Setting and confirm by pressing the MENU button again Use the Tuning Knob to select your desired language and confirm by pressing the MENU button Factory Reset Press and hold the MENU button Use the Tuning Knob to scroll to Factory Reset and confirm by...
-
Page 23: Technical Specifications
Technical Specifications Radio DAB/DAB+ Frequency Ranges DAB Band III 174-239MHz, FM Transmitter 87.5-108MHz Power Supply Micro USB 12V Antenna Power Supply 5V, 1.5A Bluetooth Version 2.1 Speaker Output 1.0W, 8 Ω Output Connectors 3.5mm Stereo Jack for Audio Dimensions 96mm x 75mm x 248mm Net Weight 128g *Information in this user manual is subject to change without prior notice.
