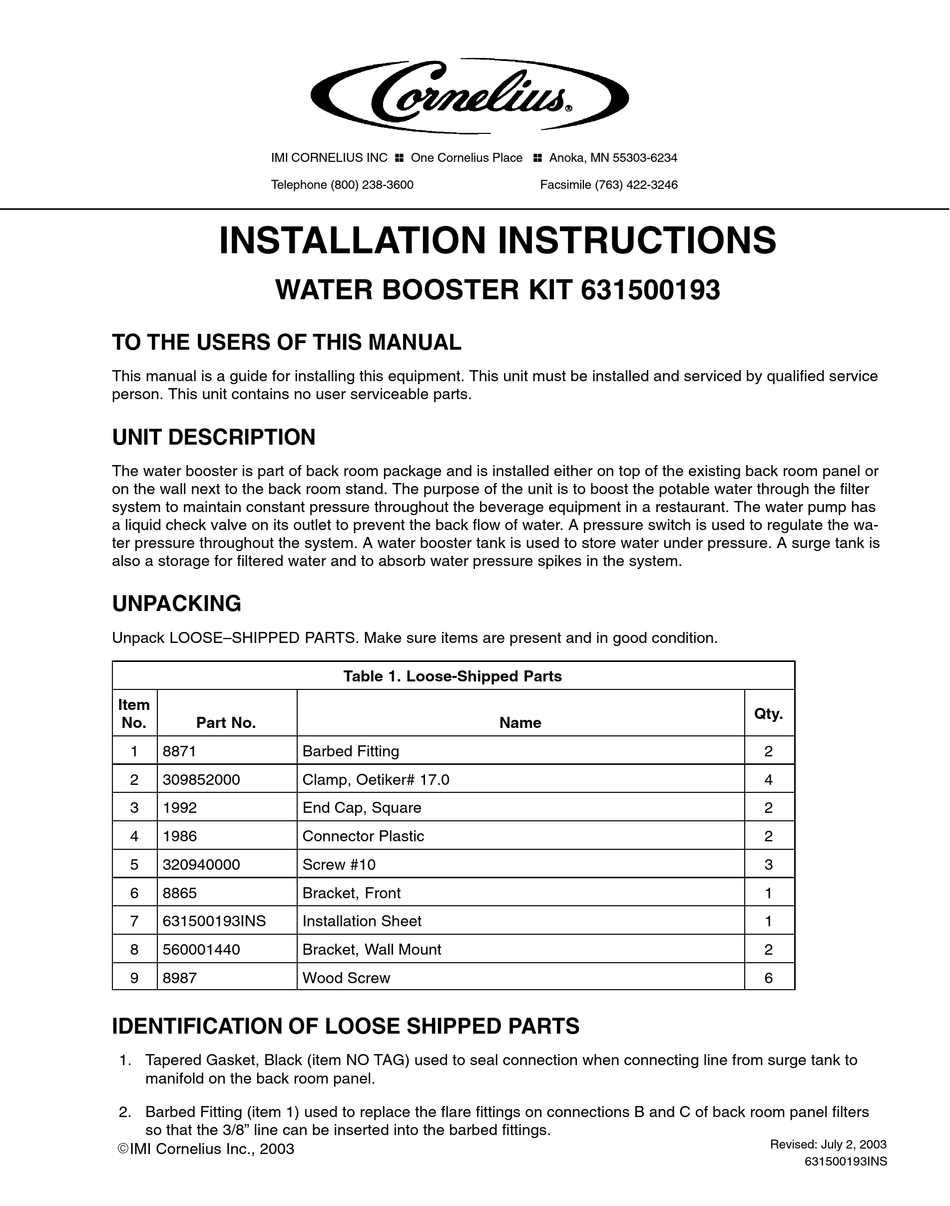

INSTALLATION INSTRUCTIONS

WATER BOOSTER KIT 631500193
TO THE USERS OF THIS MANUAL
This manual is a guide for installing this equipment. This unit must be installed and serviced by qualified service
person. This unit contains no user serviceable parts.
UNIT DESCRIPTION
The water booster is part of back room package and is installed either on top of the existing back room panel or
on the wall next to the back room stand. The purpose of the unit is to boost the potable water through the filter
system to maintain constant pressure throughout the beverage equipment in a restaurant. The water pump has
a liquid check valve on its outlet to prevent the back flow of water. A pressure switch is used to regulate the wa-
ter pressure throughout the system. A water booster tank is used to store water under pressure. A surge tank is
also a storage for filtered water and to absorb water pressure spikes in the system.
UNPACKING
Unpack LOOSE–SHIPPED PARTS. Make sure items are present and in good condition.
Item
No. Part No.
1 8871
2 309852000
3 1992
4 1986
5 320940000
6 8865
7 631500193INS
8 560001440
9 8987
IDENTIFICATION OF LOOSE SHIPPED PARTS
1. Tapered Gasket, Black (item NO TAG) used to seal connection when connecting line from surge tank to
manifold on the back room panel.
2. Barbed Fitting (item 1) used to replace the flare fittings on connections B and C of back room panel filters
so that the 3/8" line can be inserted into the barbed fittings.
EIMI Cornelius Inc., 2003
Table 1. Loose-Shipped Parts
Barbed Fitting
Clamp, Oetiker# 17.0
End Cap, Square
Connector Plastic
Screw #10
Bracket, Front
Installation Sheet
Bracket, Wall Mount
Wood Screw
Facsimile (763) 422-3246
Name
Qty.
2
4
2
2
3
1
1
2
6
Revised: July 2, 2003
631500193INS
