Wireless Outdoor Sensor 087
Installation & Operation Manual
The tekmar Wireless Outdoor Sensor 087 provides a simple solution to include outdoor
temperature measurement in any application without exterior wiring. The transmitter
and receiver are sold pre-linked and are installation-ready. With exceptional range
and an 8 year battery life, the Wireless Outdoor Sensor 087 provides maximum
accuracy, convenience and reliability.
Features
• Compatible with all tekmar controls and
thermostats as well as other manufacturers
products
• 10K (type 2 and 3), 5K, 12K and 20K
resistance setting options
• Low transmitter battery status indicator
on the receiver
A Watts Water Technologies Company
Power
Communication
Low Battery

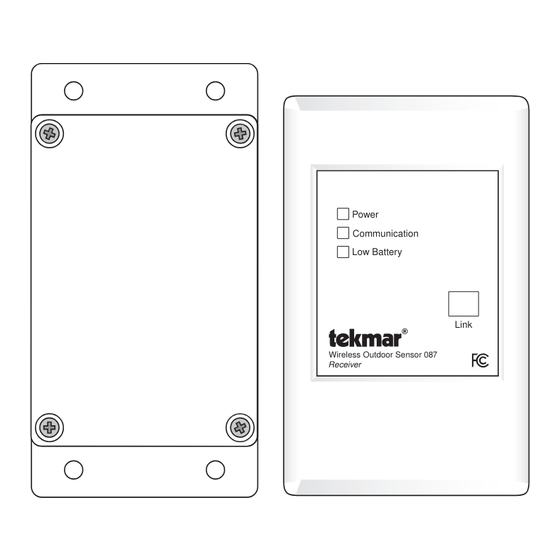

Wireless Outdoor Sensor 087
Receiver
• Power and communication indicator lights
• Transmitter temperature range of
-40°F to 140°F (-40°C to 60°C)
• Long battery life (minimum 8 years) with
included 1.5V Lithium AA batteries
• 5000 ft. open range
• 8 walls / 250 ft. indoor range
1 of 8
087 _ D
Accessories
Replaces: New
Link
© 2016
087_D - 05/16
05/16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tekmar 087
Summary of Contents for Tekmar 087
- Page 1 Replaces: New Installation & Operation Manual The tekmar Wireless Outdoor Sensor 087 provides a simple solution to include outdoor temperature measurement in any application without exterior wiring. The transmitter and receiver are sold pre-linked and are installation-ready. With exceptional range and an 8 year battery life, the Wireless Outdoor Sensor 087 provides maximum accuracy, convenience and reliability.
- Page 2 It is your responsibility to ensure that this control is safely installed according to all applicable codes and standards. tekmar is not responsible for damages resulting from improper installation and/or maintenance.
-
Page 3: Step 1 - Check The Contents
Check the contents of this package. If any of the contents listed are missing or damaged, please refer to the Limited Warranty and Product Return Procedure on the back of this brochure and contact your wholesaler or tekmar sales representative for assistance. - Page 4 Remove the cover on the transmitter so that the button below the battery terminals can be accessed. Press and hold both Link Wireless Outdoor Sensor 087 the button on the transmitter and the button on the receiver Receiver simultaneously for 5 seconds. Linking is successful when the communication LED is on.
-
Page 5: Led Operation
• The 087 should not be exposed to heat sources such as ventilation or window openings. • The 087 should be installed at an elevation above the ground that will prevent accidental damage or tampering. - Page 6 Sensor OFF OFF ON connected control. '10K Type 2' is the default setting that works with all tekmar controls and thermostats with outdoor sensor inputs. To determine the correct setting for other control types, refer to the following temperature resistance charts.
-
Page 7: Technical Data
55°C 162280 -10°C 20000 25°C 4520 60°C Technical Data Wireless Outdoor Sensor 087 Literature 087_D, 087_C Transmitter: 130mm x 68mm x 50mm Dimensions Receiver: 120mm x 74mm x 23mm Approvals FCC and IC Transmitter: -40 to 140°F (-40 to 60°C) Operating range Receiver: 32 to 122°F (0 to 50°C) -
Page 8: Limited Warranty And Product Return Procedure
(24) months from the production date. The liability of tekmar under the Limited Warranty shall be limited to, at tekmar’s sole discretion: the cost of parts and labor provided by tekmar to repair defects in materials and / or workmanship of the defective product; or to the exchange of the defective product for a warranty replacement product;...
