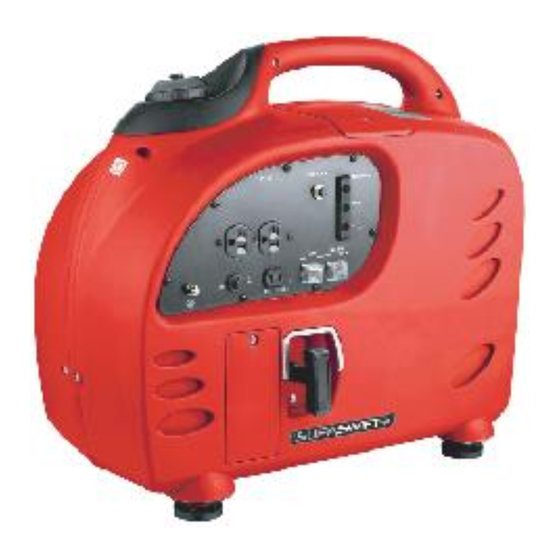

ALLPOWER 1350 User Manual

ALLPOWER 1350 User Manual

Inverter
Hide thumbs Also See for 1350:

Advertisement

Quick Links

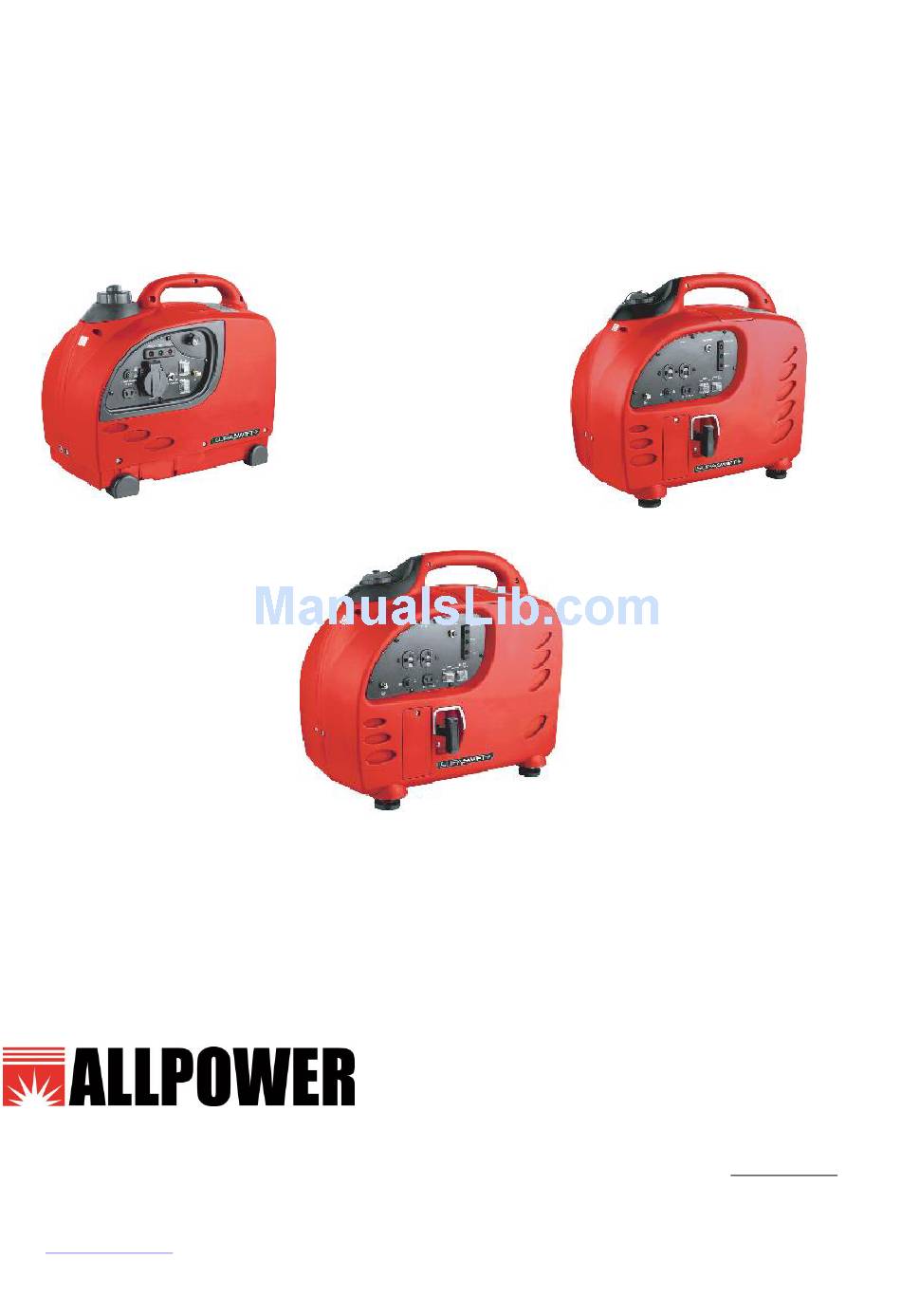

USER MANUAL

INVERTER GENERATOR

OPERATING INSTRUCTIONS

PLEASE READ THIS MANUAL CAREFULLY
BEFORE USING THE MACHINE
ALLPOWER INDUSTRIES AUSTRALIA
ALLPOWER INDUSTRIES NEW ZEALAND
A.B.N 46 650 681 742
IRD: 101-149-803
Unit 5, 102-128 Bridge Road, Keysborough, VIC 3173, Australia
PO Box 97100
Telephone: +61 38726 1444 / 1800 333 428
Manukau City, 2241, Auckland, New Zealand
Email:
sales@allpower.com.au
Telephone: +64 9 256 0730
www.allpower.com.au
Email: sales@allpower.co.nz
www.allpower.co.nz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1350 and is the answer not in the manual?

Questions and answers

Summary of Contents for ALLPOWER 1350

  • Page 1: User Manual

    INVERTER GENERATOR OPERATING INSTRUCTIONS PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE MACHINE ALLPOWER INDUSTRIES AUSTRALIA ALLPOWER INDUSTRIES NEW ZEALAND A.B.N 46 650 681 742 IRD: 101-149-803 Unit 5, 102-128 Bridge Road, Keysborough, VIC 3173, Australia PO Box 97100 Telephone: +61 38726 1444 / 1800 333 428...
  • Page 2: Table Of Contents

    CONTENT 1. Quick Start ………………………………………………3 2. The Safe Operation …………………………………….5 3. Safety precautions label position………………………7 4. Parts Identification……………………………………….8 5. Pre Checks…….………………………………………...9 6. Start the Engine…………………………………………12 7. Use of the generator……………………………………14 8. Switch off the engine……………………………………19 9. Maintenance……………………………………………..20 10. Transportation/Warehousing………………………….25 11. Troubleshooting………………………………………..26 12.
  • Page 3: Quick Start

    1. Quick start Warning  Only activate outdoors. Generator of toxic carbon monoxide, a colorless, odorless gas that can cause death or serious injury.  Ensure that the generator is placed horizontally.  Do not operate the generator in the rain, snow or other humid environments. ...
  • Page 4: Turn Off Generator

    All contents were correct at the time of print. This book serves as a fixed part of the generator. If the generator is sold again, it should remain with the generator. Copyright of this manual belongs with Allpower. No reproductions are allowed without prior permission.
  • Page 5: The Safe Operation

    2. The safe operation Warning  If you operate the generator in accordance with the operating manual, your generator will run safely and reliably. Before operating the generator, carefully read and understand this manual, otherwise it may cause personal injury, damage to equipment or death. Warning ...
  • Page 6 Warning  In order to avoid accidents and damage to the equipment, you must do a start test each time before you start the equipment.  Run generator at least 1m away from buildings and other equipment.  The generator must be level when it is running if the generator is tilted it may cause fuel overflow.
  • Page 7: Safety Precautions Label Position

    3.Safety Precautions label position These decals details tips that may help you avoid serious injury or accidents. Please read this manual carefully, paying careful attention to safety and caution details. Fire ban labels Parameter labels Noise stickers Anti-hot stickers Oil switch stickers...
  • Page 8: Parts Identification

    4.Parts Identification Fuel tank cap Top access panel Control panel Start Handle Battery access panel Side access panel Fuel switch Outlet cover Control panel Oil alarm Output Overload DC protector AC socket Engine sw itch DC socket Ground...
  • Page 9: Pre Checks

    5.Pre checks Be careful  Be sure to check whether the generator is level place and ensure the engine is turned off. 1. Check the oil level Be careful  Using non-detergency oil or 2-stroke engine oil could shorten the engine life. Recommended oil is SAE10W30.
  • Page 10 Top line Bottom line Dipstick Oil injection port 2. Check the fuel level Use automotive petrol (preferably unleaded or 91 octane unleaded petrol to reduce choke combustion and reduce environmental pollution). When the fuel level is too low, add fuel to a predetermined level. Do not use a mixture of oil and petrol or dirty petrol.
  • Page 11 3. Check the air filter Check the air filter core, make sure it is clean and performance is normal. a. Split out the side access panel screws and open the side access panel. b. Remove the three captive screws on the air filter cartridge. c.
  • Page 12: Start The Engine

    6.Start the engine Before starting the engine, disconnect the load on AC and DC socket. Turn the fuel cover handle to the "ON" position Open the fuel cover Open the fuel switch Open Turn the start switch to the "ON" position Engine switch Pull the starter handle until you feel resistance, then pull the handle as the direction of the arrow in FIG quickly, start the generator.
  • Page 13 Be careful  Do not allow the starting handle to rebound, should slowly back into it.  When pulling the starter cable, hold on the generator tightly to prevent the generator from tilting or lifting Handle Recoil start handle Operation at high altitudes At high altitudes the standard carburetor air-fuel mixture is more concentrated, reducing engine operating performance and fuel consumption increases.
  • Page 14: Use Of The Generator

    7. Use of the generator Warning  In order to prevent electric shock, the generator should be grounded between the ground terminal and an external ground source generator by a thick cable...  When the generator is used as backup power to a building, it should be connected by a qualified technician and must comply with relevant laws and electrical codes.
  • Page 15 Follow the "start engine" requirements. Ensure that the required device connected to the switch is turned off and then plug in the machine at the generator outlet. Output indicator (green) Overload indicator (red) Plug Be careful  If the connected device is ON before connection, it will suddenly start, potentially causing injury.
  • Page 16 Confirm and verify the overload has been resolved and press reset switch on the panel. Three seconds after, the generator indicator will turn red to green, and the generator begins normal output power. If you press the reset switch, wait three seconds and the generator light does not turn from red to green, and then turn off the engine and contact an authorised dealer.
  • Page 17 DC use: DC output is for 12V automatic battery charging only. Note  When the DC socket is used to charge the battery, you must be present to monitor the battery voltage. If the battery voltage exceeds 16V, then you must immediately stop charging otherwise it may cause battery to overcharge and cause fire or an explosion.
  • Page 18 Warning  During charging you should provide proper ventilation and be away from the fire or sparks, because the battery will be susceptible to volatile flammable gases.  The battery contains sulfuric acid (electrolyte), which if it comes into contact with skin or eyes may cause burns.
  • Page 19: Switch Off The Engine

    8. Switch off the engine If you need to shut the engine down in an emergency, turn the start switch to the ‘OFF’ position. Normal use: 1. Turn off the connected equipment, pull out the plug. Plug 2. Turn the start switch to the ‘OFF’ position. Engine switch 3.
  • Page 20: Maintenance

    9. Maintenance The maintenance and adjustment schedule has been developed to enable the generator operates in the best working condition. Warning  Turn off the engine before carrying out any repairs. The engine must be running in well ventilated area if repairs are needed on the engine, because exhaust contains poisonous carbon monoxide.
  • Page 21 1. Oil change When the engine is heated, it can discharge oil quickly and thoroughly. Be careful  Make sure engine switch and fuel switch is on ‘OFF’ position before you drain the oil. Remove the side access panel, unscrew the oil dipstick. Discharge pipe into the oil filler neck tighten (in tool bag).
  • Page 22 After contact with the oil, please wash your hands with soap and water. Be careful  In order to meet environmental requirements, we recommend you put the waste oil in a sealed container and send to your local service station or recycling center. Do not pour oil on the ground or in the trash.
  • Page 23: Spark Plug Maintenance

    3. Spark plug maintenance In order to ensure the normal operation of the engine, the spark plug gap must be appropriate. Remove the top access panel screws and remove the top access panel Pull the ignition coil out. Remove the spark plug with a spark plug socket. Spark plug wrench Ignition coil Spark plug wrench...
  • Page 24 Manually install the spark plug carefully and be Side careful not to screw dislocation. electrode After manually installing a new spark plug, tighten center 1/2 turn with a wrench, and a good pressure electrode washer. If it is a used spark plug, ensure it can still be used, then it simply after positioning with a wrench and tighten 1/4 to 1/8 can.
  • Page 25: Transportation/Warehousing

    Flame screen Outlet cover Screw Screw 10. Transportation/Warehousing Warning When transporting the generator:  Do not overfill with fuel. (Fill should be no fuel)  Make sure the fuel switch is off.  When transporting the generator should be fixed firmly to prevent rollover. ...
  • Page 26: Troubleshooting

    Drain oil Remove the spark plug, pour a tablespoon of clean engine oil to the cylinder, pull the handle several times to start bulk oil spill, and then install the spark plugs Slowly pull the handle to feel the pressure, at that time, the piston being raised to the top of its compression stroke and the exhaust valves are closed.
  • Page 27 Note  If this is the first time adding oil and oil replacement and the generator cannot be started, pull the starting handle until the oil warning light flashes. Shake the generator side to side a few times to ensure that the oil alarm floats. If you still can not start the generator, please follow the above troubleshooting methods to troubleshoot.
  • Page 28 Generator connected device does not start Output indicator lit? Return the unit to dealer Overload indicator lit? 理 Shutdown after overload indicator light goes out or press the reset button Check whether the electrical again to start the generator equipment is faulty? Return the unit to dealer 1)...
  • Page 29: Specifications

    12. Specifications Model 1000 1350 2000 2200 2600 3600 Rated voltage 100V/110V/120V/220V/230V/240V Frequency 50Hz/60Hz D. C. Output 12V 5A 12V 5A 12V 8A 12V 8A 12V 8.3A 12V 8.3A Generator Rated power output 0.9KW 1.1KW 1.7KW 2.0KW 2.3KW 3.1KW Max. power output 1.35KW...
