OWNER'S MANUAL
Pantone 802C
Professional Jumpstarter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIGRIG PRO 16L and is the answer not in the manual?

Questions and answers

Summary of Contents for JUMPBOX BIGRIG PRO 16L

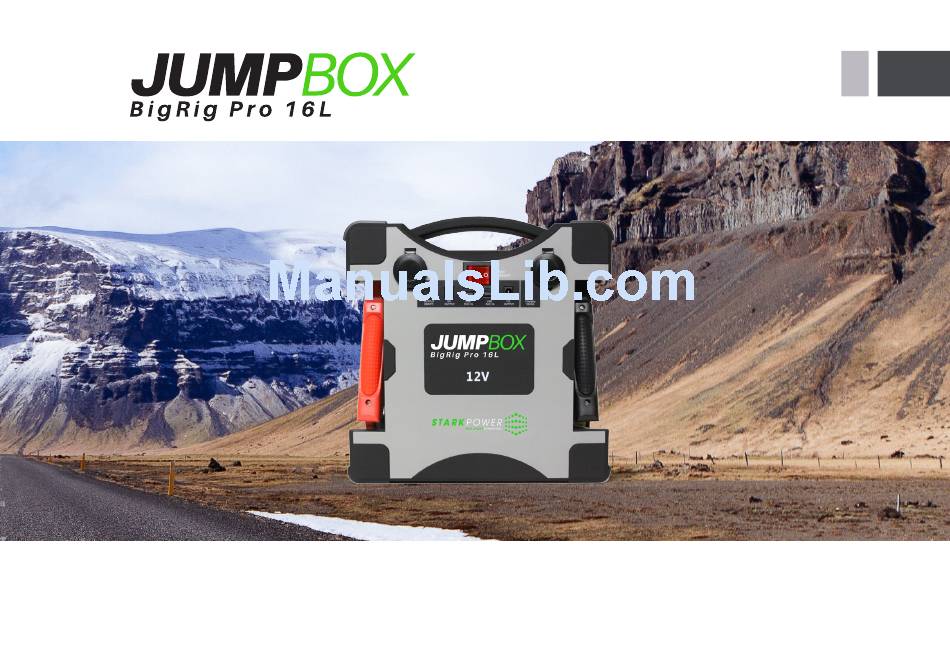

  • Page 1 OWNER’S MANUAL Pantone 802C Professional Jumpstarter...
  • Page 2 Thank Thank You for choosing Stark Power. The JumpBox BIGRIG PRO 16L is a professional, portable jumpstarting solution. Performance and safety are paramount in this revolutionary product. Our goal is to provide the ultimate jumpstarting and charging device that gives freedom and security to drivers.

  • Page 3: Table Of Contents

    BIGRIG PRO 16L Manual Table of Contents Page 1. Introduction Page 2. Important Notes Page 3. General Information Page 4. Charging Information Page 5. What’s inside Page 6. Technical Specifications and Features Page 7 Panel & LED Display Page 8. Jumpstarting Guide Page 9.

  • Page 4: Important Notes

    • The BIGRIG PRO 16L is designed to start large diesel trucks up to 16L in a variety of conditions. There are variables such as extreme outdoor temperatures and truck mechanical issues (bad starter, no fuel or engine problems) that may limit the BIGRIG’s ability to start an engine.
  • Page 5 BIGRIG PRO 16L Manual wherever the road takes you! Power Pantone 802C...
  • Page 6 BIGRIG do? What Designed Specifically for 12V 16 Liter Big Rig Trucks The JumpBox BIGRIG PRO 16L is engineered to jumpstart the largest 12V diesel engines on the road, up to 16 liter. This device can also be used on smaller 12V gasoline or diesel vehicles.

  • Page 7: Jumpstarting Guide

    Turn the MAIN ON/OFF switch to the Turn the MAIN ON/OFF switch to the “ON” The BIGRIG PRO 16L jumpstarts diesel “ON” position. Insert the 40cm adapter position. For charging electronics like smart and gasoline powered engines up to 16.0 cable into the 5.5 mm round output port...
  • Page 8 Power for your accessories on the go! 312x 121x smart watch Music Player camera Pantone 802C Charges Charges Charges BT speaker Cell phone Charges charges Tablet E-Book Reader Laptop charges charges charges...
  • Page 9 BIGRIG PRO 16L Manual when you need it Power BIGRIG PRO 16L can charge a: Smart Watch with a 205 mAh battery 312 times Music Player with a 525 mAh battery 121 times Camera with a 1650 mAh battery 38 times...
  • Page 10 What’s The BIGRIG PRO 16L is equipped with everything you need to safely operate and charge your unit at work, home and on the road. The connectors required to charge most phones, electronic accessories and laptops are included. An 18V 100-240VAC wall charger and an 18V DC Cigarette port charger are provided to charge your unit.
  • Page 11 Safety Powering Charging accessories The BIGRIG PRO 16L is a professional The BIGRIG PRO 16L is equipped with The BIGRIG PRO 16L is equipped with grade jumpstarter. The unit should be an 18V 100-240VAC Power Wall Charger two USB ports and a high quality braided...
  • Page 12 Technical JumpBox Unit Dimensions: 10.93” (H) X 4.33” (W) X10.78” (L) 12V DC Aux power 277.6mm (H) X 110mm (W) X 274mm (L) Main ON/Off Switch Unit Weight: 11.15 lbs (5060 grams) Battery type: Lithium Ion Cobalt LED Display Capacity: 236.8 Watt-hours (236,800 mWh)
  • Page 13 BIGRIG PRO 16L Manual...
  • Page 14 Illuminates when the unit is on Use the 18V 100-240VAC Wall charger to charge your BIGRIG PRO 16L. (16V Max) Press and hold the OUTPUT ON/ Note: The LED display and ON/OFF switch OFF button until it beeps and the “16V”...

  • Page 15: Led Display

    BIGRIG PRO 16L Manual LED display JumpBox Press and hold the OUTPUT Displays the BIGRIG PRO 16L’s ON/OFF button until it beeps and percentage charge except when Percentage AC Aux Out the “16V” indicator lights on the a USB port is first used and the...
  • Page 16 B. Place the BIGRIG PRO 16L on a flat surface and turn the MAIN ON/OFF to the ON position, ensuring that the BIGRIG PRO 16L has at least a 50%...
  • Page 17 Manual 3. Make Connection A. Disconnect the Red clamp and the Black clamp from the BIGRIG PRO 16L docking station. Note: LCD should be flashing red and green “8”s (search for battery mode) B. Use the jump port if you vehicle is so equipped, otherwise connections will be made on the battery.

  • Page 18: Warranty

    Warranty Limited warranty One year Period of Coverage: This product is warranted to the original purchaser from the original purchase date for one (1) year and is subject to the Warranty Coverage described herein. Registration is required for warranty coverage. Registration can be found on our website at: www.starkpower.com.
  • Page 19 BIGRIG PRO 16L Manual Customer Commitment At StarkPower, we are committed to offering you the best value in the marketplace. If you have any questions or concerns, do not hesitate to contact us. If you need repair service please contact us via phone or our website to make arrangements.
  • Page 20 WARNINGS Read the entire manual before attempting to use this product. 1. Keep out of reach of children. 2. Do not damage, drop or crush this product. Do not attempt to use this product if it has been dropped, punctured, run over or damaged in any way including damage to the clamp or cables.
  • Page 21 DO NOT INTENTIONALLY SHORT THE JUMPER CABLES Your BIGRIG PRO 16L is equipped with short-circuit protection in the event you accidentally short-circuit the jumper cable. Do not intentionally short-circuit the jumper cables.

  • Page 22: Quickstart Guide

    Quickstart Guide...
  • Page 23 BIGRIG PRO 16L Manual...
  • Page 24 Step Step Step three Secure unit with safety strap Turn the main BIGRIG PRO 16L Once you have started your through top handle and place unit Power switch to the ON position engine, turn off the BIGRIG PRO on a flat surface before use. Next,...

  • Page 25: Notes

    (bad starter, no fuel or engine problems) that may limit the BIGRIG PRO 16L’s ability to start an engine. The BIGRIG PRO 16L is designed to instantaneously start a truck battery in a low voltage condition (5V and up).
  • Page 26 Troubleshooting Guide Activation LED Jumpbox Cable Alarm? JumpBox Indicator (8’s)? ON/OFF? Charged? Is there a beeping Make sure that BIGRIG Ensure that the MAIN Is the LED blinking red indicator alarm during PRO 16L has at least 50% ON/OFF power switch is to green or a solid red or connection? Red “8”...
  • Page 27 BIGRIG PRO 16L Manual Clean terminals? Jump Start Short battery? “Dead”? Port? Make sure that the Does your truck have If the battery is sulphated, If the lead acid battery terminals are free of a jump start port it will be shorted and will is completely dead;...
  • Page 28 Indicators 12V 16V 19V 5V 2.1A Normal Screen Red and Green “8” Green “8”, Alarm: Red “in” symbol Long Single Beep flashing Normal On/Off Screen. Search Mode: The unit is Unit sensed a current The unit is Plugged in Hold output on/off for searching for a battery and activated.
  • Page 29 Manual Important The BIGRIG PRO 16L is designed to instantaneously start a truck battery in a low voltage condition (5V and up).  Though the BIGRIG does have “Hyperboost” energy transfer capability for a very limited time, it is NOT designed as a energy transfer device for long duration. Trucks/vehicles with other mechanical issues (i.e. bad starters, no fuel,  ...
  • Page 30 Personal Notes...
  • Page 31 BIGRIG PRO 16L Manual Need Assistance? Please contact customer service at 800-587-9940 or starkpower.com...
  • Page 32 www.starkpower.com Customer service at 800-587-9940 info@starkpower.com Stark Power, Inc. P.O. Box 2588, Davidson, NC 28036 Designed in the USA Made in CHINA US Patent number 9412994...
