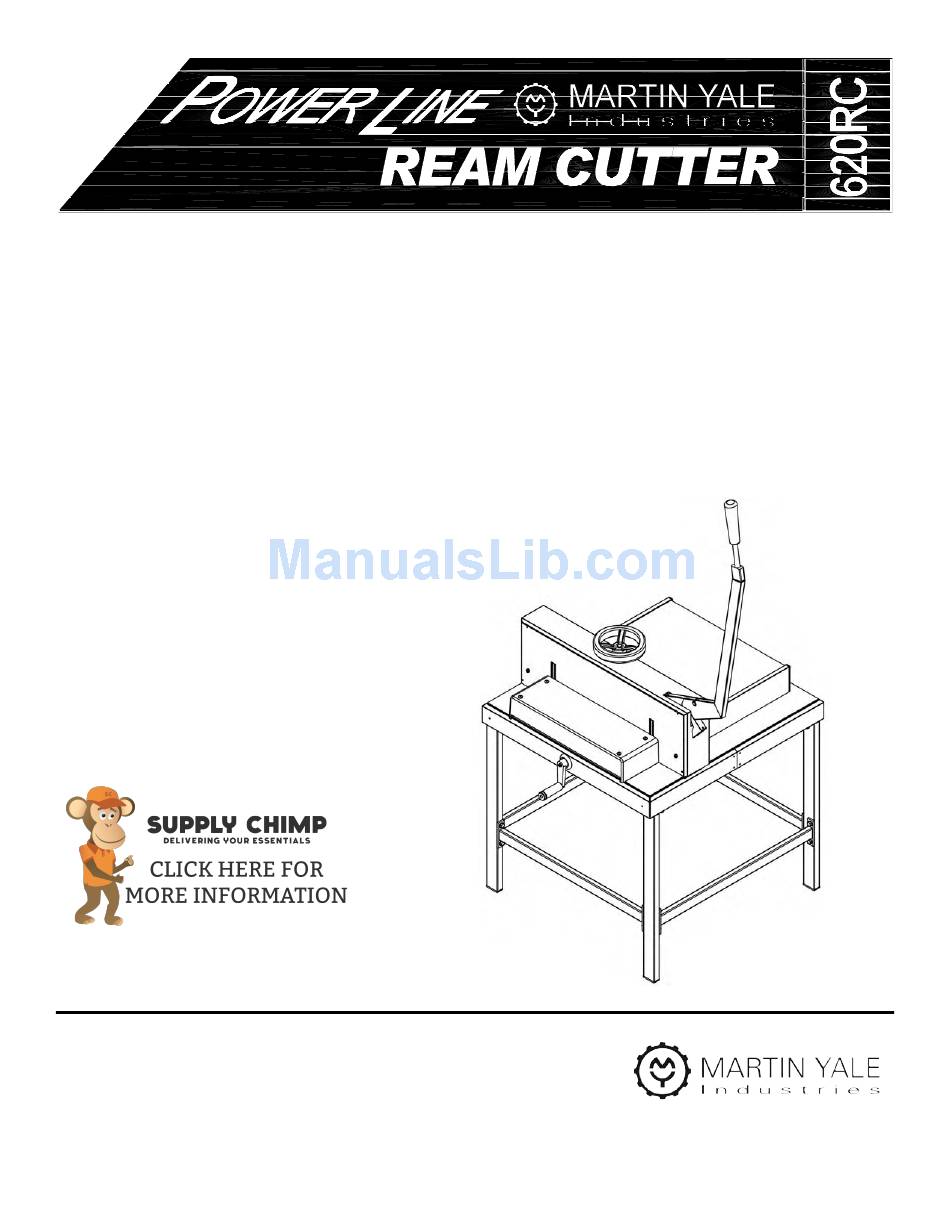

  • Page 1 User’s Guide 620RC 18” Manual Ream Cutter Martin Yale Industries, Inc. is a manufacturer of office equipment forms and document handling products, paper trimmers, and graphic arts prod- ucts for the printing professional and modern electronic publishers.

  • Page 2: Table Of Contents

    Serial # ____________________ INTRODUCTION Thank you for selecting the Martin Yale PowerLine Model 620RC Ream Cutter. The Model 620RC will cut many varieties of paper and light cardboard and is designed to provide a high level of safety, accu- racy, flexibility, and ease of operation. With recommended maintenance, the unit will provide years of trouble-free service.

  • Page 3: Nomenclature

    https://www.supplychimp.com/ NOMENCLATURE 1. Safety cap 2. Blade lever 3. Blade locking device 4. Blade 5. Blade fastener 6. Cutting stick 7. Front safety guard 8. Clamping wheel 9. Cover 10. Blade adjustment 11. Back gauge crank 12. Back gauge 13. Side gauge with scale 14.
  • Page 4 https://www.supplychimp.com/ 6. Cutting stick Made of tough plastic, the cutting stick is exchangeable. It may be used two times on each side (total 8 times). 7. Front safety guard The front safety guard must be lowered before each cutting operation. Only then will the blade locking device be released.

  • Page 5: Intallation

    5. Fit two batteries (size D) into the battery holder on the underside of the chassis. OPERATION Do not attempt to operate the 620RC until you have read and thoroughly understand this manual. The following procedure should be followed when loading, cutting, and unloading paper from the 620RC.

  • Page 6: Blade Sharpening

    When this condition occurs, rotate the cutting stick, or replace, if necessary. The design of the Model 620RC cutting stick allows rotation to eight cutting locations. (The stick may be rotated to four surfaces and reversed from end to end.) To rotate the stick proceed as follows:...

  • Page 7: Blade Replacement

    https://www.supplychimp.com/ Blade Replacement Instruction WARNING! The cutting blade is extremely sharp. Serious bodily harm can result from mishandling. Remove the safety cap. Move the blade lever to its topmost position. Remove the screw (F) on the clamp wheel and detach the wheel from the chassis.
  • Page 8 https://www.supplychimp.com/ Fig. 6 (15) Replace blade screws (C) and (E). Remove the Fig. 7 blade holders. Replace blade screws (B) and (D). (16) Return the blade lever to its starting position and lock it. (17) Screw in blade screw (A). (18) Using the blade lever, lower the blade carefully down to the cutting stick.
